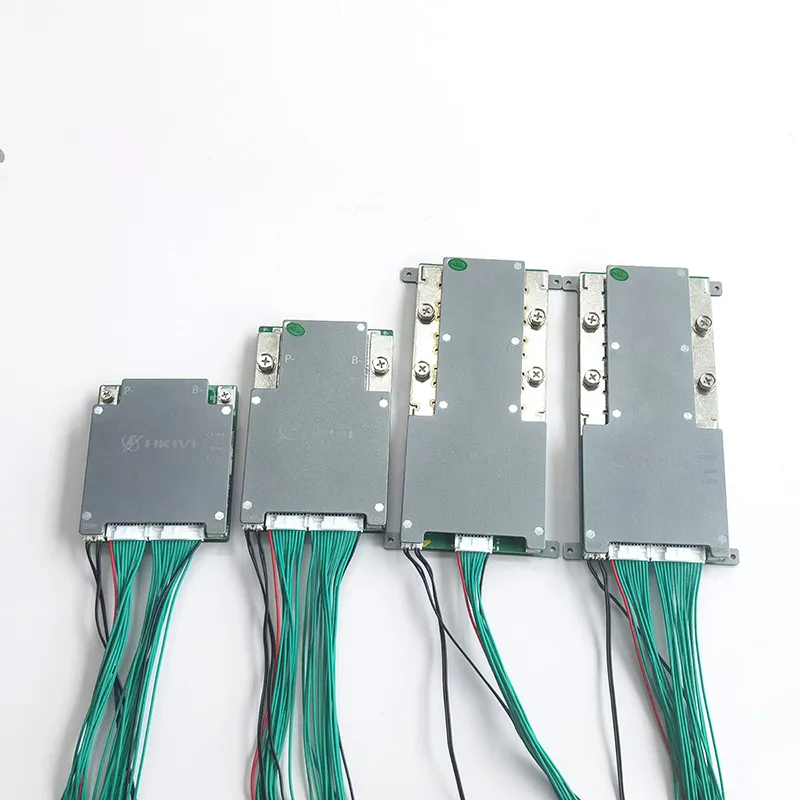

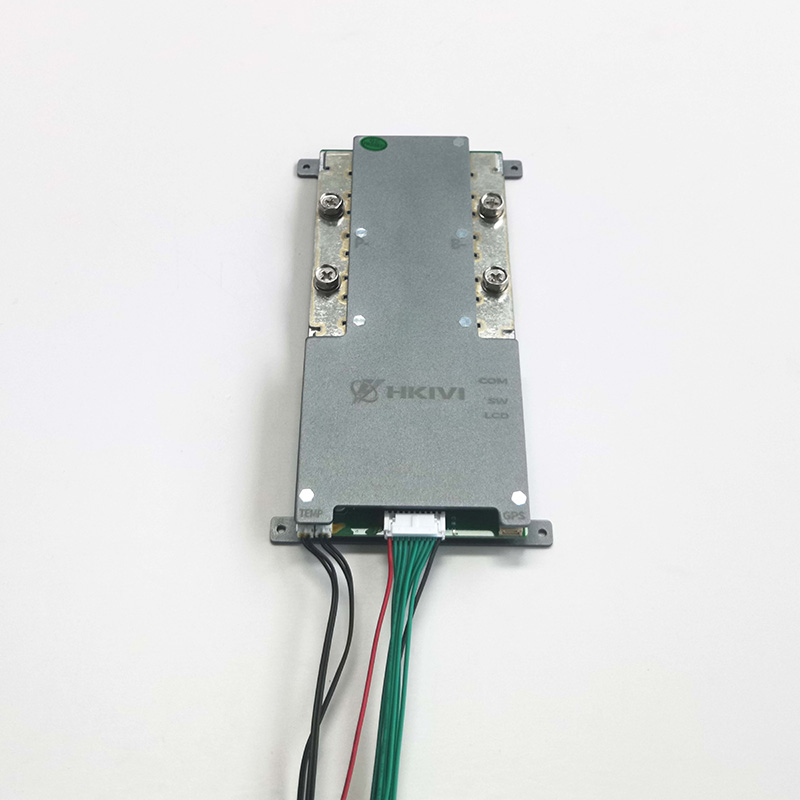

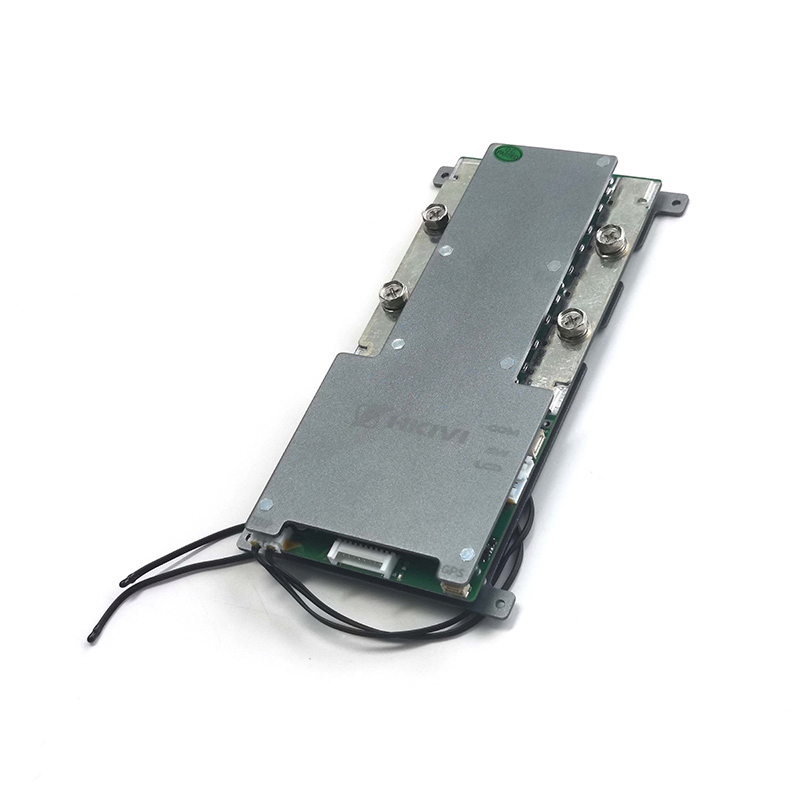

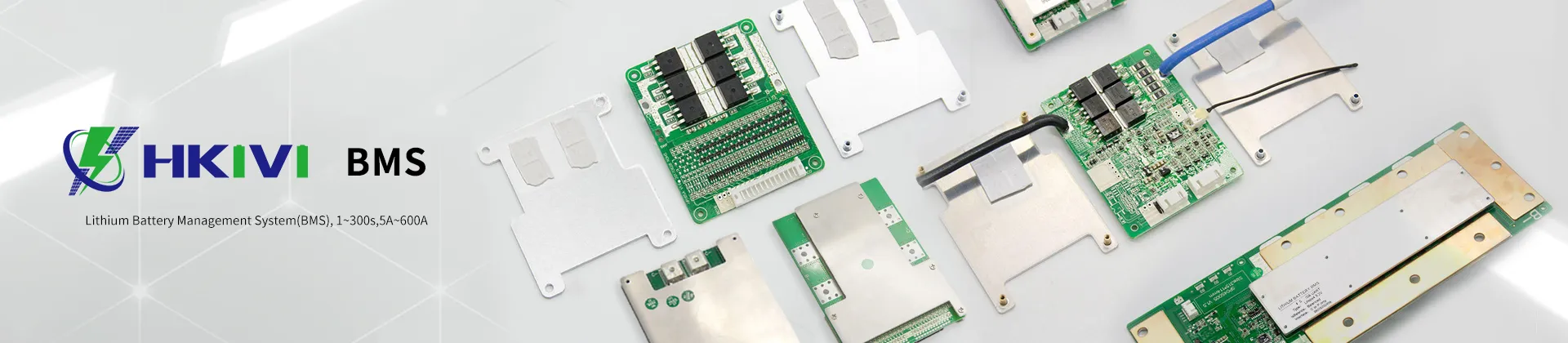

Note: Lithium battery intelligent protection board is a management system designed for series-connected lithium battery packs. It features voltage acquisition, active voltage difference equalization management, overcharge protection, over-discharge protection, over-current protection, over-temperature protection, Bluetooth communication, and capacity calculation.
The external interface includes RS485 communication, CAN communication, GPS remote communication, and display screen support. It is widely used in mobility scooters, small sightseeing cars, tricycles, high-power energy storage, and starting power supplies.
Making Lithium Batteries Safer

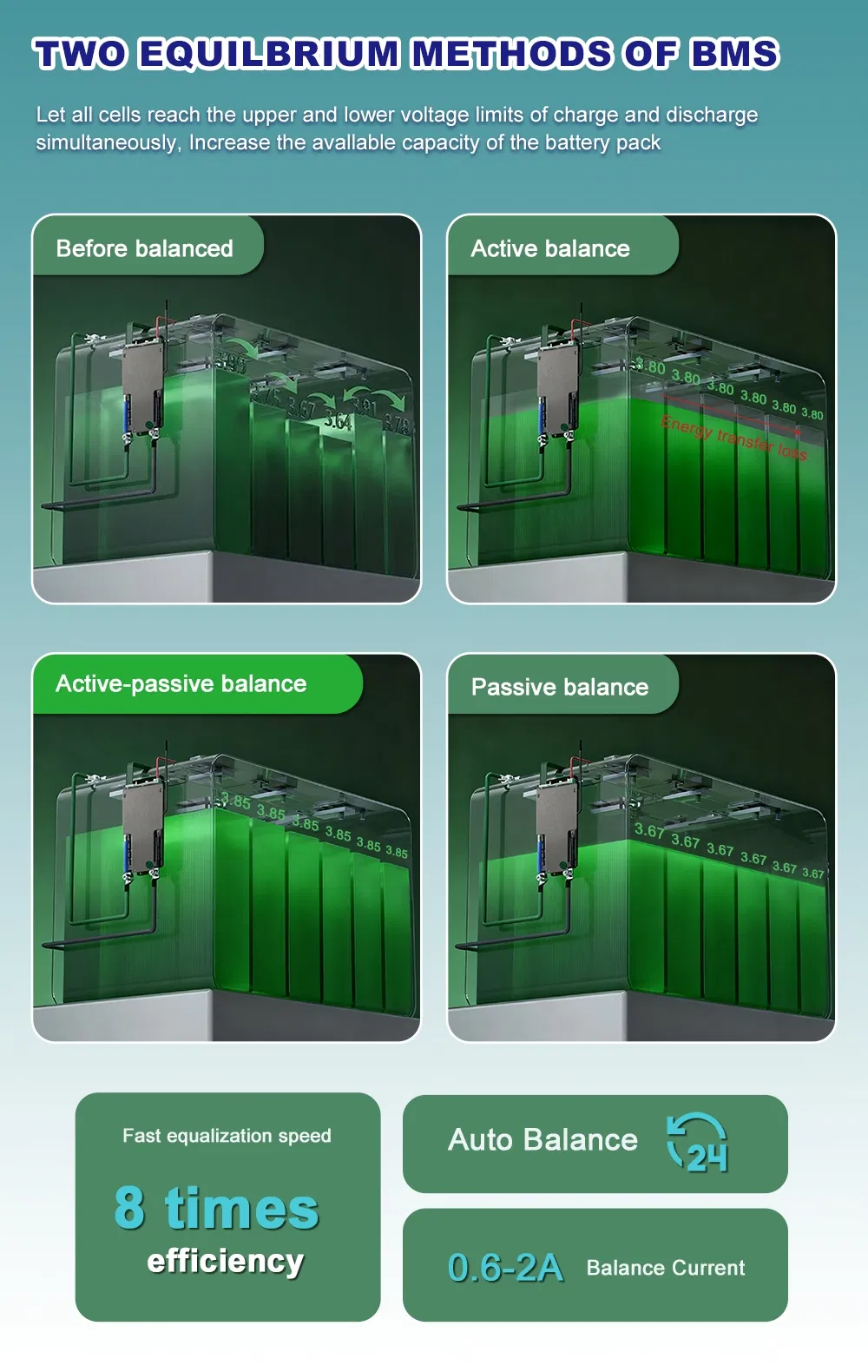

BMS systems protect batteries from deep discharge and over-voltage caused by extreme fast charging or high discharge currents. For multi-cell batteries, the system provides cell balancing to ensure all cells maintain consistent charging and discharging levels.
| Technical Indicators | A624S100A | A624S150A | A624S200A |
|---|---|---|---|
| Li-ion Strings | 10~22 | 10~22 | 10~22 |
| LiFePO4 Strings | 10~24 | 10~24 | 10~24 |
| Balance Method | Active and Passive Balance (0.6A) | ||
| Continuous Discharge | 100A | 150A | 200A |
| Max Discharge | 180A | 300A | 400A |
| Voltage Range | 1.5-5V | ||
| Accuracy | ±3mV | ||
| Temp Detection | 3 Points | ||

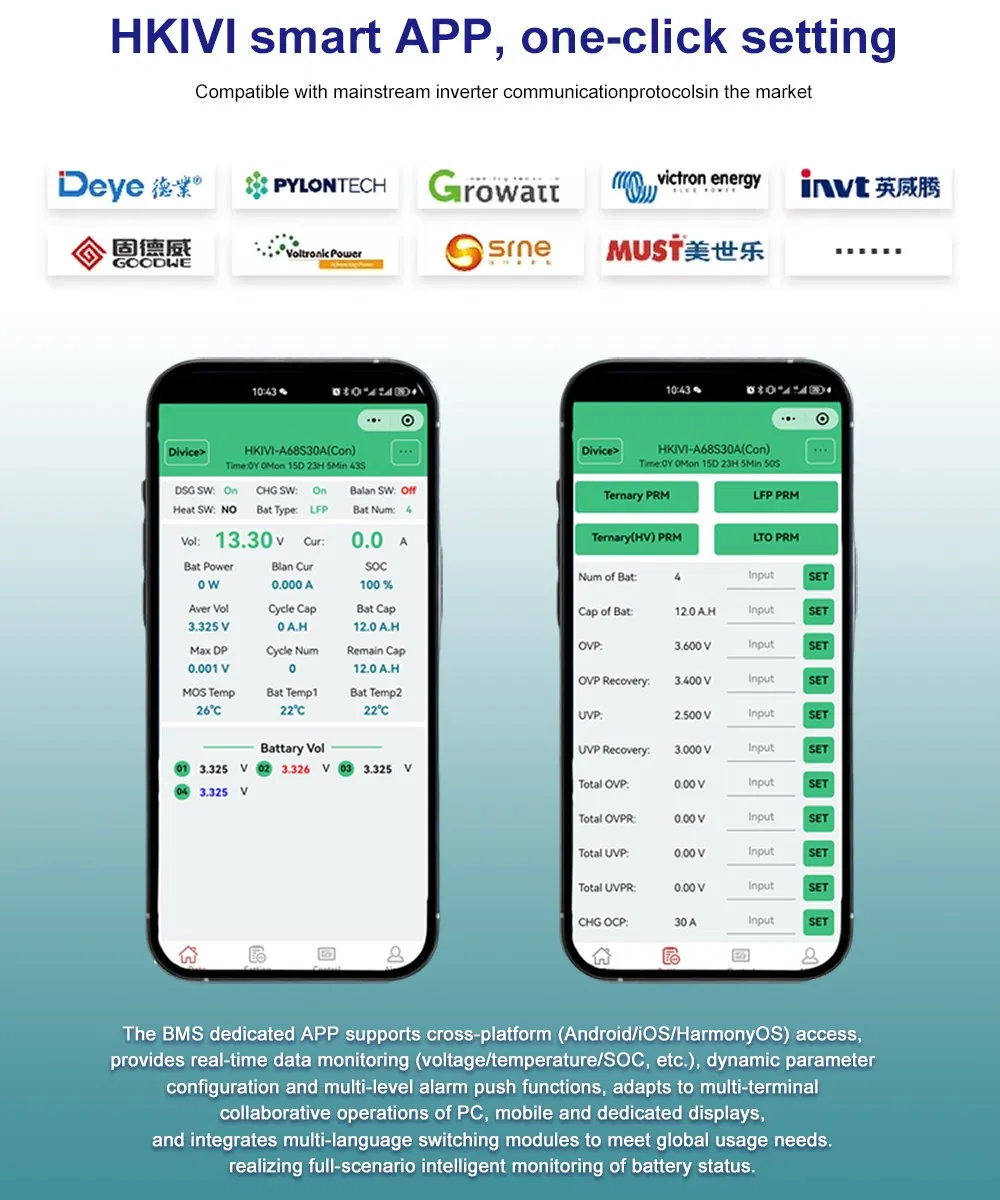

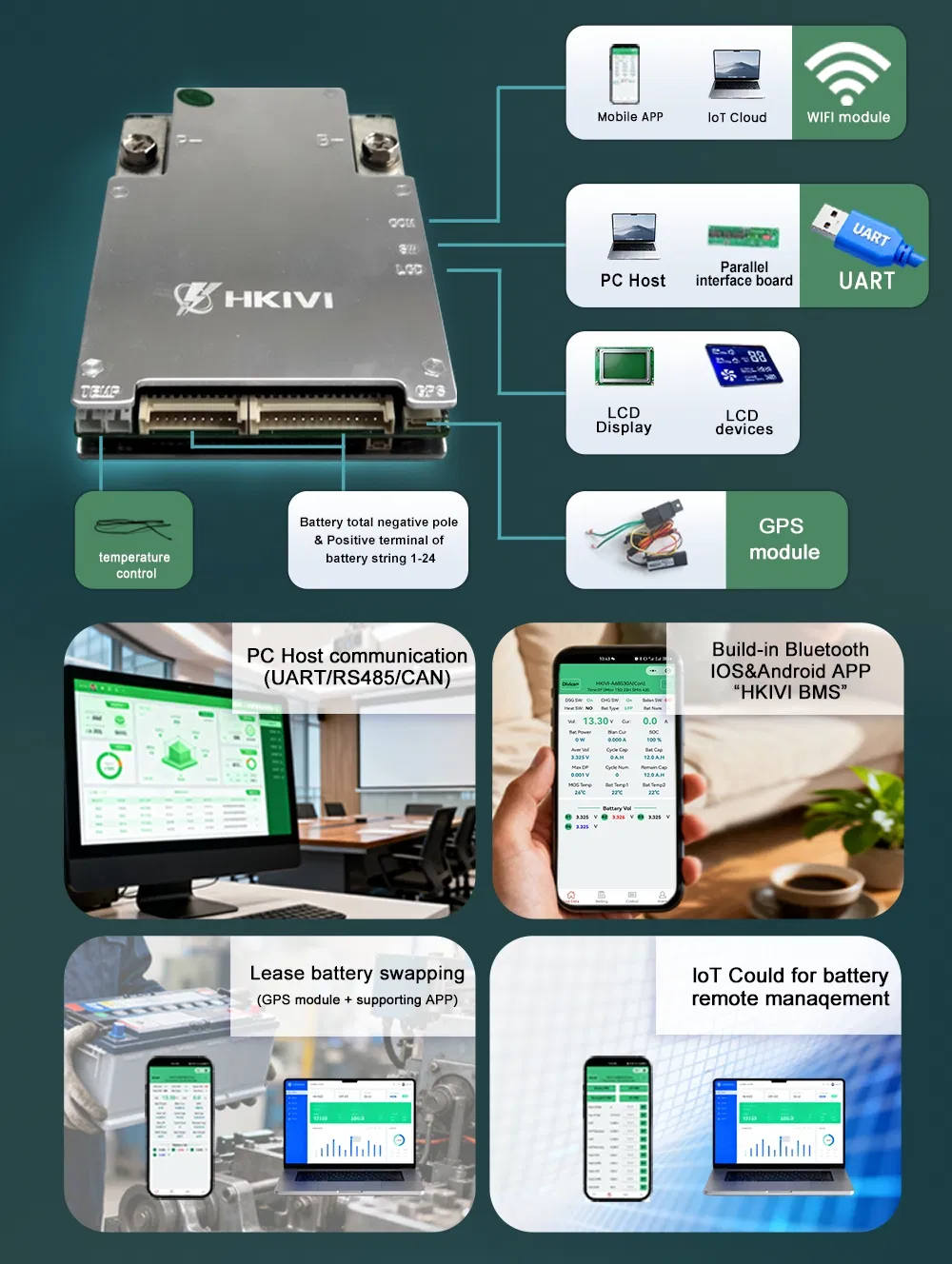

| Interfaces | Bluetooth, RS485, CAN (Optional), GPS, Display | ||

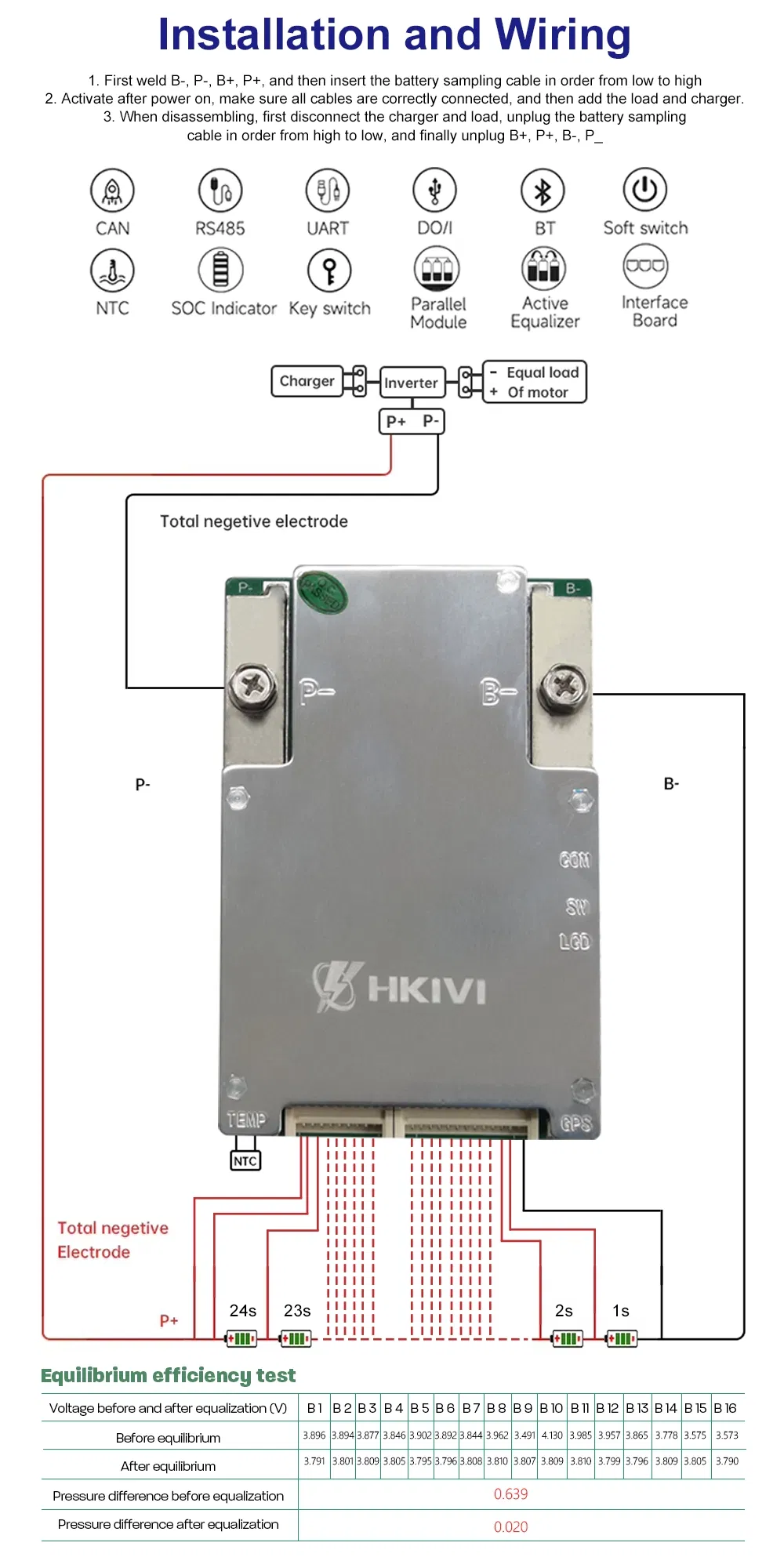

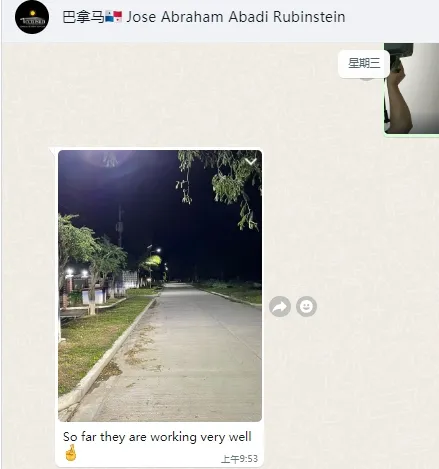

Installed and working perfectly (After-sales installation guidance available)
