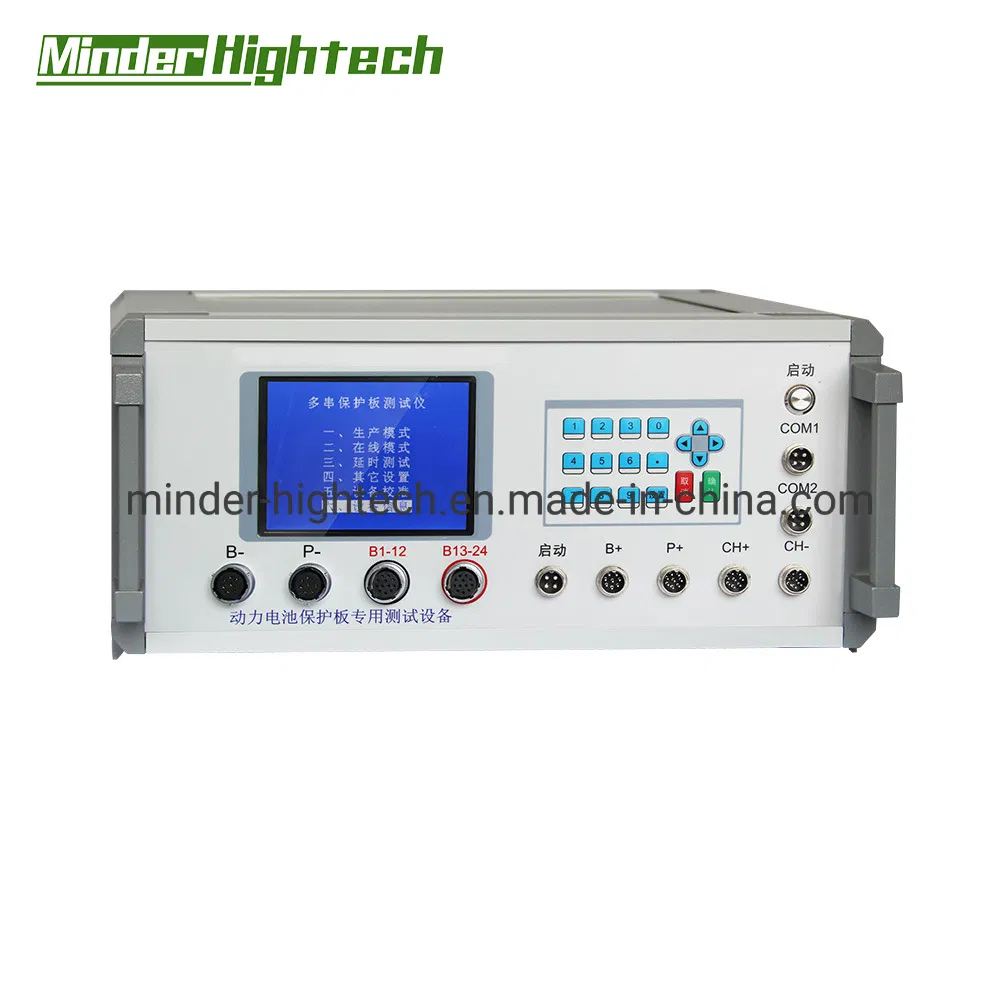

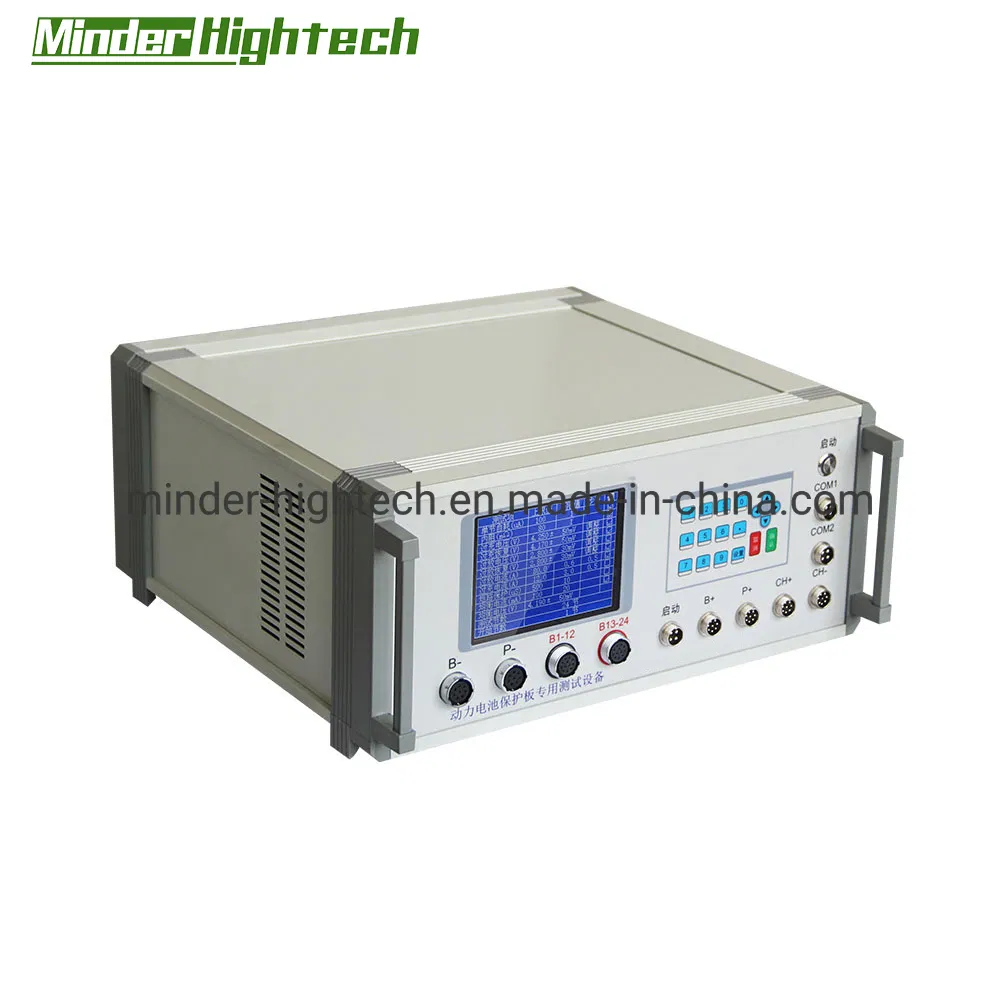

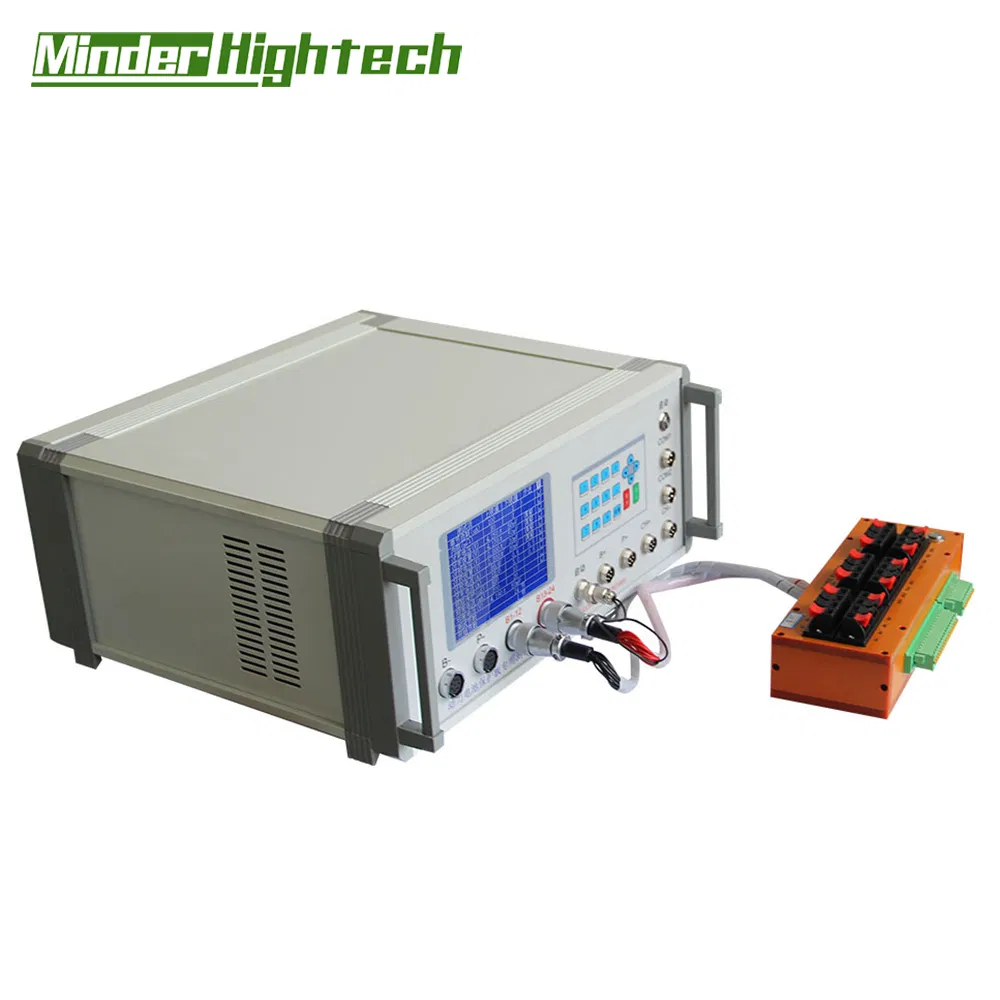

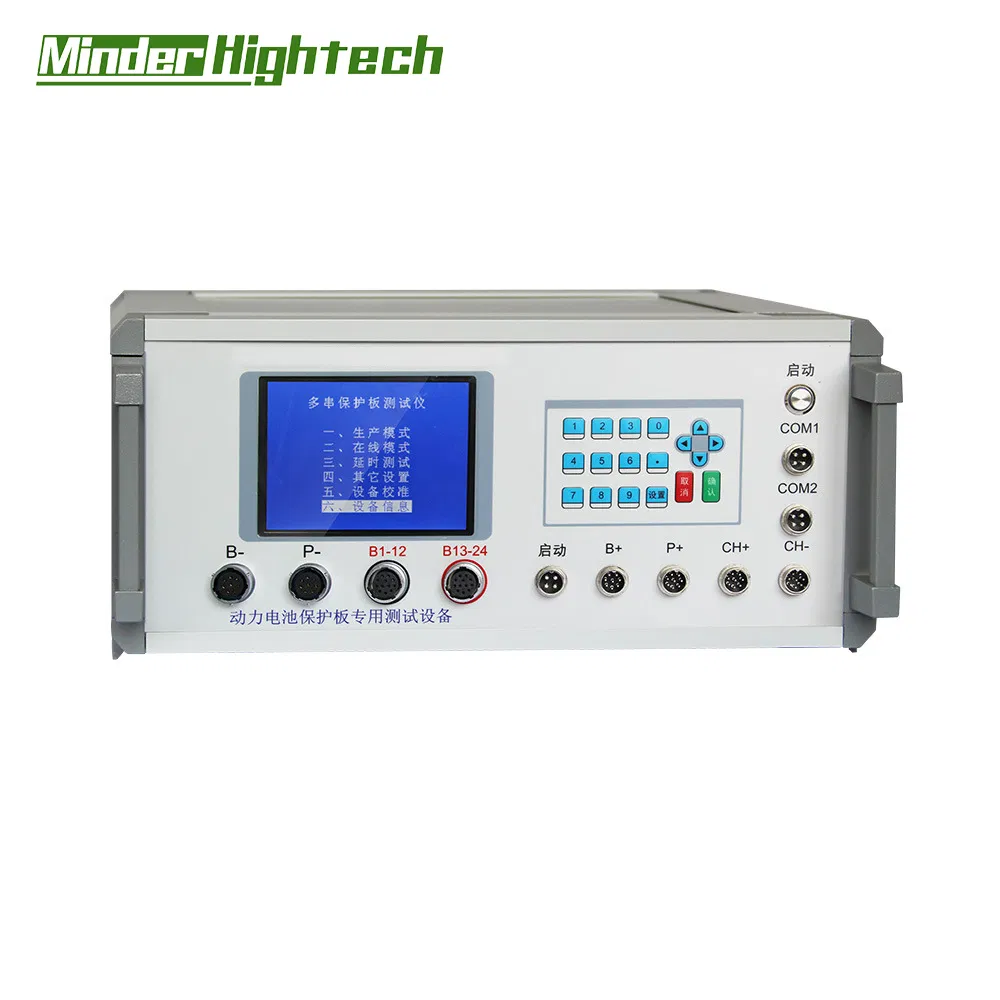

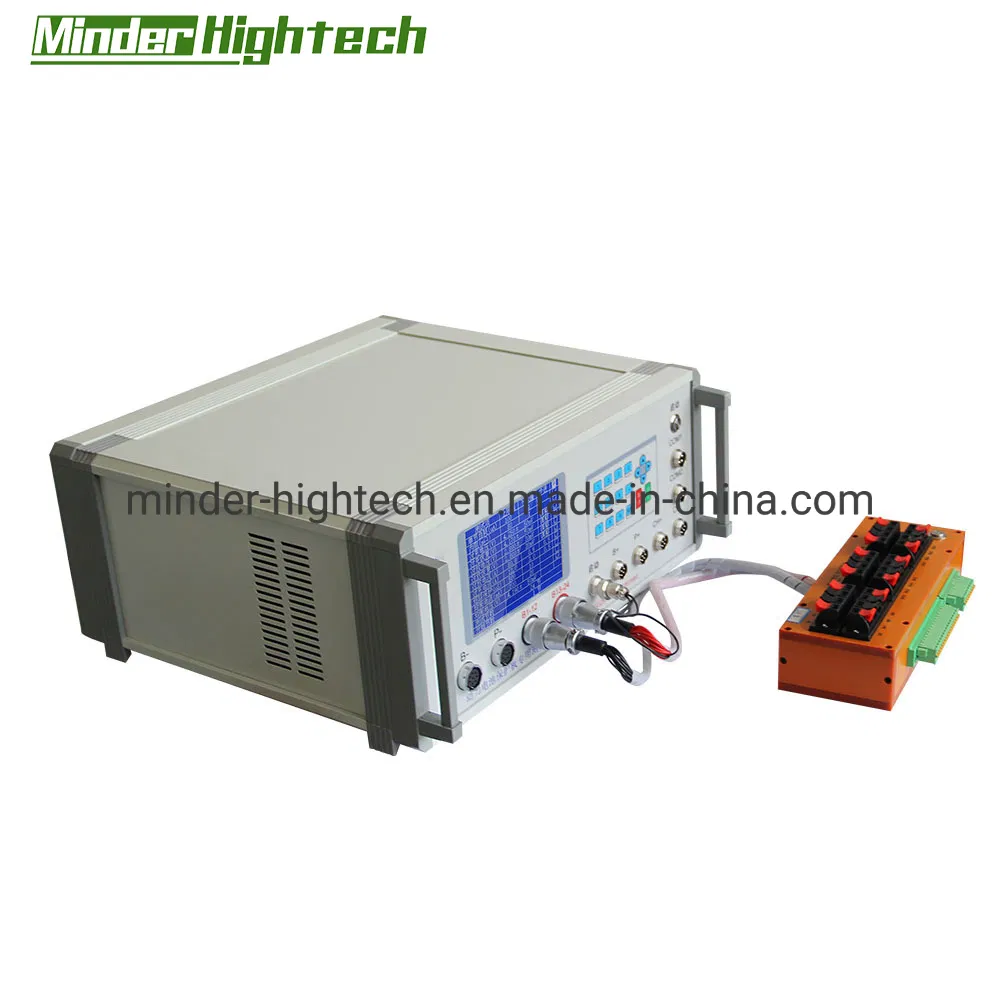

1-24-32 Series Lithium Battery Pack Protection Panel Test Equipment Instrument Laptop Car PCB Board BMS Tester

Basic Information

Model NO.

MD

Type

Batteries Monomer Tester

Test Region

Internal Resistance

Customized

Available

Transport Package

Standard Export Wooden Case Packing

Specification

1500mm*650mm*1200mm

Production Capacity

100 Pieces/ Month

Product Description

The 1-24 series multifunctional protection board tester is mainly used to detect whether the various functional indicators of the power battery protection board are within the parameter range, so as to provide a set of testing standards for the staff.

Application

1-24 Series Power Lithium Battery Protection Board BMS Tester Testing Machine

Core Features

1. Product Stability Single-point independent constant current and constant voltage power supply, complete protection functions, stable operation, selected materials, and fast inspection speed.

2. Technical Excellence Adopted feeder-type energy-saving mode design with high efficiency. High standards for linearity, accuracy, and speed, with easy expansion for maintenance and upgrades.

3. High Accuracy Designed with the international four-wire principle to avoid internal resistance superimposition, ensuring more precise test results.

4. Flexible Protection The control system automatically closes channels during low voltage, undercurrent, overvoltage, or overcurrent to protect the battery and device.

5. Cost-effective Strong technology and professional management ensure high performance indicators and product quality with competitive advantages.

6. Reliable Support Comprehensive product guarantee for one year with dedicated technical support.

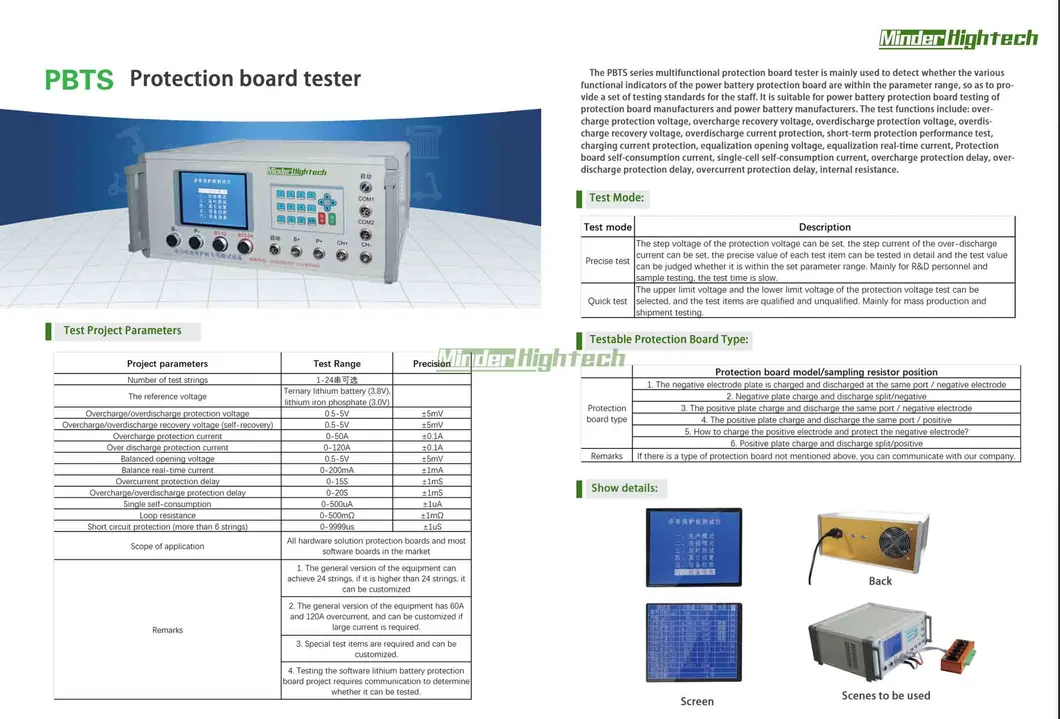

Machine Parameters

Parameter	Test Range	Accuracy
Number of Testing Series	1-24 series optional	-
Voltage Reference	Ternary Battery: 3.8V; Lithium Battery: 3V	-
Overcharge/Overdischarge Protection Voltage	0.5-5V	±5mV
Overcharge/Overdischarge Voltage	0.5-5V	±5mV
Overcharge Protection Current	0-40A	±0.1A
Over-discharge Protection Current	0-120A	±0.1A

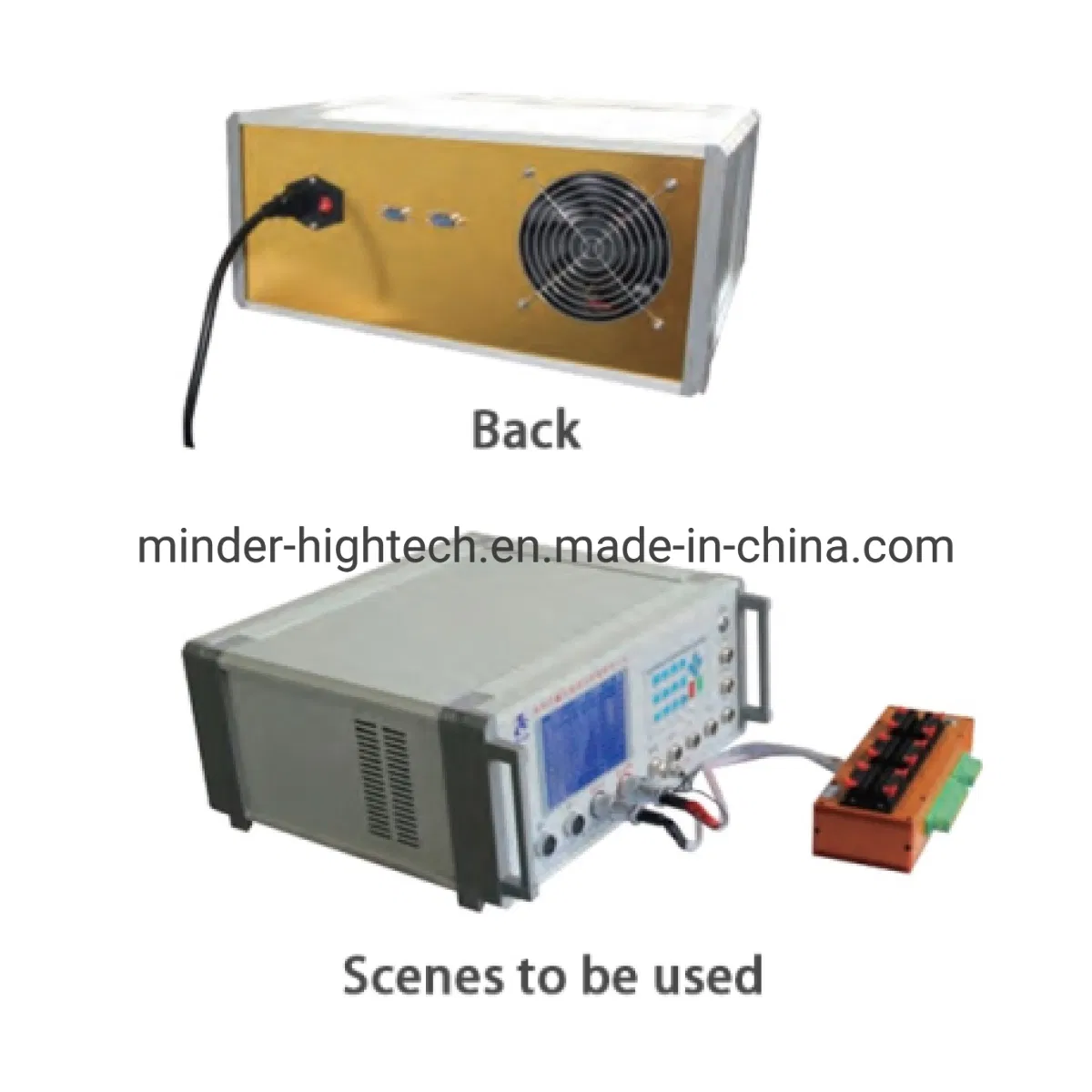

Product Details

Frequently Asked Questions

Q: How can I purchase your products?

A: For products in stock, delivery can be arranged immediately after payment. If not in stock, production will commence upon receipt of payment.

Q: What is the warranty period for the equipment?

A: We offer a one-year free warranty starting from the date of qualified commissioning.

Q: Is it possible to visit your manufacturing facility?

A: Yes, you are welcome to visit our factory. Please coordinate with us if you are traveling to the area.

Q: How long is the price quotation valid?

A: Generally, our quotations are valid for one month. Prices may be adjusted based on fluctuations in raw material market costs.

Q: What is the standard lead time for production?

A: The production timeline depends on the quantity. For mass production, it typically takes about one week to complete.

Q: Why are the test results of this machine highly accurate?

A: Each fixture is designed using the international four-wire principle, which eliminates the interference of the tester's internal resistance from the battery's measurement.
