⚡ Basic Information
Charger Application:Standard Battery
Nominal Voltage:12V
Charger Style:Quick Charger
Compatible Battery:18650
Size:170*90*63mm
Certification:TUV, CB, CE
Usage:Electric Tricycle Scooter
Input:110V/240V 50/60Hz
Output:29.4V 10A / 13A
Power:300W

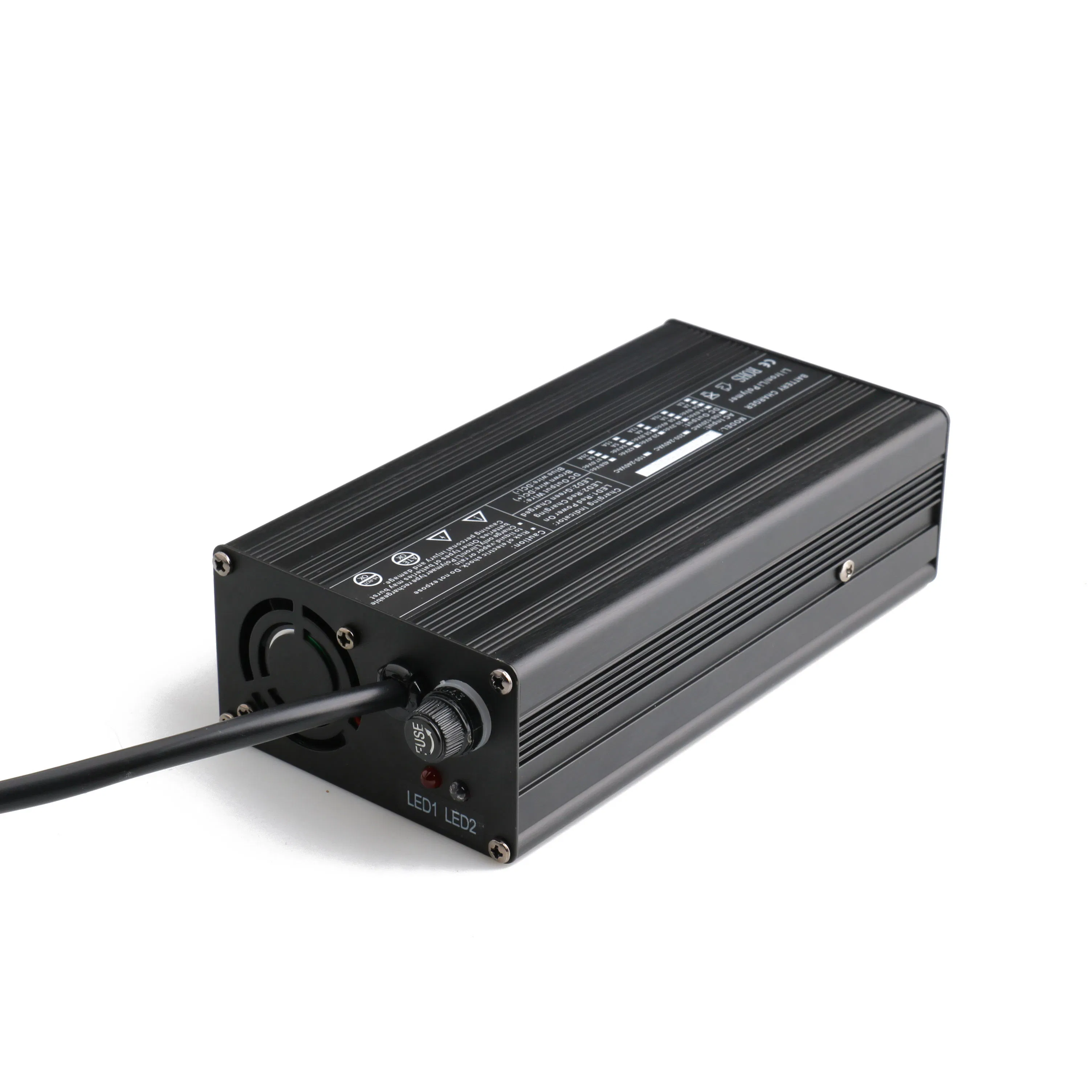

LED Indicator:Red (Charging), Green (Full)
Function:Automatic Charge
📦 Product Description

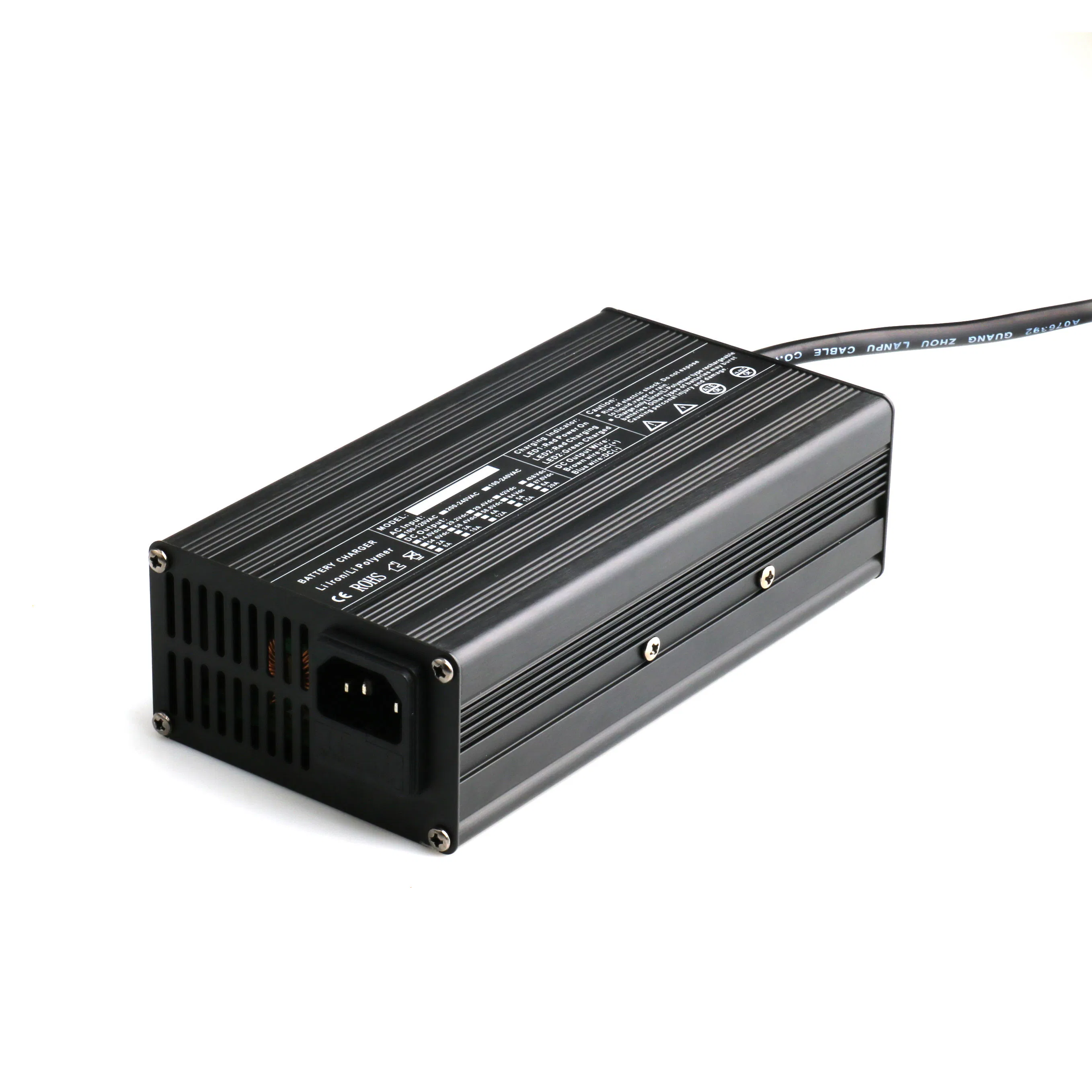

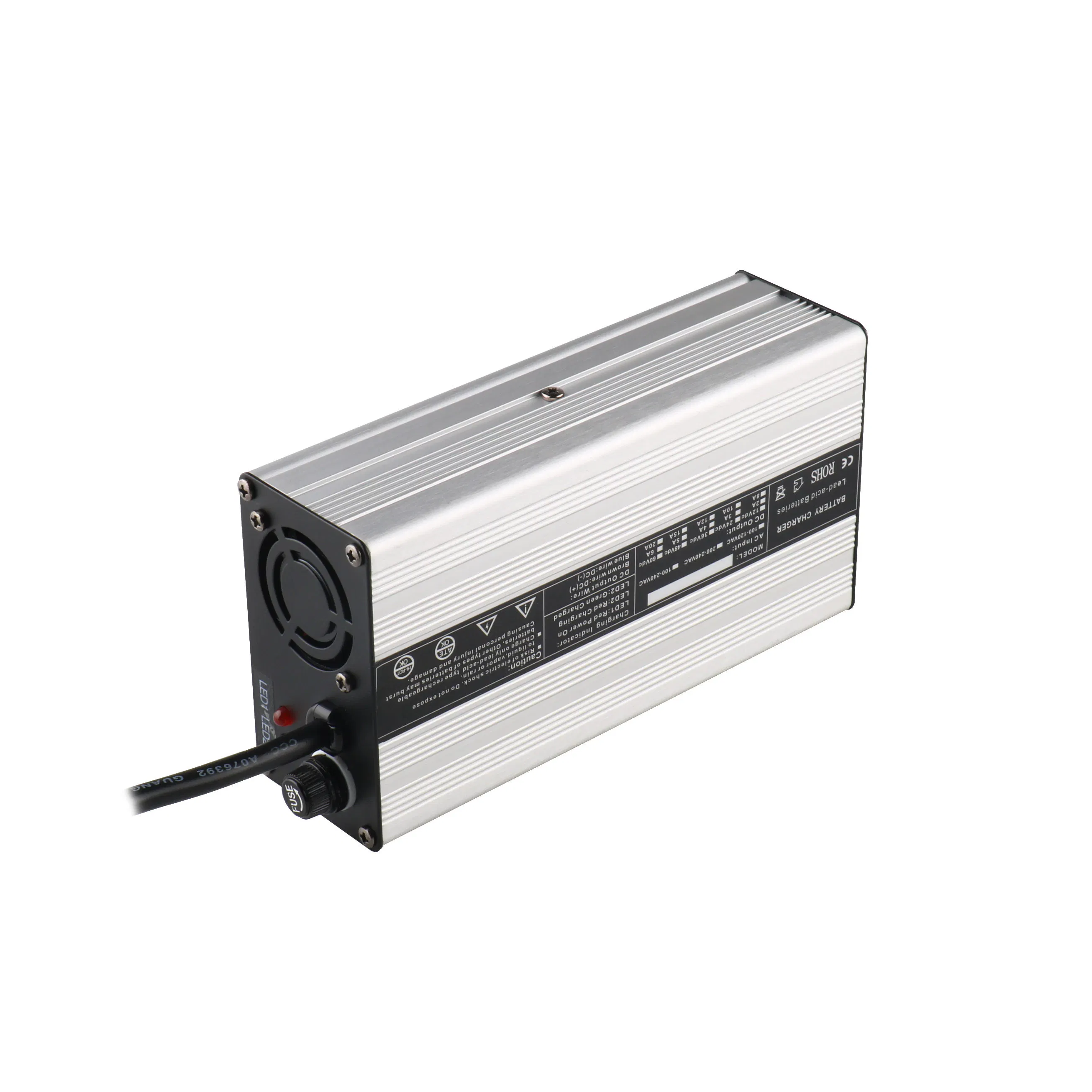

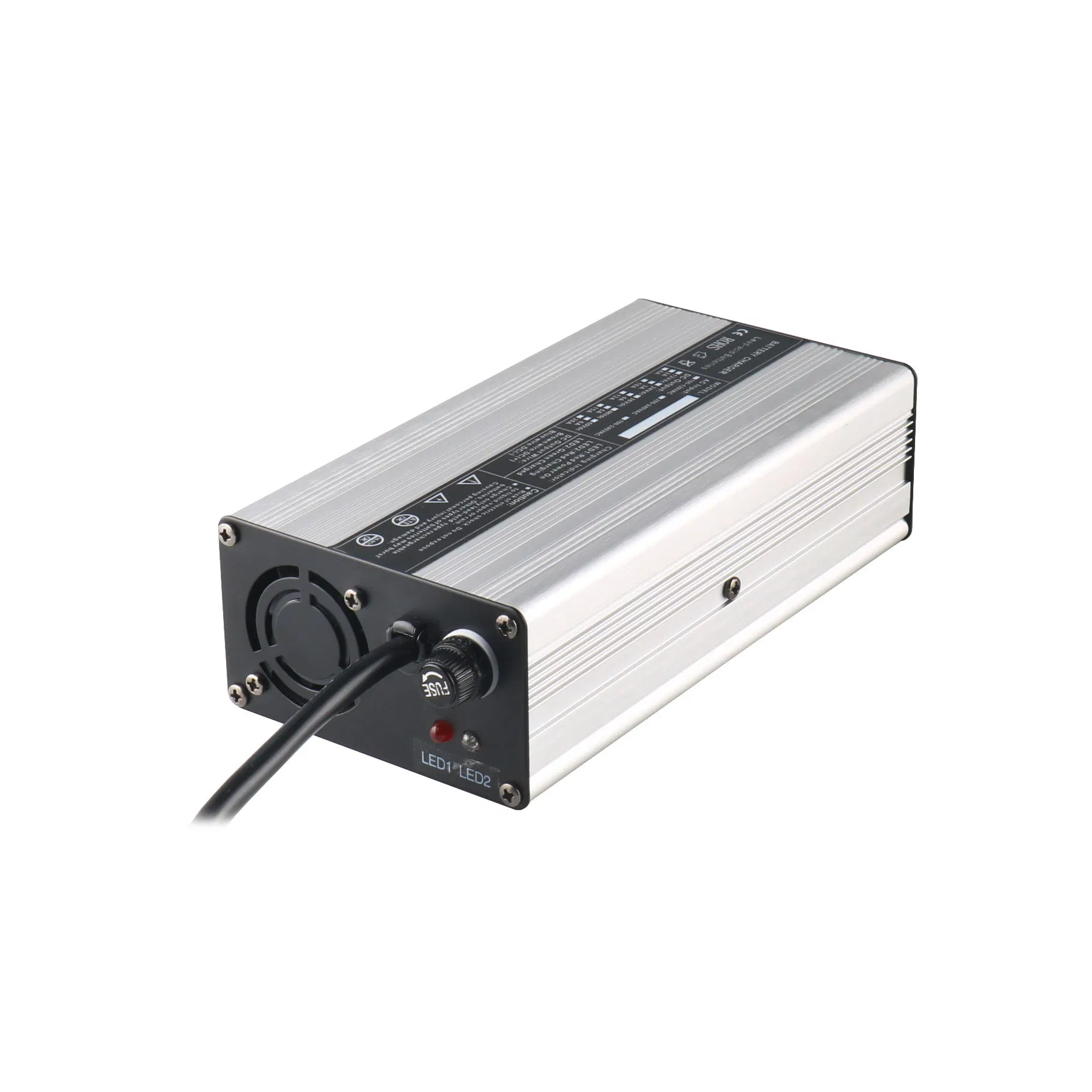

Introducing the high-performance fast charger, perfect for electric scooters and tricycles. This versatile charger is compatible with lithium-ion and lead-acid batteries, offering a robust input range from 100-240Vac at 47-63Hz. Its sleek aluminum casing houses a sophisticated charging solution, adaptable with global plug options including EU, US, UK, AUS, JP, Korea, Italy, Brazil, India, and South Africa. Delivering an output of 4.2v per cell, it supports multiple configurations: 24v/29.4v at 10a or 13a. The intelligent CC--CV charging mode, highlighted by an LED Indicator, ensures a flawless transition from Red (charging) to Green (fully charged), optimizing your device's performance with ease.
📊 Product Parameters
Meticulously engineered for safety and efficiency, this charger includes: Protection against over-current, over-voltage, short-circuit, and polarity reverse. Compatible with 24v 50-200Ah Li-ion/Lead acid batteries, it achieves superior efficiency above 86%.
| Parameter |
Details |
Parameter |
Details |
| Input |
100-240Vac 47-63Hz |
Input Plug |
EU, US, UK, AUS, JP, etc. |
| Output |
24v/29.4v 10a 13a |
Charge Mode |
CC--CV Mode |
| Efficiency |
>86% |
Protection |
Over-current, Over-voltage, Short-circuit |
| Size |
170*90*63mm |
Weight |
1.2kg |
| Warranty |
2 Years |
MTBF |
50,000 hrs |
🛡️ After Sales Service

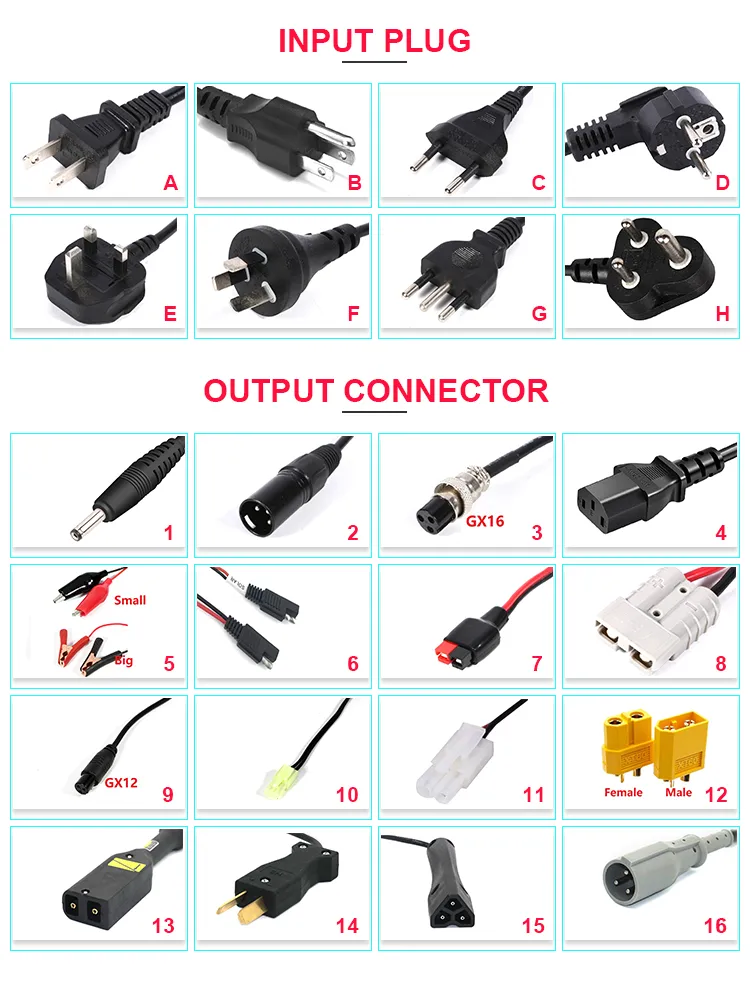

Our commitment continues post-purchase with a robust 2-year warranty. Should any defects arise, we guarantee a hassle-free replacement with new units under warranty. For installation, please select the input plug and output connector according to your specific requirements from the provided reference photos.
❓ Frequently Asked Questions
What are your main product ranges?
We specialize in Power Supplies (0-150W with various voltage outputs) and Battery Chargers up to 1500W for Lithium/Lipo, Lifepo4, Lead-acid, and Nimh/Nicd batteries.
What is the warranty period for the chargers?
We provide a 2-year warranty. We offer new replacement units for any defective products confirmed within the warranty period.
What global certifications do your products hold?
Most of our products are certified with CE, ROHS, CB, GS, FCC, UL, SAA, KC, KCC, PSE, and CCC.
How long is the standard lead time for orders?
Sample orders take 2-5 days, mass production orders take 12-15 days, and new designs typically require 14 days.
What charging modes do your chargers use?

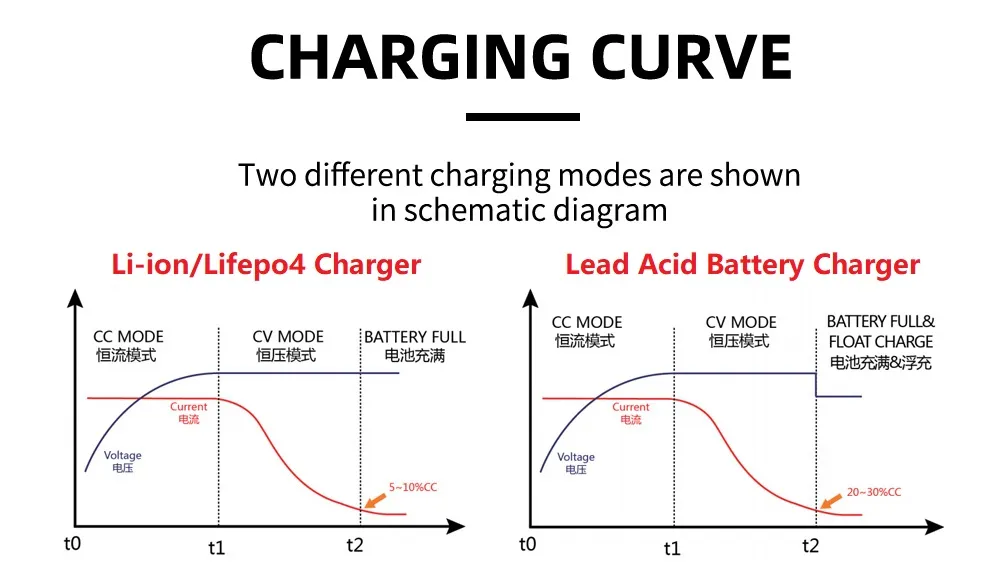

We use CC--CV mode for Lithium-ion/Lifepo4, CC--CV--Float for Lead-acid, and CC--CV--Trickle for Nimh batteries to ensure battery longevity.
What shipping options are available?
Samples are sent by air (FedEx, UPS, DHL, TNT) with 4-5 days arrival. Mass orders can be shipped by either air or sea depending on your preference.
