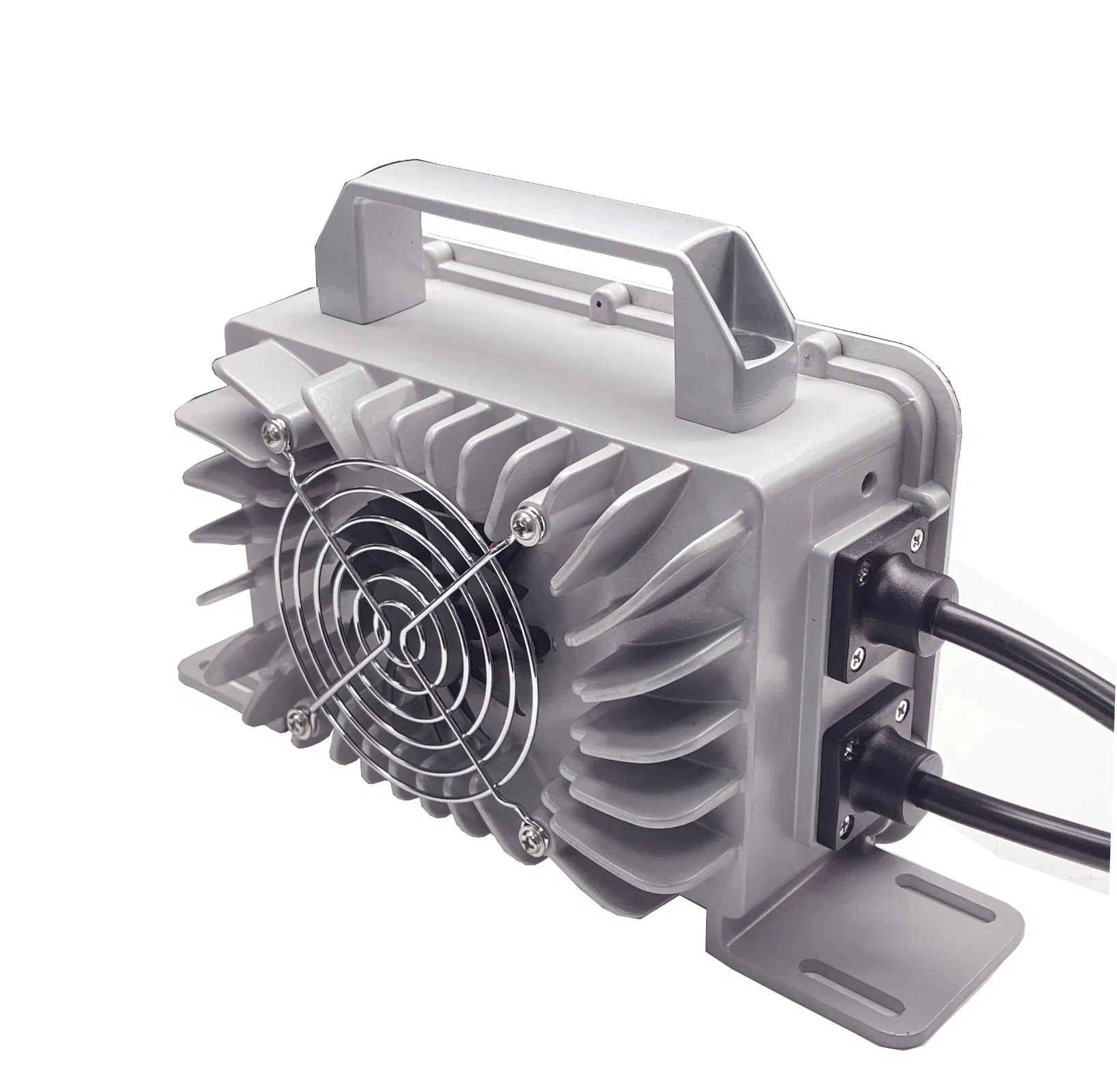

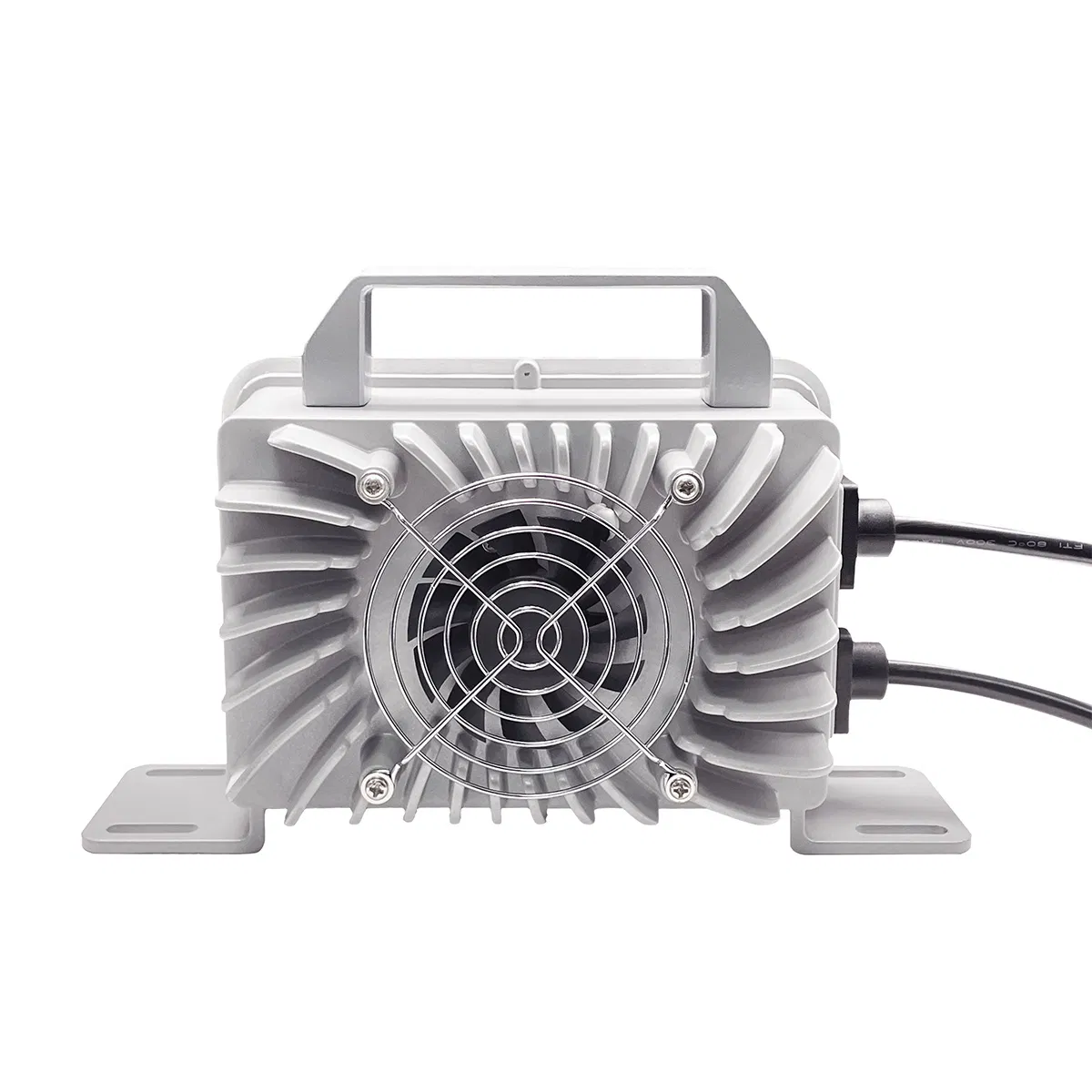

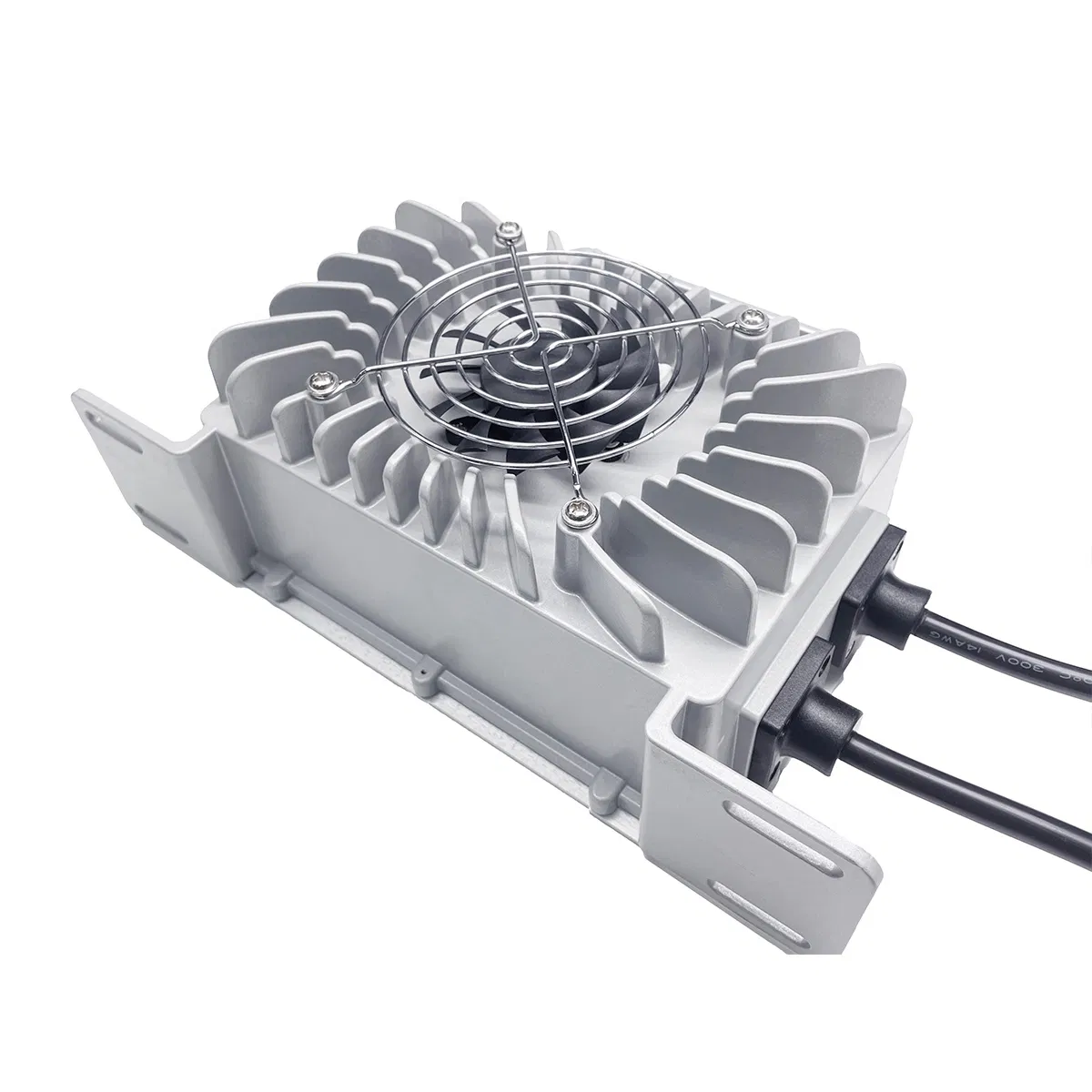

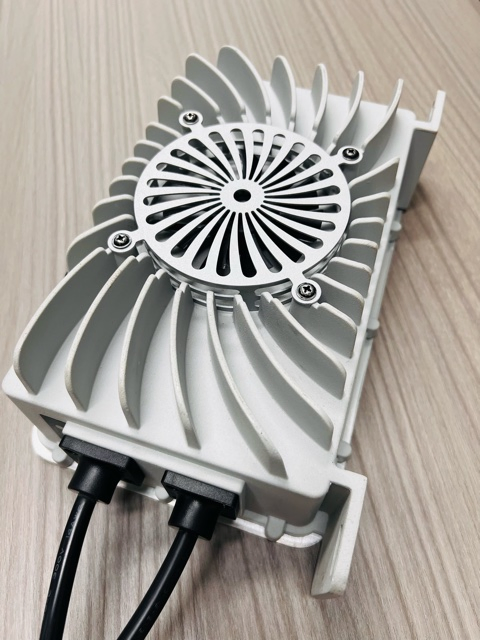

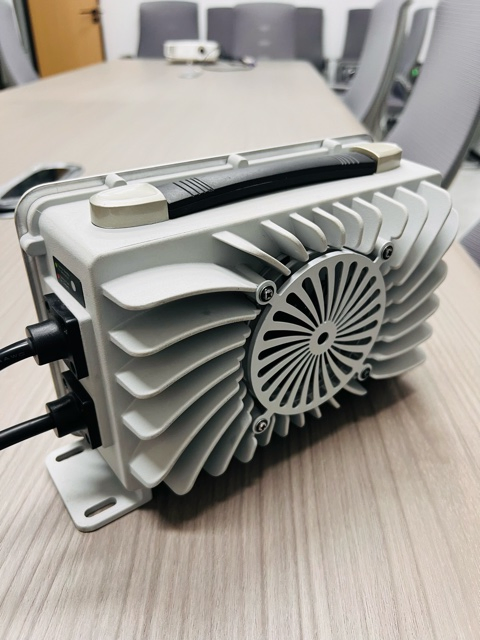

36V 20A Waterproof Lithium Battery Charger with Factory Price and 2 Years Warranty

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Info.
Model NO.
UY900-3620L
Input Voltage
Wide 110-230VAC
Type
Lithium Ion Battery Charger
Charging Type
Smart Pre-Charge, CC CV Charging
Principle
Micro-Processor Controlled
Gross Weight
3.0 Kg
Applications
Charge 36V Li Battery Pack
Max Voltage
42V / 43.8V
Lead Time
7 Days
Waterproof Rate
IP65
Transport Package
Carton
Specification
262*134*86 mm
Origin
China
Production Capacity
10000PCS/Month
ℹ️ Product Description

36V 20A Waterproof Lithium Battery Charger
With factory price and 2 years warranty

Brief Description:
Designed for 36V Lithium battery, waterproof & anti-vibration input with universal 110-230Vac and rated output voltage is 36V 20A. Smart max charging voltage is 42 or 43.8V Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and automatic cut-off, this charger will charge your 36V lithium battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.

36V 20A Waterproof Lithium Battery Charger
Features
  • Optional charging methods: Li-ion or LiFePO4 batteries.
  • Advanced high frequency switching mode power supply technology.
  • DC output isolated from AC input.
  • Universal AC input 110-230Vac with PFC, 50Hz~60Hz.
  • Power factor: >0.95.
  • Charging parameters insensitive to AC input variations.
  • Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
  • Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
  • Aluminum casing, light weight, portable.
  • 100% full load burn-in test.
  • 2 years warranty.
⚙️ Technical Specs.
Dimensions
262 x 134 x 86 mm
Net weight
2.8 KG
Max voltage (CV)
42 / 43.8 volt customized
Max current (CC)
20 amps
Charging method
Pre-charge, CC, CV, cut off
AC input voltage
110-230Vac (90~264Vdc)
AC input freq.
50 / 60 Hz
Enclosure
Aluminum
📖 Product Information Overview

The Smart Battery Charger is a fully automatic 4 steps charging with Pre charge, CC, CV and Floating / shut-off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries.

These chargers have worldwide input voltage 110 - 240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer's request and meet local applications fully.

Smart battery chargers are widely applied to electric vehicles including e-bikes, e-scooters, e-mobility, e-skateboards, e-motorcycles, e-golf carts, electric floor sweepers etc. Whether powered by lithium (LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.

Output series: 900W waterproof | Size: 262*134*86 mm
Input Model Battery Type Floating V CV (V) CC (A) Switching
AC Input: 110/230V
47~63HZ
VL1240L12V LiFePO4-14.6V40ACC5~8%
VL124012V Lead-acid13.5V14.7V40ACC20%
VL2425L24V LiFePO4-29.2V25ACC5~8%
VL3618L36V LiFePO4-43.8V18ACC5~8%
VL4815L48V LiFePO4-43.8V15ACC5~8%
VL6012L60V LiFePO4-73V12ACC5~8%
VL7210L72V LiFePO4-87.6V10ACC5~8%
VL8408L84V LiFePO4-102.2V8ACC5~8%
VL481548V Lead-acid55.2V58.8V15ACC20%
VL721072V Lead-acid81V88.2V10ACC20%
🖼️ Product Gallery

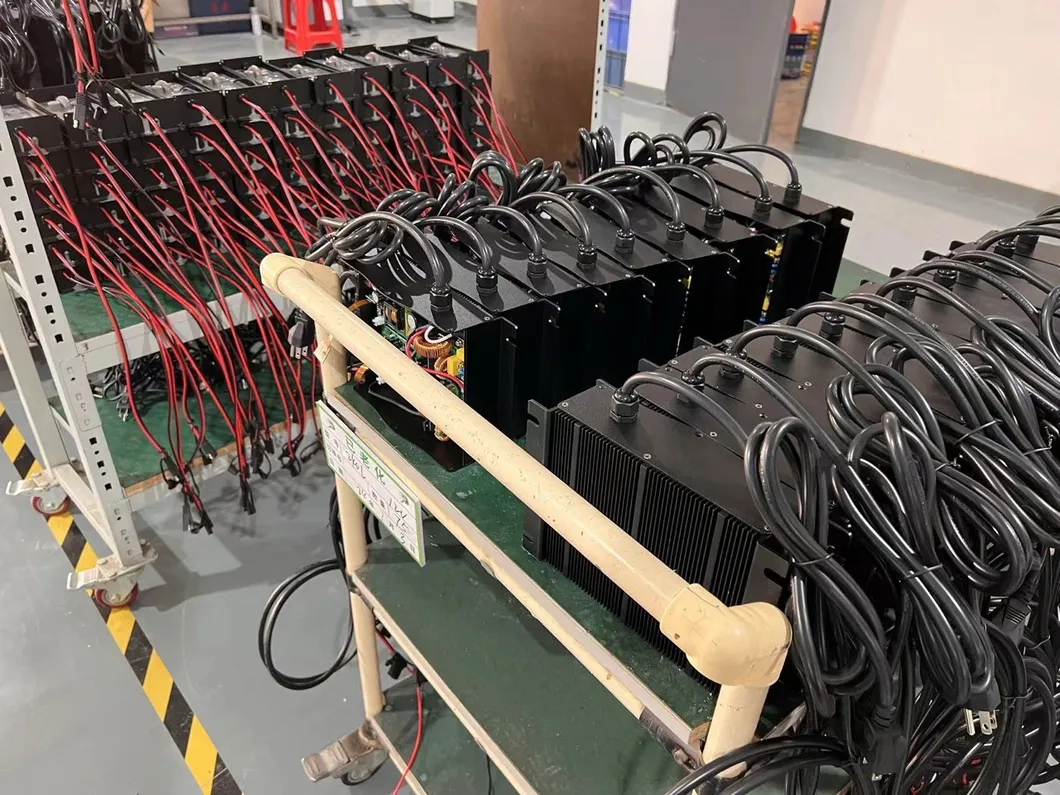

Waterproof Charger View 1

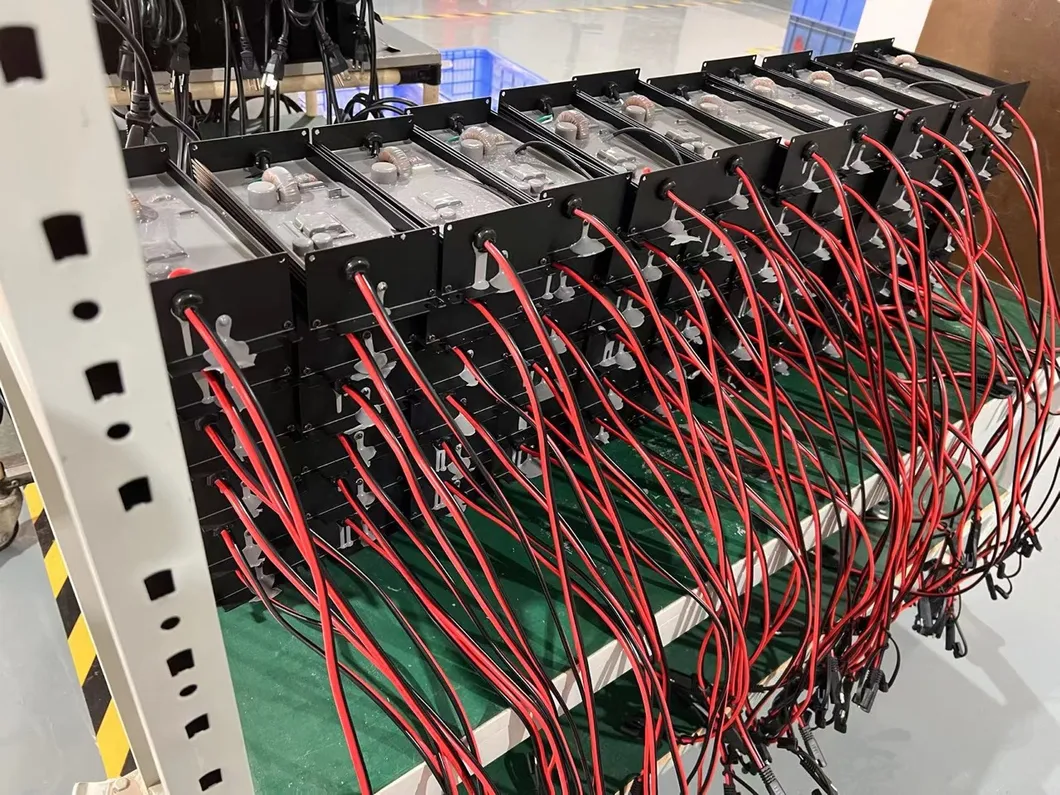

Waterproof Charger View 2

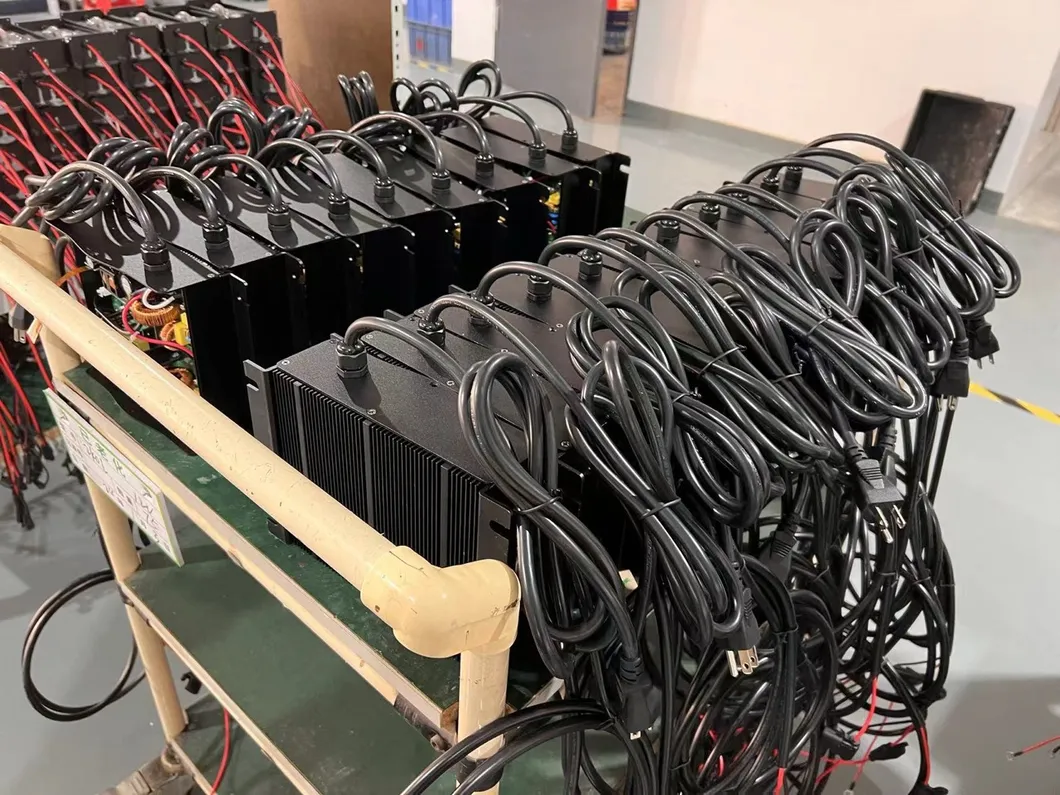

Waterproof Charger View 3

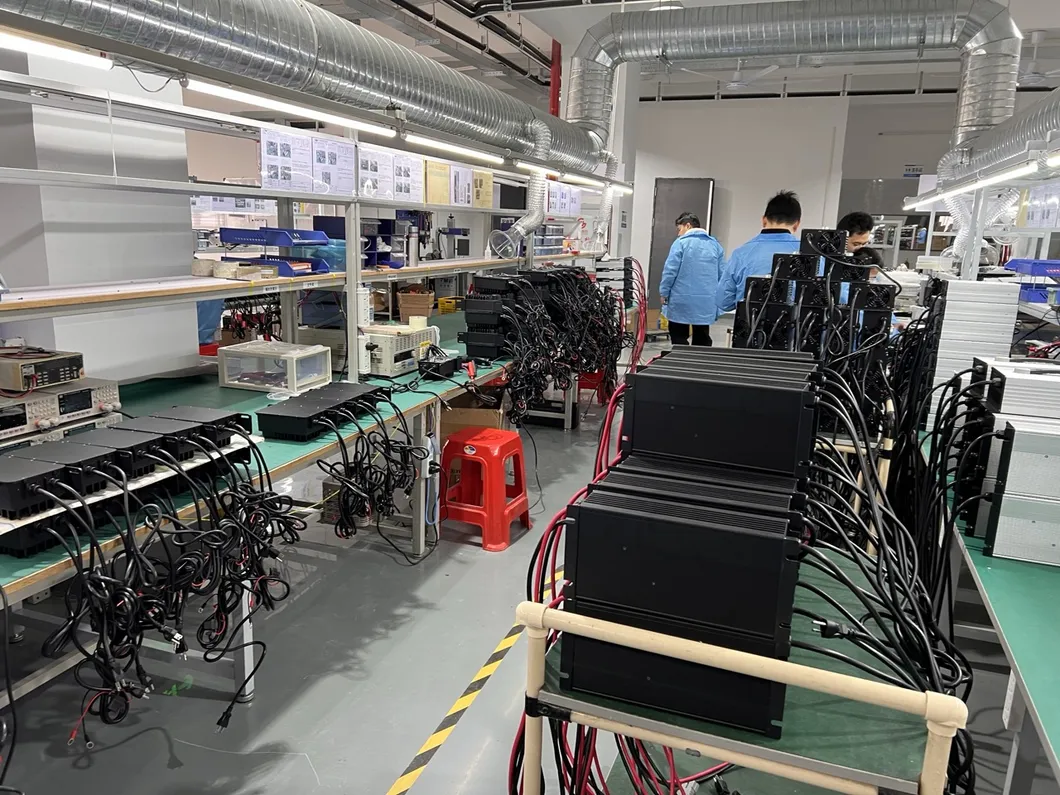

Waterproof Charger View 4

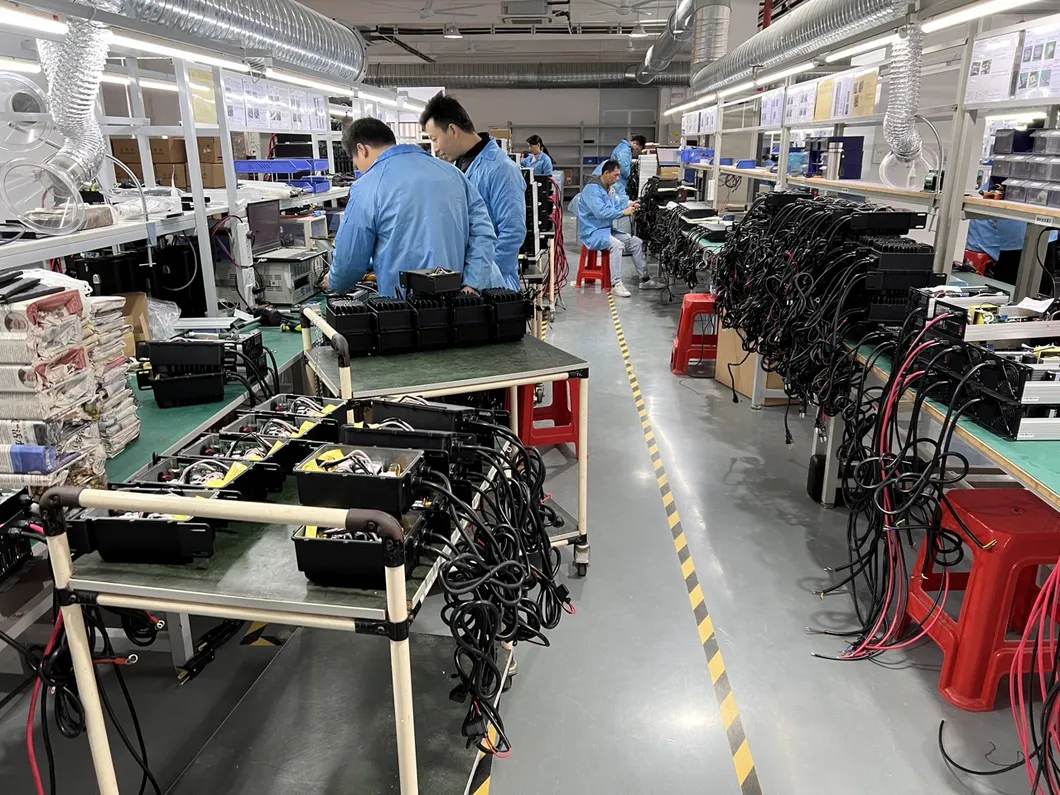

Waterproof Charger View 5

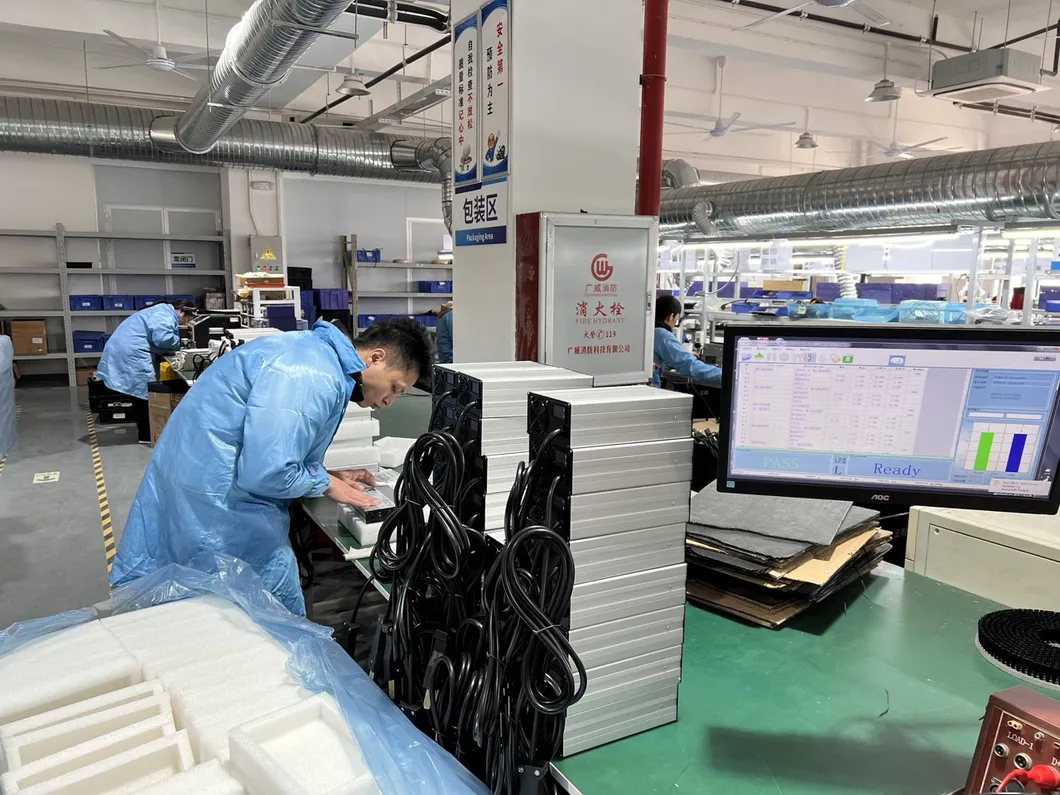

Waterproof Charger View 6

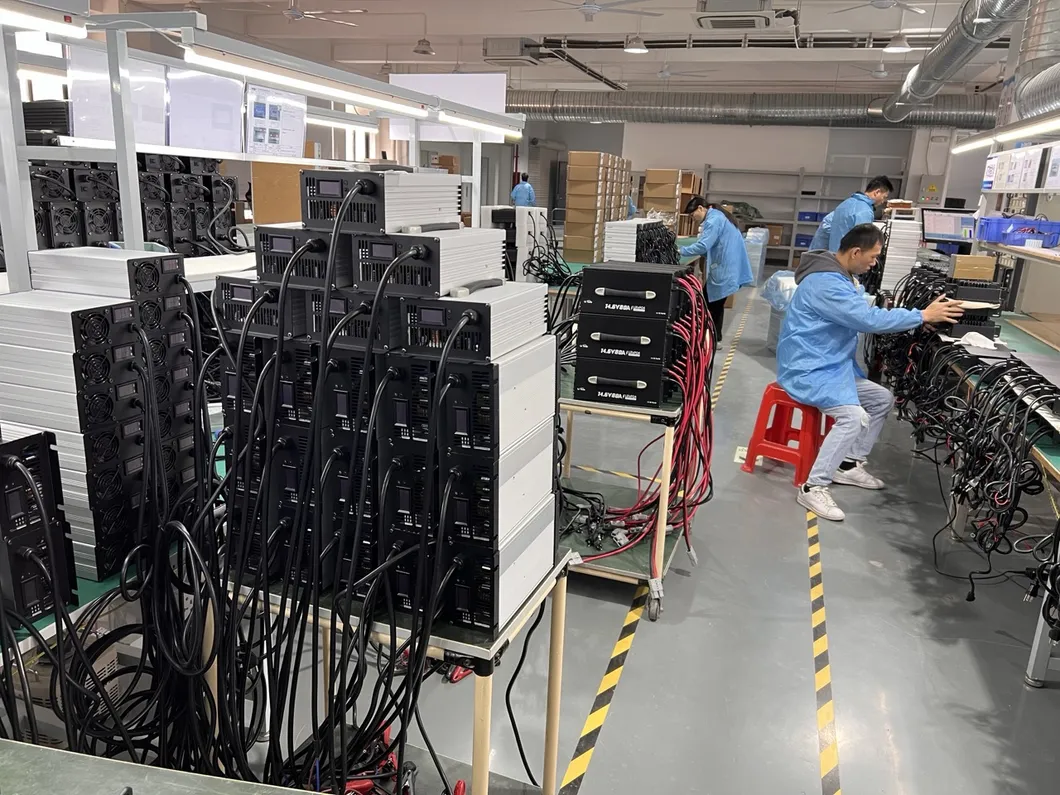

Waterproof Charger View 7

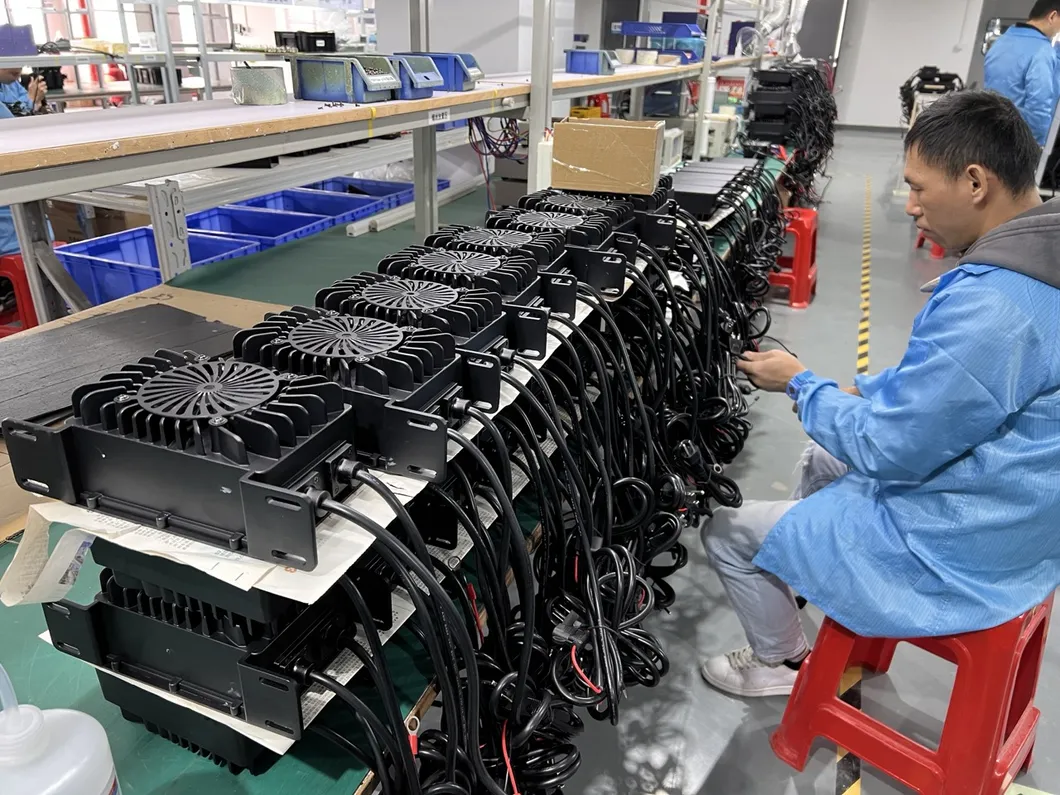

Waterproof Charger View 8

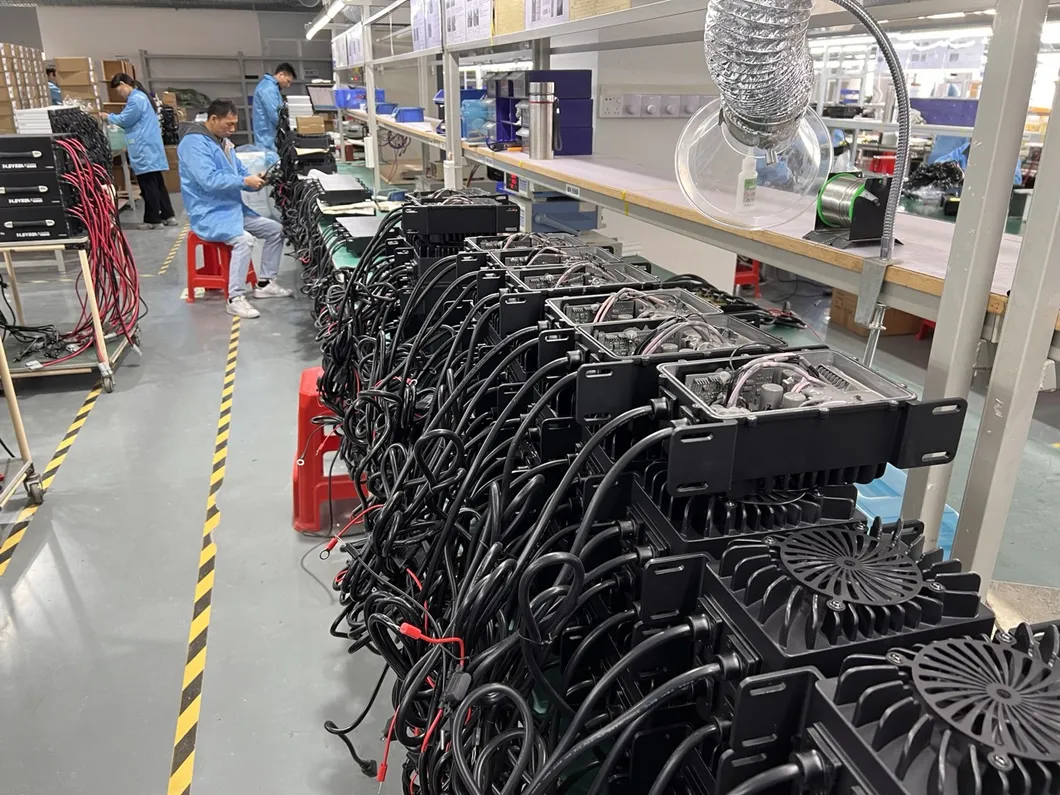

Waterproof Charger View 9

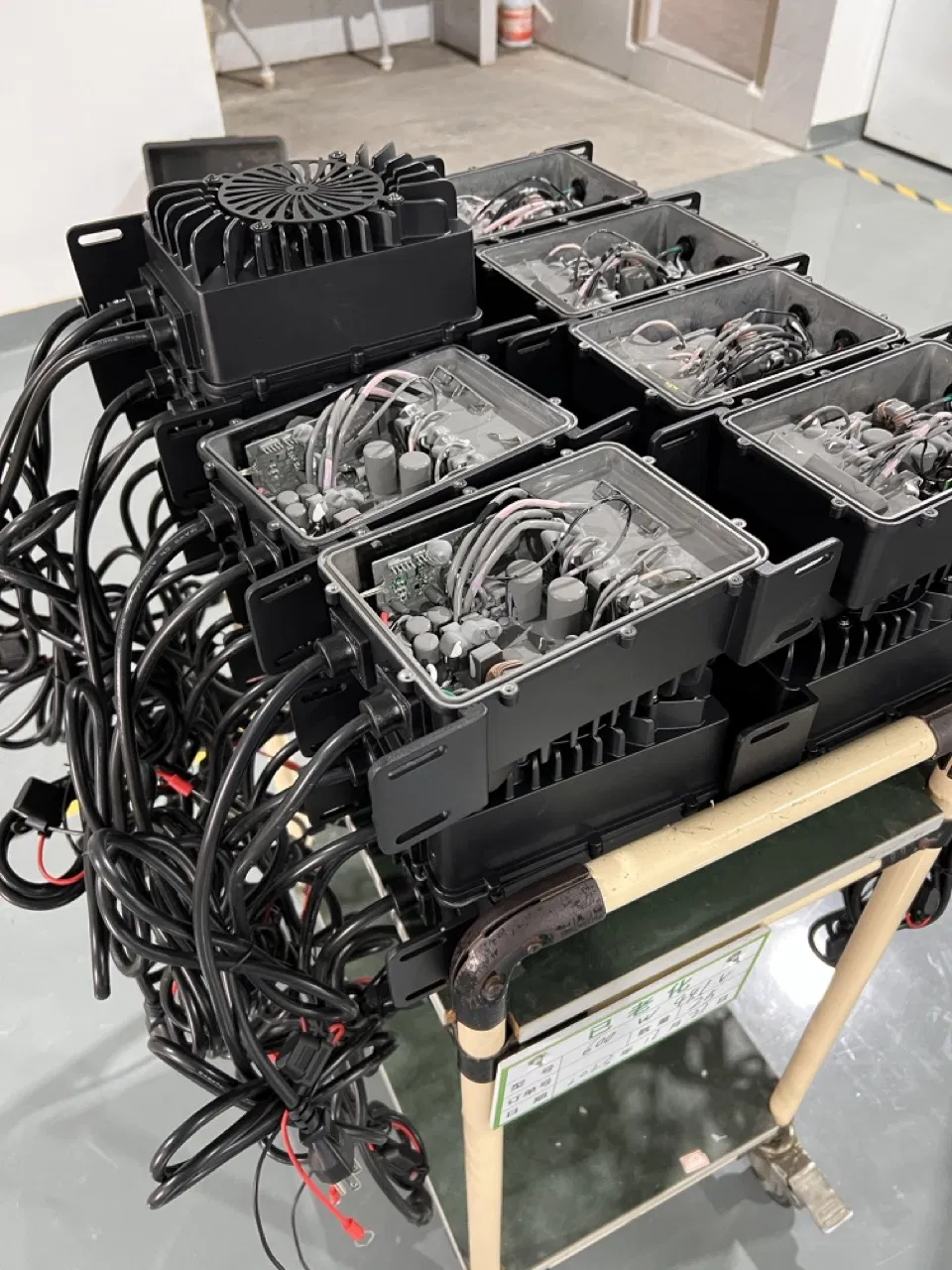

Waterproof Charger Detailed View
Frequently Asked Questions
Is this charger compatible with both Li-ion and LiFePO4 batteries?
Yes, it features optional charging methods specifically designed for both Lithium-ion and LiFePO4 battery types.
What is the waterproof rating of the charger?
This charger has an IP65 waterproof rate, making it resistant to water and dust, and includes anti-vibration features.
How many charging steps does the intelligent system use?
The charger uses a completely automatic 4-step charging process: pre-charge, Constant Current (CC), Constant Voltage (CV), and automatic floating/shut-off.
Does the charger work with worldwide voltages?
Yes, it supports a universal AC input range of 110-230Vac (90~264Vdc) and automatically operates on the local voltage.
What safety protections are built into the device?
It includes multiple protection layers: short circuit protection, over-voltage protection, over-temperature protection, and reverse polarity protection.
What is the warranty period for this product?
The product comes with a 2-year factory warranty and has passed a 100% full load burn-in test.
