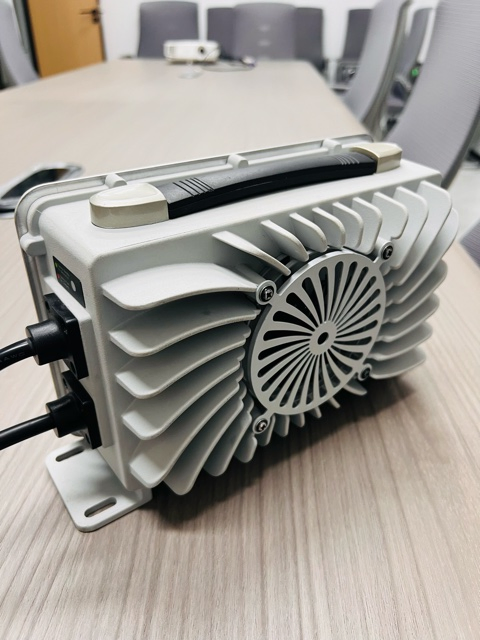

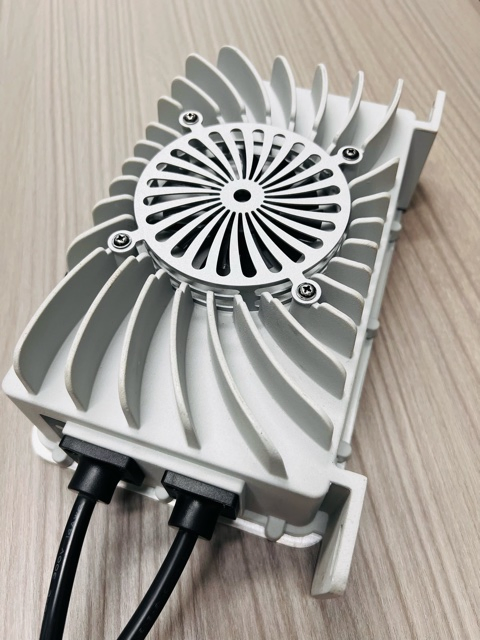

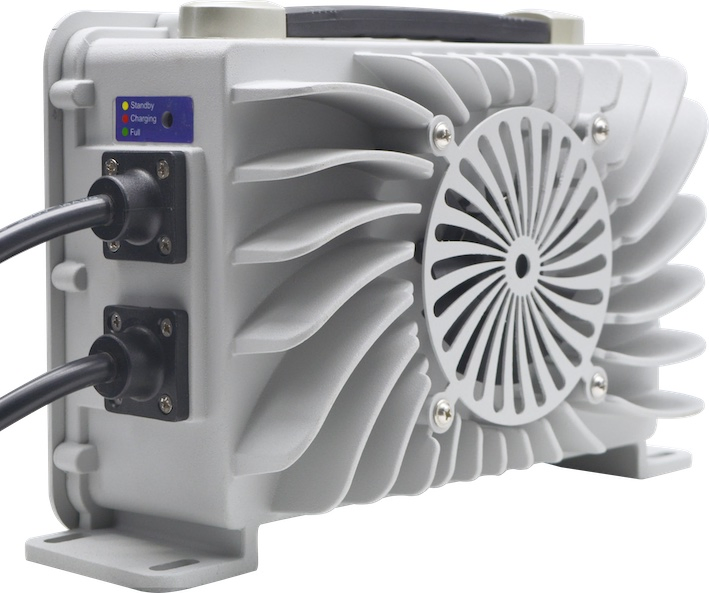

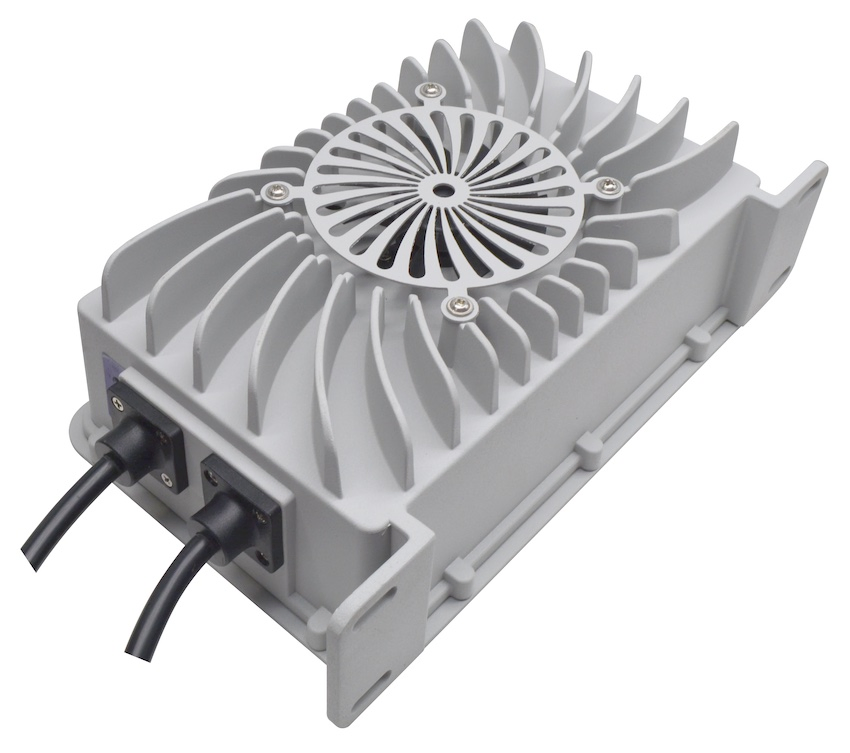

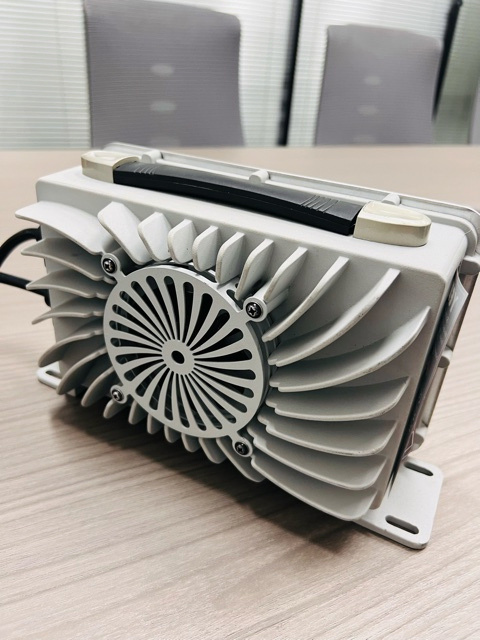

Charging both 48V Lead-acid and Lithium Battery by ONE Charger
This intelligent charger is designed for versatility. Whether your cell voltage is 3V, 3.65V, 4.2V, or other variations, the device can be configured to match your requirements before charging. CAN or RS485 communication ports are available for advanced integration.

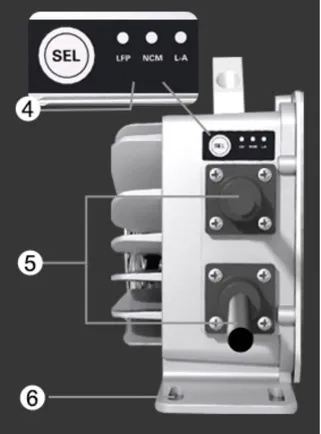

A simple selector allows you to choose the specific battery chemistry:
Smart charging automatically manages Pre-charge, CC, CV, and Floating/Cut-off steps, saving money and space by replacing multiple chargers.

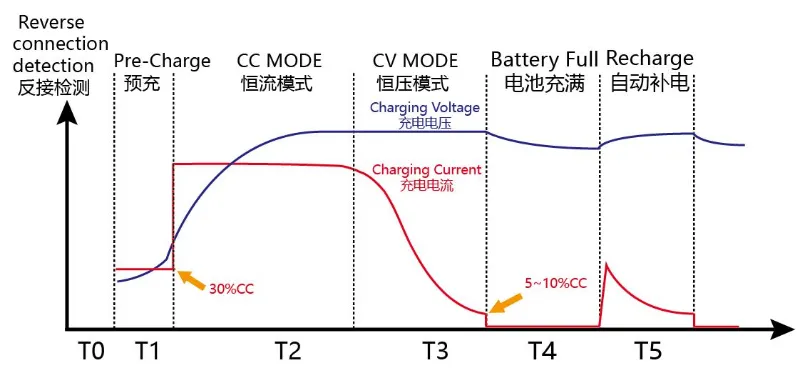

Charging Curve Visualization:
| Dimensions (LxWxH) | 250*162*93 mm |
| Net Weight | 3.5 KG |
| Max Charging Voltage (CV) | 73V 73.5 or customized |
| Max Output Current (CC) | 20 Amps |
| AC Input Voltage | 110-230Vac (90~264Vdc) |
| Enclosure | Aluminum |
| Protections | Short circuit, Over-voltage, Over-temperature, Reverse Polarity |
This Smart Battery Charger utilizes a fully automatic 4-step process (Pre-charge, CC, CV, and Floating/Shut-off). It is designed to charge faster and more accurately than conventional heavy chargers. The pre-charge step activates low-voltage batteries and protects deeply discharged cells. The float charge maintains the battery at 100% readiness without the risk of overcharging.
Widely applied to electric vehicles such as e-bikes, e-scooters, e-mobility devices, golf carts, and floor sweepers, it supports all major battery chemistries including LiFePO4, Li-ion, AGM, and GEL.
