E-Tronde Charger
1 / 5

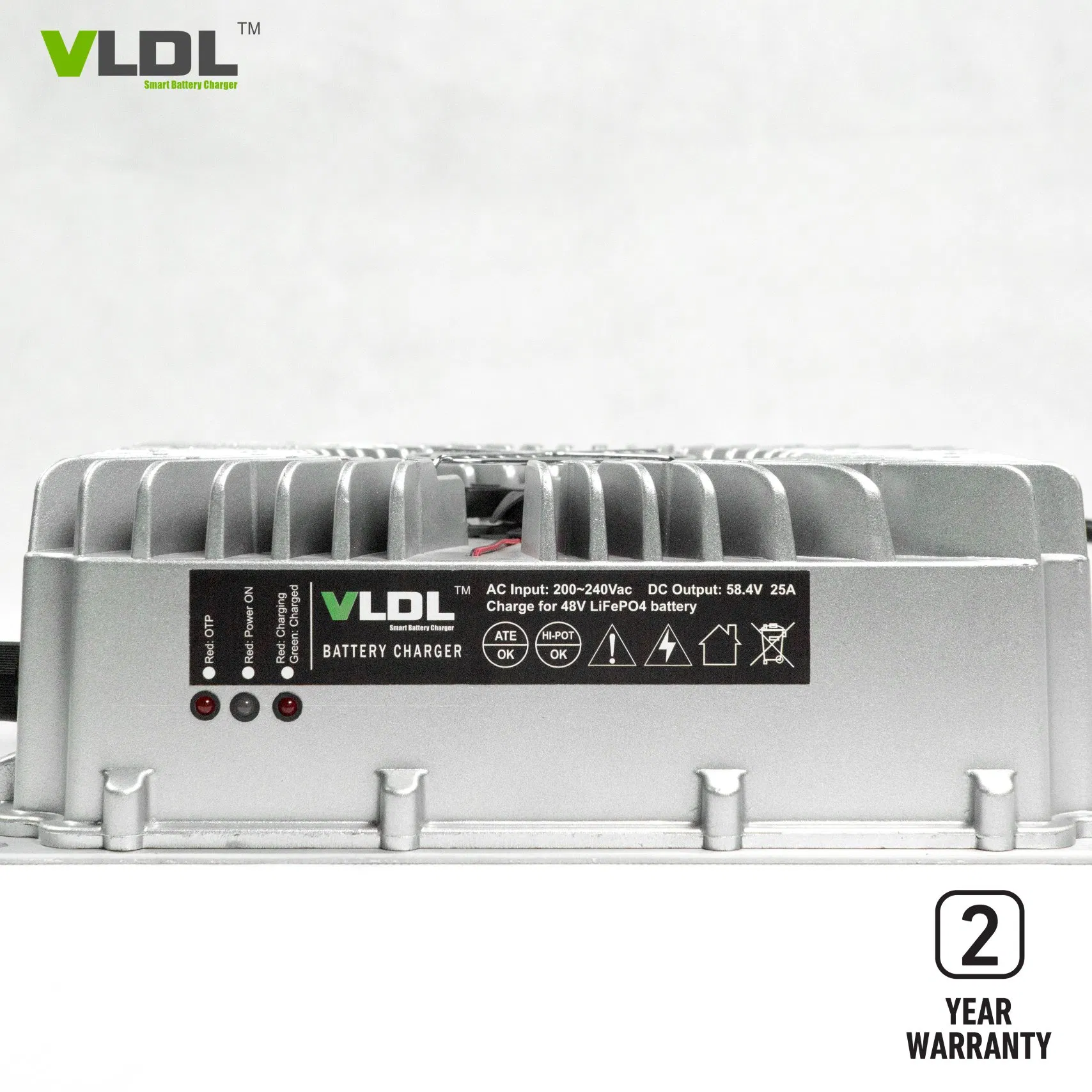

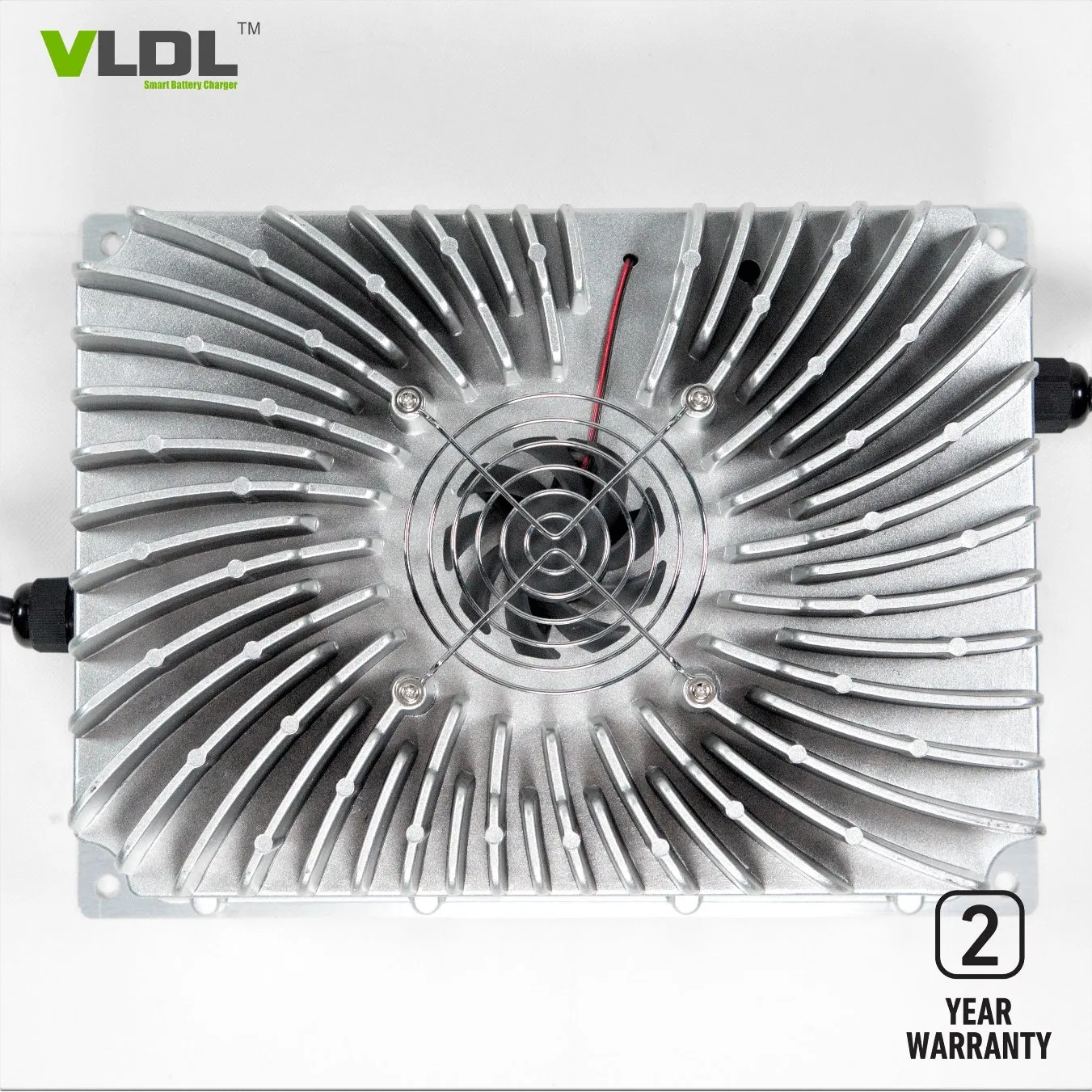

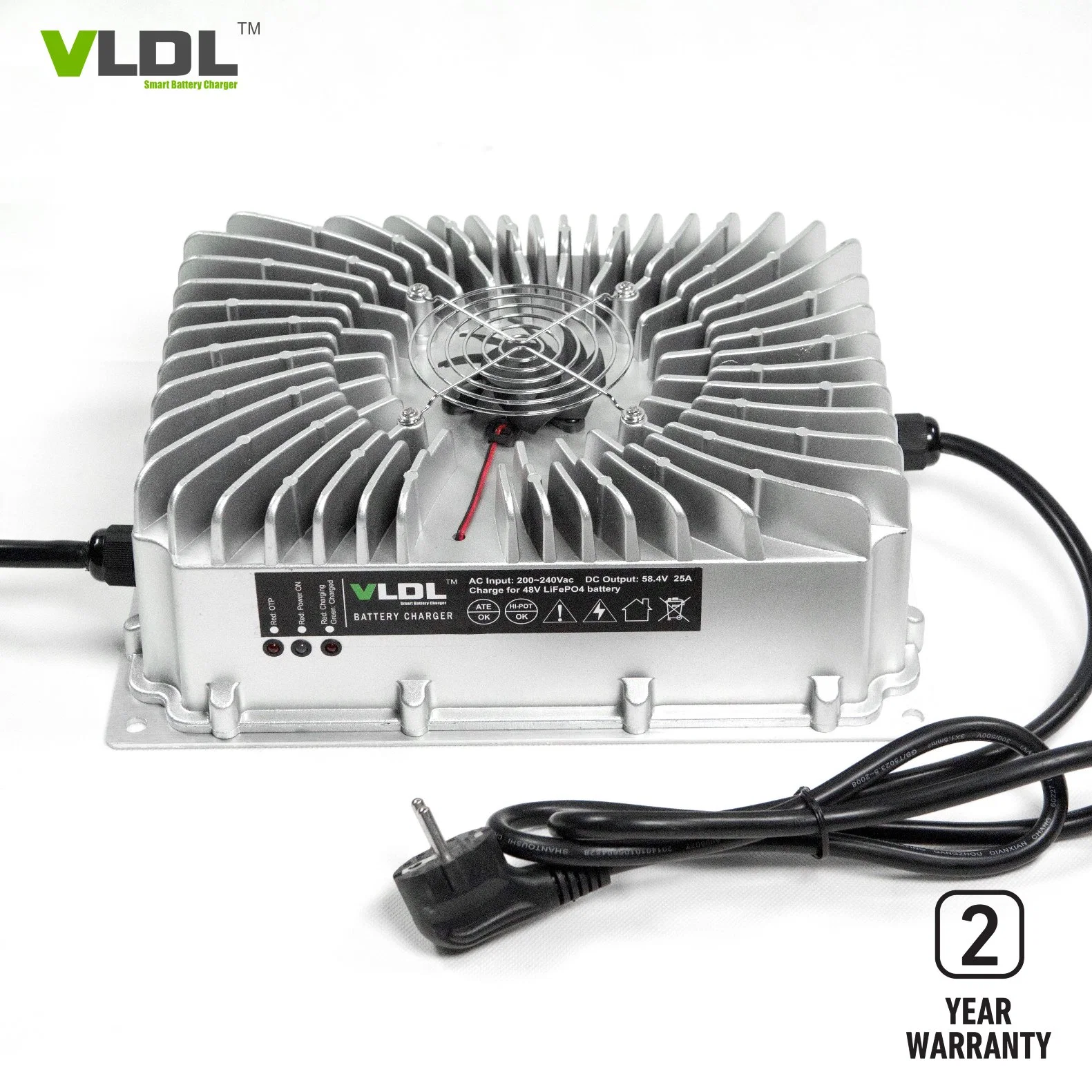

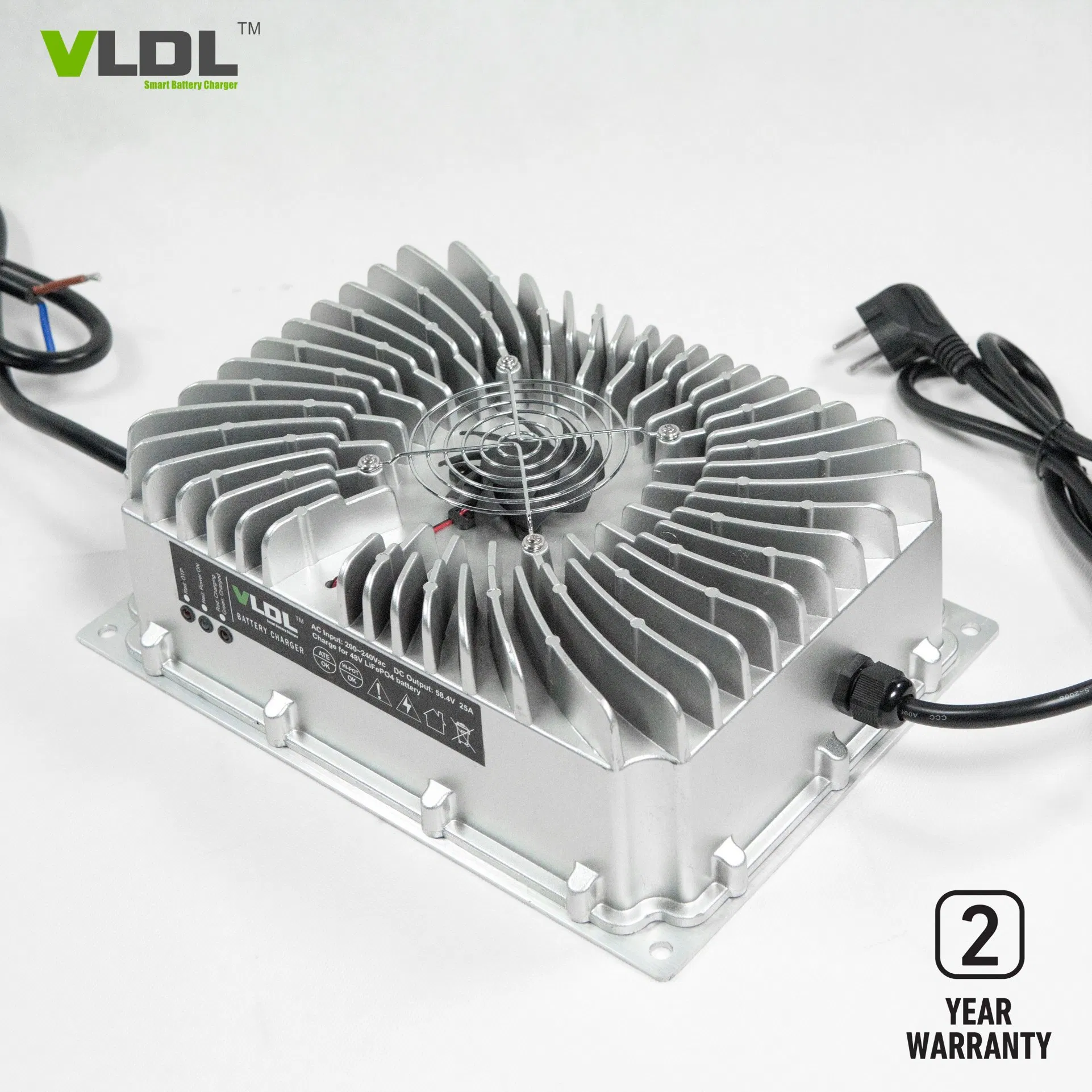

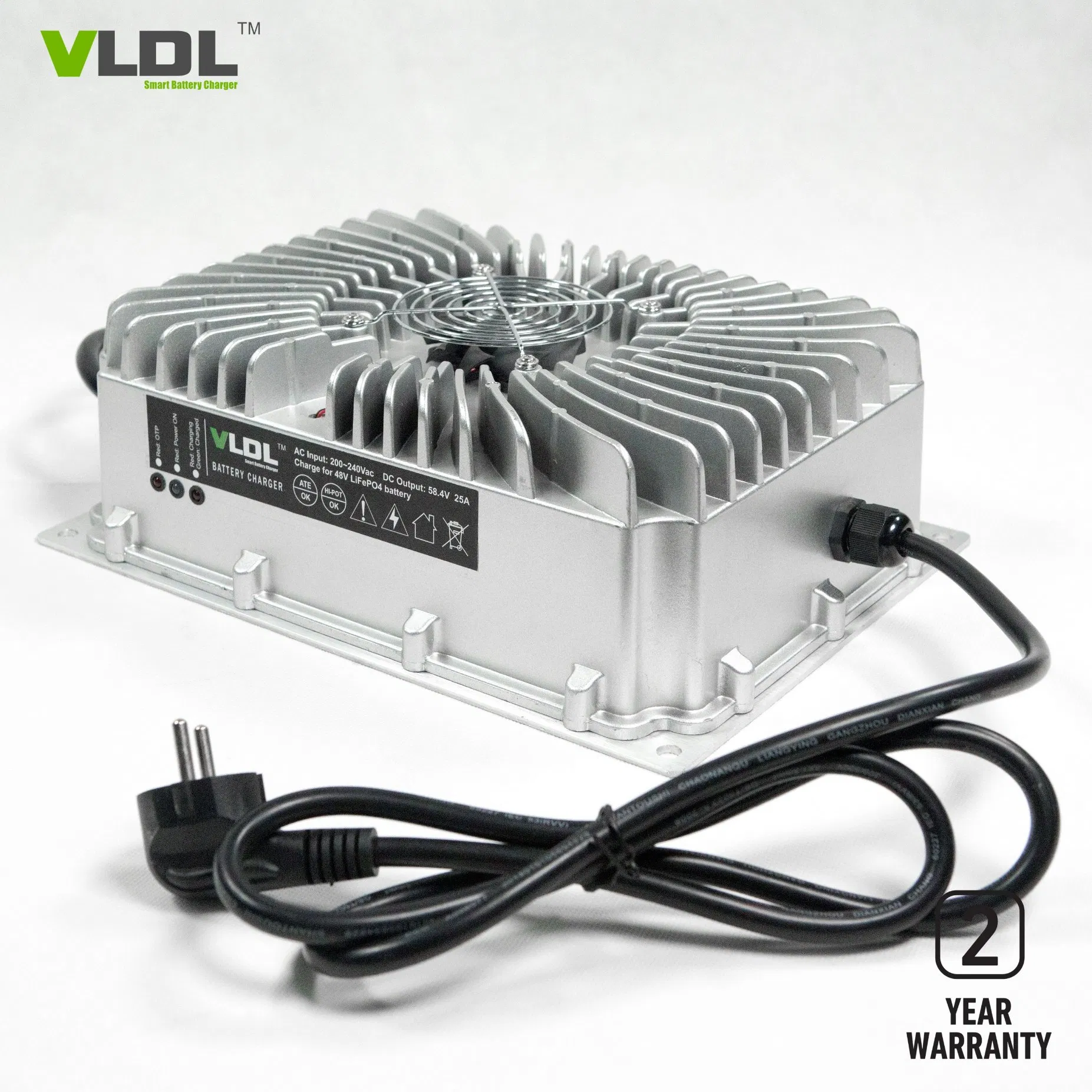

This high-performance marine battery charger is designed for worldwide use with an intelligent 4-step charging process.
Smart Controls: Fully customizable charging steps including pre-charging, constant current (CC), constant voltage (CV), and automatic cut-off.
CAN Communication: Optional CAN bus support to communicate directly with your battery's BMS for software-controlled charging.
Dual Voltage Detection: Automatically detects 110V or 230V input, preventing damage from incorrect voltage settings.
Set & Forget: Automatic battery voltage detection and status monitoring ensures no over-charging occurs.
| 1,500W Waterproof Charger Series (Size: 269×216×98 mm) | ||||||
|---|---|---|---|---|---|---|
| Input | Model | Battery Types | Floating V | CV (V) | CC (A) | Switching |
| PFC 110-230V 47~63HZ |
VL1280WPL | 12V LiFePO4 | - | 14.6V | 80A | CC5~8% |
| VL2445WPLM | 24V Li-MnO2 | - | 29.4V | 45A | CC5~8% | |
| VL3630WPL | 36V LiFePO4 | - | 43.8V | 30A | CC5~8% | |
| VL4825WPLM | 48V Li-MnO2 | - | 54.6V | 25A | CC5~8% | |
| VL6020WPL | 60V LiFePO4 | - | 73V | 20A | CC5~8% | |
| VL7215WP | 72V Lead-acid | 81V | 88.2V | 15A | CC20% | |
* Note: Customized input, output, plug types, and connectors are available upon request.
