📊 Basic Info.
Type
Lithium Ion Battery Charger
Charging Type
Electric Charger
Principle
Half-Bridge Charger
Max Output Voltage
54.6V / 58.4V
Production Capacity
100000PCS/Month

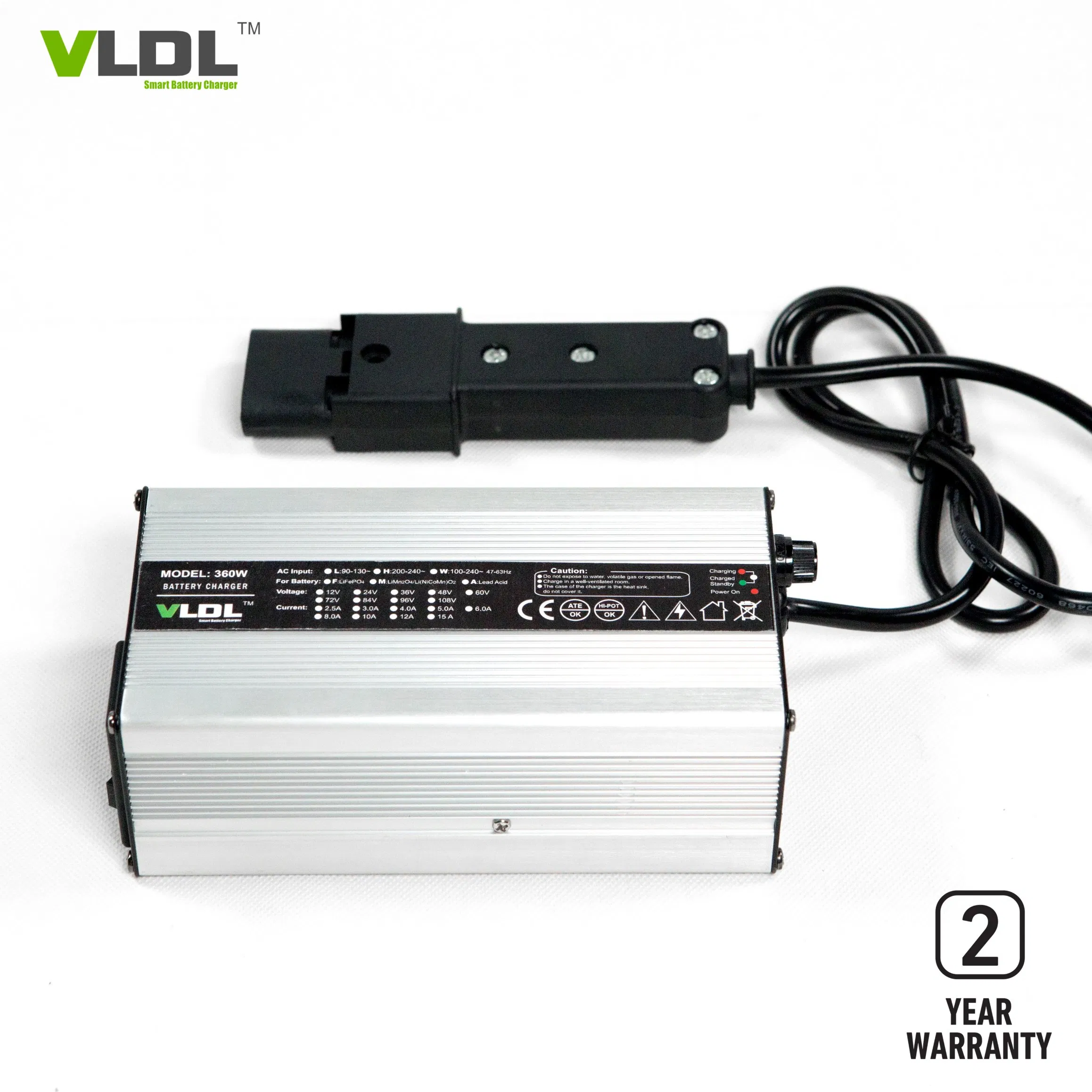

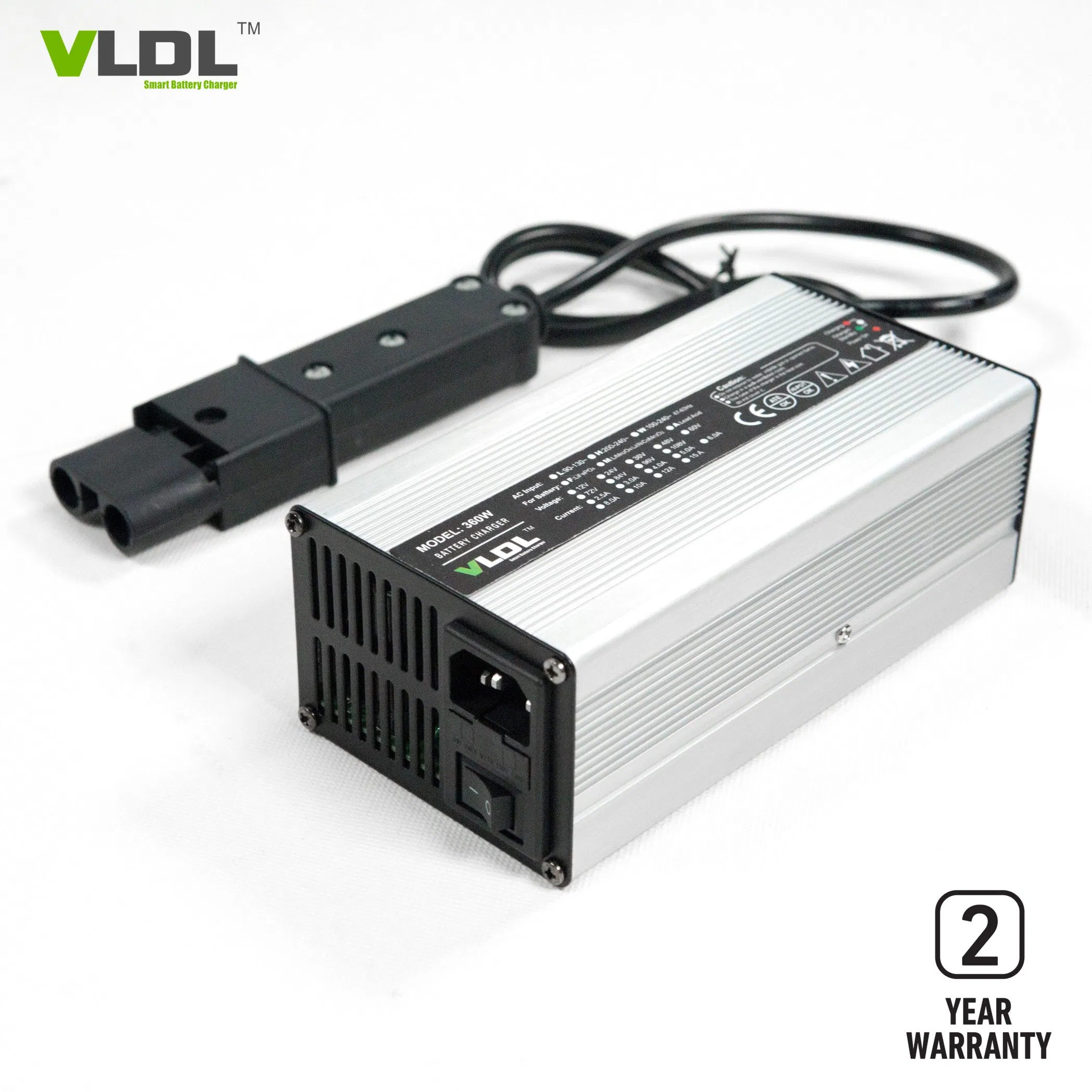

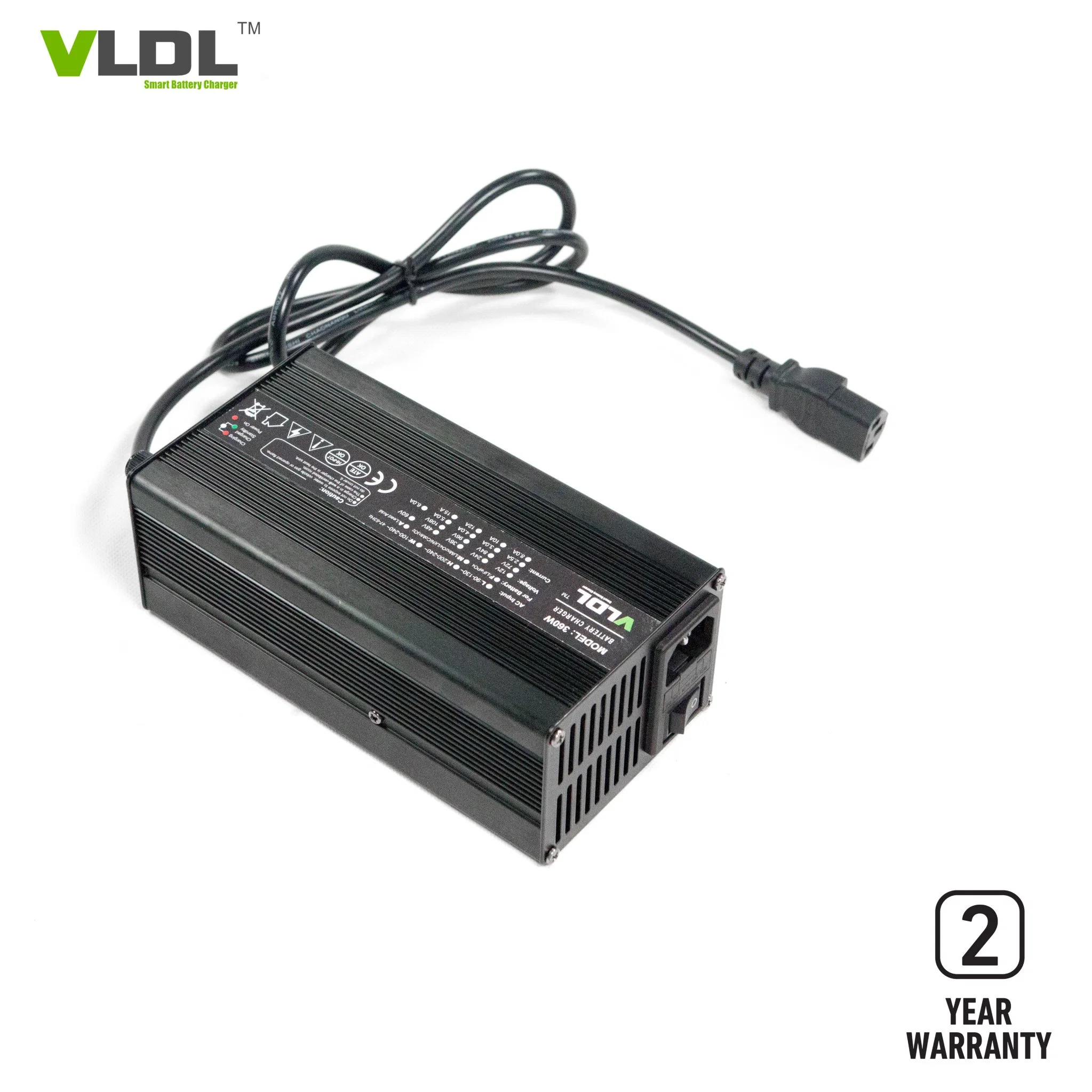

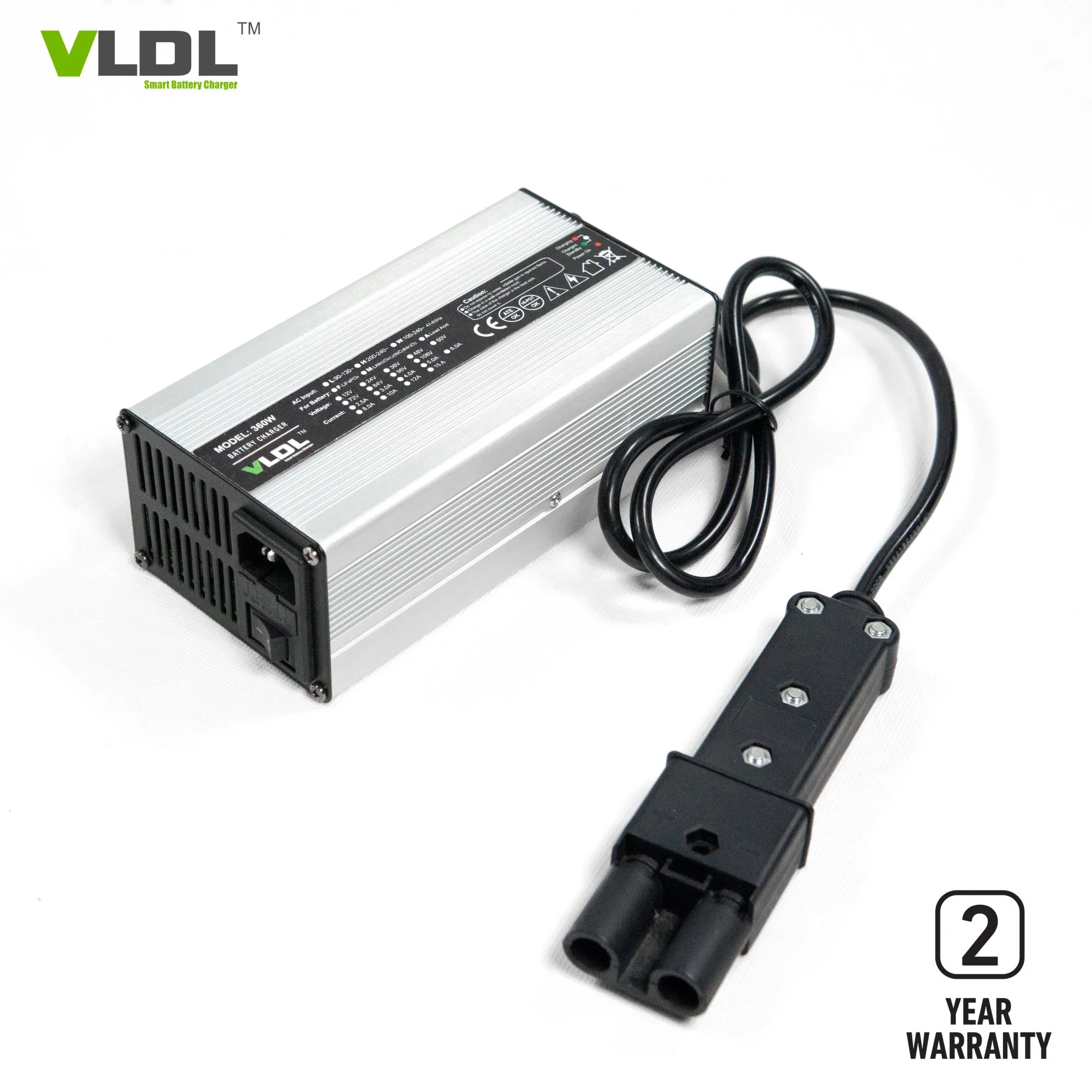

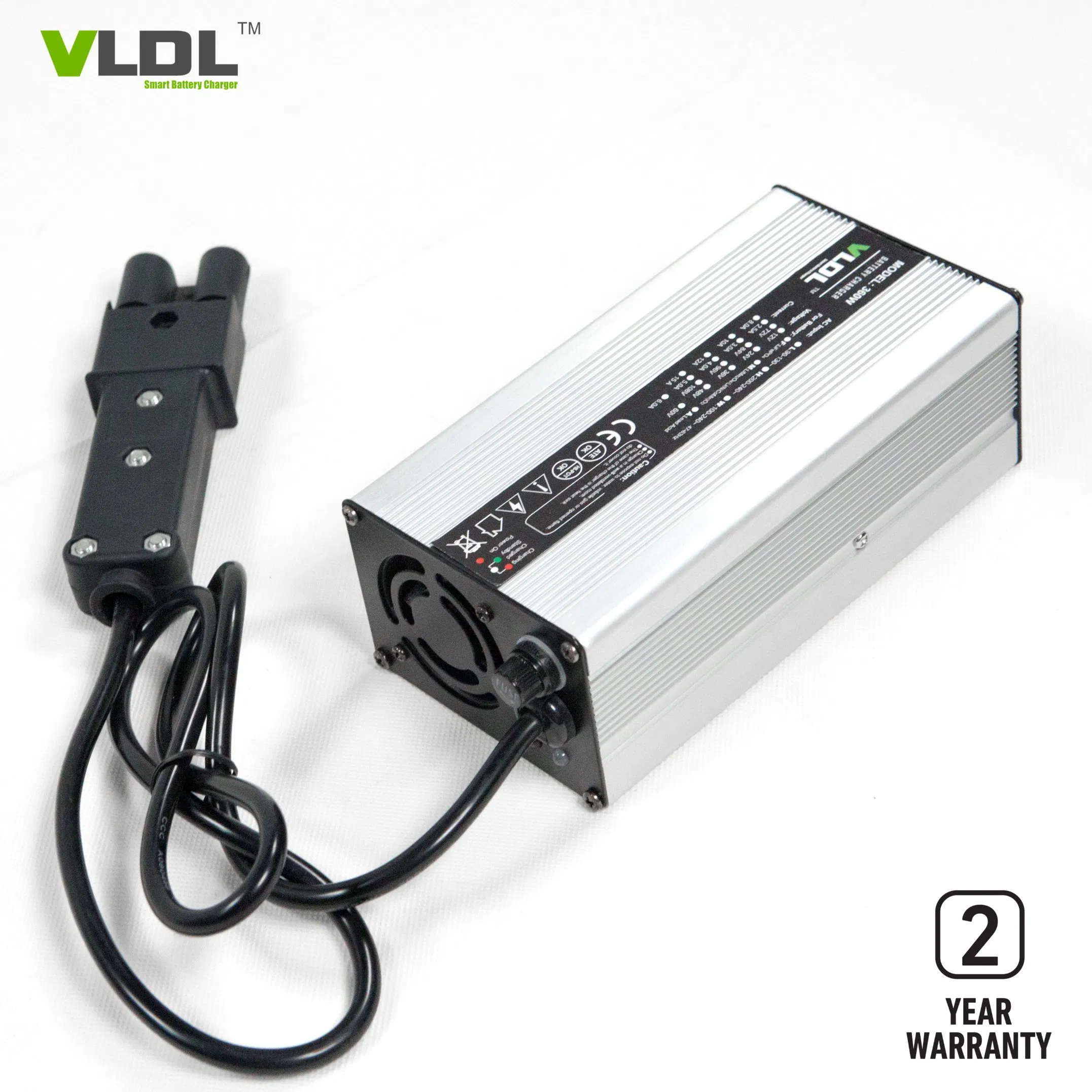

⚡ 48V 5A Smart Battery Charger
This 48V 5Amps intelligent battery charger is designed for lithium or lead acid batteries, supporting a worldwide input of 110 to 230Vac. With a rated output voltage of 48 Volt 5 Amps, it features a smart max charging voltage of 58.8V for lead acid and 54.6V / 58.4V for Lithium batteries. Utilizing a 4-step intelligent charging process (pre-charge, CC, CV, and floating/automatic cut-off), this charger ensures high speed, maximum efficiency, and prolonged battery life. Encased in a lightweight aluminum housing, it is both durable and portable.
🛠️ Key Features
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input for safety.
Auto worldwide Input 110 / 230Vac (90 ~ 264Vac).
Completely automatic 4-step charging curve.
Dual LED indicators: Power status and Charging/Full status.
High efficiency > 90% with forced fan ventilation.
Built-in protections: Short circuit, Over-voltage, Over-temp, Reverse Polarity.
100% full load burn-in tested aluminum casing.
📝 Technical Specifications
Dimensions
170 x 90 x 60 mm
Max Charging V
54.6 / 58.4 Volts
Output Current
5 Amps (CC)
Charging Method
Pre-charge, CC, CV, Floating
📋 Model Comparison (360W Series)
| Model |
Battery Type |
Floating V |
CV (V) |
CC (A) |
Switching |
| VL1220L | 12V LiFePO4 | - | 14.6V | 20A | CC5~8% |
| VL1220 | 12V Lead-acid | 13.5V | 14.7V | 20A | CC20% |
| VL2412LM | 24V Li-MnO2 | - | 29.4V | 12A | CC5~8% |
| VL2412L | 24V LiFePO4 | - | 29.2V | 12A | CC5~8% |
| VL3608LM | 36V Li-MnO2 | - | 42V | 8A | CC5~8% |
| VL3608L | 36V LiFePO4 | - | 43.8V | 8A | CC5~8% |
| VL4805LM | 48V Li-MnO2 | - | 54.6V | 5A | CC5~8% |
| VL4805L | 48V LiFePO4 | - | 43.8V | 5A | CC5~8% |
| VL4805 | 48V Lead-acid | 55.2V | 58.8V | 5A | CC20% |
| VL6004L | 60V LiFePO4 | - | 73V | 4A | CC5~8% |
| VL7203L | 72V LiFePO4 | - | 87.6V | 3A | CC5~8% |

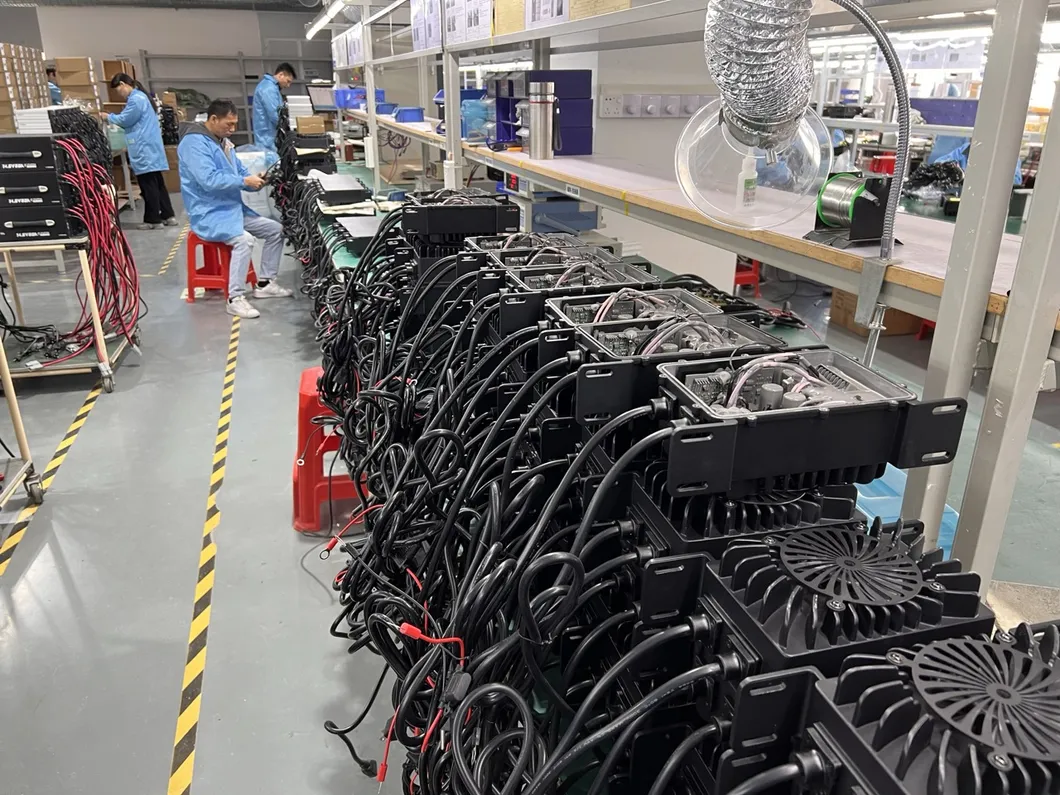

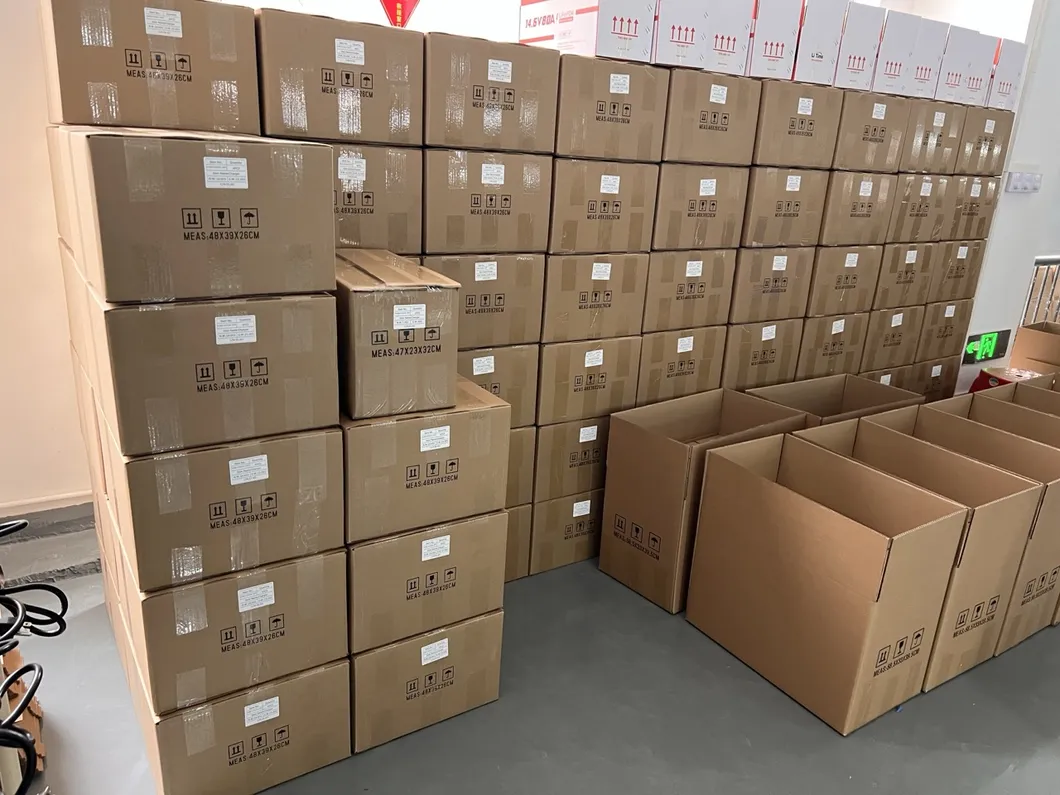

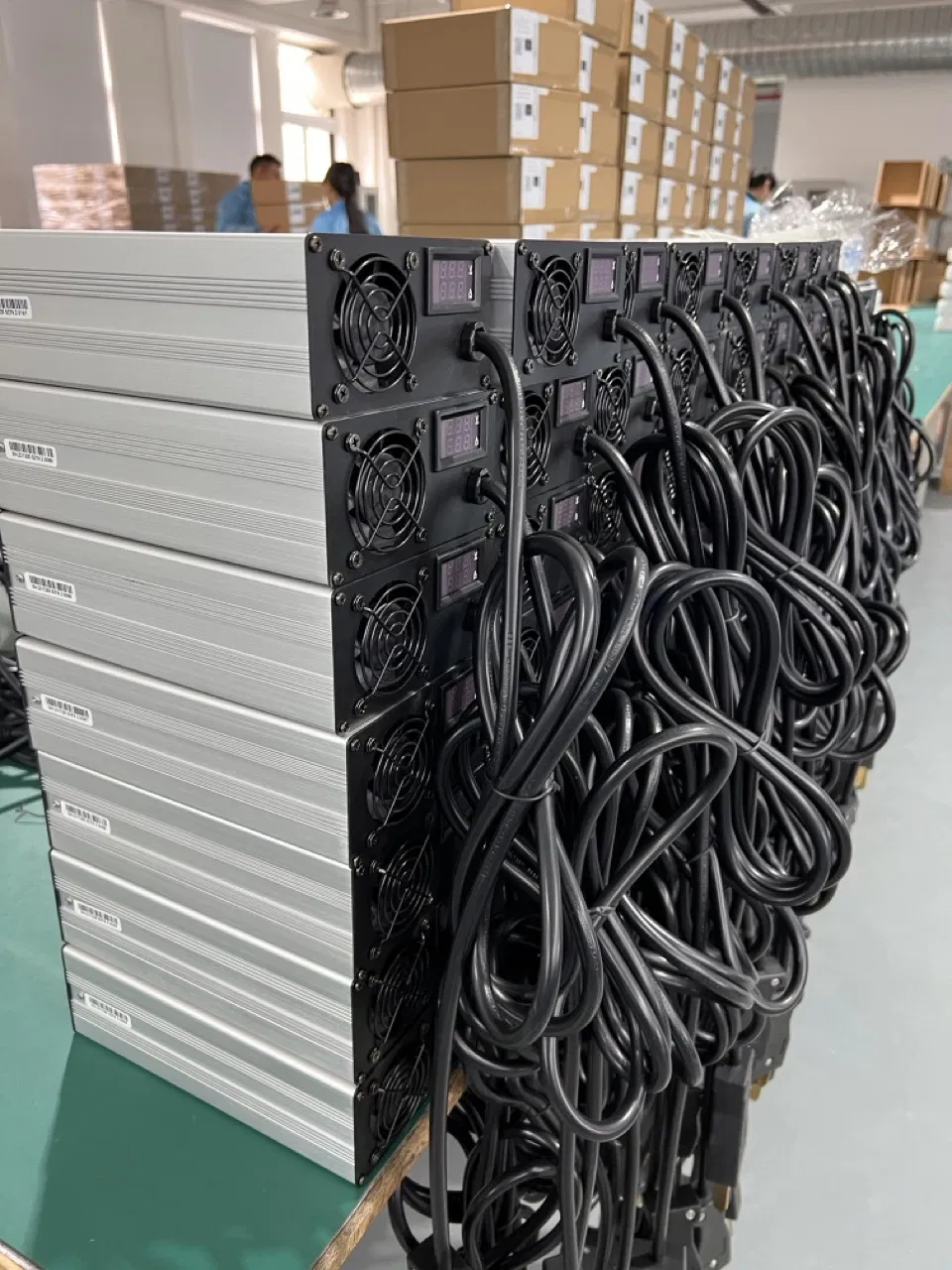

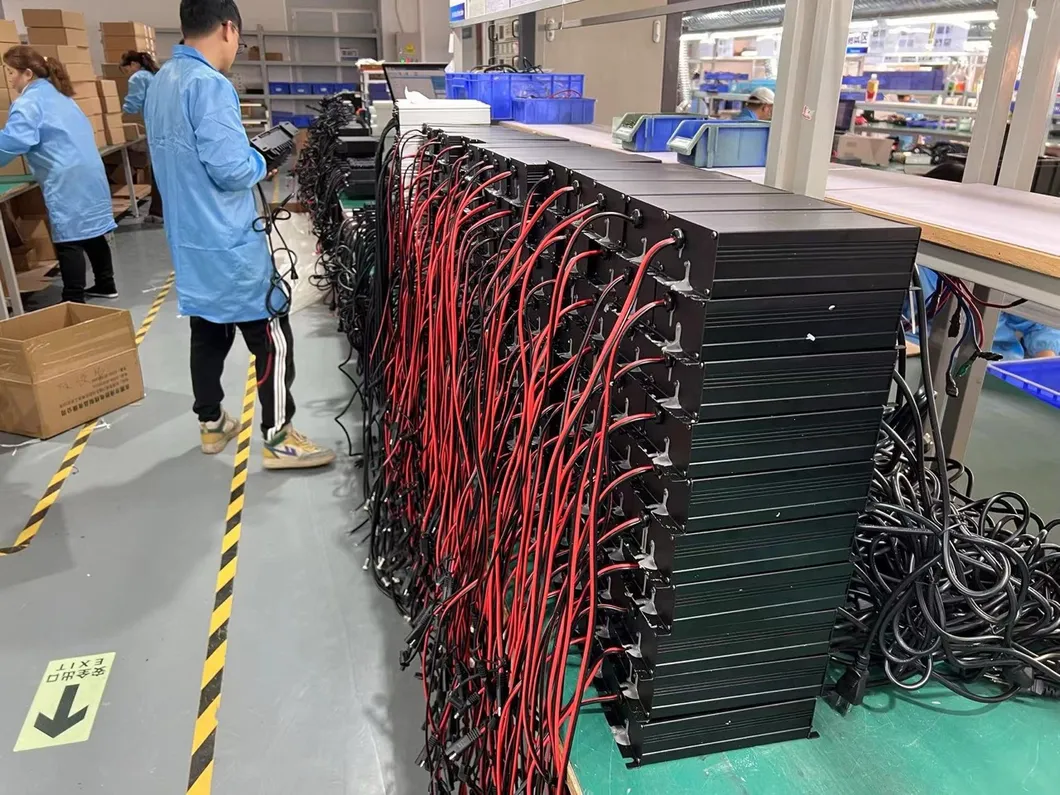

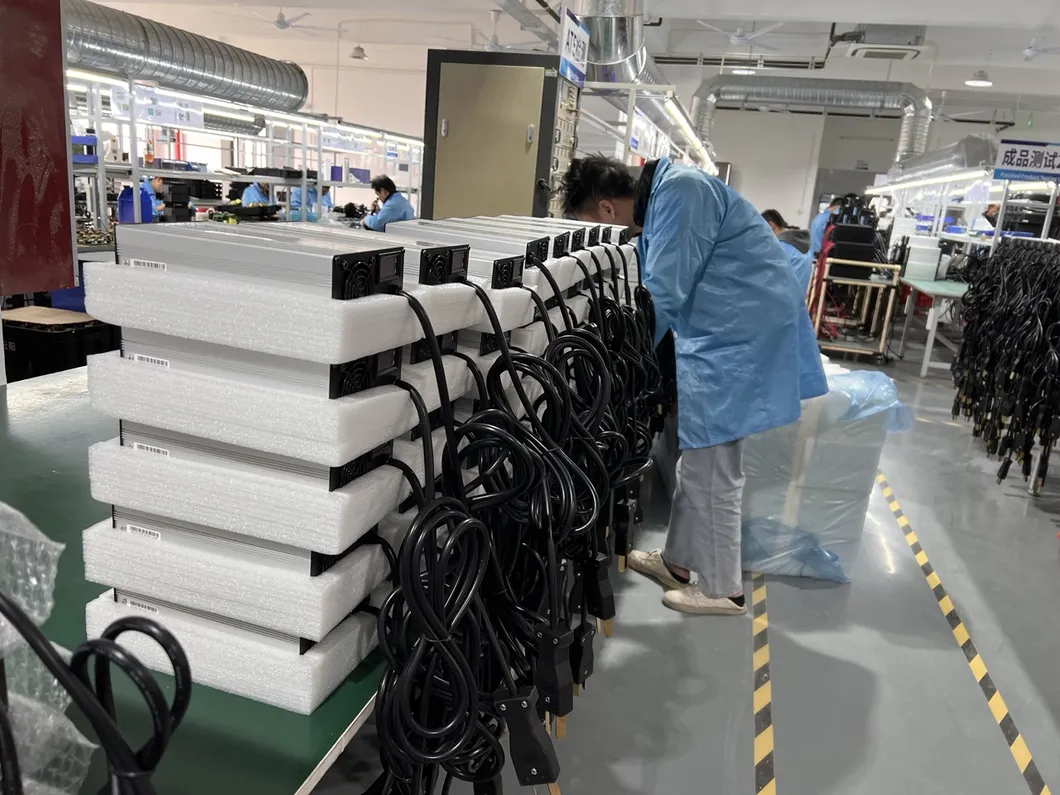

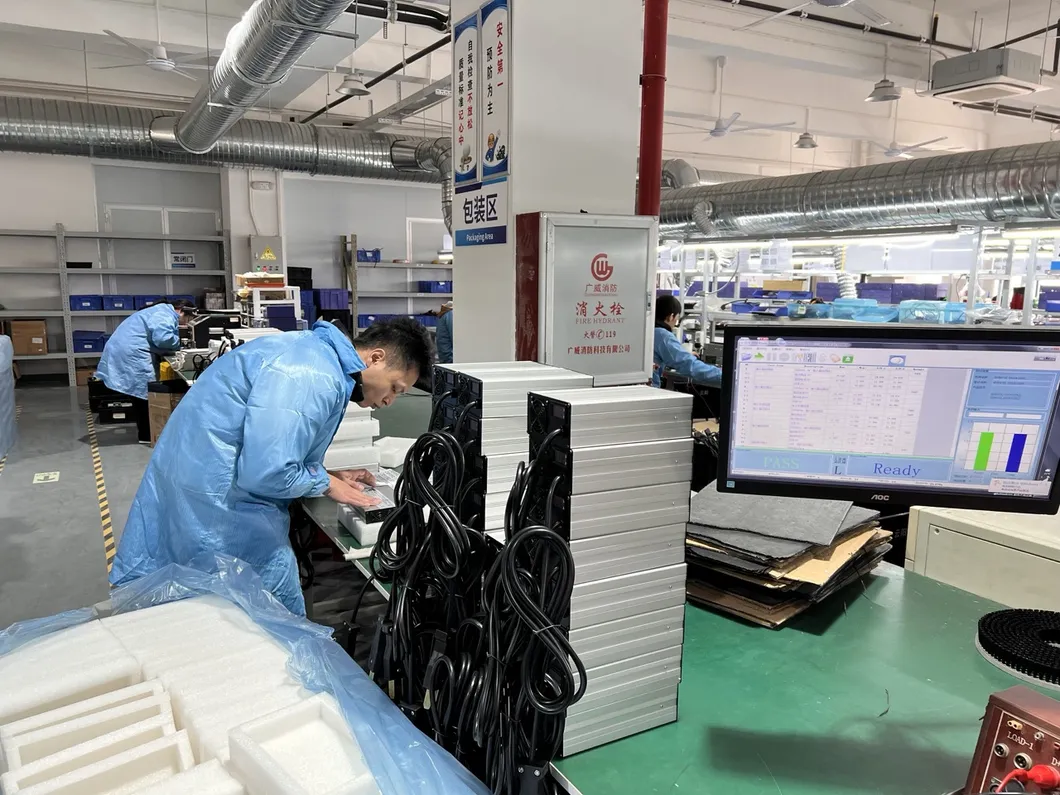

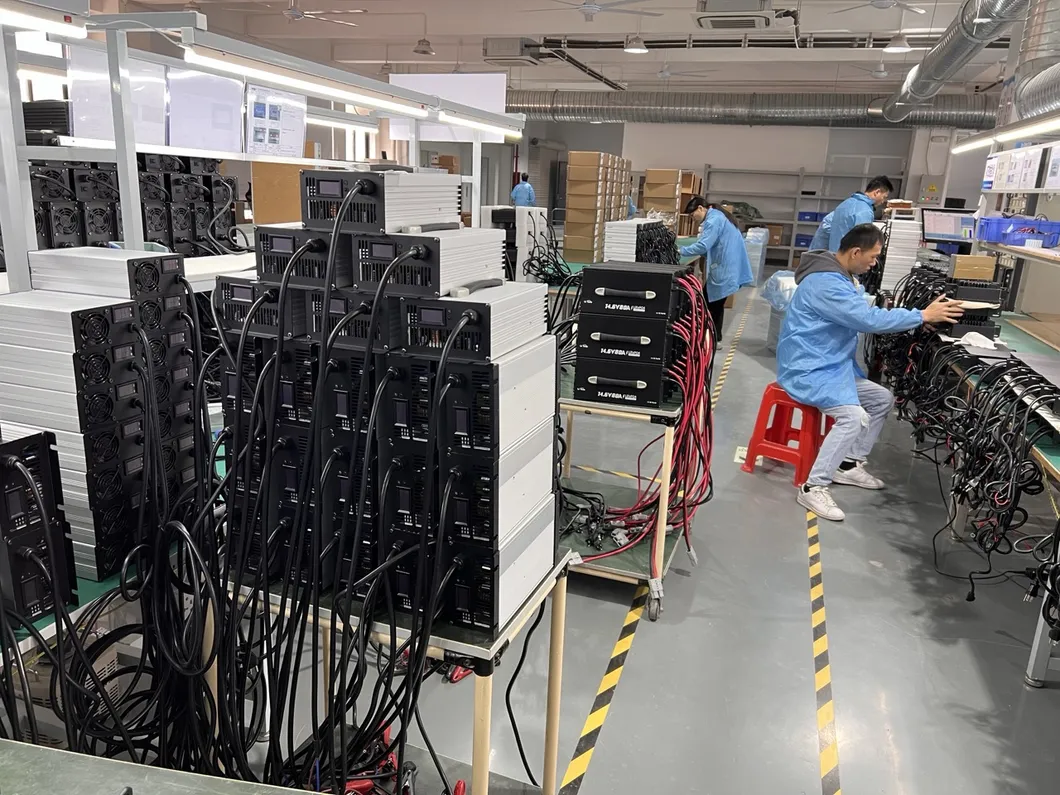

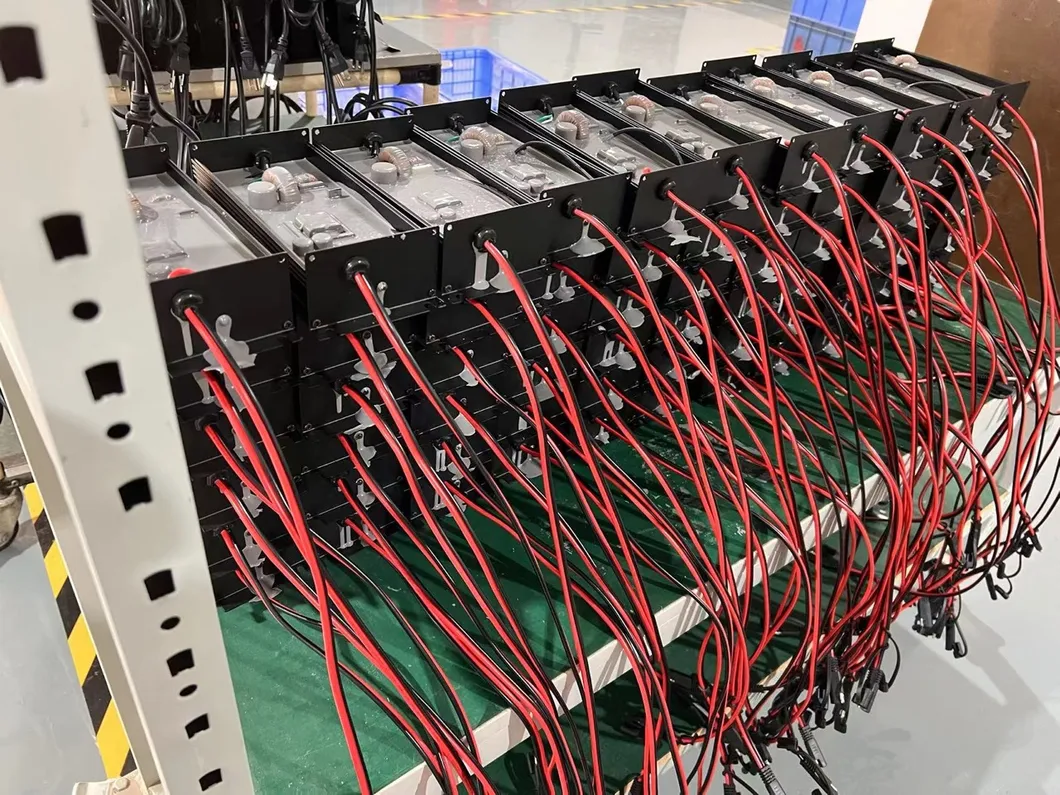

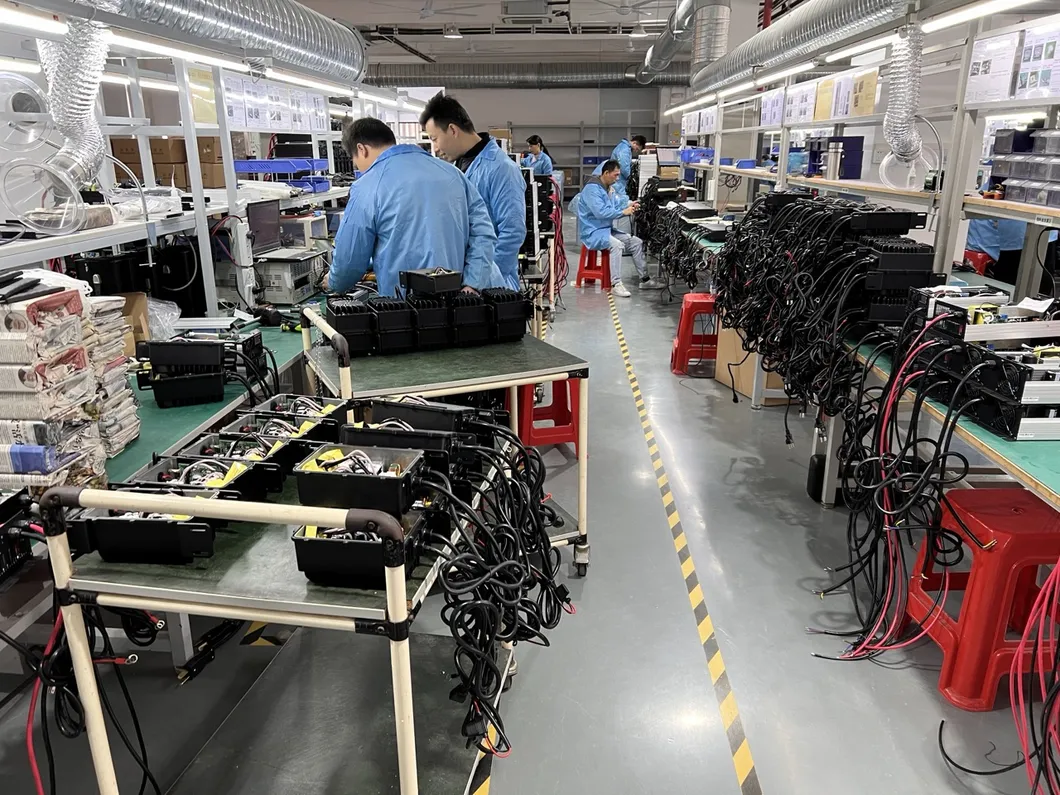

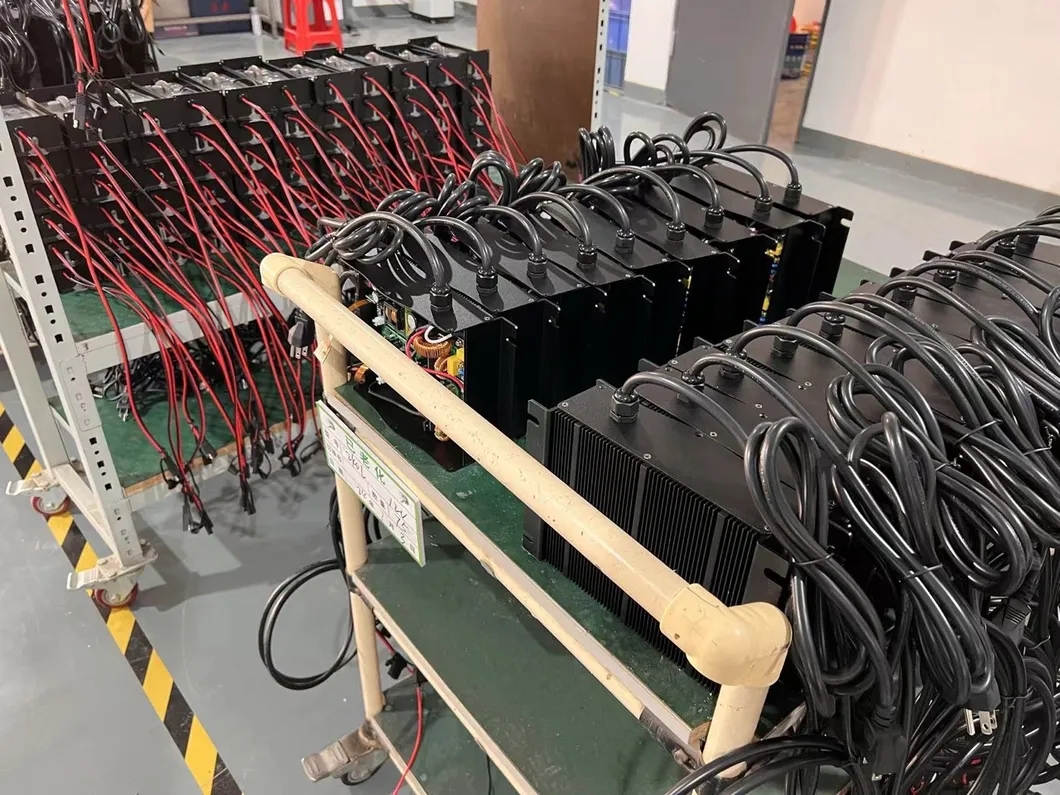

🏭 Production Gallery
❓ Frequently Asked Questions
What do abbreviations like GEL, AGM, and MF mean?
GEL, AGM, Vlies, MF, Calcium/Calcium, and Hybrid are abbreviations representing different types of lead-acid battery constructions and technologies.
How do lithium battery types like LiFePO4 and Li-ion differ?
These abbreviations refer to different cathode materials used in lithium batteries. Since the materials differ, each type requires specific charging voltages for safety and efficiency.
How do I choose the correct battery charger?
Selection depends on your battery type, capacity, and intended application. Our engineers can recommend or customize the most suitable charger based on your specific requirements.
Is it possible to charge multiple batteries in parallel?
Yes, a charger can maintain several batteries connected in parallel. The charger treats them as one large battery. Ensure the combined capacity stays within the model's recommendation and use high-quality wiring to handle potential inter-battery currents.
Can I leave the charger connected permanently?
For lead-acid batteries, chargers with a maintenance (floating) mode allow you to leave them connected for short periods, though we recommend not exceeding 24 hours. For lithium batteries without a BMS system, the charger should not be left unattended.
What are the main advantages of the aluminum casing?
The aluminum casing provides a lightweight and portable design while offering excellent heat dissipation and durable protection for the internal electronics.
