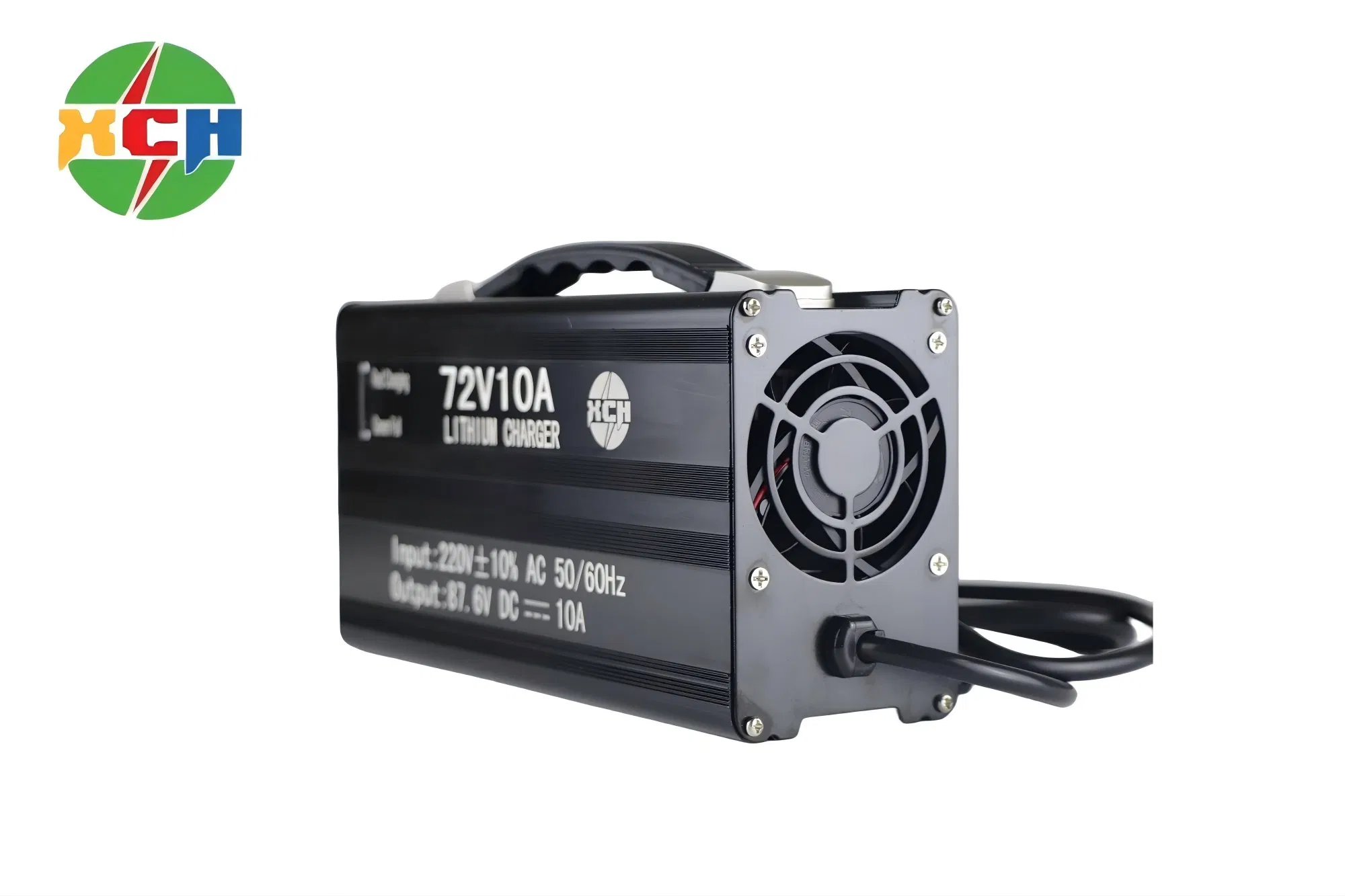

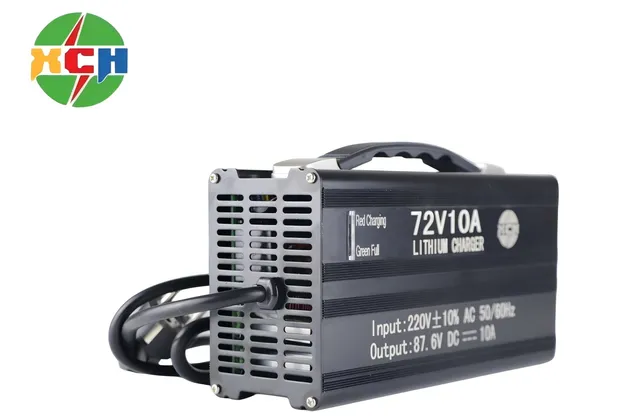

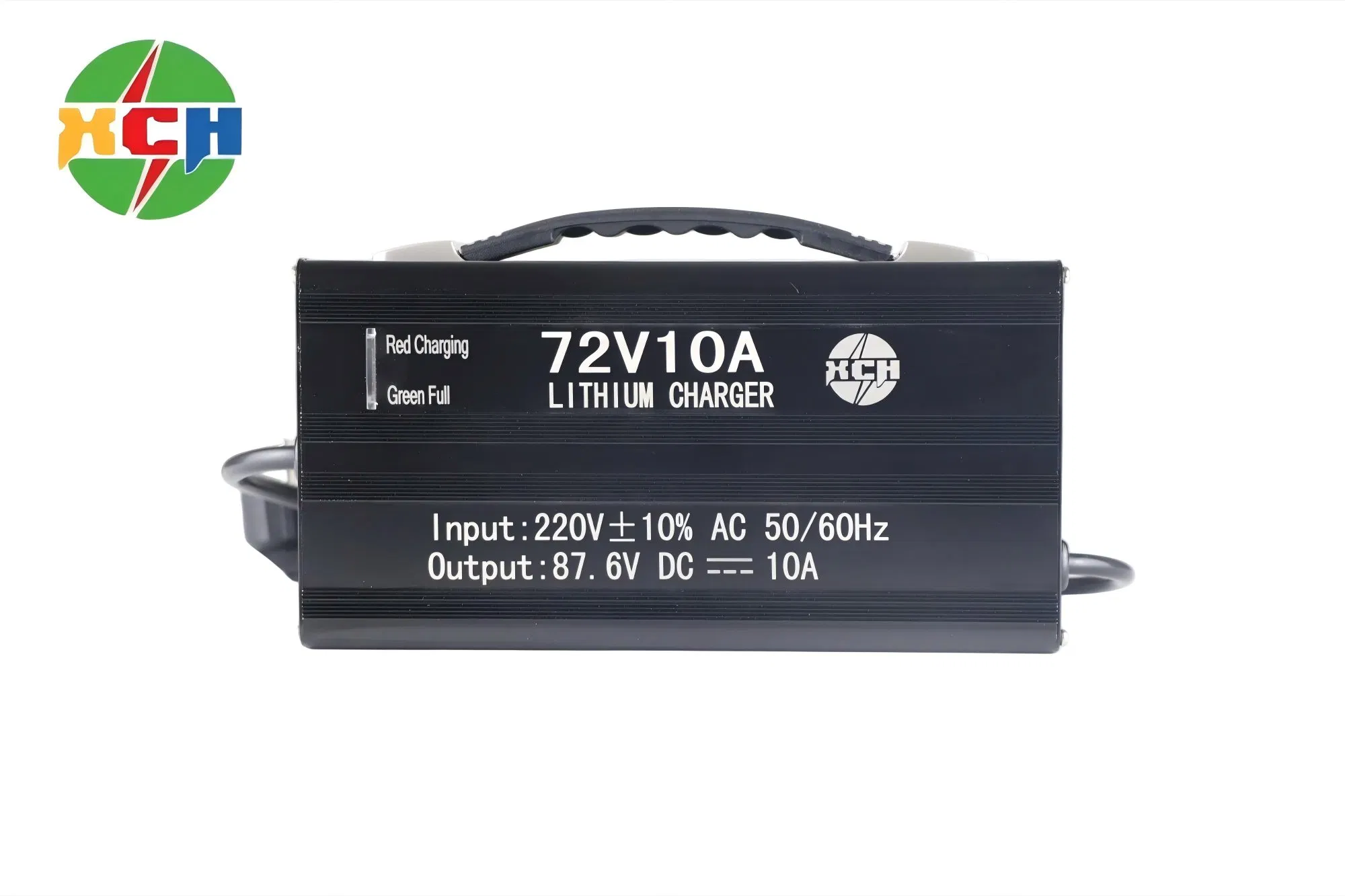

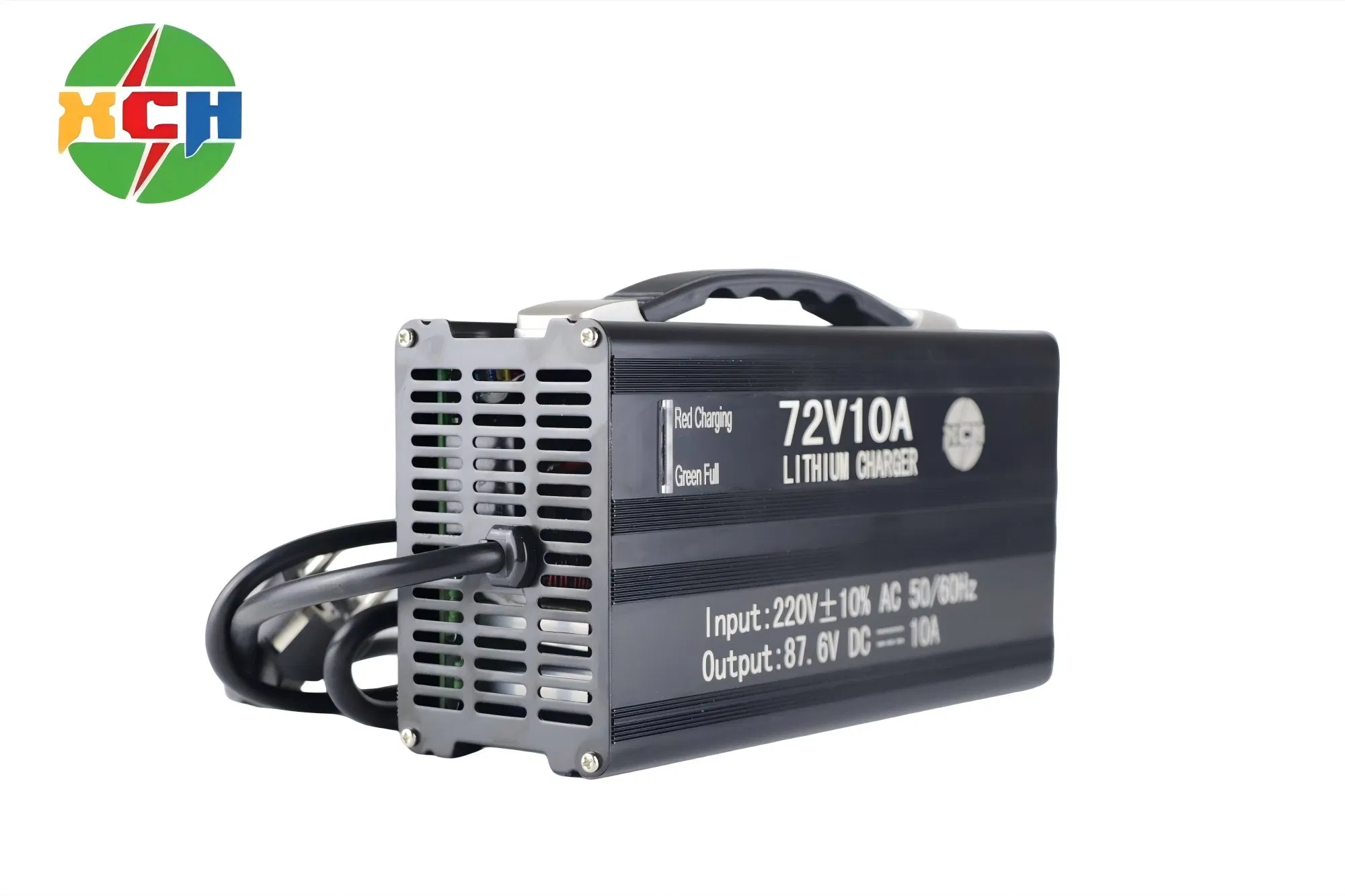

E-Tronde Charger
1 / 5
| Model NO. | 72V10A |
|---|---|
| Charger Application | Ebike, Emotorcycle, Escooter, Erickshaw |
| Nominal Voltage | 72V |
| Charger Style | Quick Charger |
| Compatible Battery Type | Lithium Battery |
| Certification | SASO, GOST-R, KC, PSE, CTIA, RoHS, TUV, CB, CE |
| Socket Type | For E.U. |
| Material | Aluminum |
| Input Voltage | 100, 220V AC, 50-60Hz |
| Rated Output Voltage | 87.6V |
| Rated Charging Current | 9.8-10A |
| Protections | Short Circuit, Reverse Connect, Temperature, Zero Voltage Output |
| Working Efficiency | <87% |
| No-Load Power | ≤3W |
| Output Voltage Ripple | ≤500mv P-P |
| Package Size | 32.50cm * 20.50cm * 8.50cm |
|---|---|
| Package Gross Weight | 1.500kg |
| Transport Package | Standard Shipping Packaging or Customized |

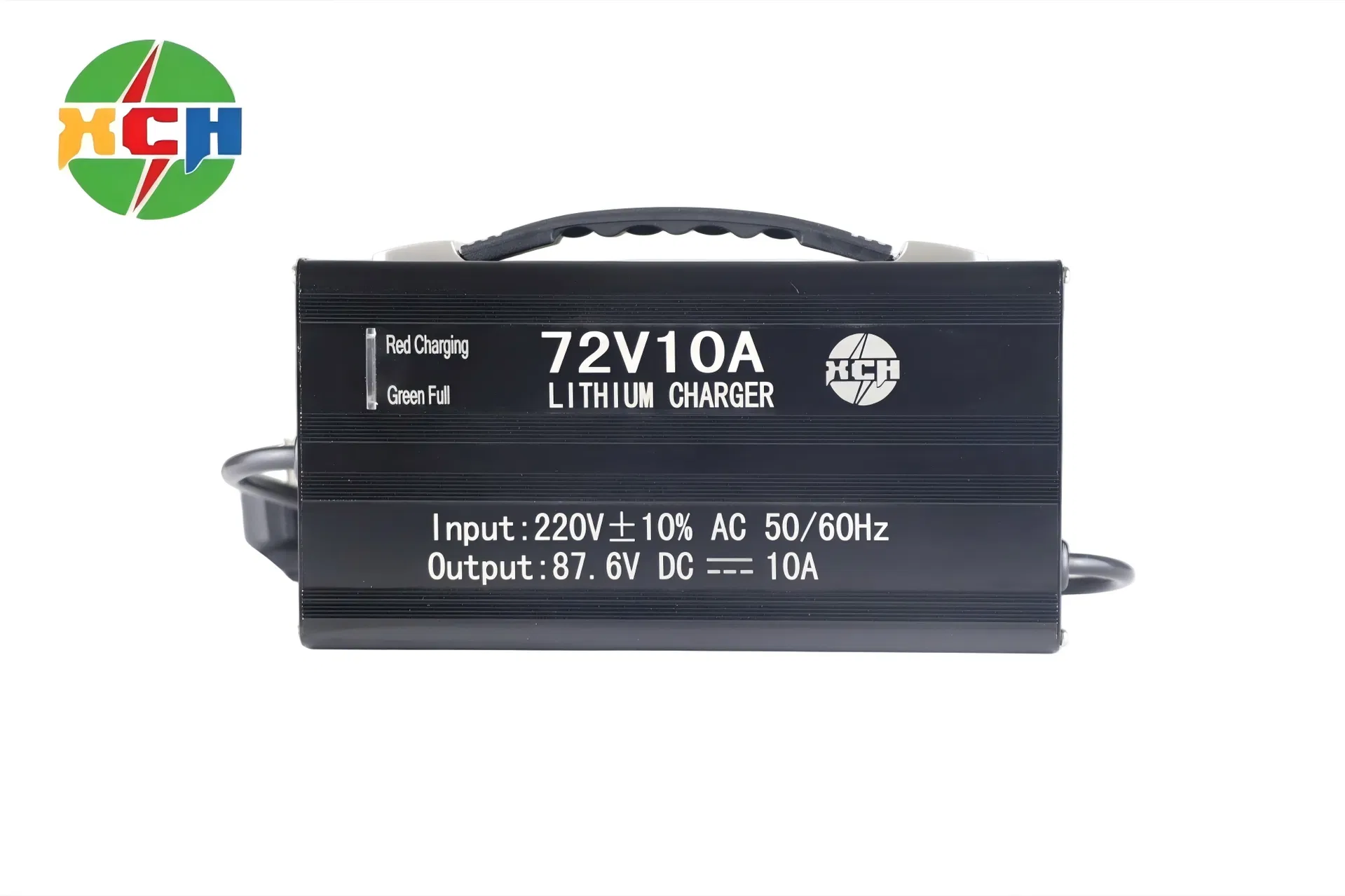

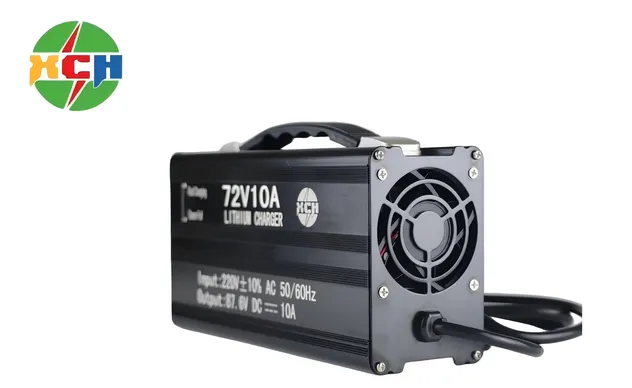

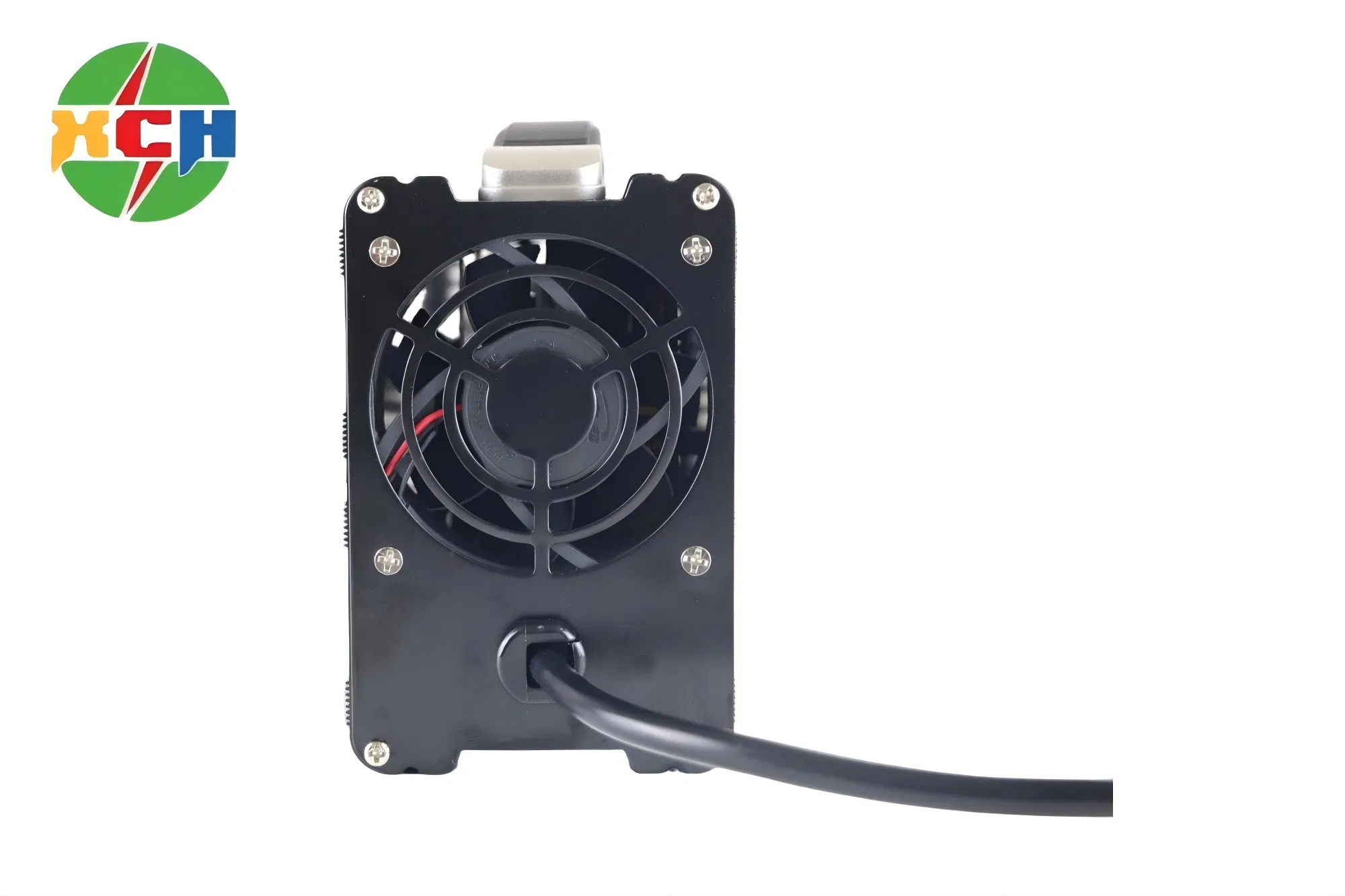

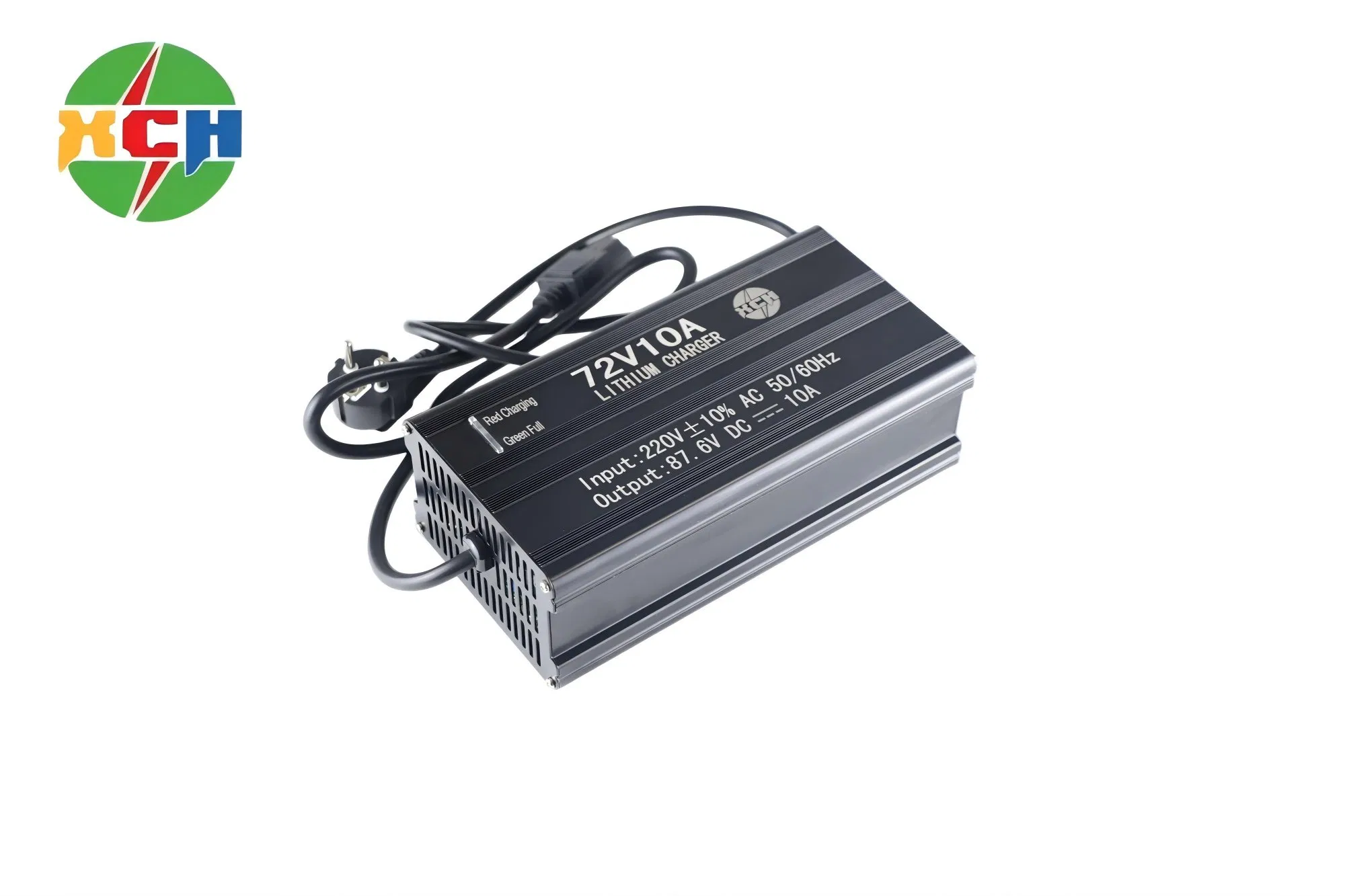

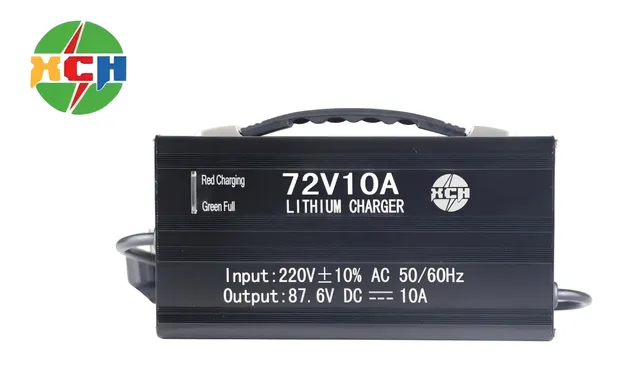

LITHIUM BATTERY CHARGER
Designed for efficient, safe, and reliable charging of your lithium-ion batteries. Ideal for e-bikes, scooters, solar storage systems, and other high-power applications. This charger delivers optimized performance with an output specifically tuned for 72V systems.
It features multiple protection mechanisms including overcharge protection, short-circuit prevention, and temperature control, ensuring both safety and longevity for your battery. Built with high-quality components, it offers stable voltage output and high energy conversion efficiency. LED indicators keep you informed about the charging status at a glance.
| Charger Model | 72V10A |
|---|---|
| Input Voltage | 110V / 220V AC, 50/60Hz |
| Rated Output Voltage | 87.6±0.5V DC |
| Rated Charging Current | 9.8-10A |
| Weight | 1.0Kg |
| Working Efficiency | >87% |
| Dielectric Strength | 3.75KV, Leakage Current < 10MA (1 Minute) |
| Working Temperature | -10℃ to 50℃ |
| Working Humidity | 20% - 85% |

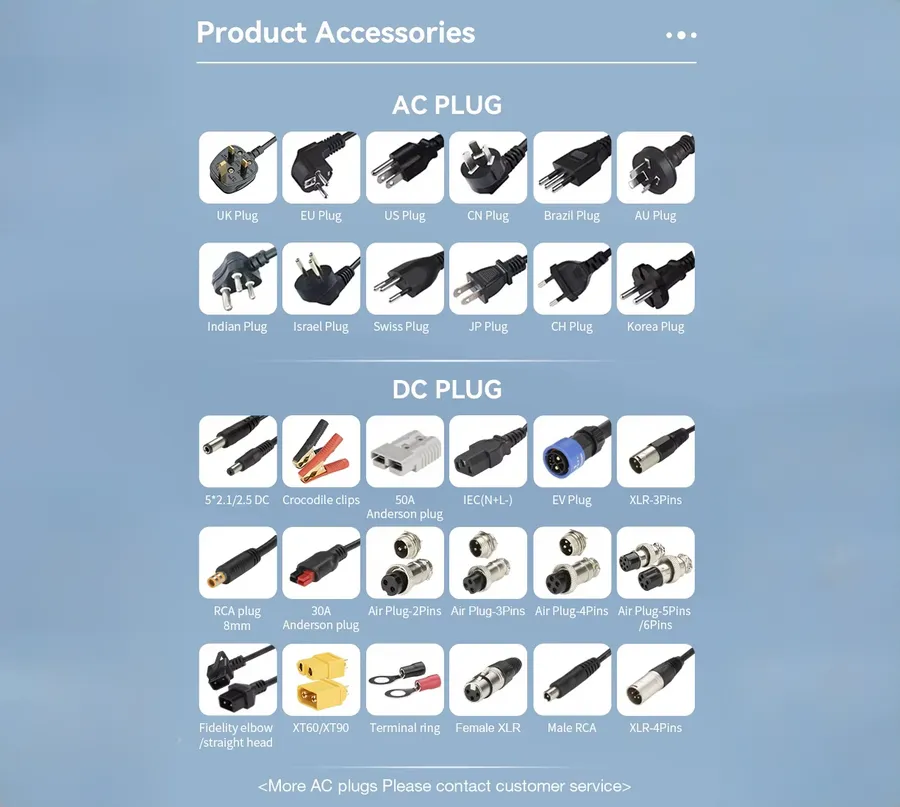

| Input/Output Wire | Customizable |
