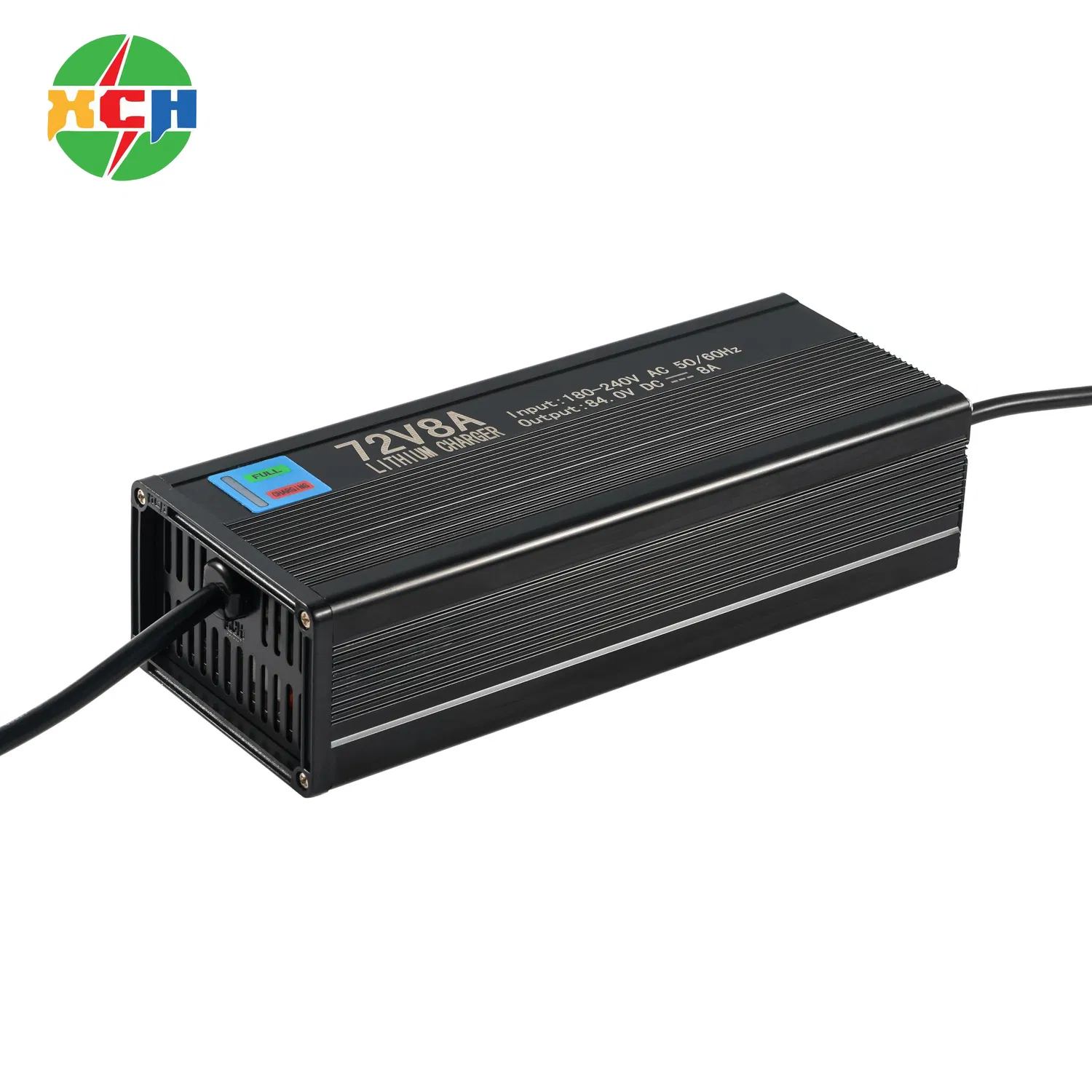

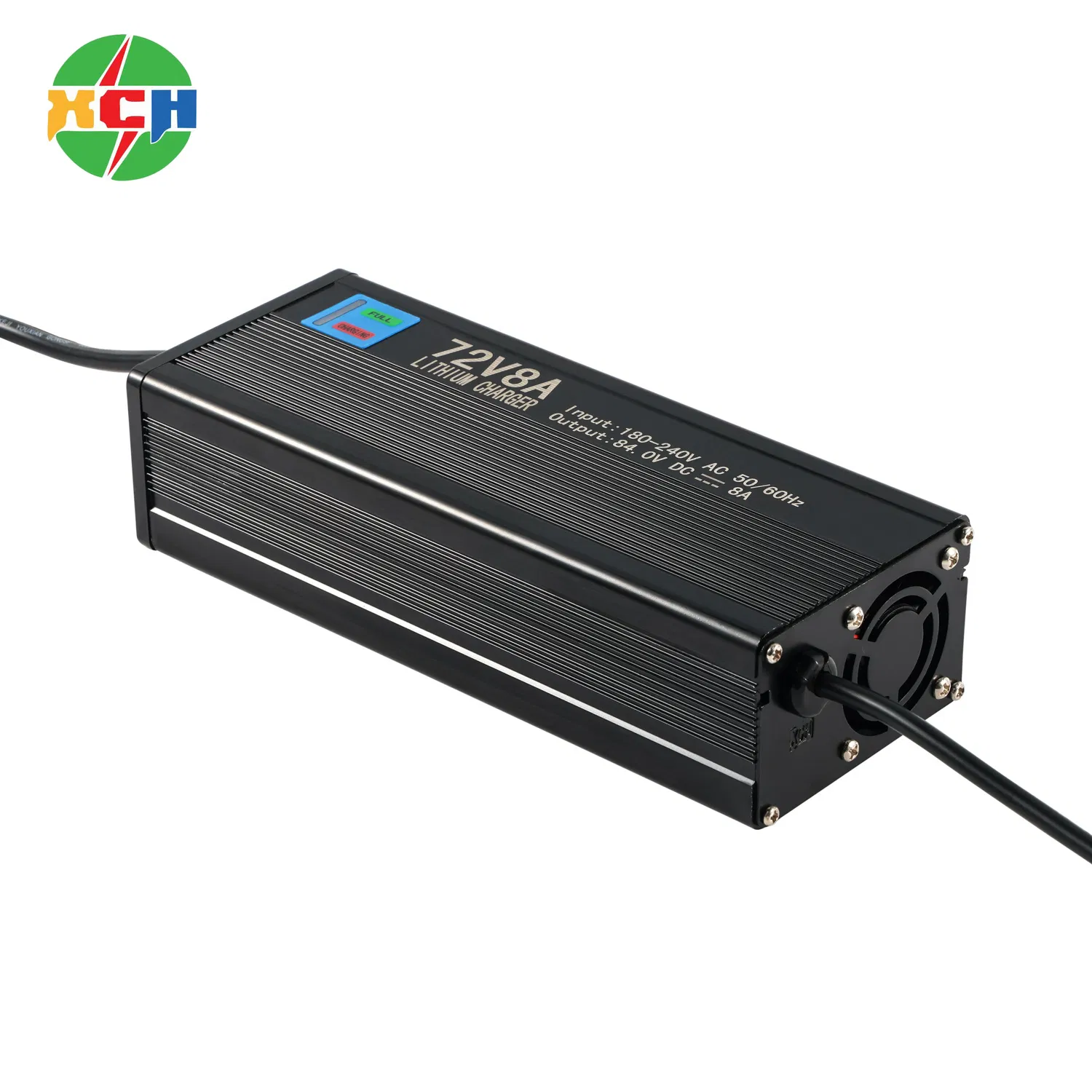

TERNARY LITHIUM BATTERY CHARGER
Our ternary lithium battery charger is designed specifically for e-bikes, scooters, and other electric three-wheeled vehicles, delivering optimal charging performance. This charger utilizes high-speed charging technology to minimize downtime, and its advanced protection system prevents overcharging, overheating, and short circuits, ensuring maximum battery safety.
Its lightweight and compact design makes it easy to carry and store, making it ideal for daily commutes and long-distance travel. Designed to extend battery life and maintain optimal performance, this charger is compatible with a wide range of vehicles powered by ternary lithium batteries.
| Item Description | Standard Parameters |
|---|---|

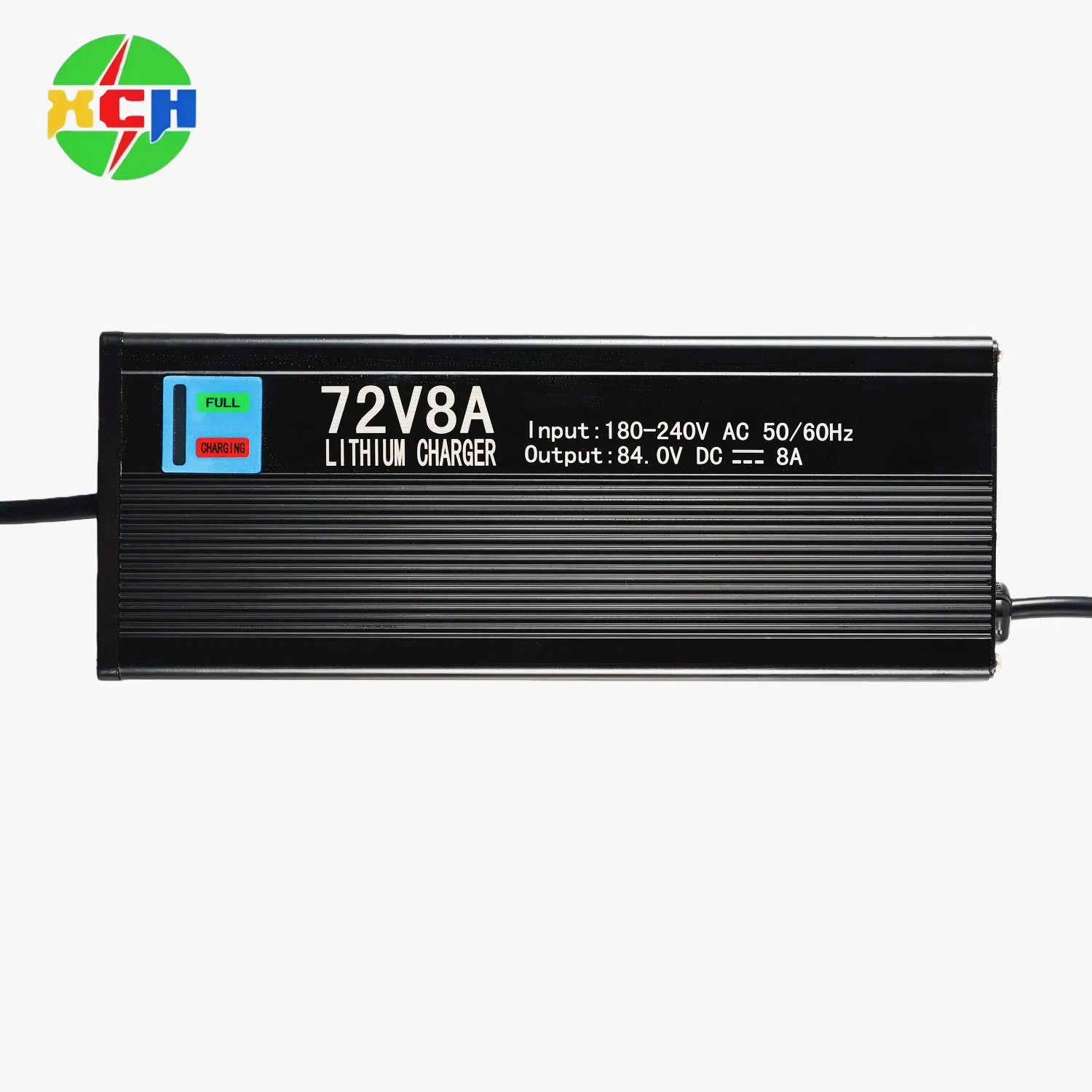

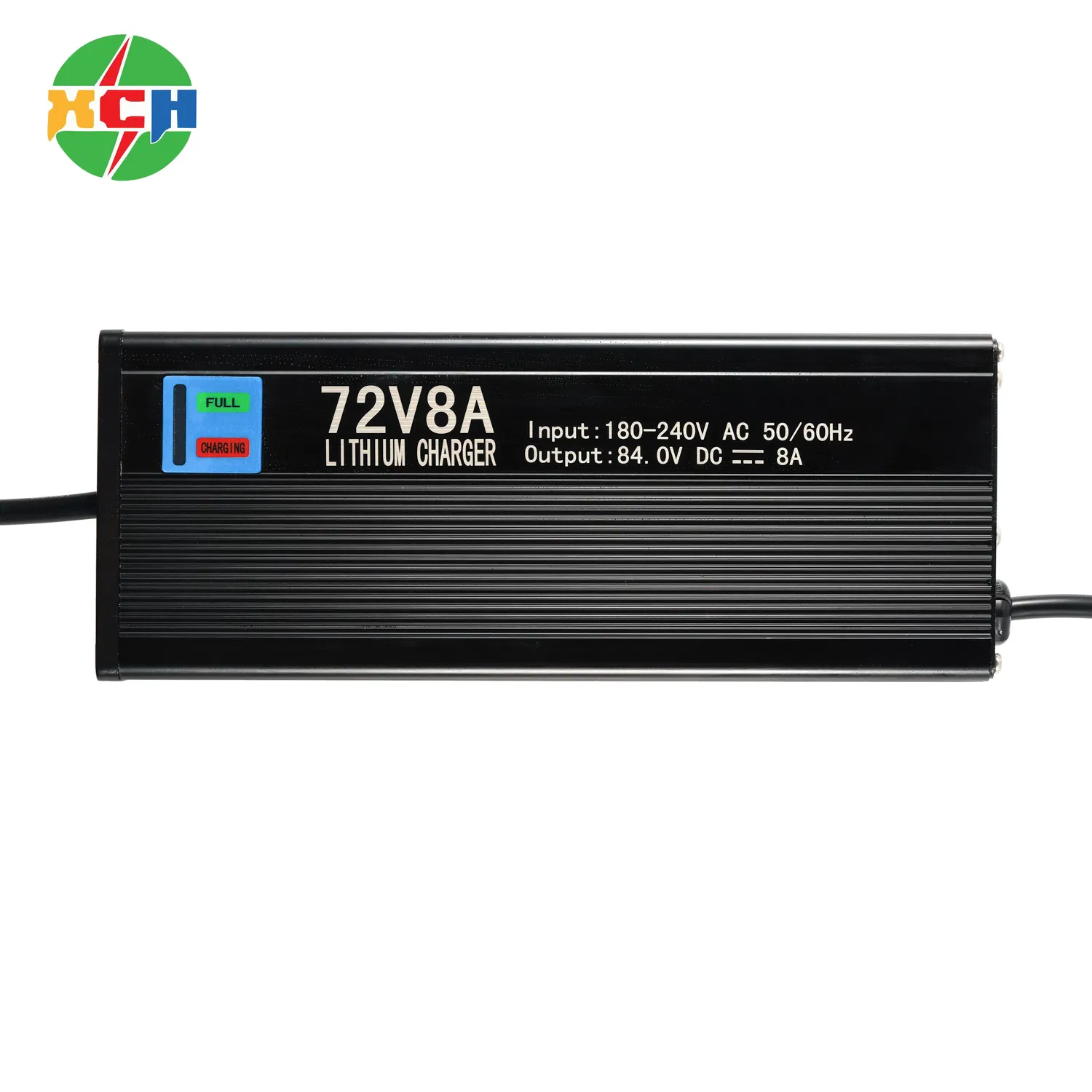

| Charger Model | Lithium Ion/LFP 72V8A Charger |

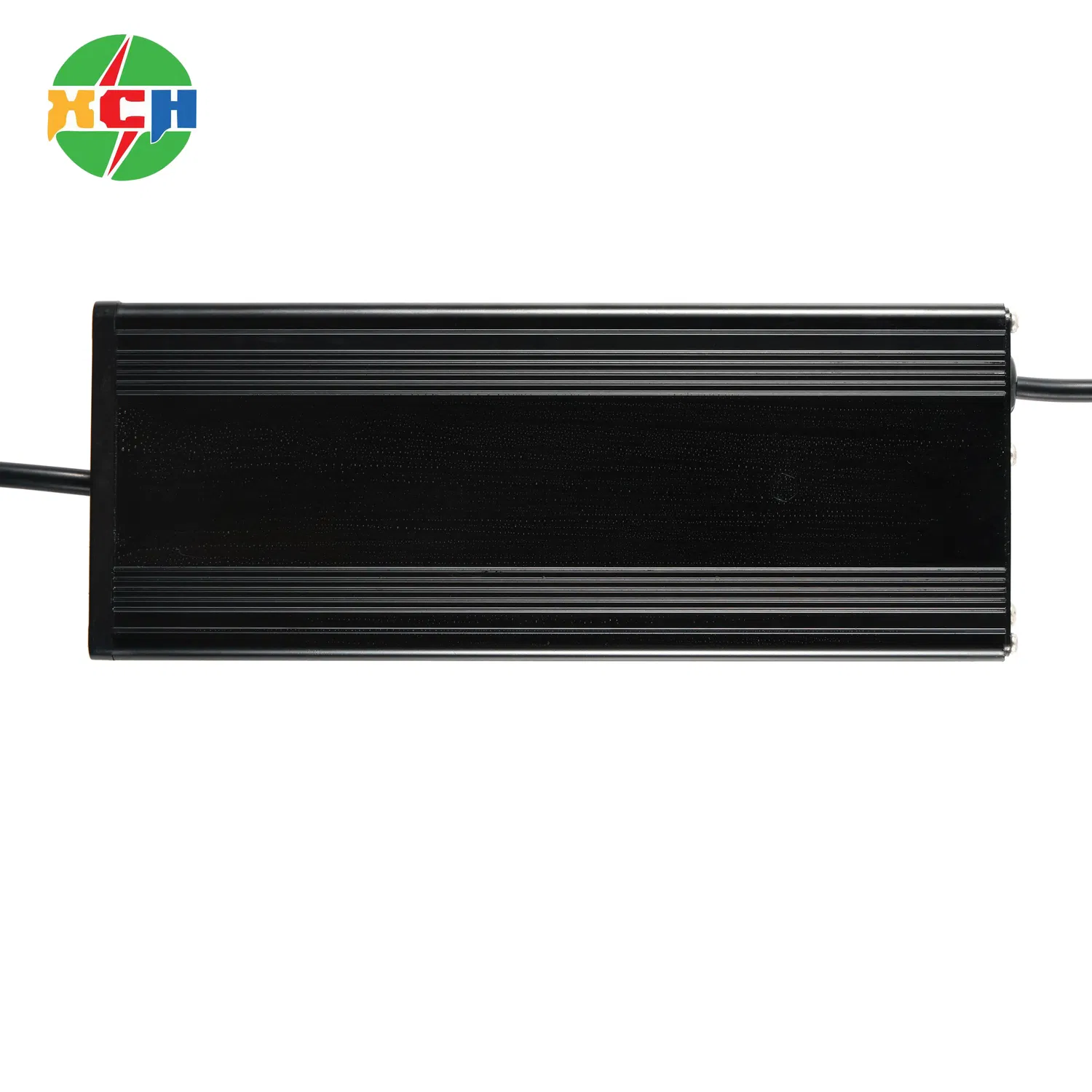

| Material | Aluminum Case |
| Input Voltage | 220V AC, 50-60HZ |
| Rated Output Voltage | 84.0V |
| Rated Charging Current | 7.8-8.0A |
| Working Efficiency | >87% |
| No-Load Power | ≤3W |
| Output Voltage Ripple | ≤500MV P-P |
| Dielectric Strength | 3.75KV, Leakage Current < 10MA |
| Working Temperature | -10℃ to 50℃ |
| Working Humidity | 20% - 85% |
