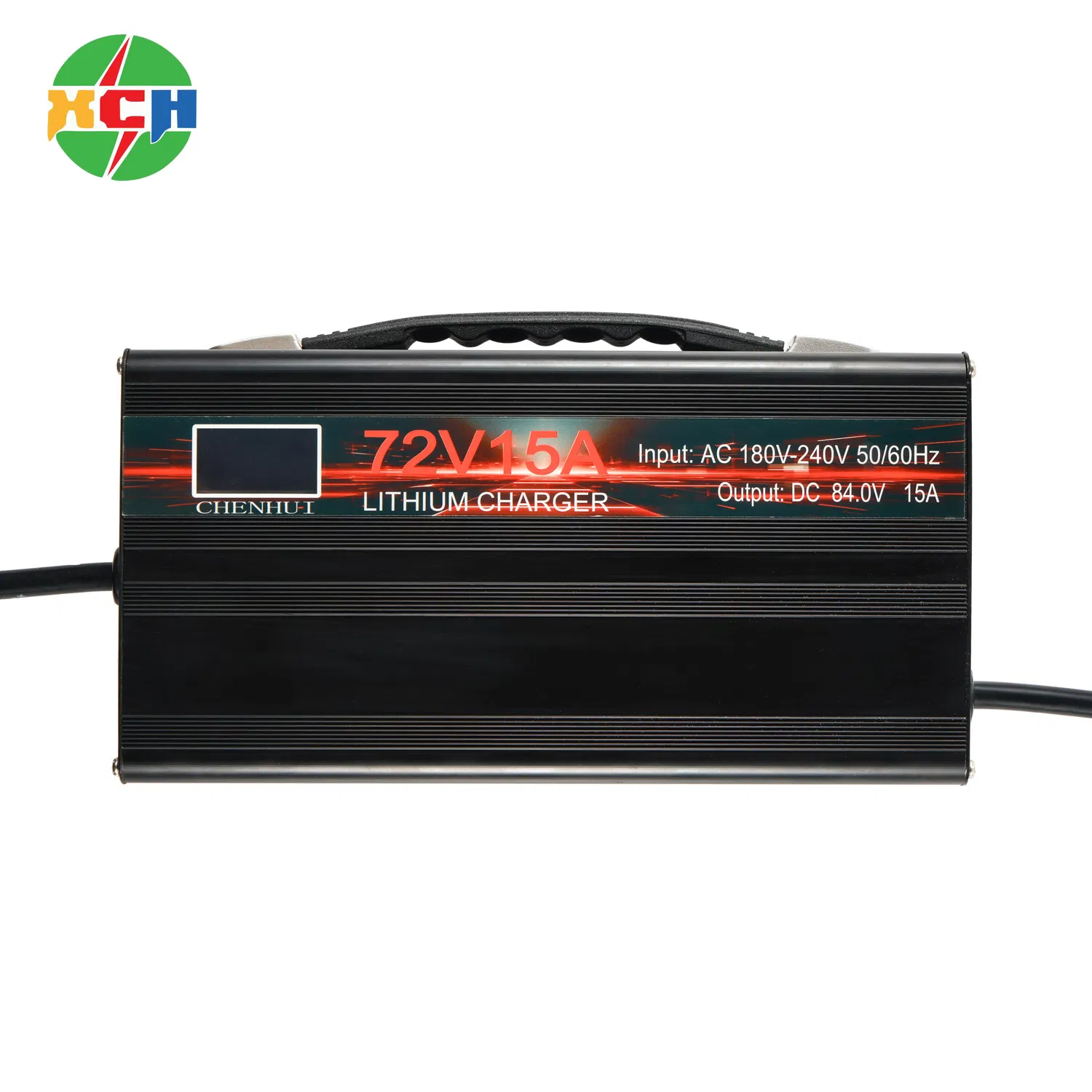

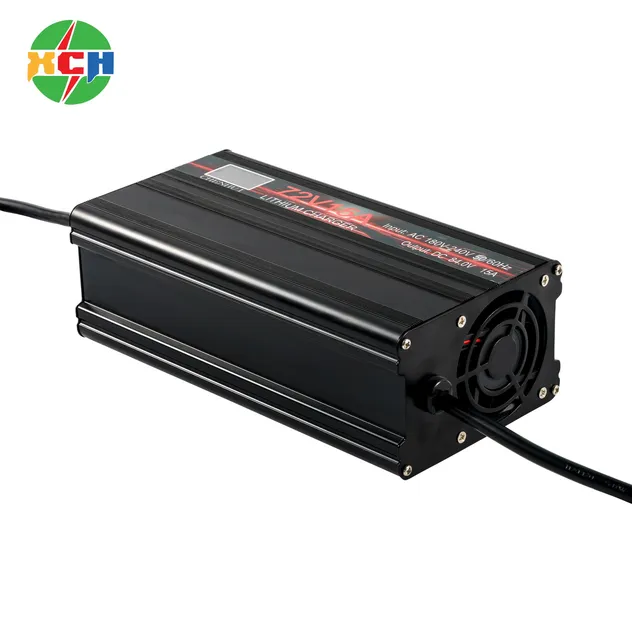

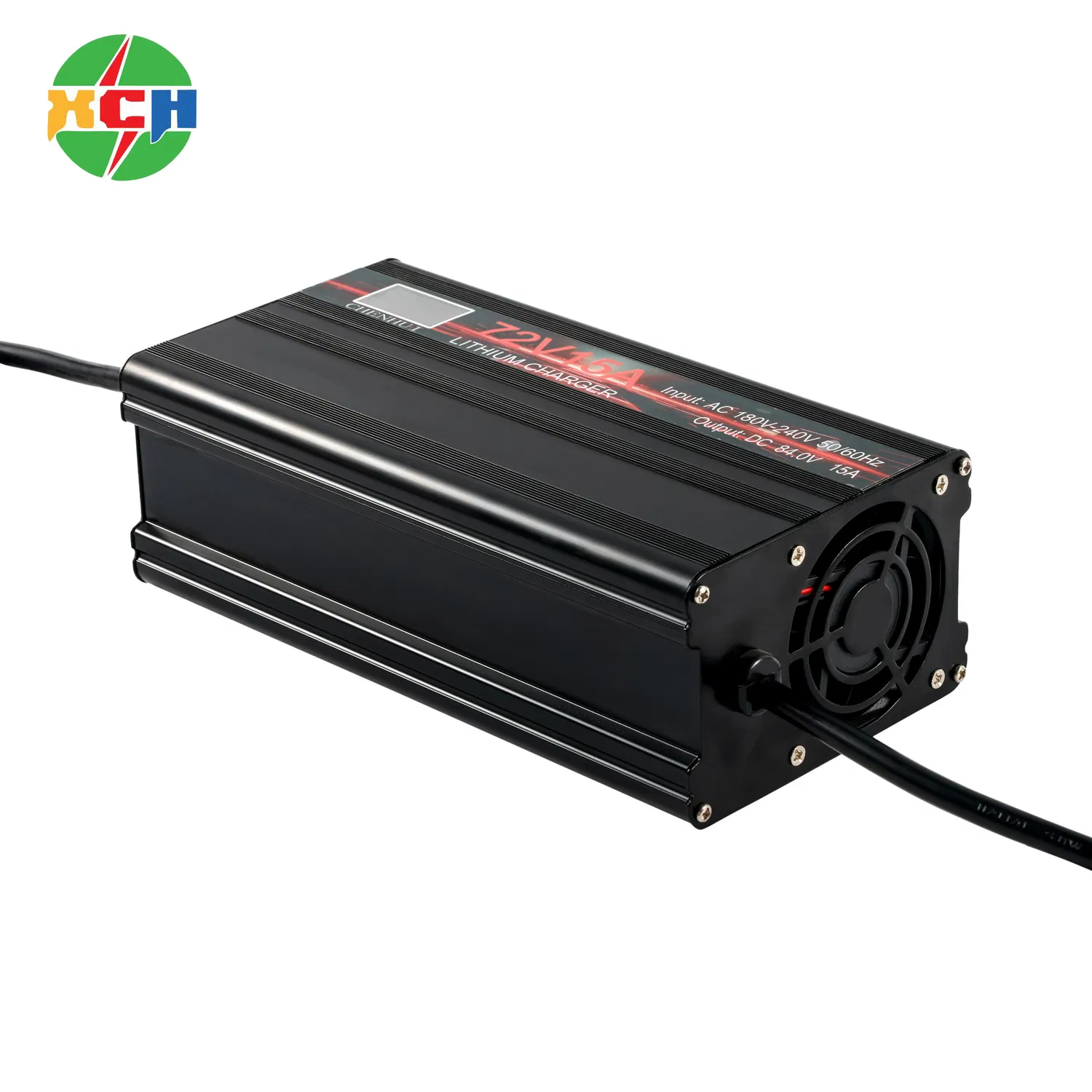

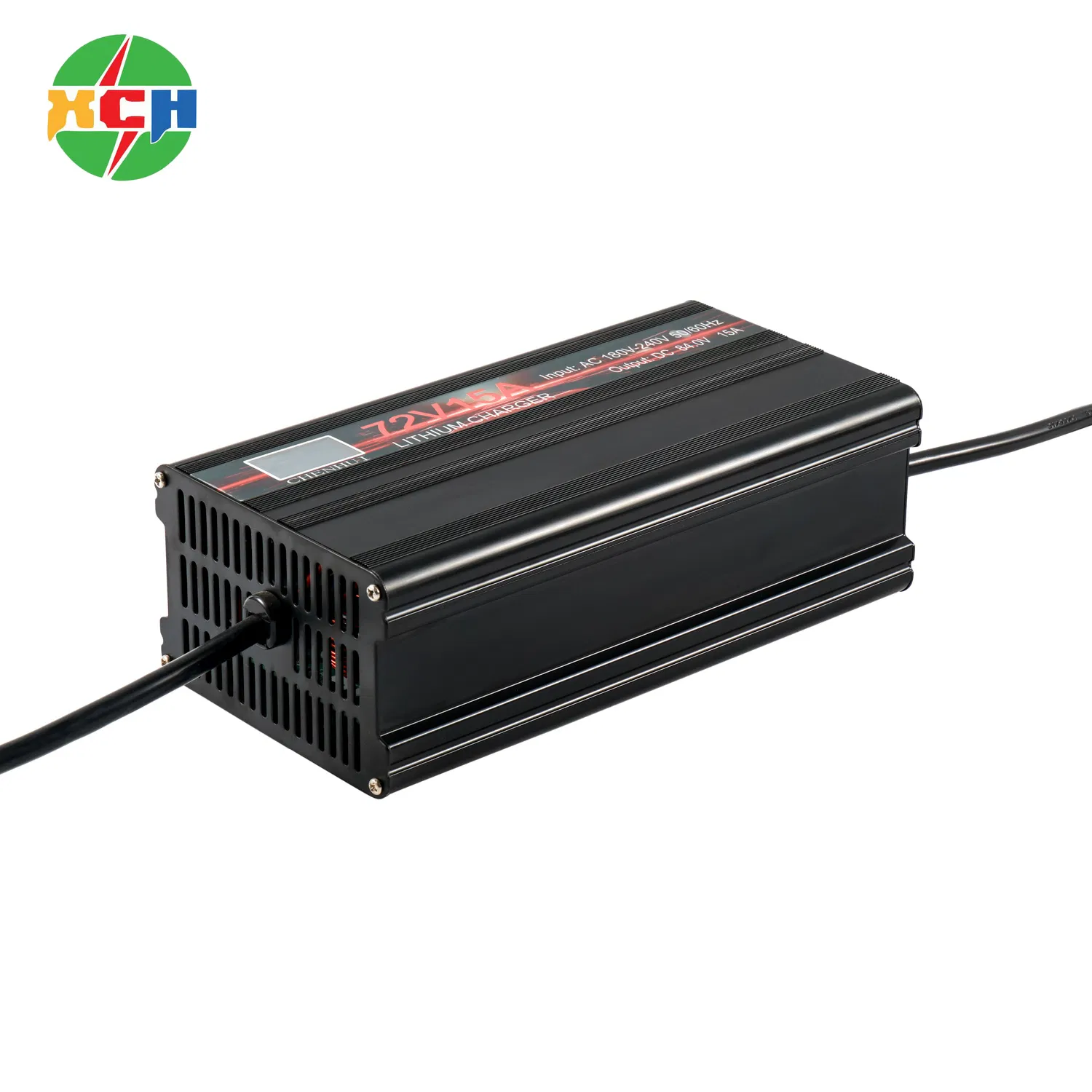

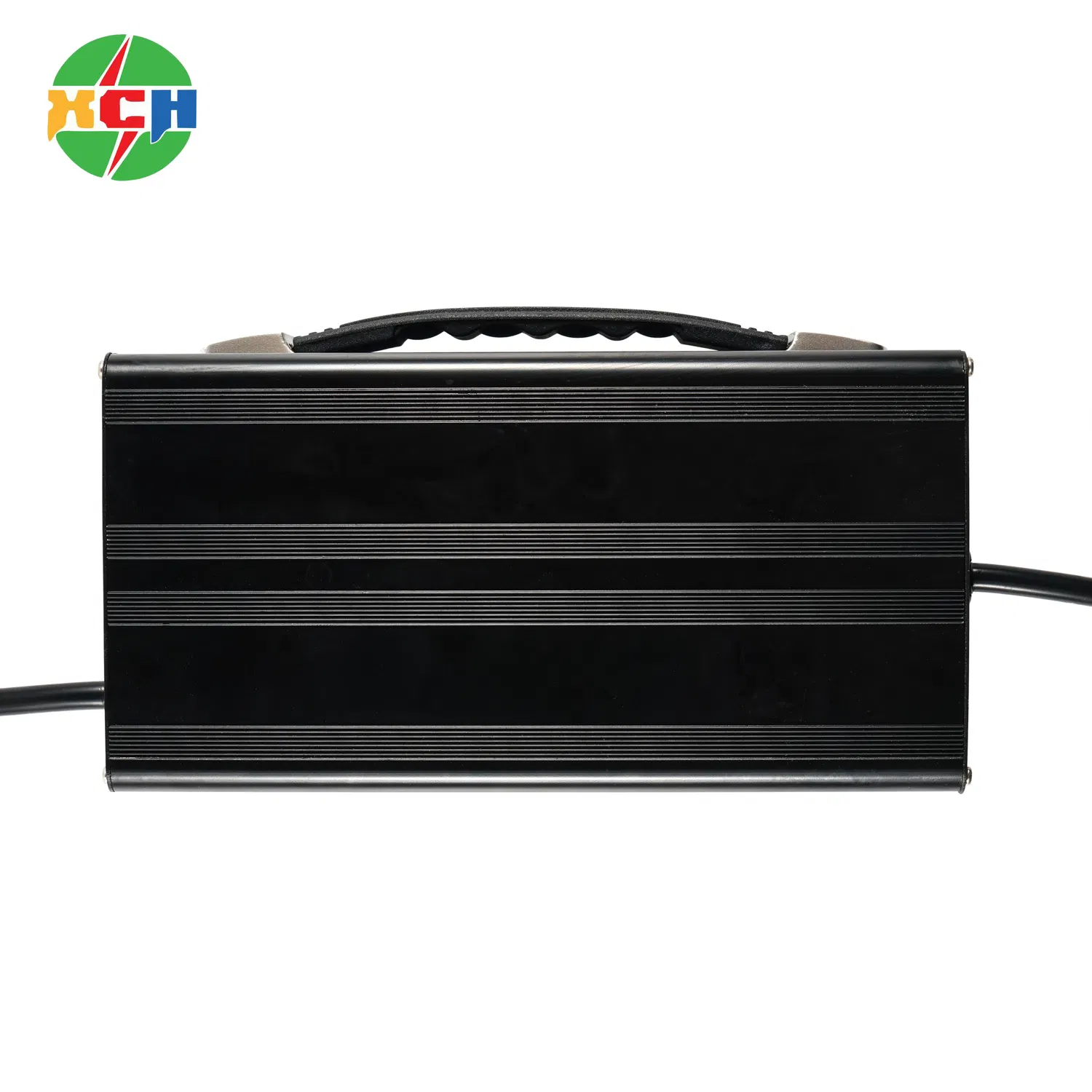

Automatic Shut-off 72V15A Lithium Battery Charger for E-Bikes/Scooters

1 / 5

Automatic Shut-off 72V15A Lithium Battery Charger for E-Bikes/Scooters

Customization:	Available
Type:	Ternary Lithium Battery Charger
Charger Type:	Electric Charger

Send Inquiry

Product Description

📊

Basic Information

Model NO.

72V15A

Application

Ebike, Emotorcycle, Escooter, Erickshaw

Nominal Voltage

72V

Charger Style

Intelligent Charger

Certification

SASO, KC, PSE, RoHS, TUV, CB, CE

Material

Aluminum

Input Voltage

180V-240V AC, 50-60Hz

Output Voltage

84V±0.5V DC

Charging Current

14.8V-15.0V

Weight

2.0kg

Efficiency

>87%

Protection

Short Circuit, Reverse, Temperature

🔋

Product Description

TERNARY LITHIUM BATTERY CHARGER
This 72V 15A lithium battery charger is specifically designed for ternary lithium (NMC/LiNiMnCoO2) battery packs. It delivers an optimal charging current of 15 amps, ensuring efficient and rapid power restoration.

The charger features a three-stage smart charging process (constant current, constant voltage, and trickle charge) to maximize battery lifespan and ensure safety. Key protections include safeguards against over-voltage, over-current, short-circuiting, and overheating.

⚡

Charge faster and more efficiently with advanced graphene technology, reducing heat and energy loss.

🛡️

Extend your charger's lifespan with enhanced durability, designed to withstand rigorous daily use.

🔄

Seamless compatibility with both lead-acid and lithium-powered electric vehicles.

📋

Specifications

72V15A TERNARY LITHIUM BATTERY CHARGER
Charger Model	72V15A
Material	Aluminum
Input Voltage	180-240V AC, 50-60HZ
Rated Output Voltage	84V±0.5V DC
Rated Charging Current	14.8-15.0A
Working Efficiency	>87%
Short Circuit Protection	Yes
Reverse Connect Protection	Yes
Temperature Protection	Yes
Zero Voltage Output	Yes
No-Load Power	≤3W
Working Temperature	-10℃ to 50℃
