E-Tronde Charger
1 / 5

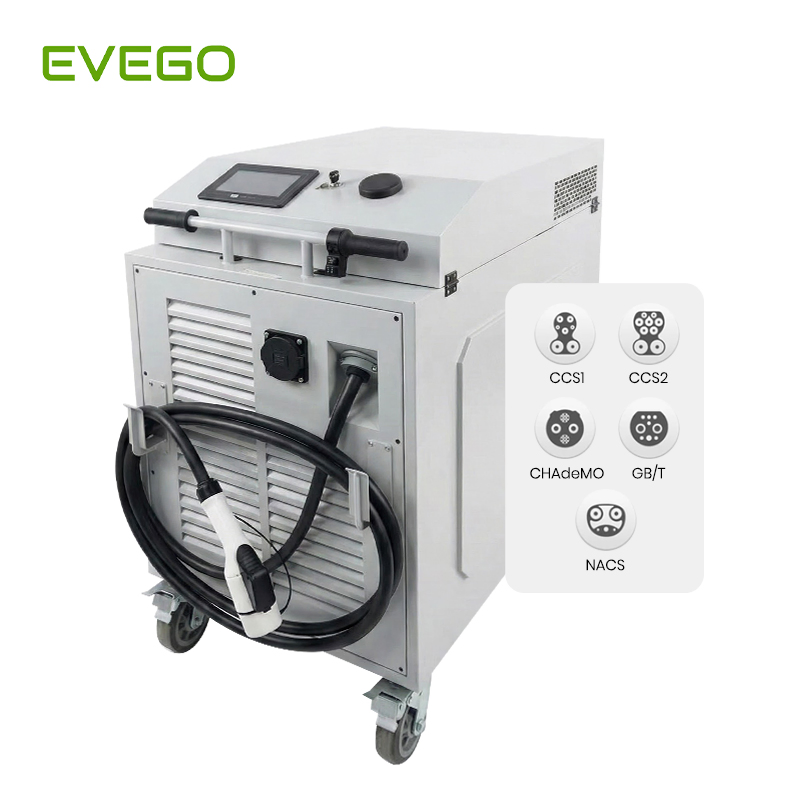

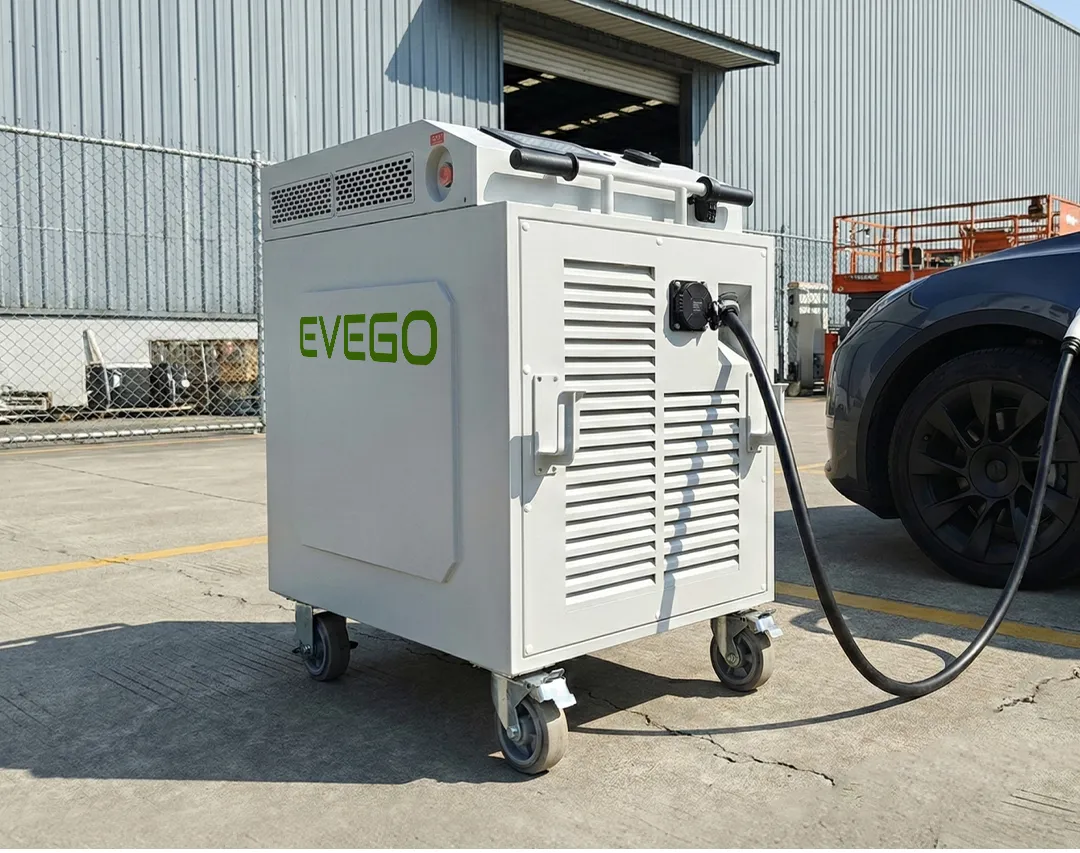

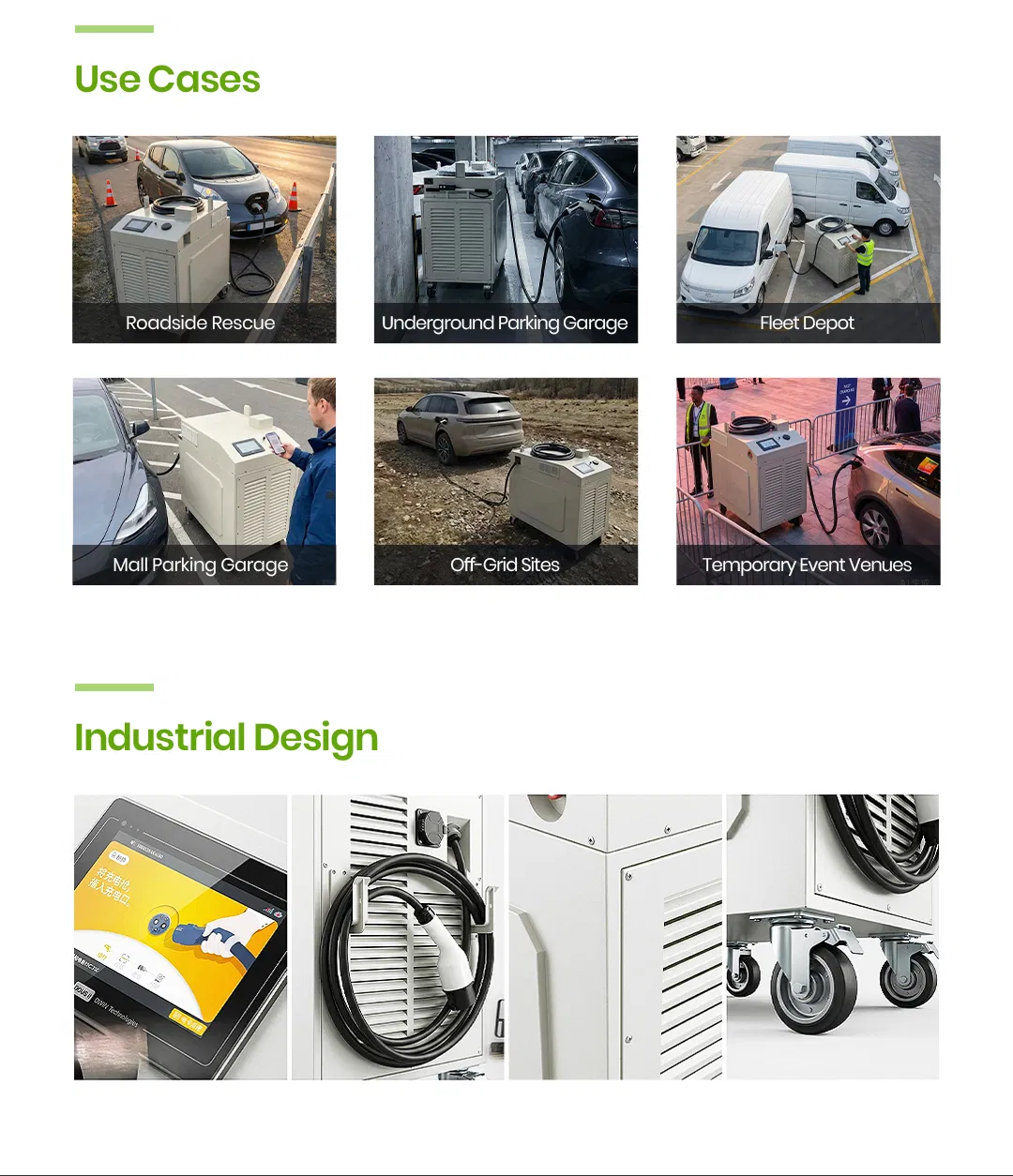

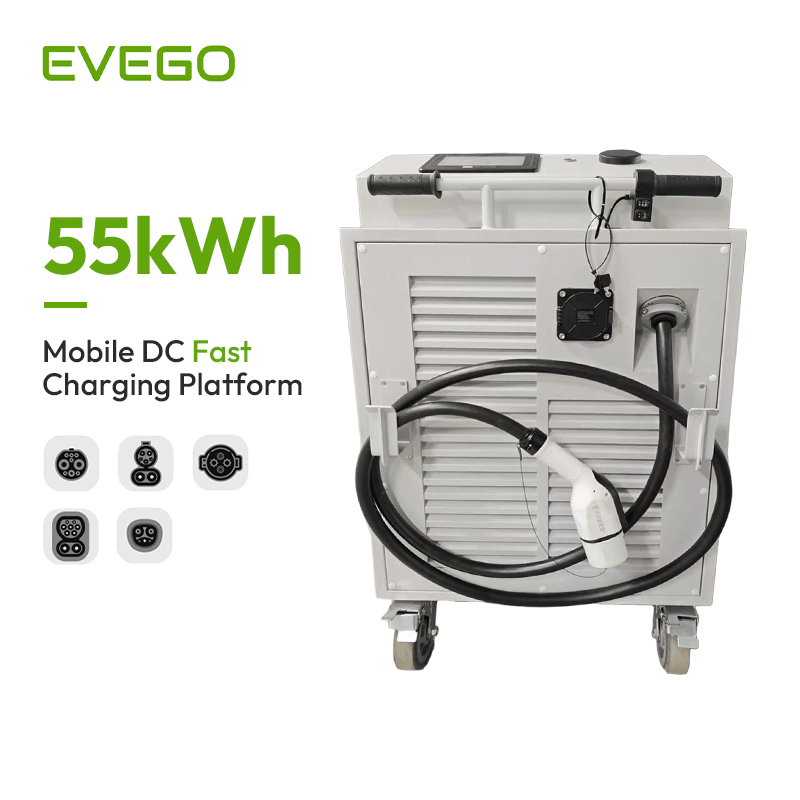

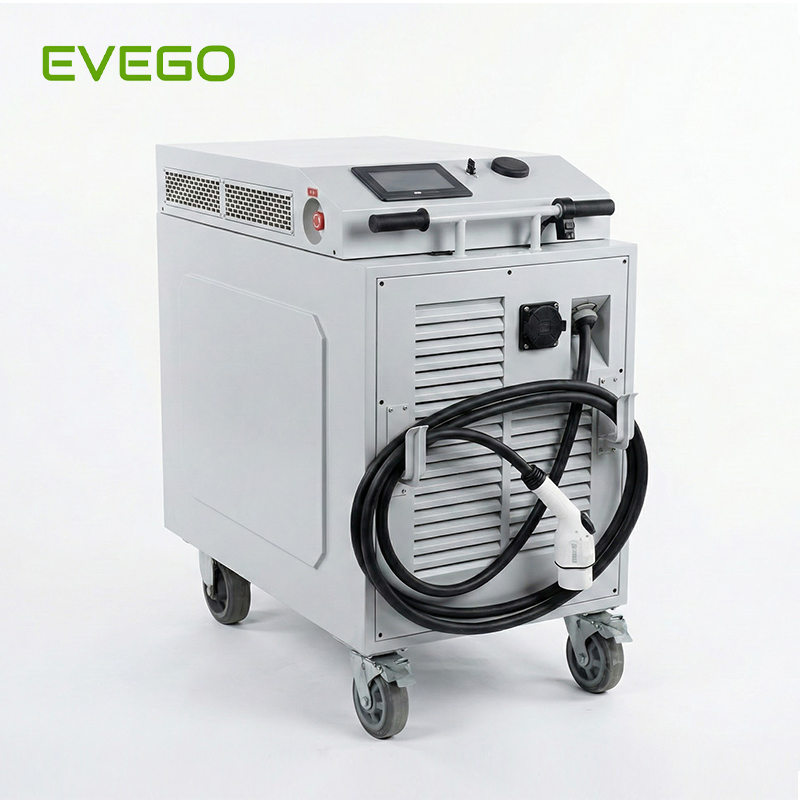

This series of energy storage charging systems is a high-efficiency, large-capacity energy storage and charging power equipment. It is primarily used for new energy vehicle charging and road rescue operations. The system features status display, charging protection, and DC charging capabilities. When paired with compatible inverter products, it enables AC grid-tie or off-grid discharge. It can also integrate with smart charging piles to achieve unified management of photovoltaic, storage, and charging (PV+Storage+Charge).
The system includes off-grid inverter functionality with grid-forming capability and supports multi-unit cascading to form a microgrid system. It utilizes high-quality, energy storage-dedicated battery cells from top-tier brands, coupled with high-precision temperature management to ensure the lithium batteries operate within their optimal temperature range.

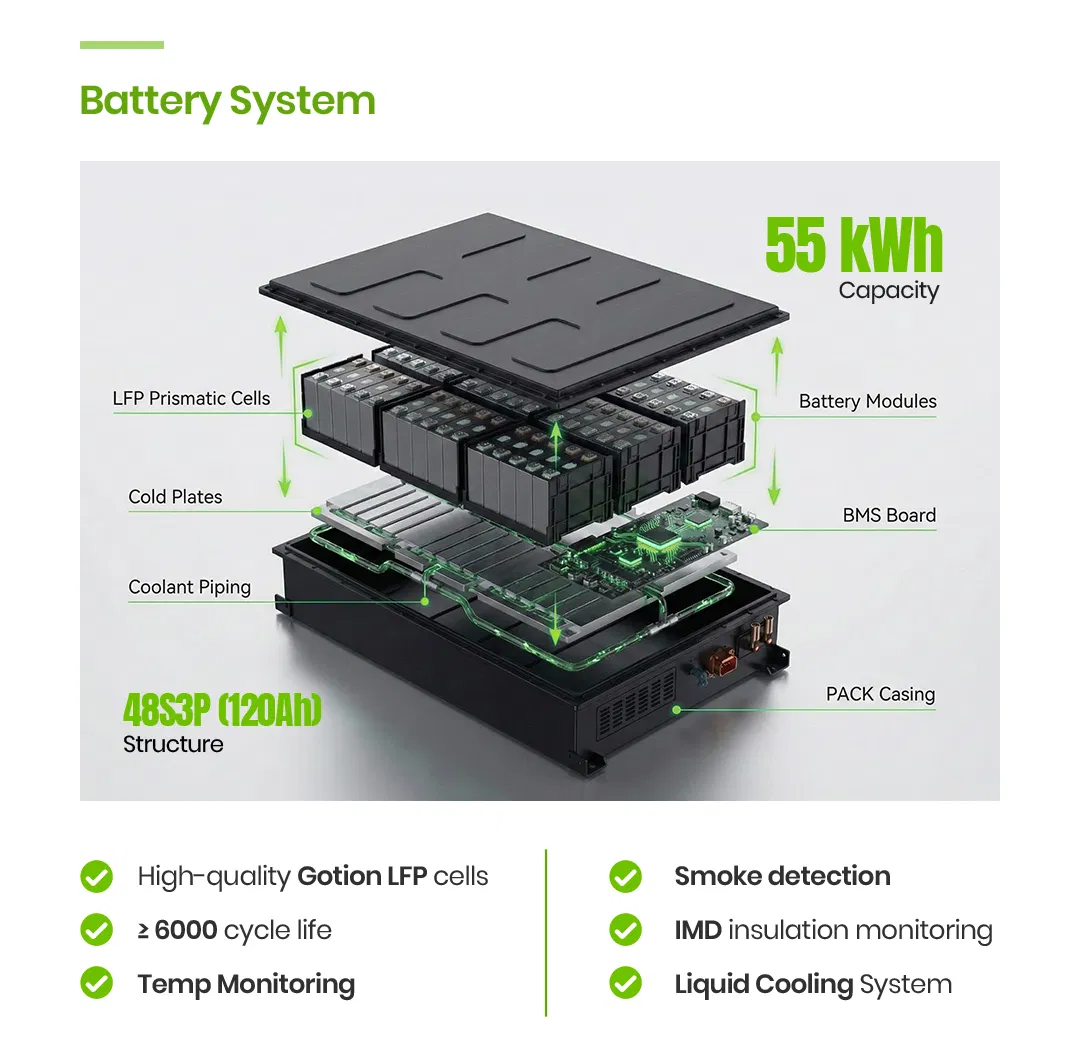

| Battery & Unit Parameters | ||
|---|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) | High Safety & Long Life |
| Cell Capacity | 3.2V 120Ah | Standard Cell |
| Total Energy | 55.3 kWh | System Capacity |
| Cable Length | 5m | Charging Gun |
| Dimensions | 1125*663*1080 mm | Compact Design |
| Efficiency | ≥95% | DC-DC Conversion |
| Protection & Safety Functions | |
|---|---|
| Input Over/Under Voltage | Yes (396V - 525.6V) |
| Output Over-Voltage/Current | Yes |
| Short-Circuit Protection | Yes |
| Over-Temperature Alarm/Protection | 55°C / 60°C |
| Emergency Stop | Yes |
| Soft Start Time | 5-10 seconds |
We provide tailored solutions for clients across various sectors:
