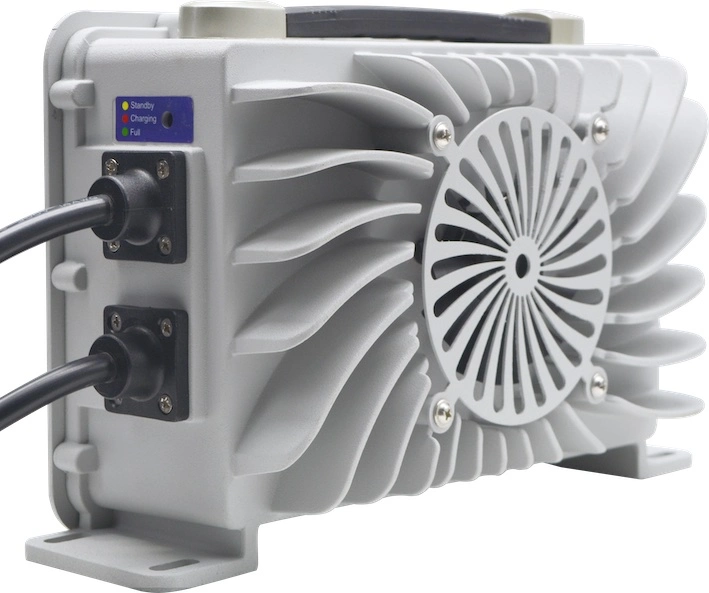

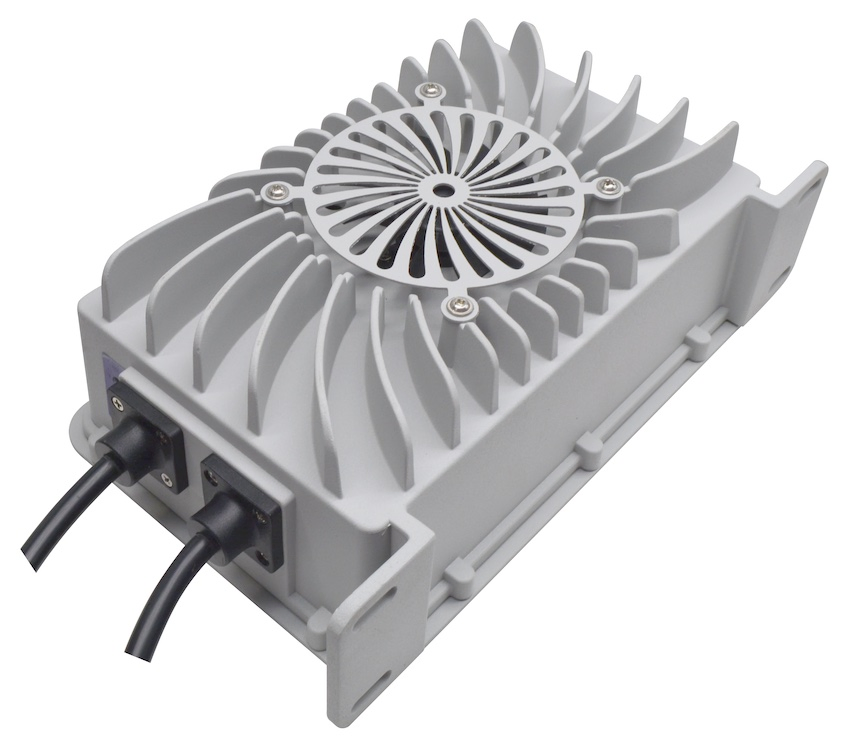

Universal Charging for 12V Lead-acid and Lithium Battery | CAN or RS485 Communication Available
This intelligent charger is designed to accommodate various cell voltages including 3V, 3.65V, and 4.2V. Simply select the desired mode before charging for a tailored power experience.
💡 3-in-1 Versatile Charging Modes:

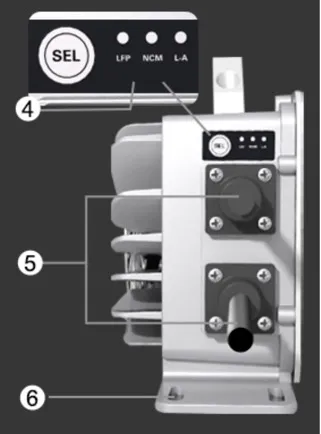

Select the "SEL" button to match your battery type and initiate a smart 4-step charging cycle: Pre-charge, CC, CV, and Floating/Cut-off.

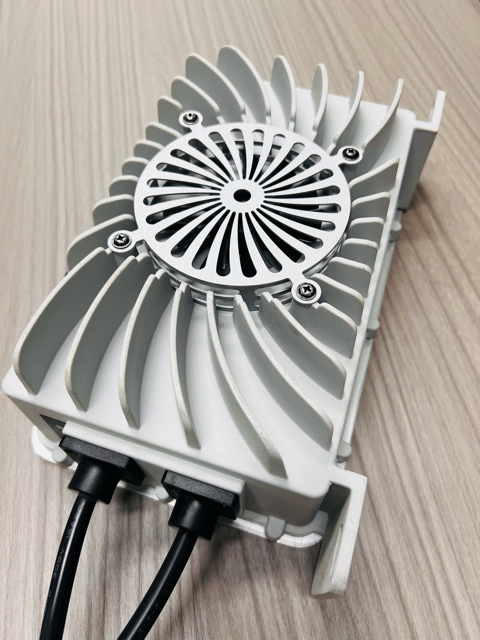

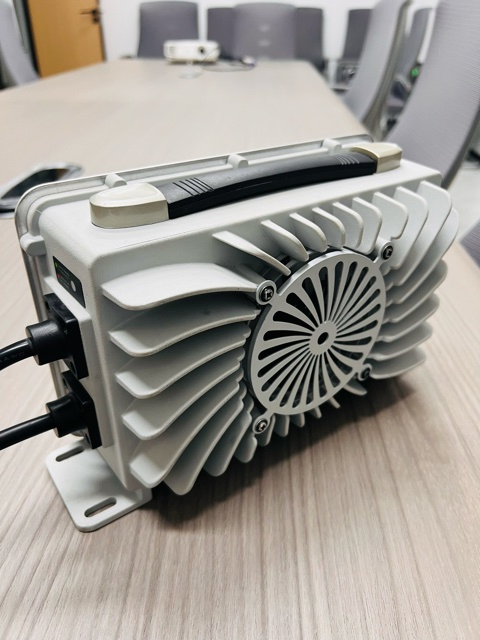

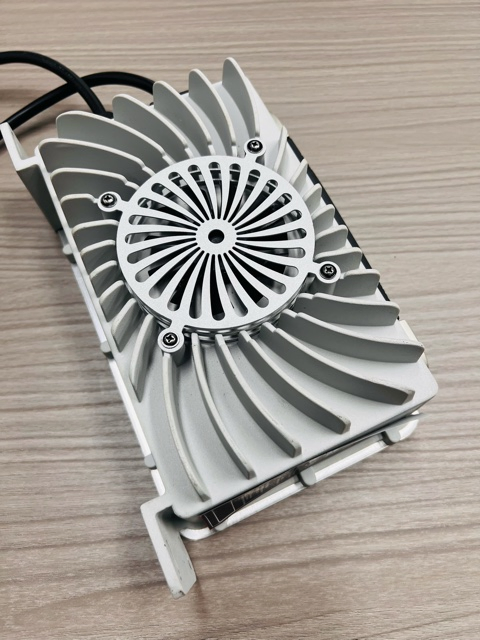

Brief Overview: Engineered for durability, this waterproof and anti-vibration charger delivers a robust 50A output. It effectively manages battery life through intelligent 4-step charging, protecting your investment while ensuring maximum efficiency.
| Dimensions (LxWxH) | 250*162*93 mm |
| Net Weight | 3.5 KG |
| Max Charging Voltage | 14.4V / 14.6V / 14.7V Selectable |
| Max Output Current | 50 Amps |
| Charging Method | Pre-charge, CC, CV, Floating |
| AC Input Voltage | 110-230Vac (90~264Vdc) |
| Enclosure Material | Aluminum |

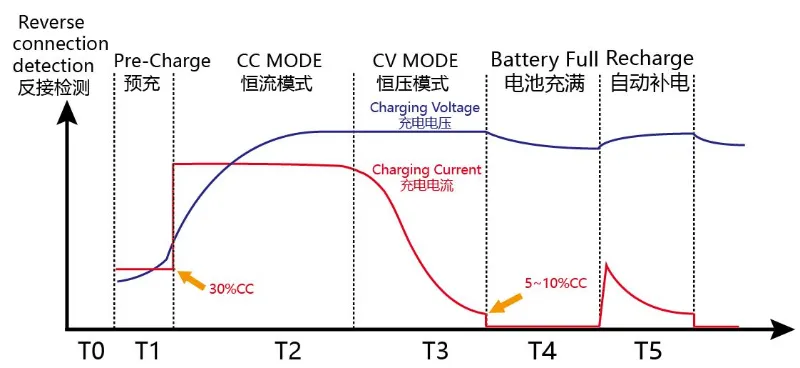

The Smart Battery Charger utilizes a fully automatic 4-step process. The Pre-charge step activates low-voltage batteries, followed by the Constant Current (CC) step for rapid bulk charging. The Constant Voltage (CV) step tops off the battery as current drops, and the Floating step maintains a 100% ready state without the risk of overcharging.
Widely used for electric vehicles including e-bikes, e-scooters, golf carts, and floor sweepers, it supports all major battery chemistries like LiFePO4, Li-ion, AGM, and GEL.
