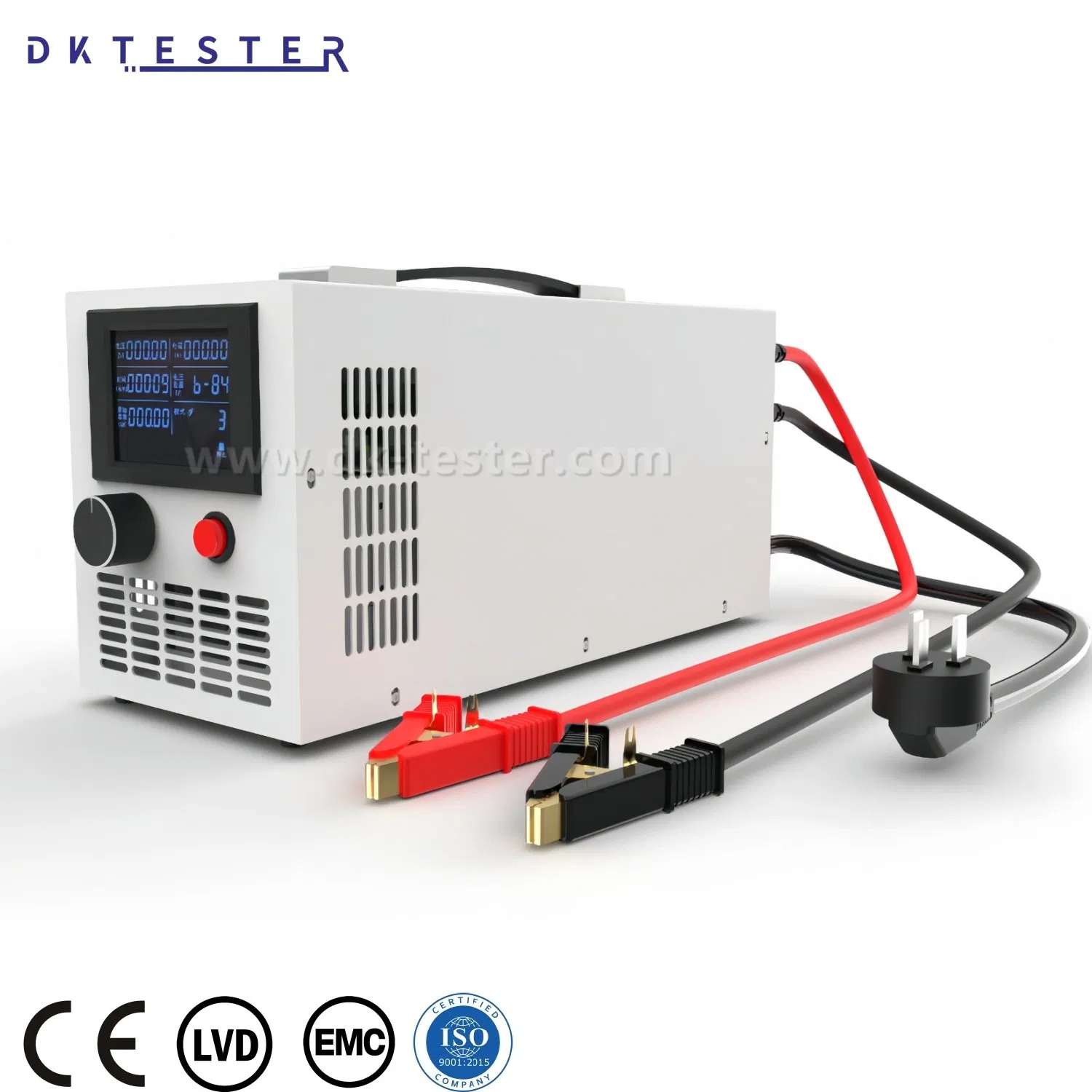

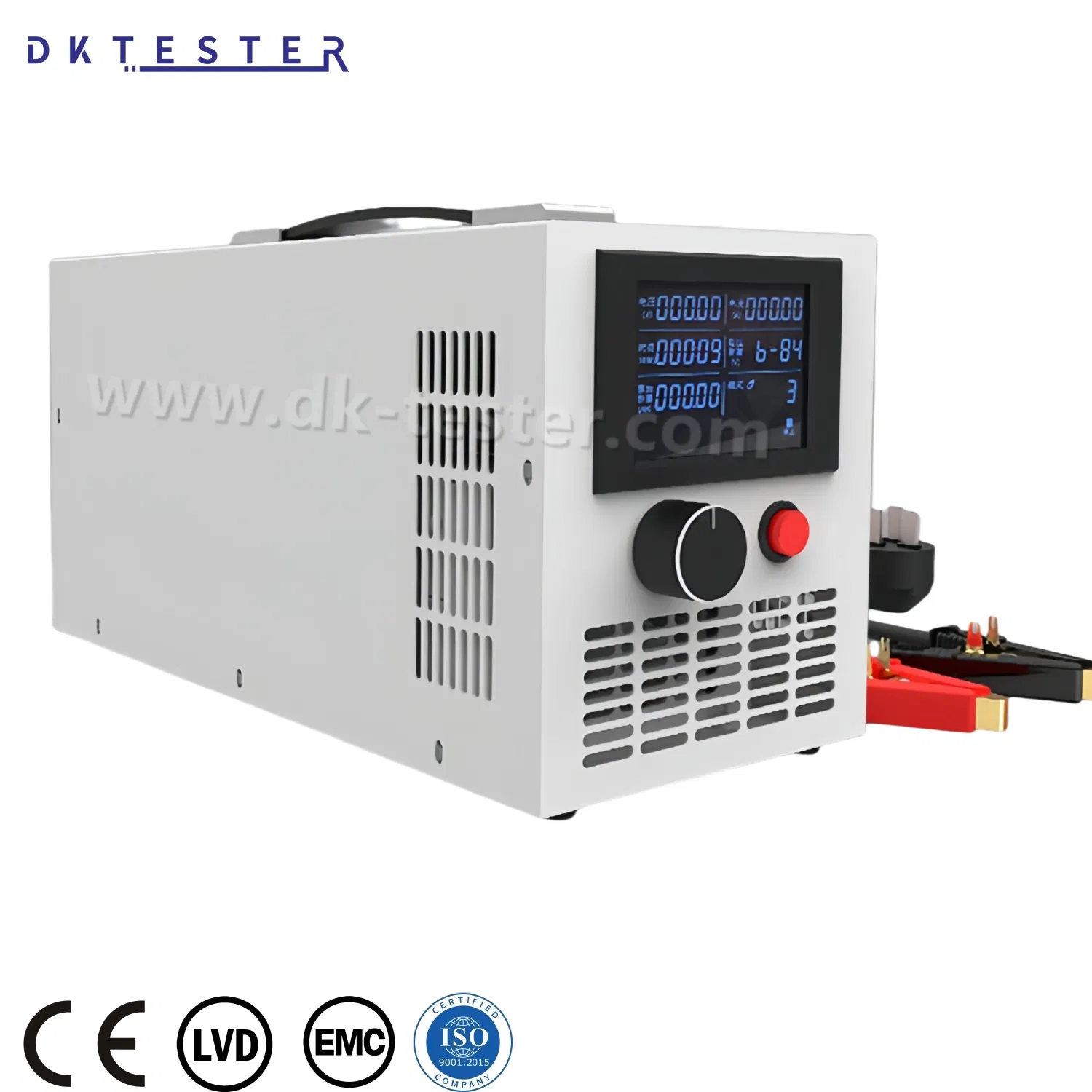

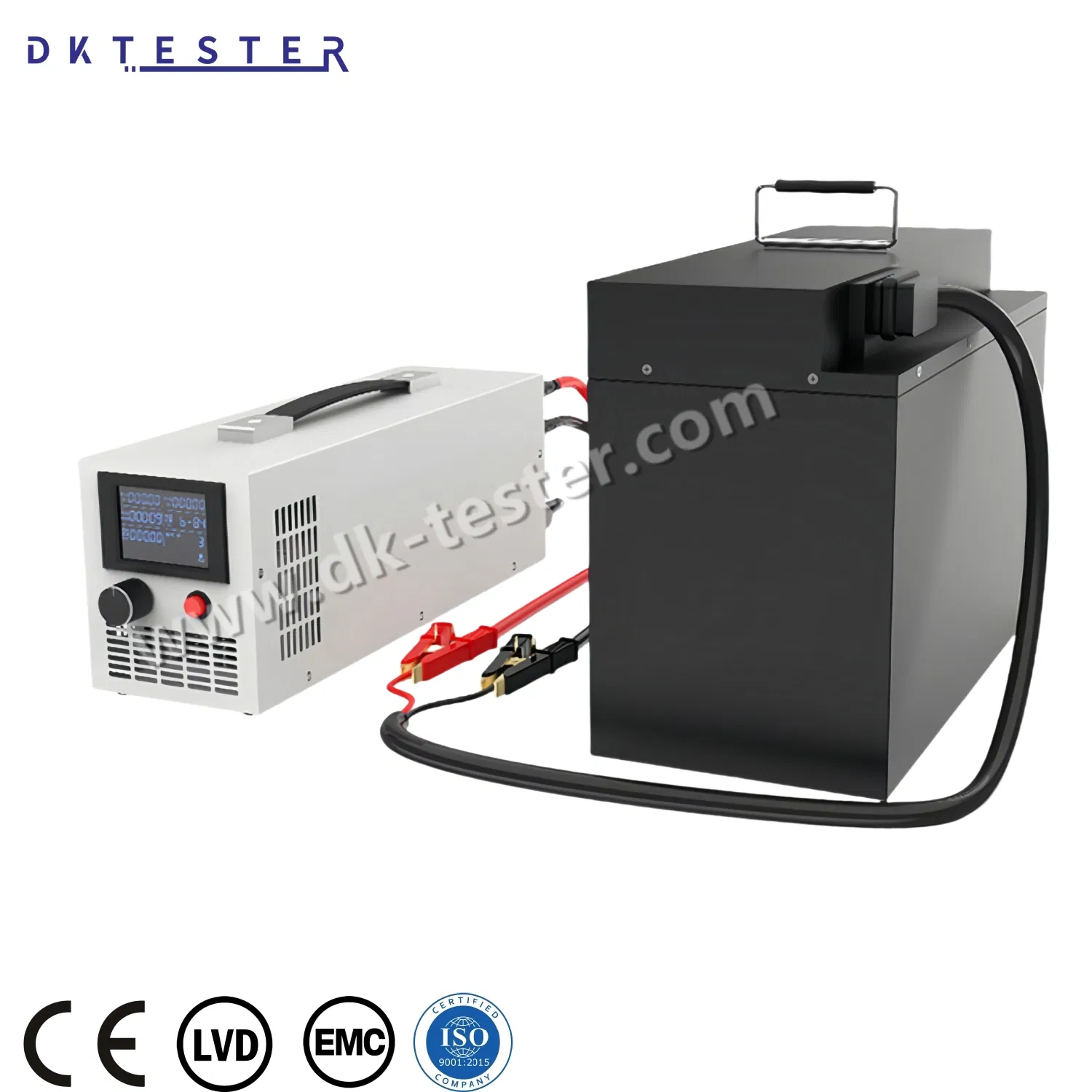

BDC3000 is a portable, intelligent high-power battery charger that utilizes a three-stage charging process. It incorporates a dual-ring cascade PID control system to precisely regulate the charging current and voltage, enabling flexible and accurate control of the charging curve. This charger offers precise charging capabilities for both lead-acid batteries and various types of lithium batteries.

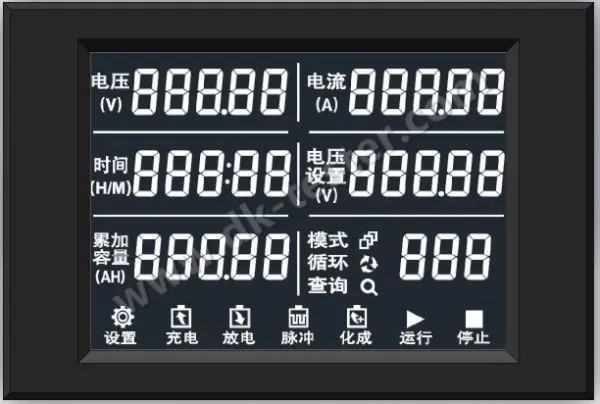

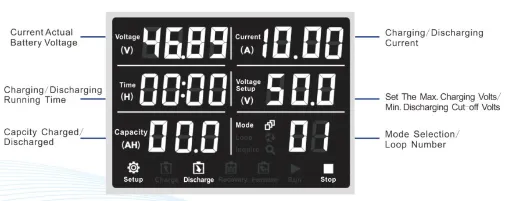

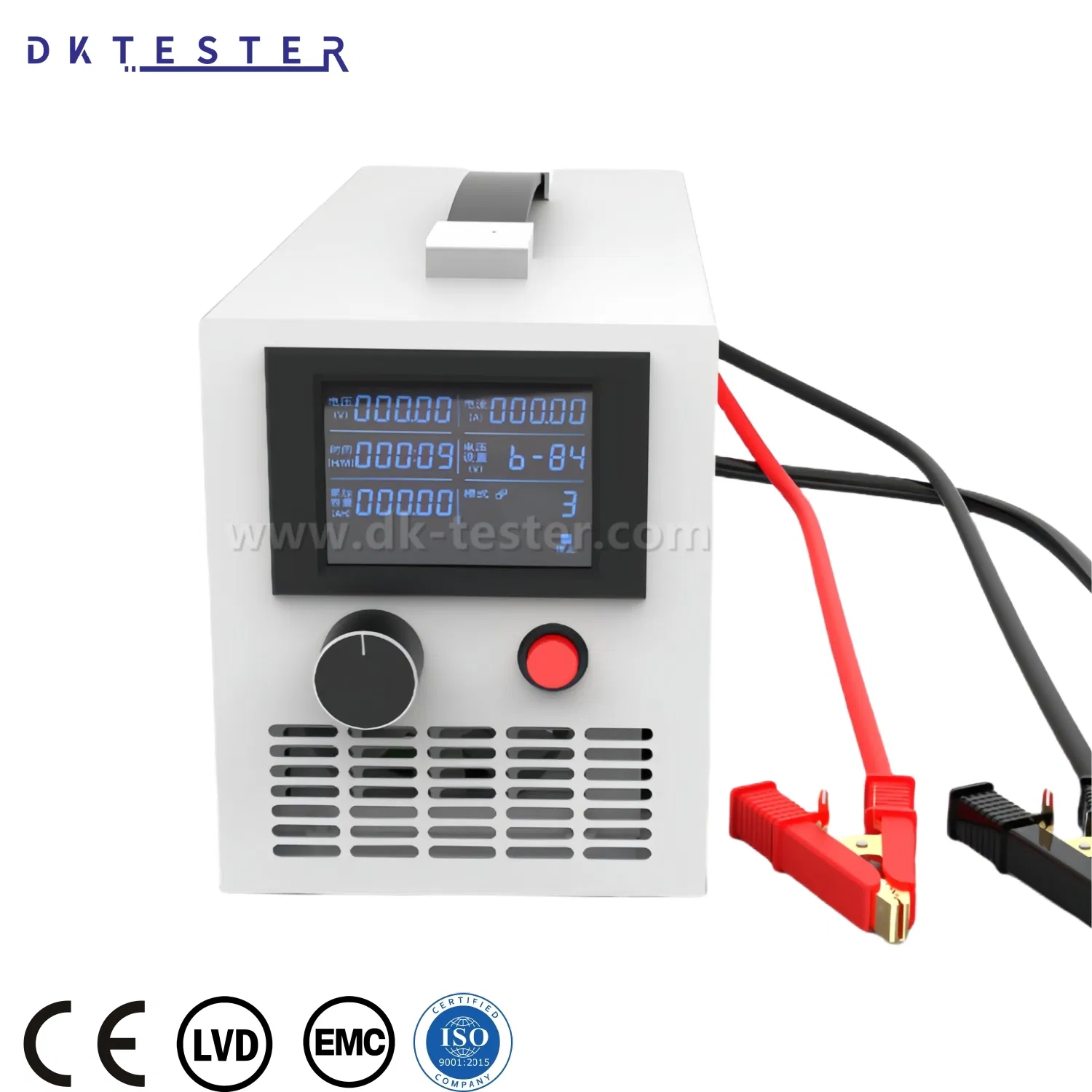

Equipped with a high-definition screen; each index (voltage, current, time) is clear at a glance.
Includes reverse connection, over-voltage, over-current, and over-temperature protection.

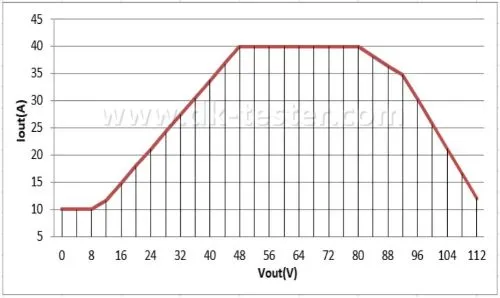

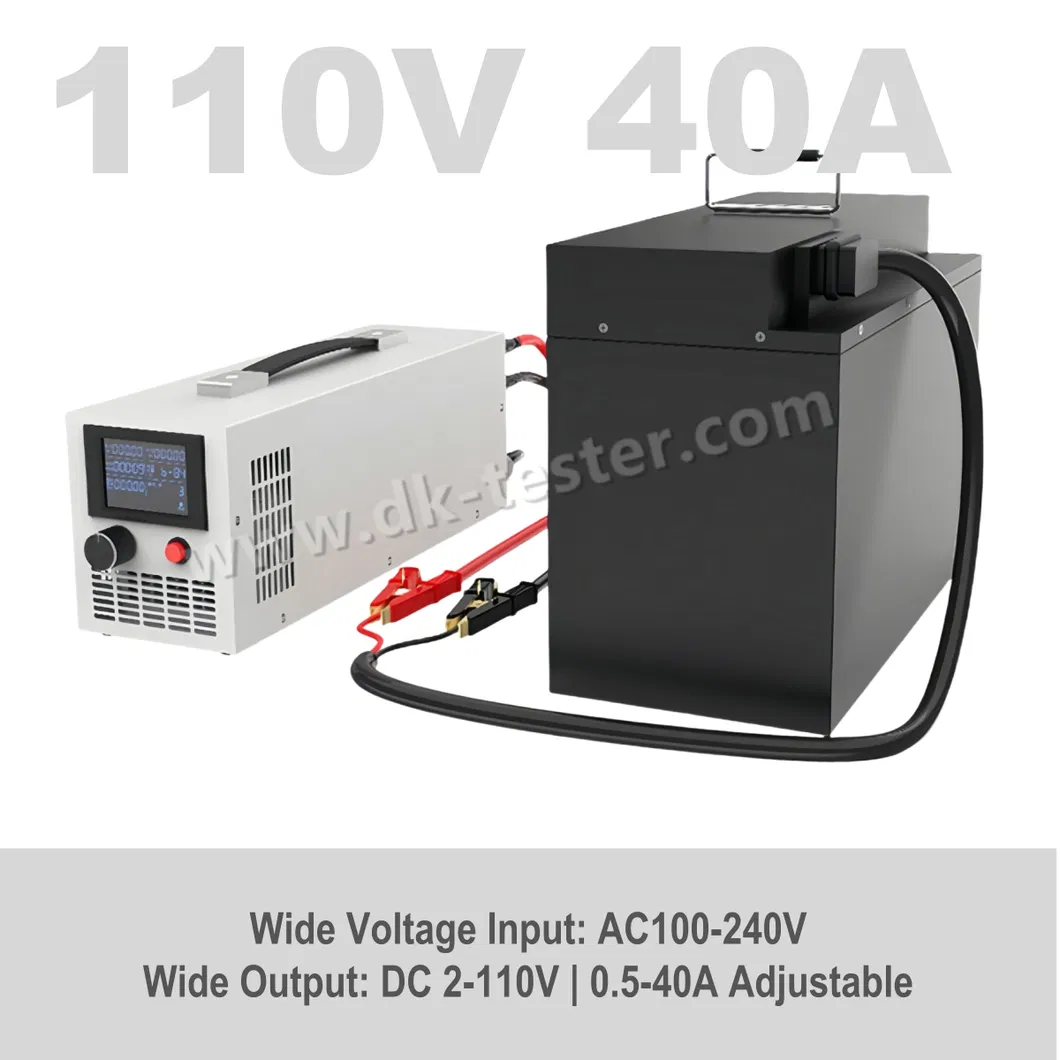

Voltage output (2-110V) and current (0.5-40A) are fully adjustable via a professional knob system.
Speed-controlled fan runs continuously with a delay power-off to dissipate remaining heat.

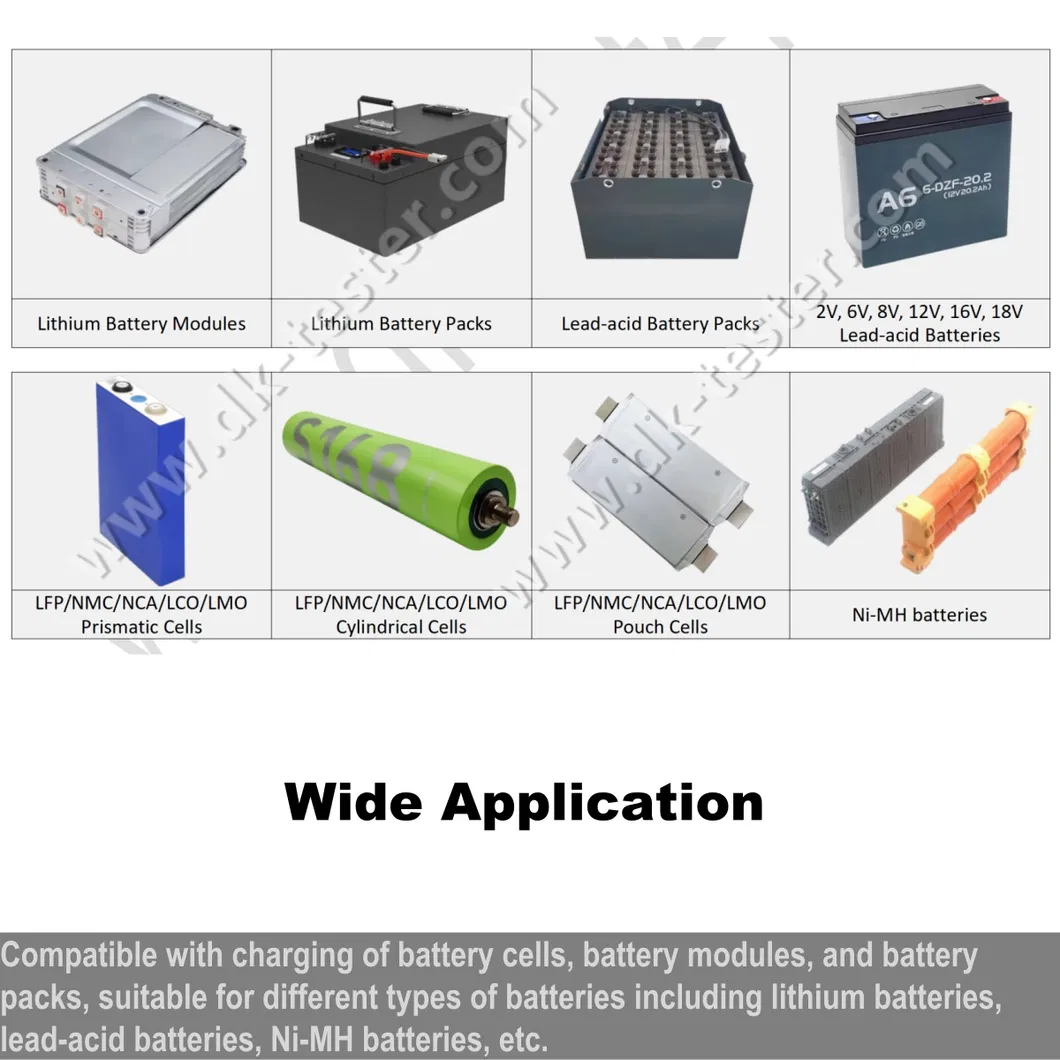

This instrument is versatile and applicable for charging various types of batteries, including:
| Items | Parameter |
|---|---|
| Input Voltage | AC 100V-240V 50/60Hz |
| Input Power | 3200 W (Maximum full loading) |
| Standby Power | 20W |
| Constant Voltage Output | 2V-110V (Error: 0.1V) |
| Constant Current Output | 0.5A-40A adjustable (Error: 0.1A) |
| Charge Cut-off Current | 0.1 - 5A adjustable |
| Charge Efficiency | ≥93%(AC220V 50%-100% Loading) |
| IP Grade | IP20 |
| Noise | < 76 dB |
| Ambient Temperature | 0 ºC - 40 ºC (Operation) |
| Description | High Power Intelligent Battery Charger |
| Product Size (L*W*H) | 375*127*158 MM |
| Carton Size (L*W*H) | 41*22*45 CM |
| Gross Weight (G.W.) | 5.9 KG |
| Net Weight (N.W.) | 4.5 KG |
| Package Quantity | 1 PC/CTN |
Lifelong after-sales service and free technology support provided for all units.
User manuals, operation videos, and remote guidance via email or video connection.
