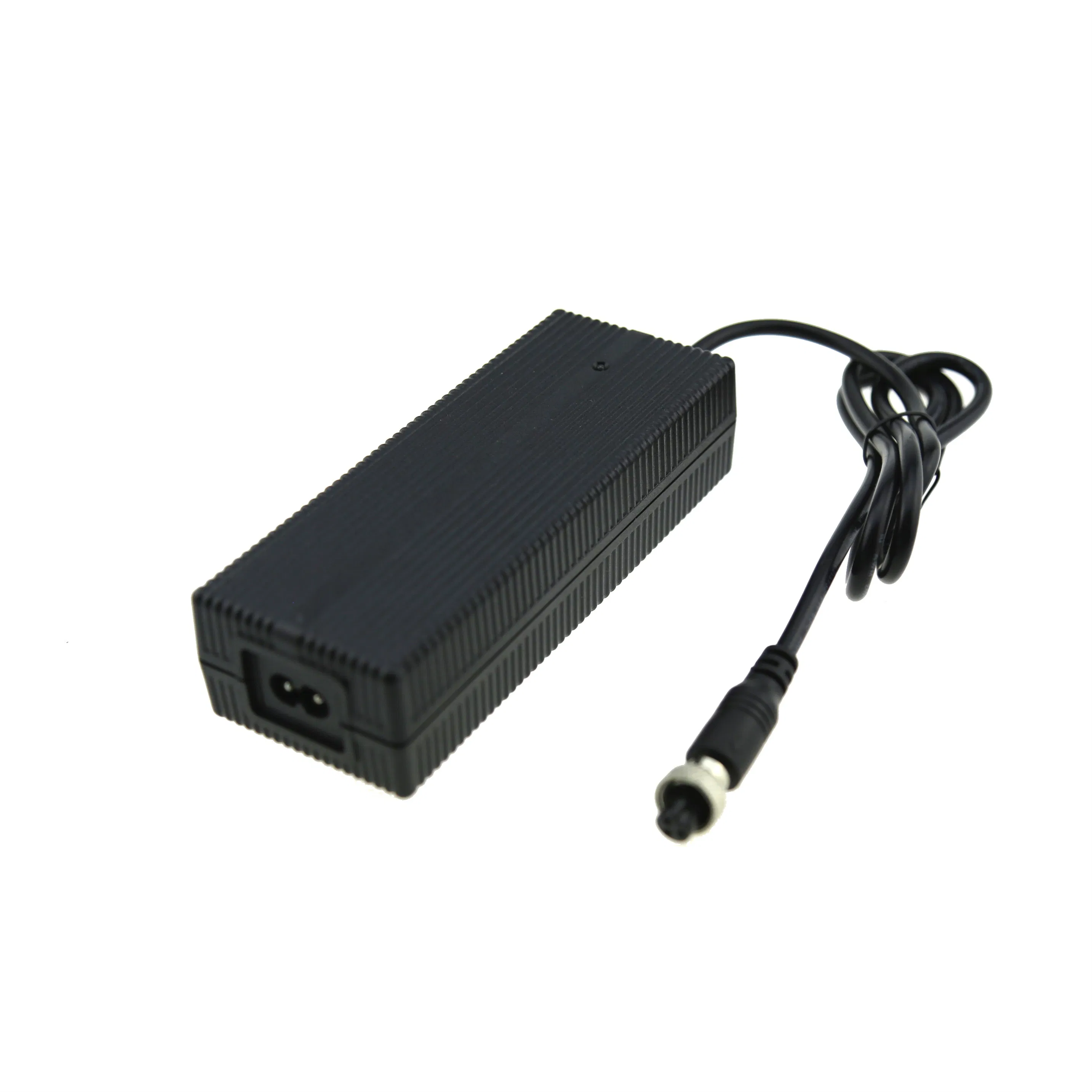

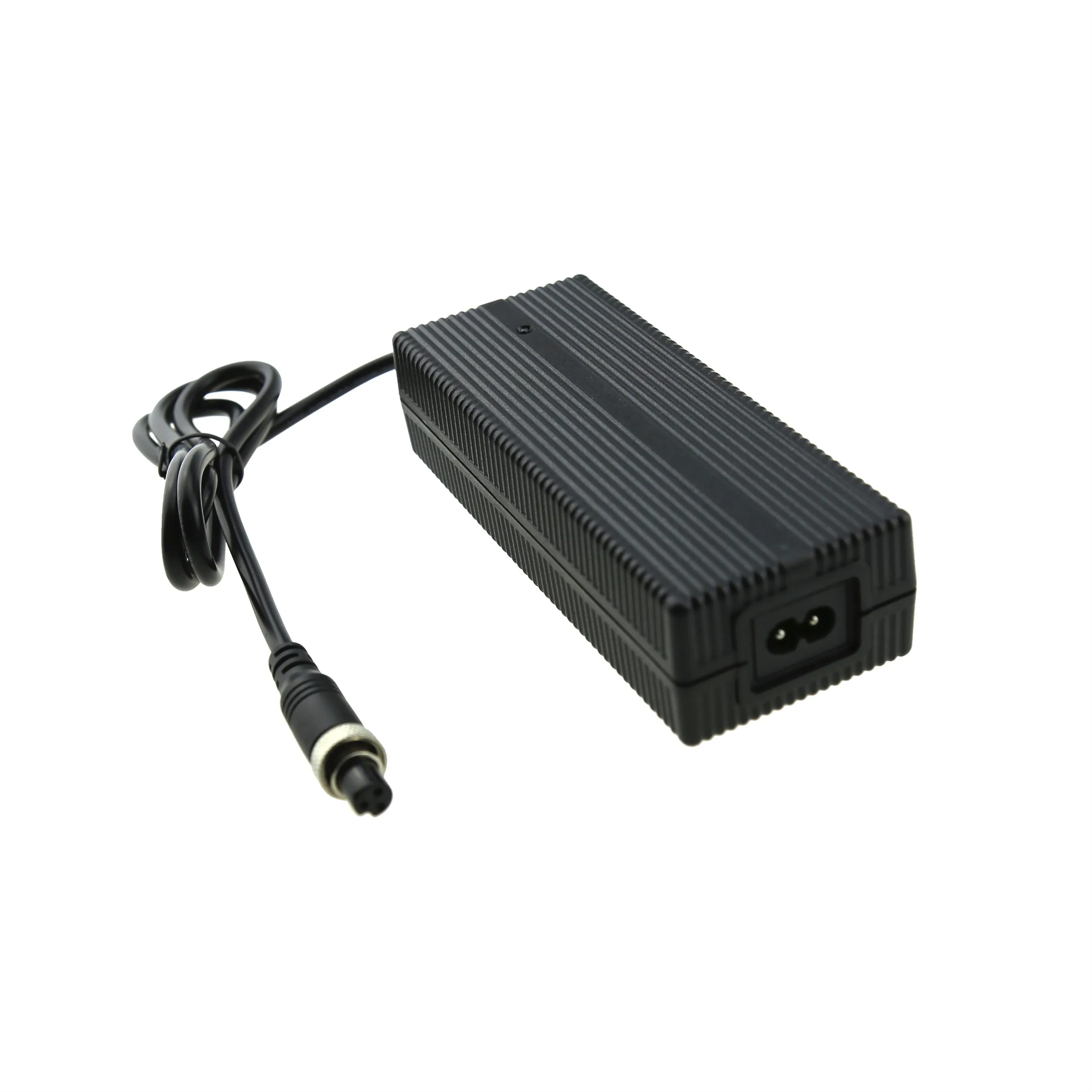

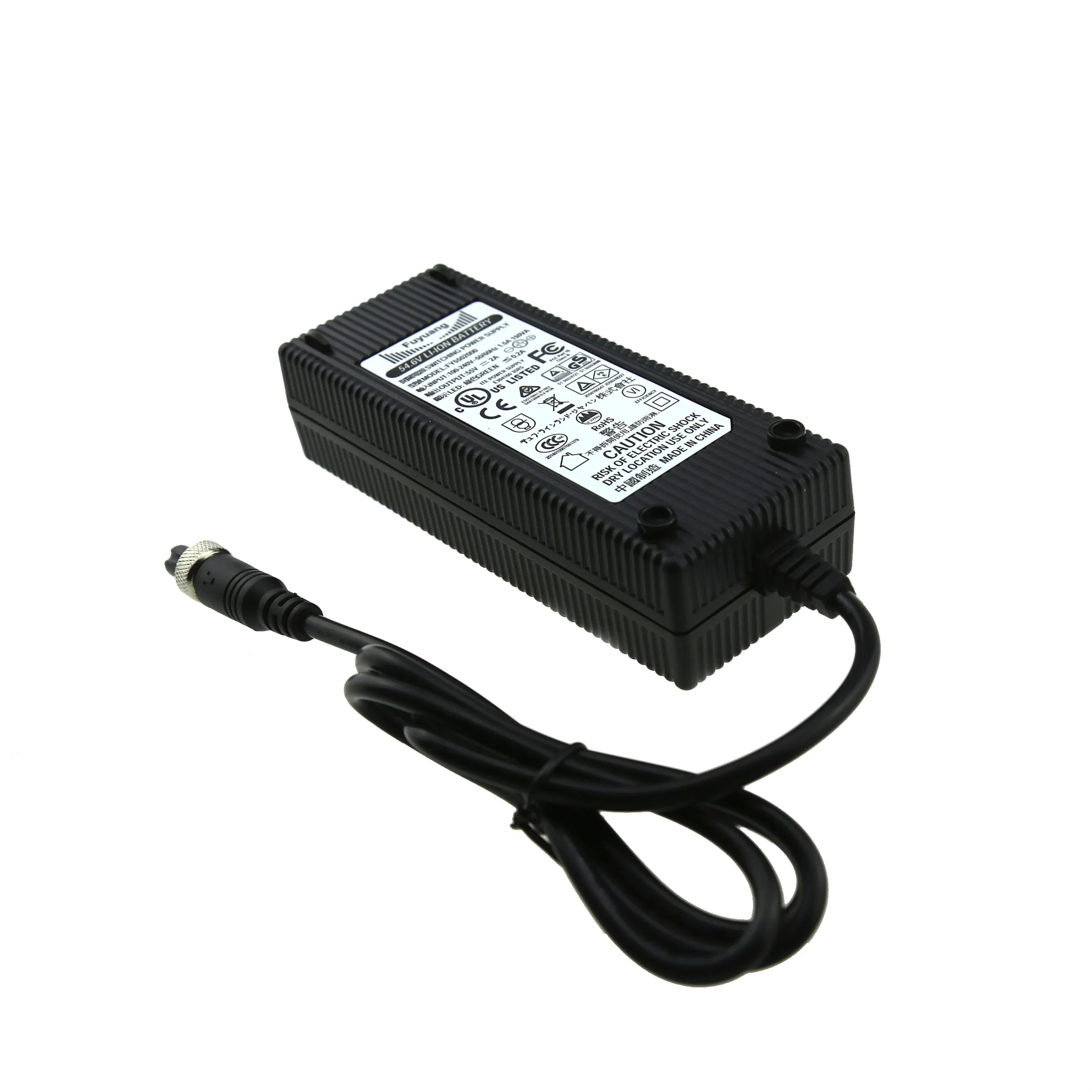

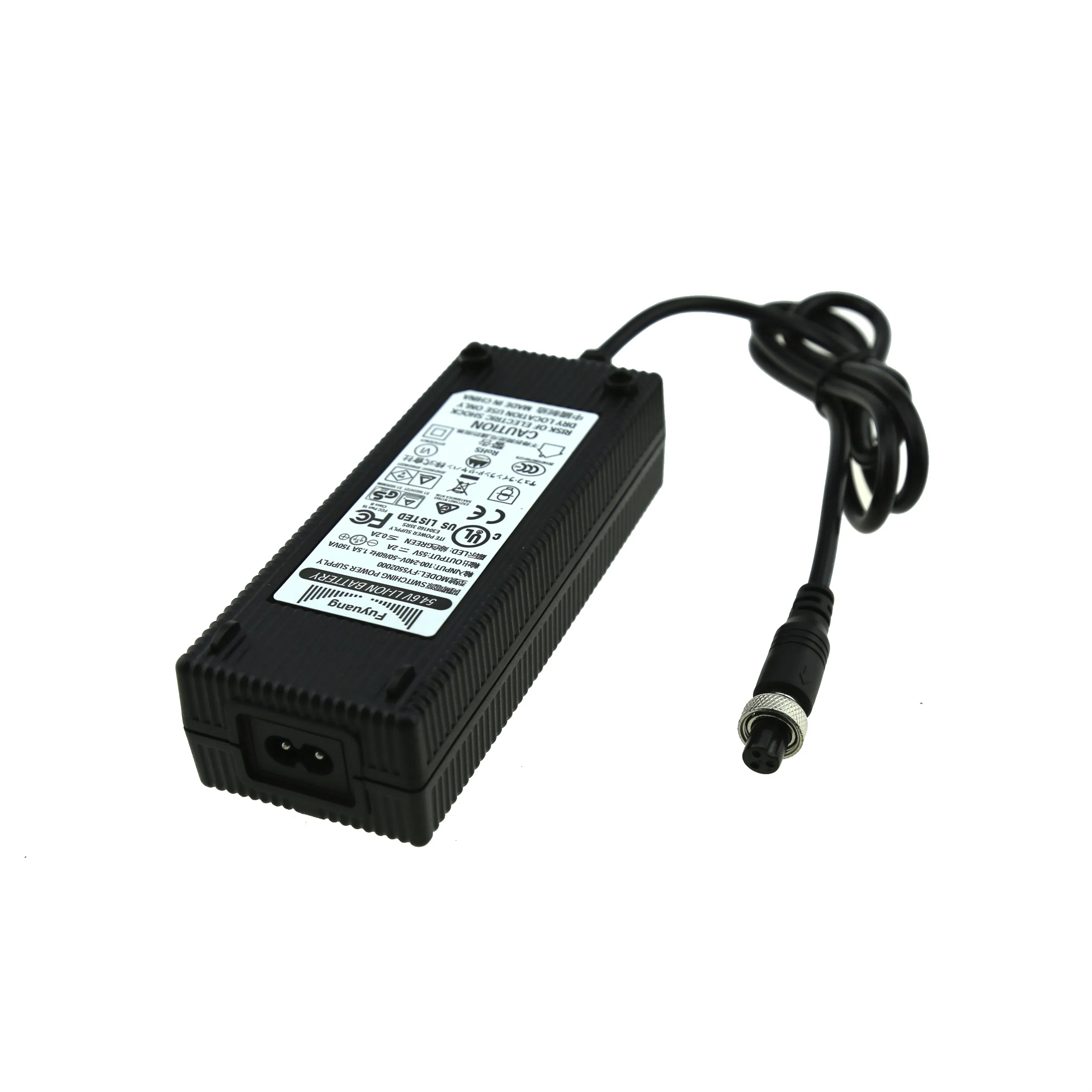

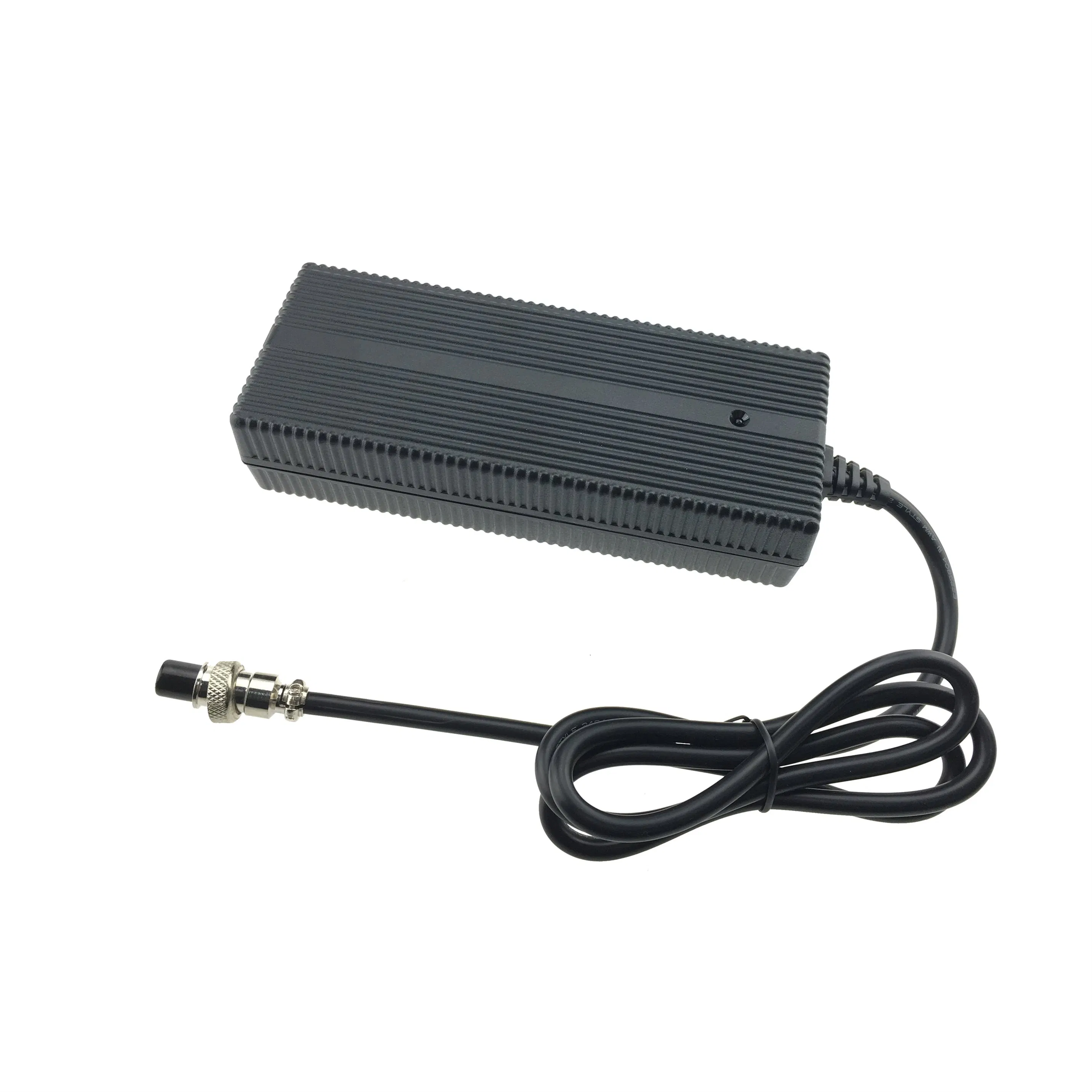

E-Tronde Charger
1 / 5
Fully certified with UL, CE, GS, CB, FCC, and more for worldwide use.
Optimized charging with >88% efficiency and active power factor correction.
Perfect for Robots, E-bikes, Electric Vehicles, and Power Tools.
| Parameter | Details |
|---|---|
| Model No. | FY2906000 |
| AC Input | 100-240V, 50/60HZ |
| Max Charging Voltage | 29.2V |
| Max Charging Current | 6A |
| Protections | Short circuit, Over current, Over voltage |
| Operating Temp | -29ºC ~ +45.5ºC |
| MTBF | 30,000 hours at 25ºC |
| Energy Efficiency | Level VI |

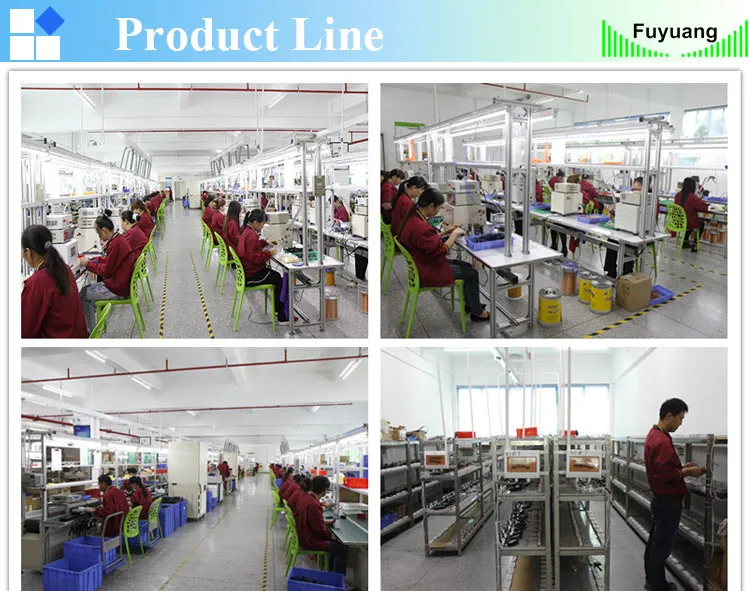

Our production department consists of coiling, DIP, injection, assembly, and strict testing teams to ensure 100% quality inspection.
LiFePO4 Battery Charger Range:
| Battery Qty (cells) | 1-5 | 8 | 10 | 12 | 14 | 16 |
| Max Voltage (V) | 3.65-18.25 | 29.2 | 36.5 | 43.8 | 51.1 | 58.4 |
| Max Current (A) | ≤10A | ≤8.5A | ≤6A | ≤5A | ≤4A | ≤3.5A |
Lead Acid Battery Charger Range:
| Battery Qty (cells) | 1 | 2 | 3 | 4 |
| Max Voltage (V) | 14.5 | 29 | 43.5 | 58 |
| Max Current (A) | ≤10A | ≤7.5A | ≤5A | ≤3.5A |
