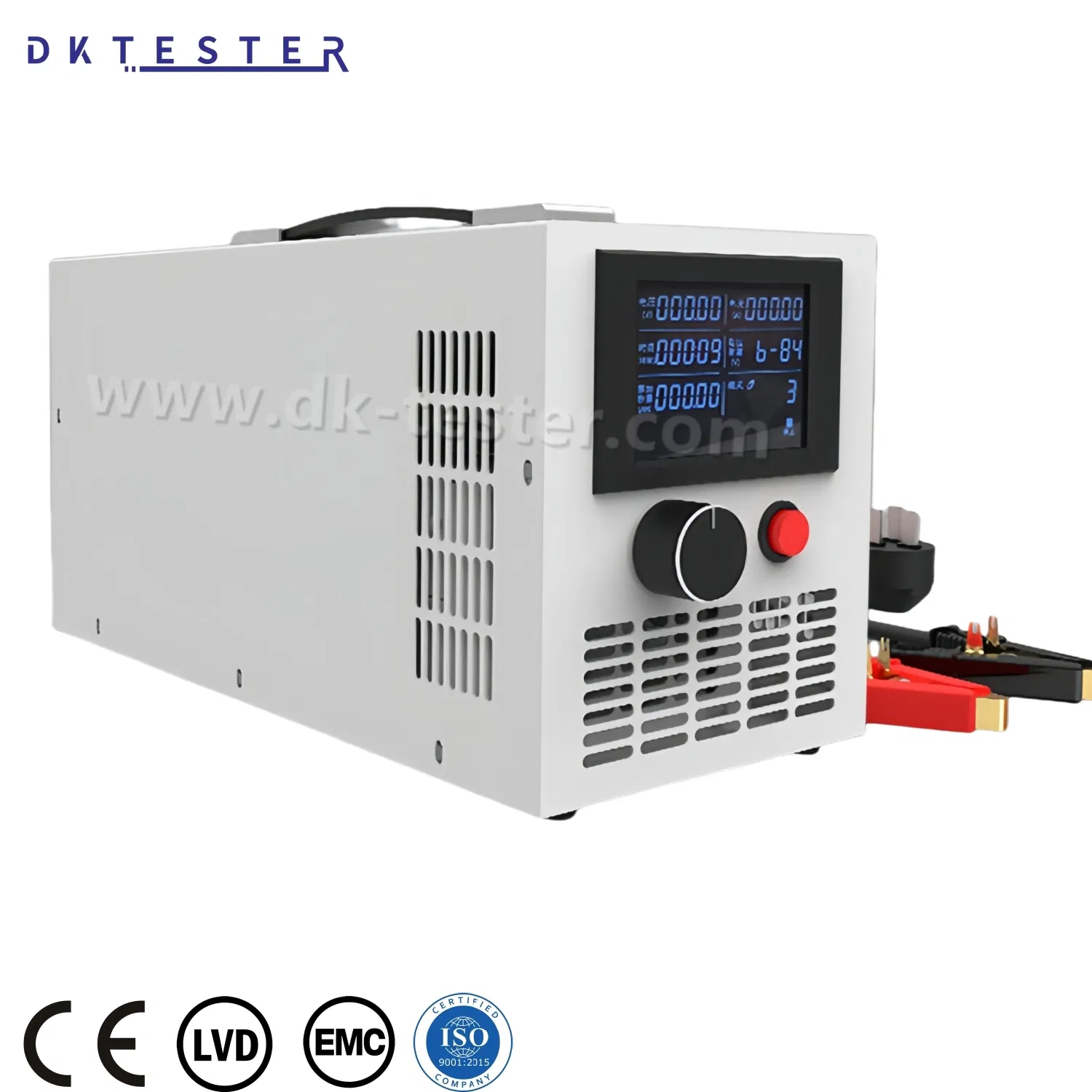

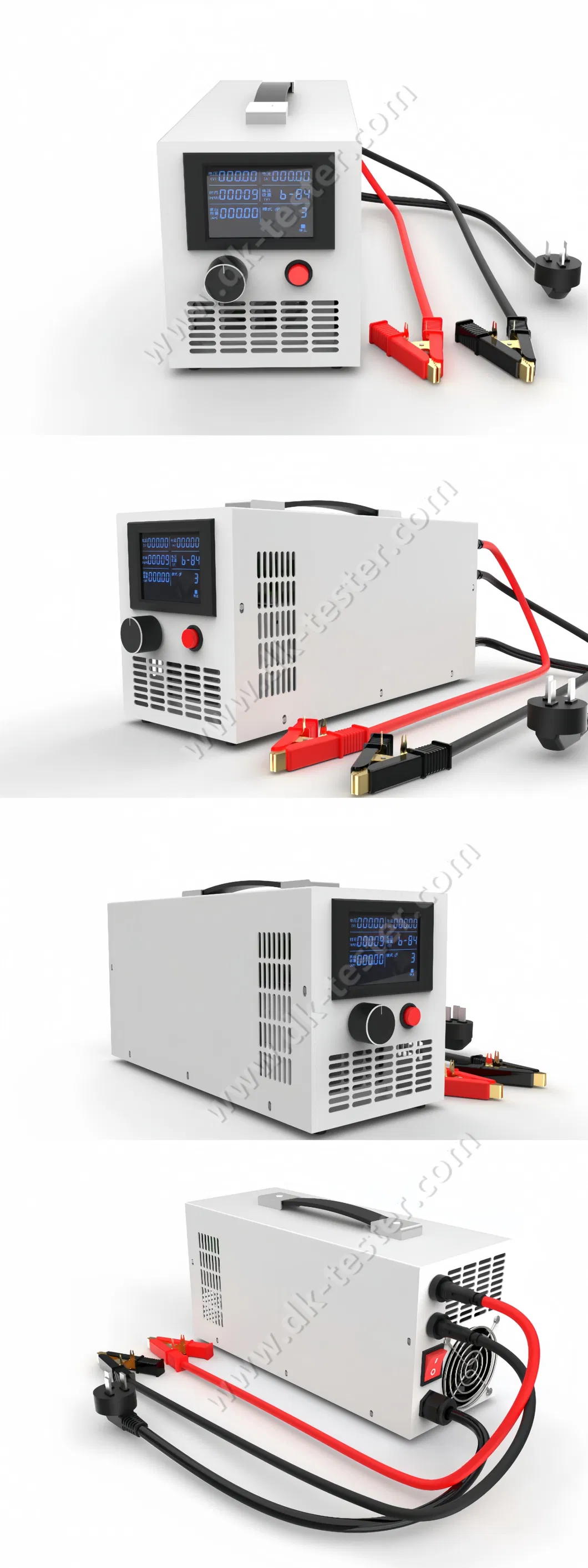

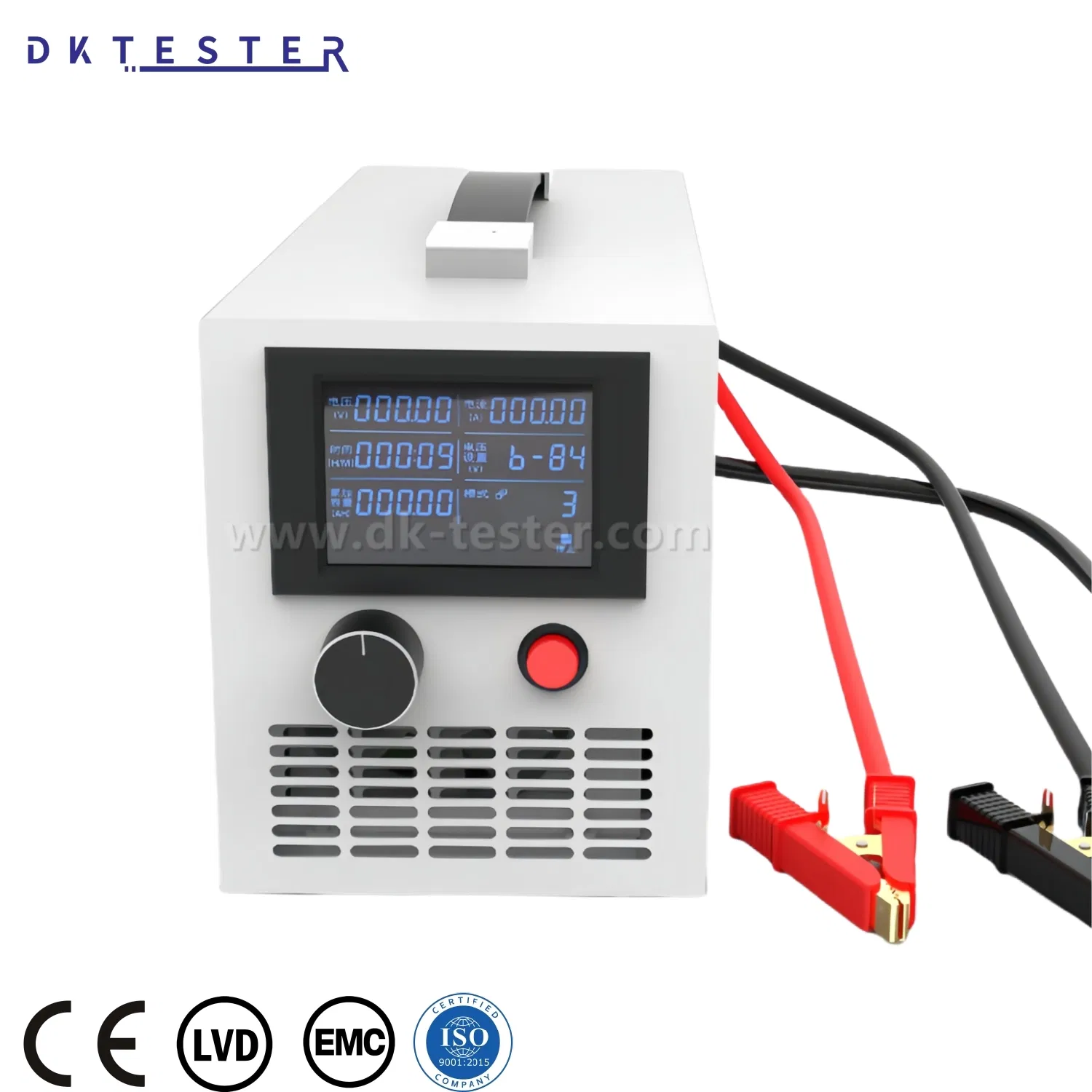

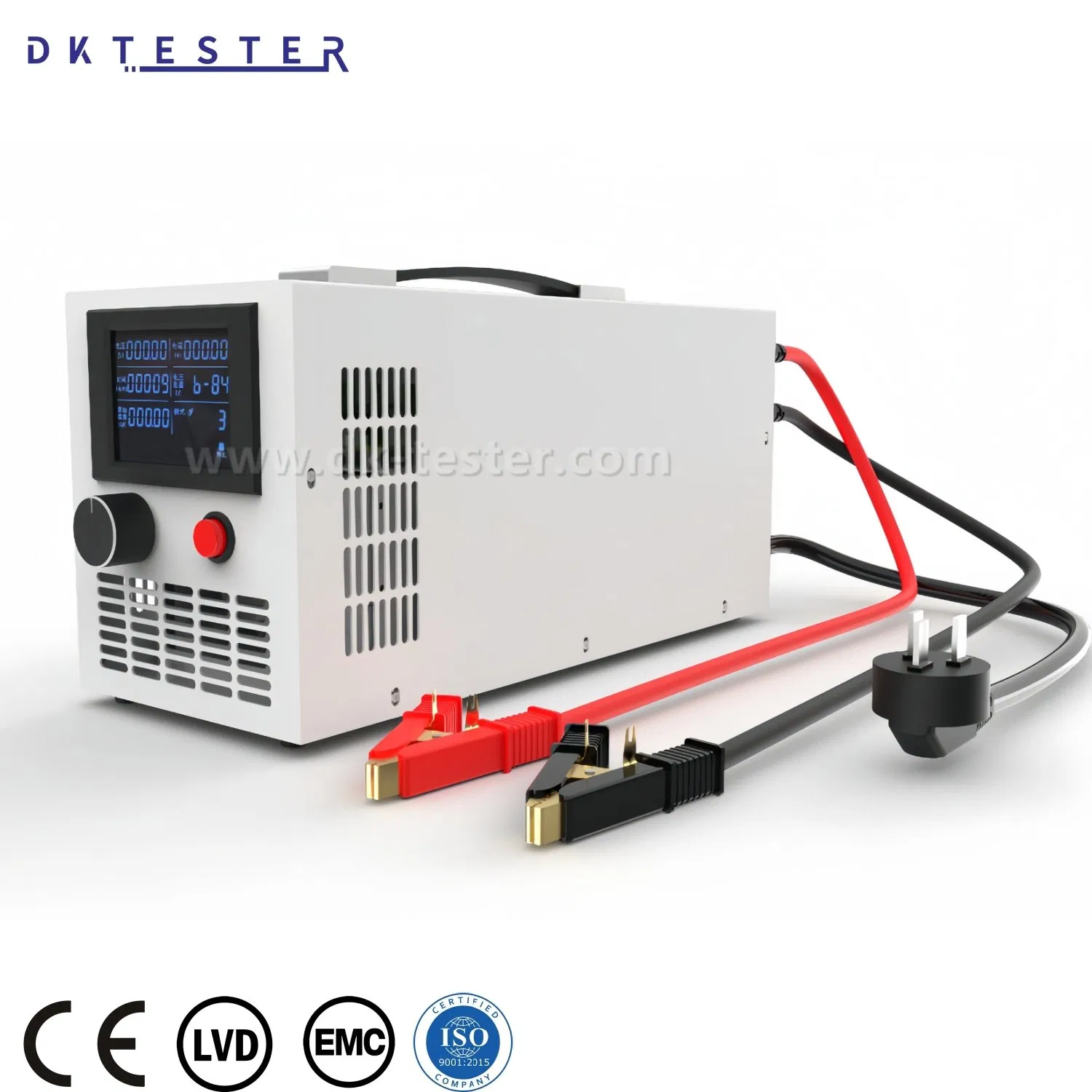

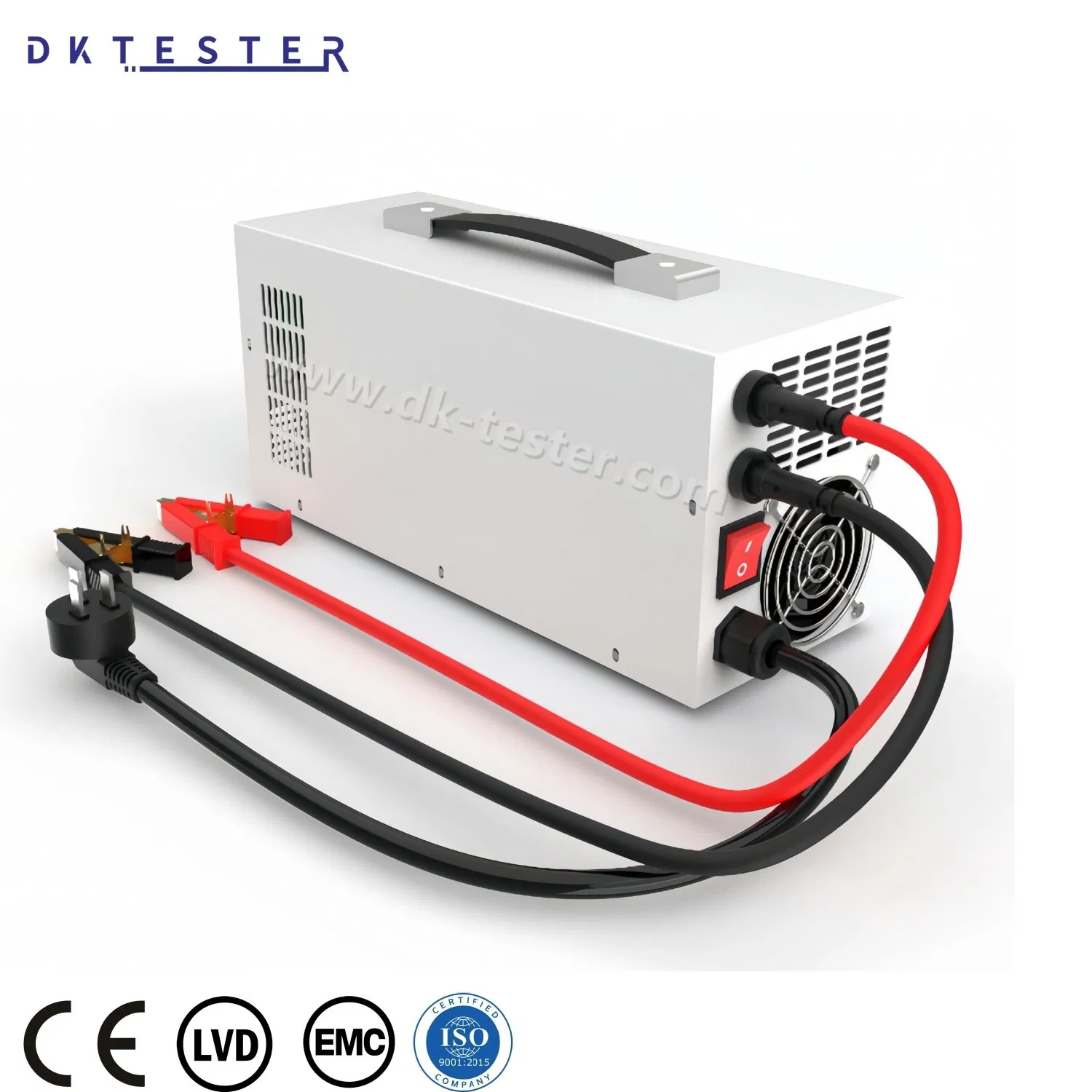

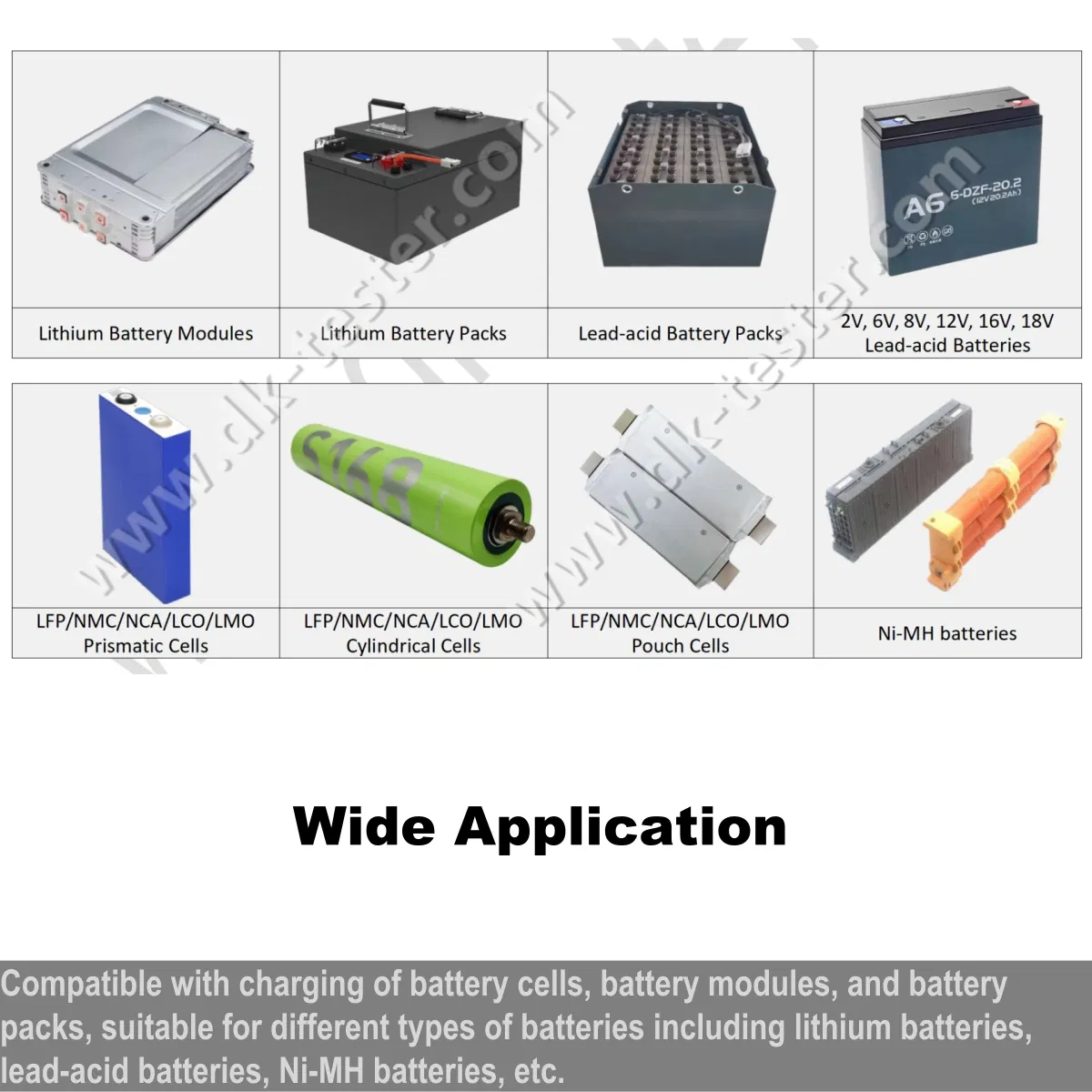

BDC3000 is a portable, intelligent high-power battery charger that utilizes a three-stage charging process. It incorporates a dual-ring cascade PID control system to precisely regulate the charging current and voltage, enabling flexible and accurate control of the charging curve. This charger offers precise charging capabilities for both lead-acid batteries and various types of lithium batteries. Users can easily set the desired charging voltage, current, and cut-off current parameters.

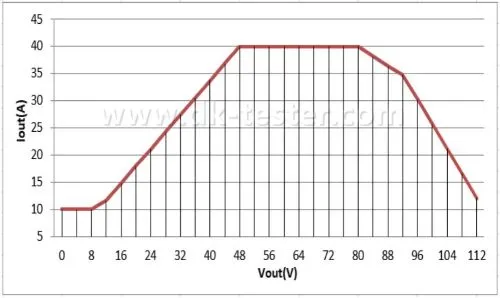

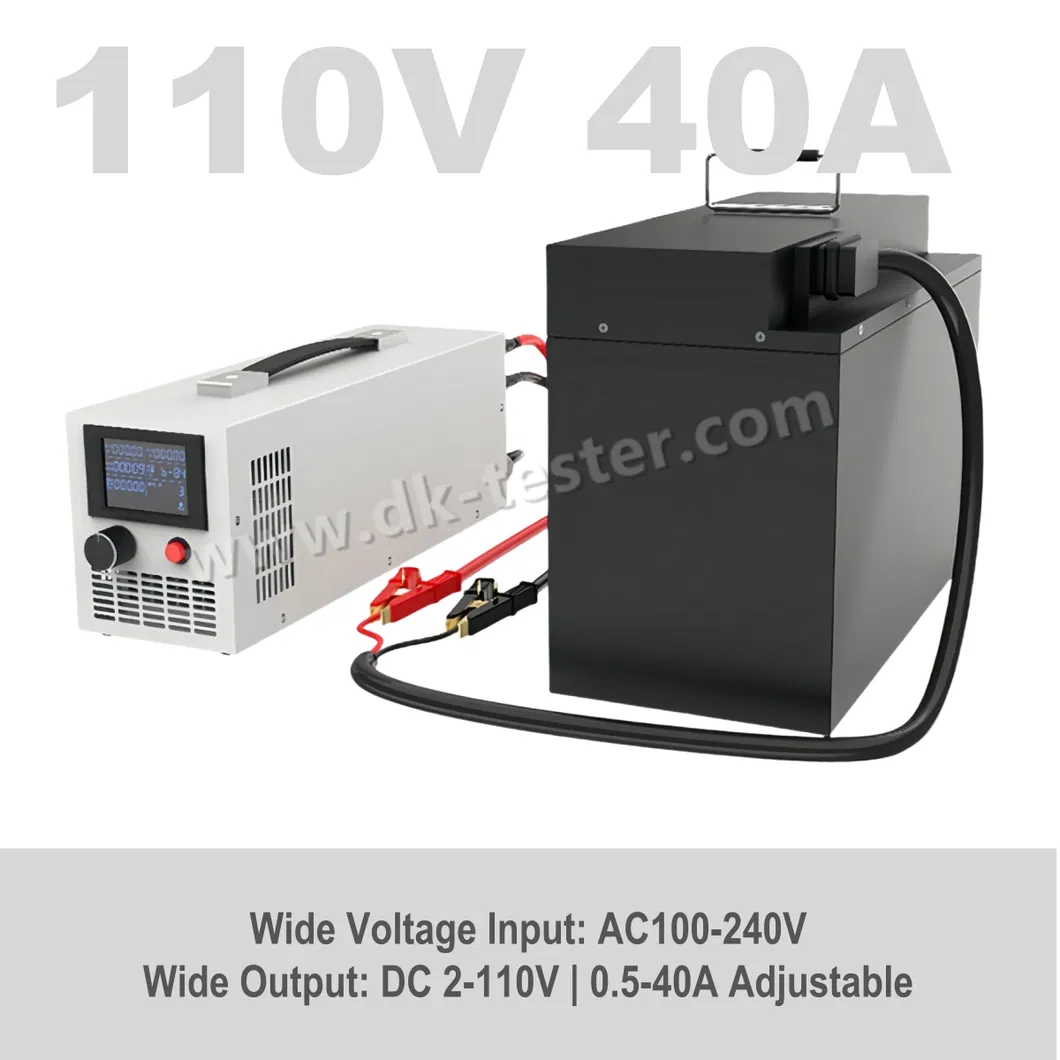

With a maximum charging voltage range of 2-110V and a maximum charging current range of 0.5-40A, it effectively charges battery packs and modules ranging from 6-84V as well as individual lithium battery cells. Its rapid and precise charging capability makes it an ideal solution for electric scooters, electric bicycles, electric tricycles, and other electric mobility devices.
| Item | Parameter | |
|---|---|---|
| Input Voltage | AC 100V-240V 50/60Hz | |
| Input Power | 3200W (Maximum full loading) | |
| Applicable Battery Types | Lithium and lead-acid batteries | |
| Voltage | Constant Voltage Output | 2V-110V |
| Charge Voltage Error | 0.1V | |
| Current | Constant Current Output | 0.5A-40A Adjustable |
| Cut-off Current | 0.1 - 5A Adjustable | |
| Charge Efficiency | ≥93% (AC220V 50%-100% Loading) | |
| IP Grade | IP20 | |
| Noise | < 76 dB | |
| Product Size (L*W*H) | 375 * 127 * 158 MM |
| Package Size (L*W*H) | 41 * 22 * 45 CM |
| Gross Weight (G.W.) | 5.9 KG |
| Net Weight (N.W.) | 4.5 KG |
| PCS/CTN | 1 PC/CTN |
