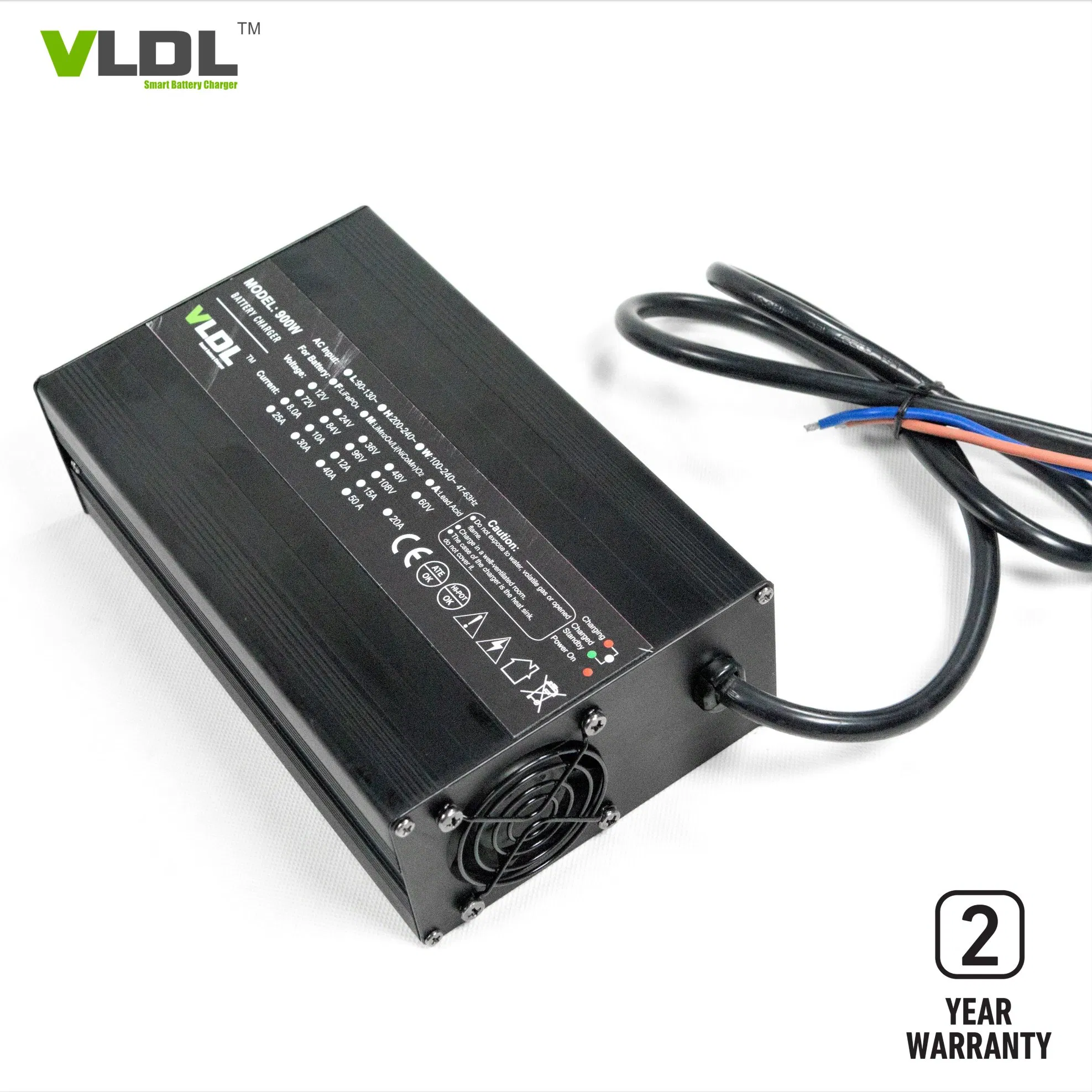

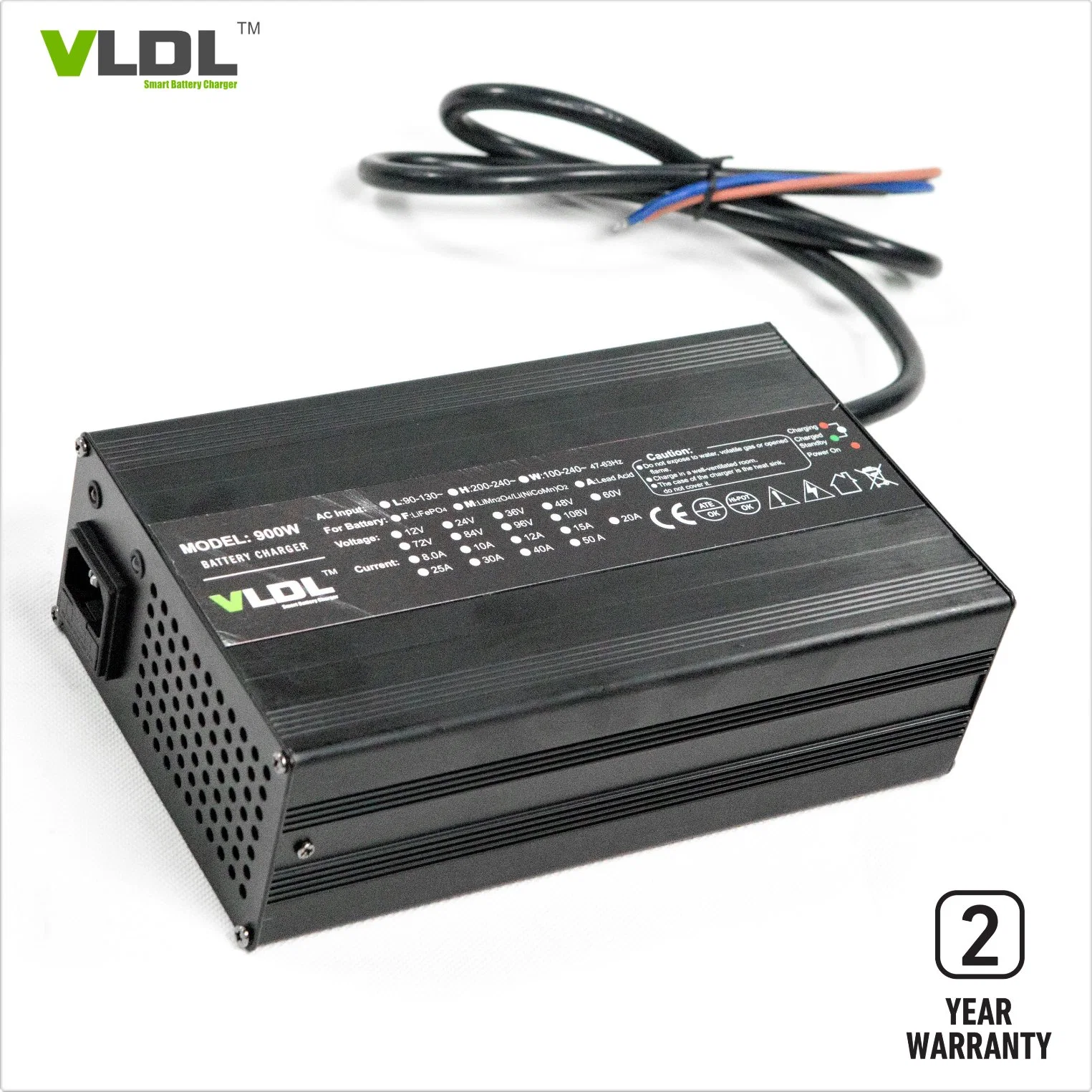

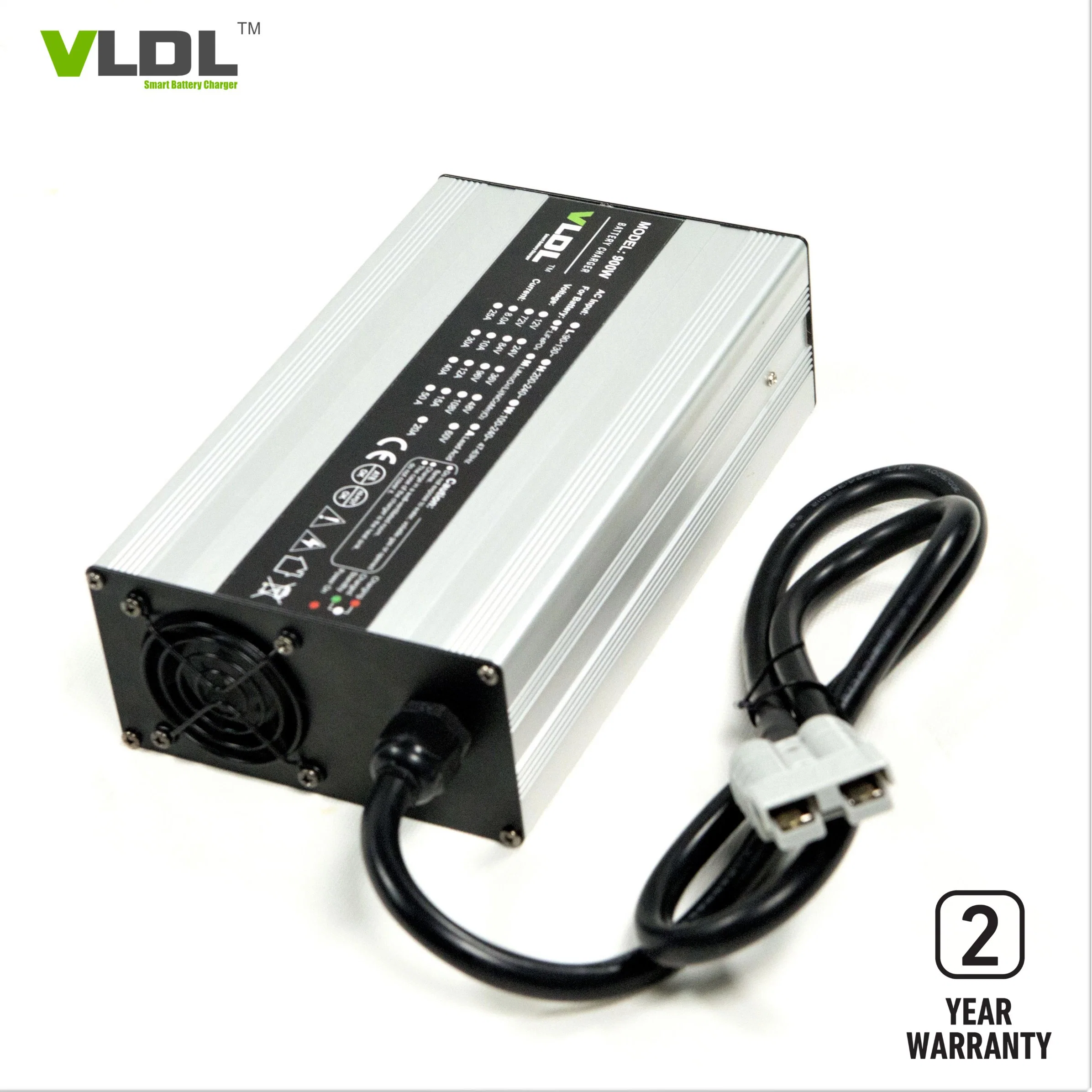

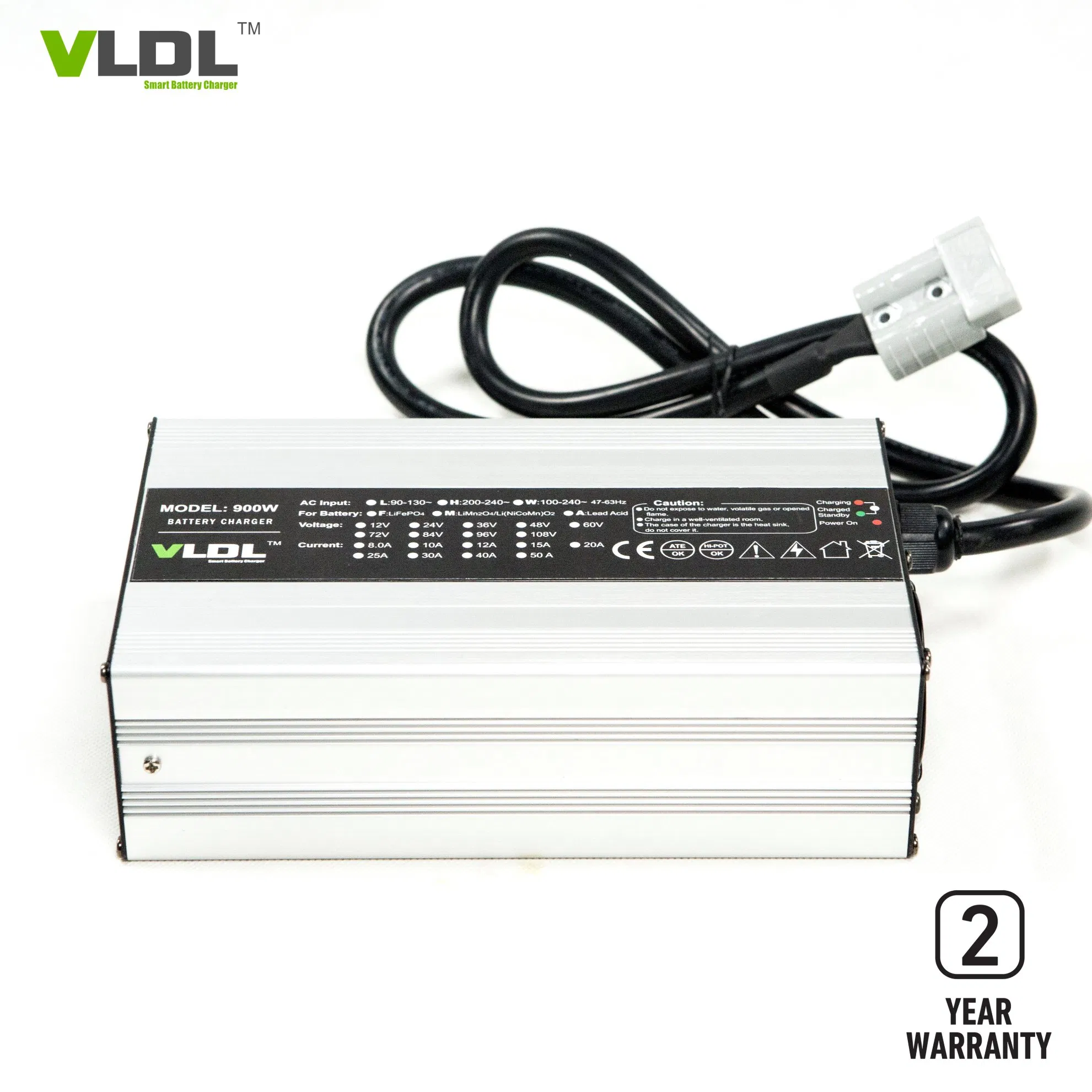

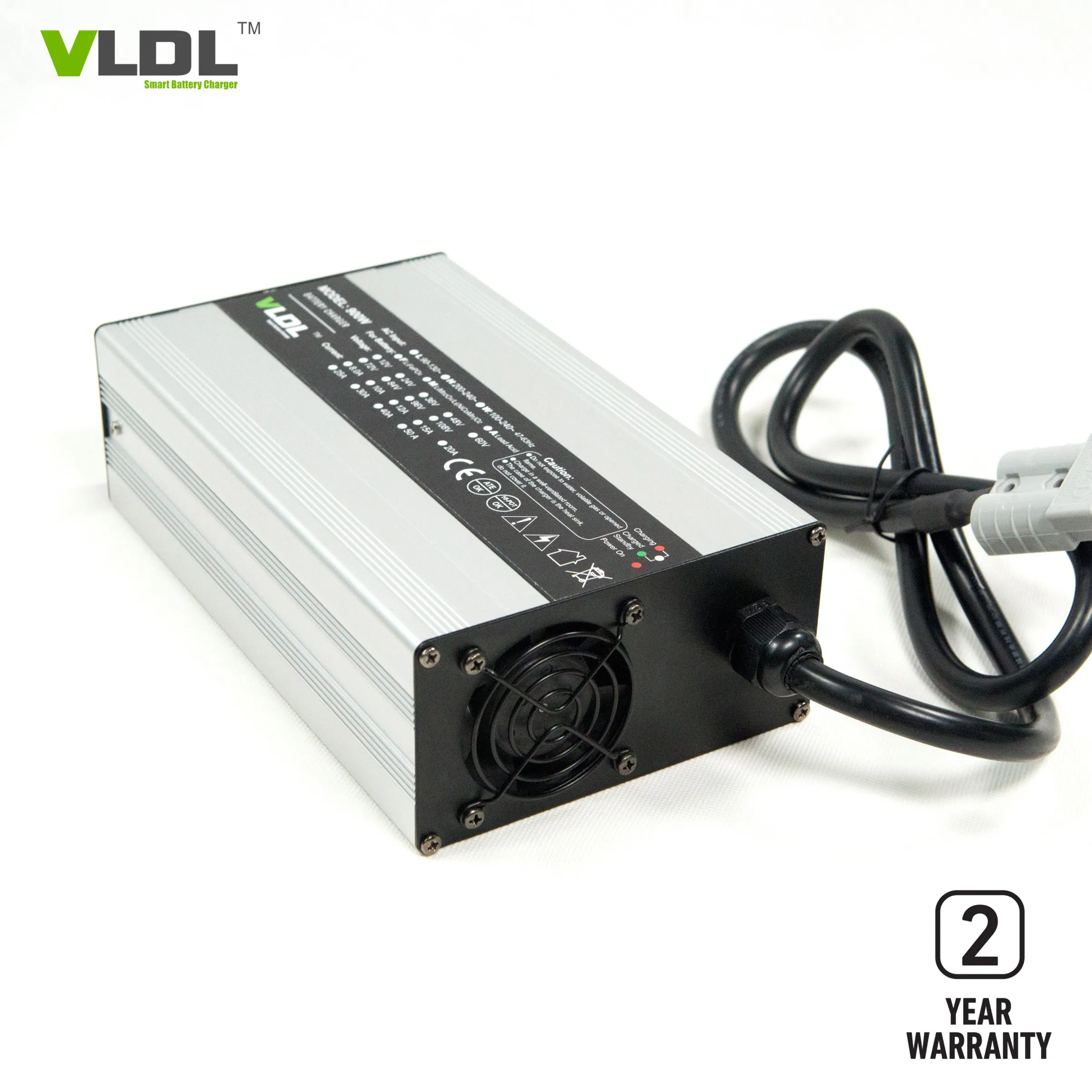

PFC Smart Battery Charger 48V 12A For Lithium/Lead Acid Battery, Universal 110-230Vac
Designed for 48V Lithium racing battery input with universal 110 - 230Vac with PFC and rated output voltage is 48V 12A. Smart max charging voltage is 50.4V / 58.4V Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max.
| Model | Apply to Battery Type | Floating V | CV (V) | CC (A) | Switching |
|---|---|---|---|---|---|
| VL1230L | 12V LiFePO4 Battery | - | 14.6V | 30A | CC5~8% |
| VL1230 | 12V Lead-acid Battery | 13.5V | 14.7V | 30A | CC20% |
| VL2425L | 24V LiFePO4 Battery | - | 29.2V | 25A | CC5~8% |
| VL3618L | 36V LiFePO4 Battery | - | 43.8V | 18A | CC5~8% |
| VL4815LM | 48V Li-MnO2 Battery | - | 54.6V | 15A | CC5~8% |
| VL6012L | 60V LiFePO4 Battery | - | 73V | 12A | CC5~8% |
| VL7210 | 72V Lead-acid Battery | 81V | 88.2V | 10A | CC20% |
| VL8408L | 84V LiFePO4 Battery | - | 102.2V | 8A | CC5~8% |
The Smart Battery Charger uses a fully automatic 4-step process. The Pre-charge step activates low voltage batteries and protects extremely discharged units. The CC step charges with Constant Current at high speed. The CV step uses Constant Voltage as the current drops, and finally, the Floating step maintains 100% capacity with a small trickle charge, preventing overcharge.
With 15 years of experience in designing and manufacturing switching-mode technology battery chargers and 10 years of exporting worldwide, we specialize in customizing smart solutions for battery and EV factories. We provide high-quality ODM & OEM services for various applications including E-Bikes, E-Scooters, Golf carts, and more.
