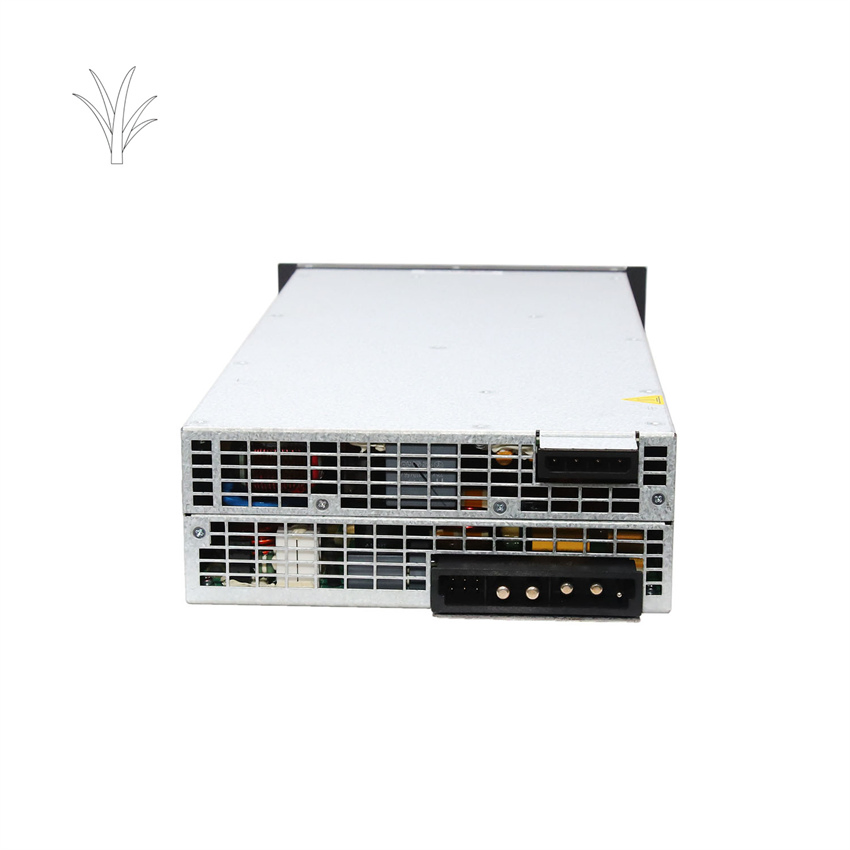

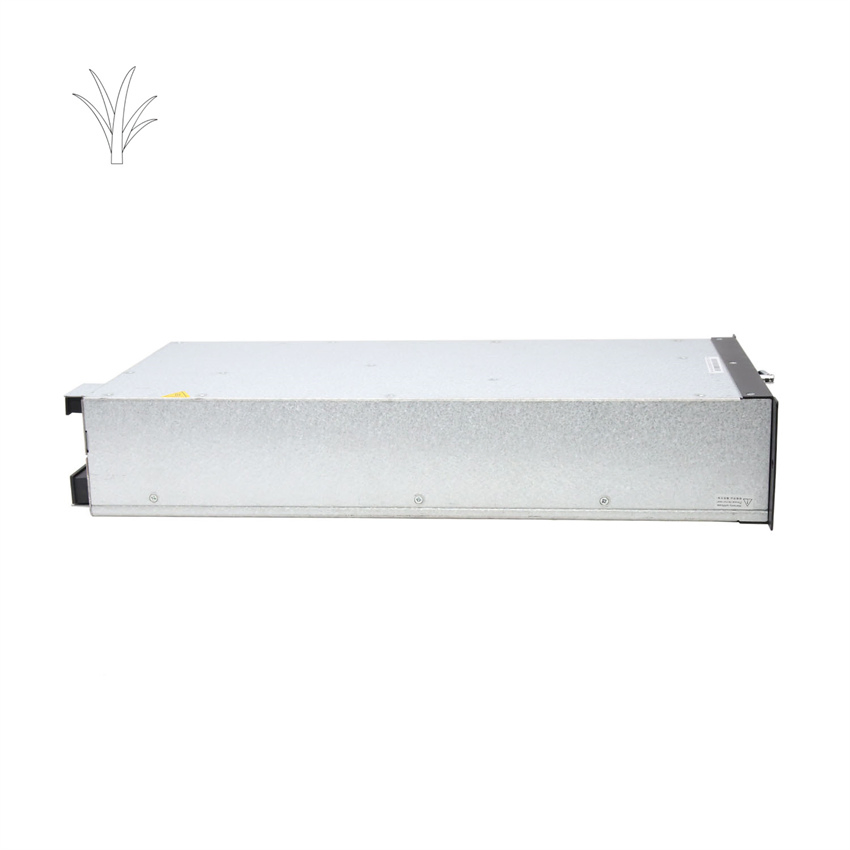

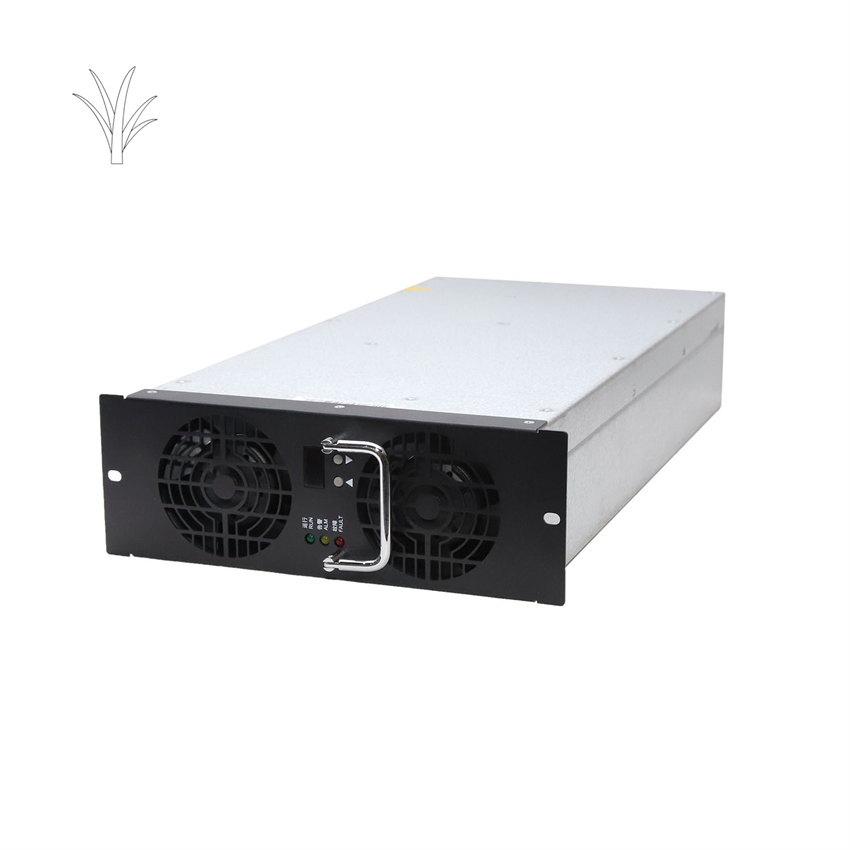

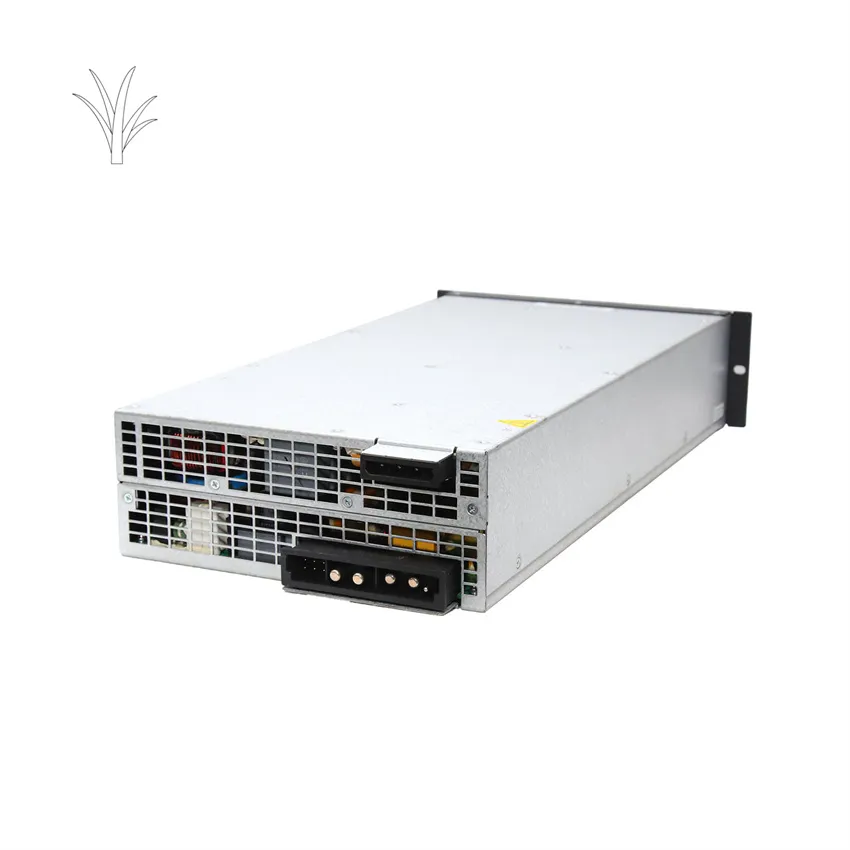

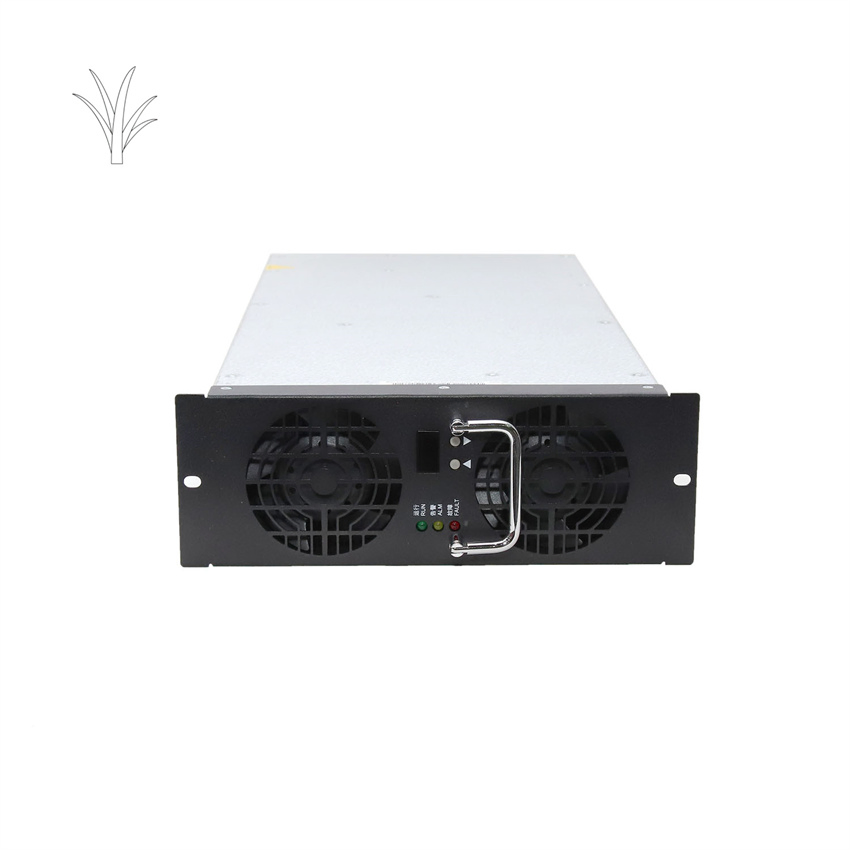

MXR100200B is a charging power module developed for the charging pile industry. It features prominent advantages in ultra-high full-load operating temperature and ultra-wide constant power range. High reliability, high efficiency, high power factor, and high power density make it a leading choice for fast EV charging solutions.
| Dimensions | 84mm(H)*459mm(D)*218mm(W) |
| Communication Mode | CAN bus |

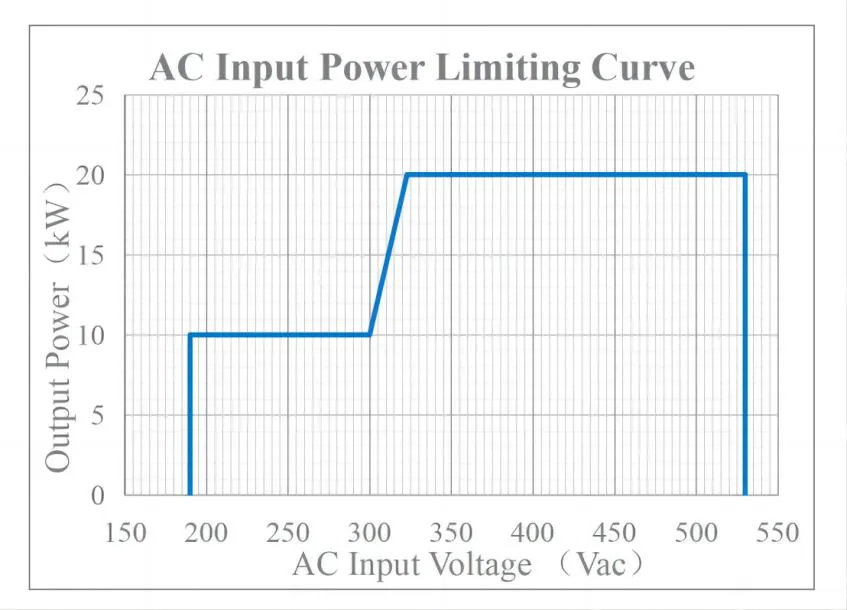

| Input Voltage | 190Vac-530Vac, three phase+PE |
| Input Current | < 40A |
| Power Factor | ≥0.99 |
| Output Power | 20kw |

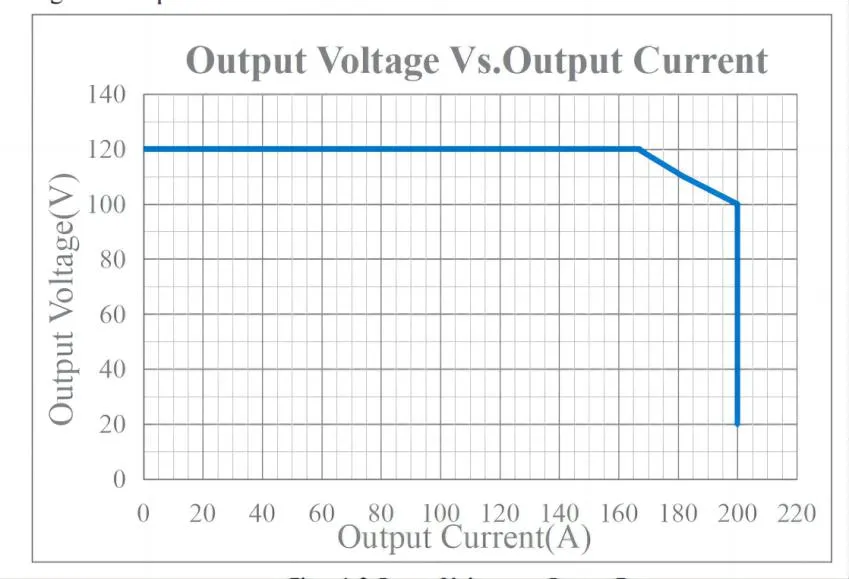

| Voltage Range | 20Vdc-120Vdc |
| Current Range | 0A - 200A (continuously adjustable) |
| Operating Temp | -40°C to +75°C |

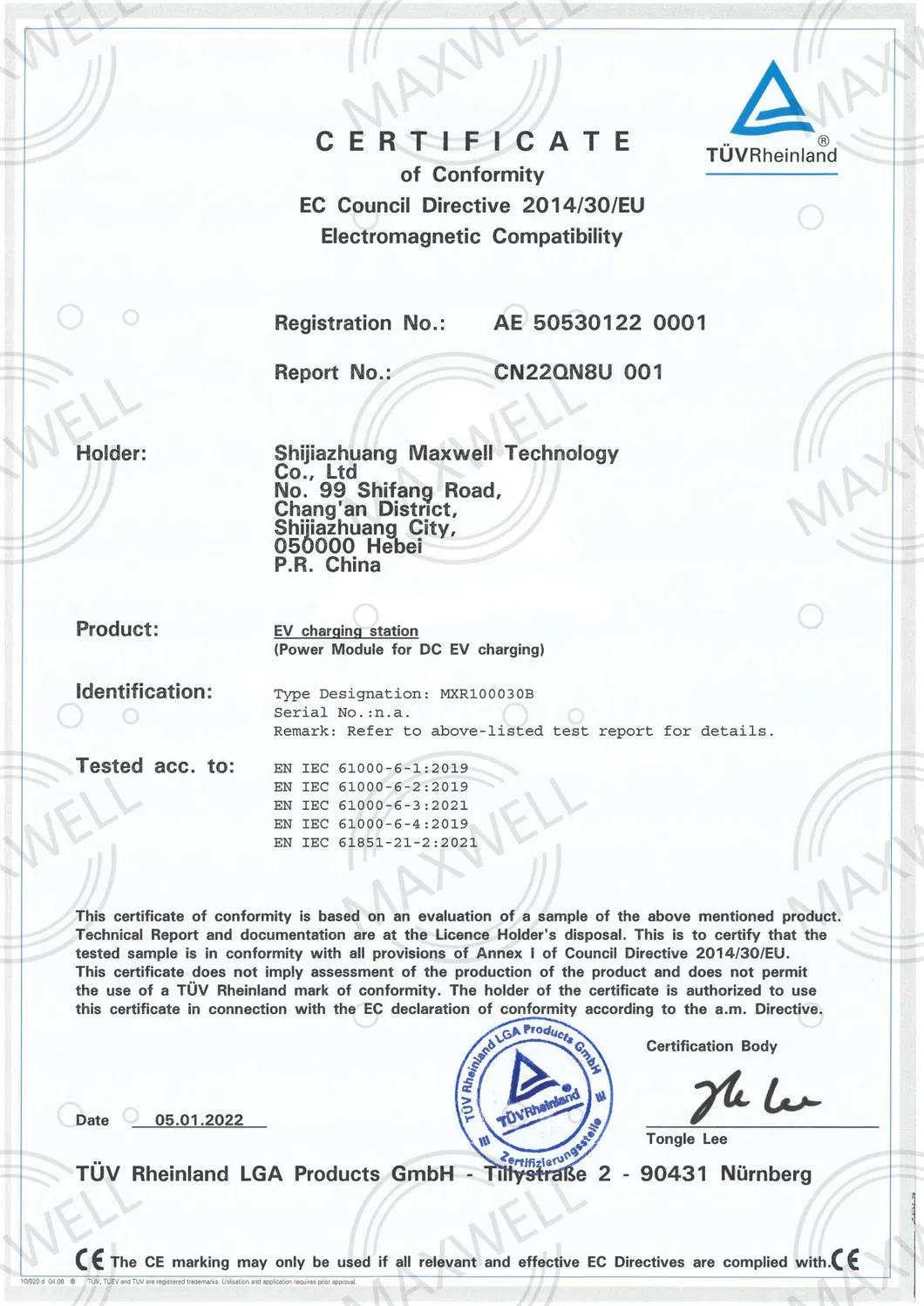

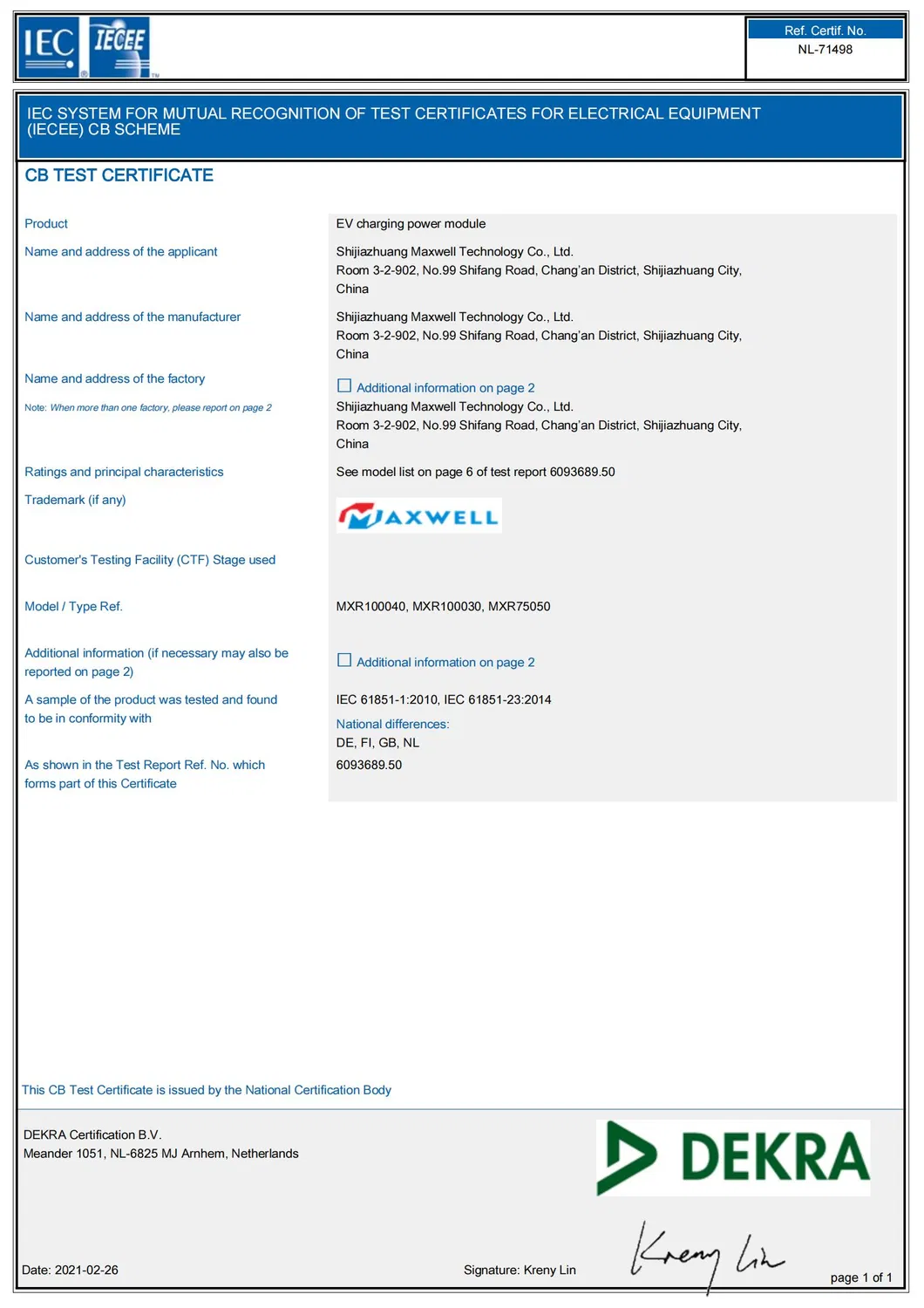

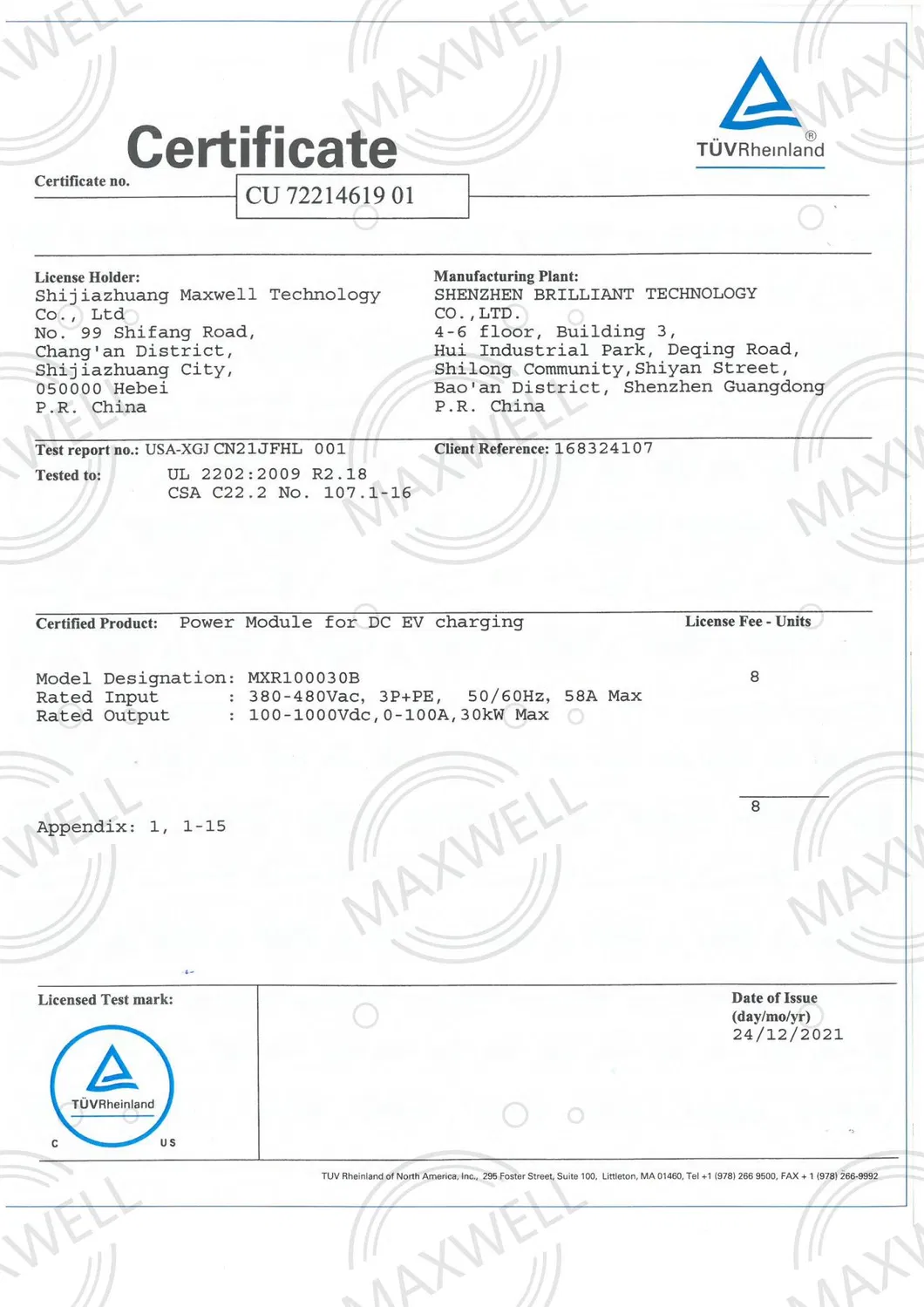

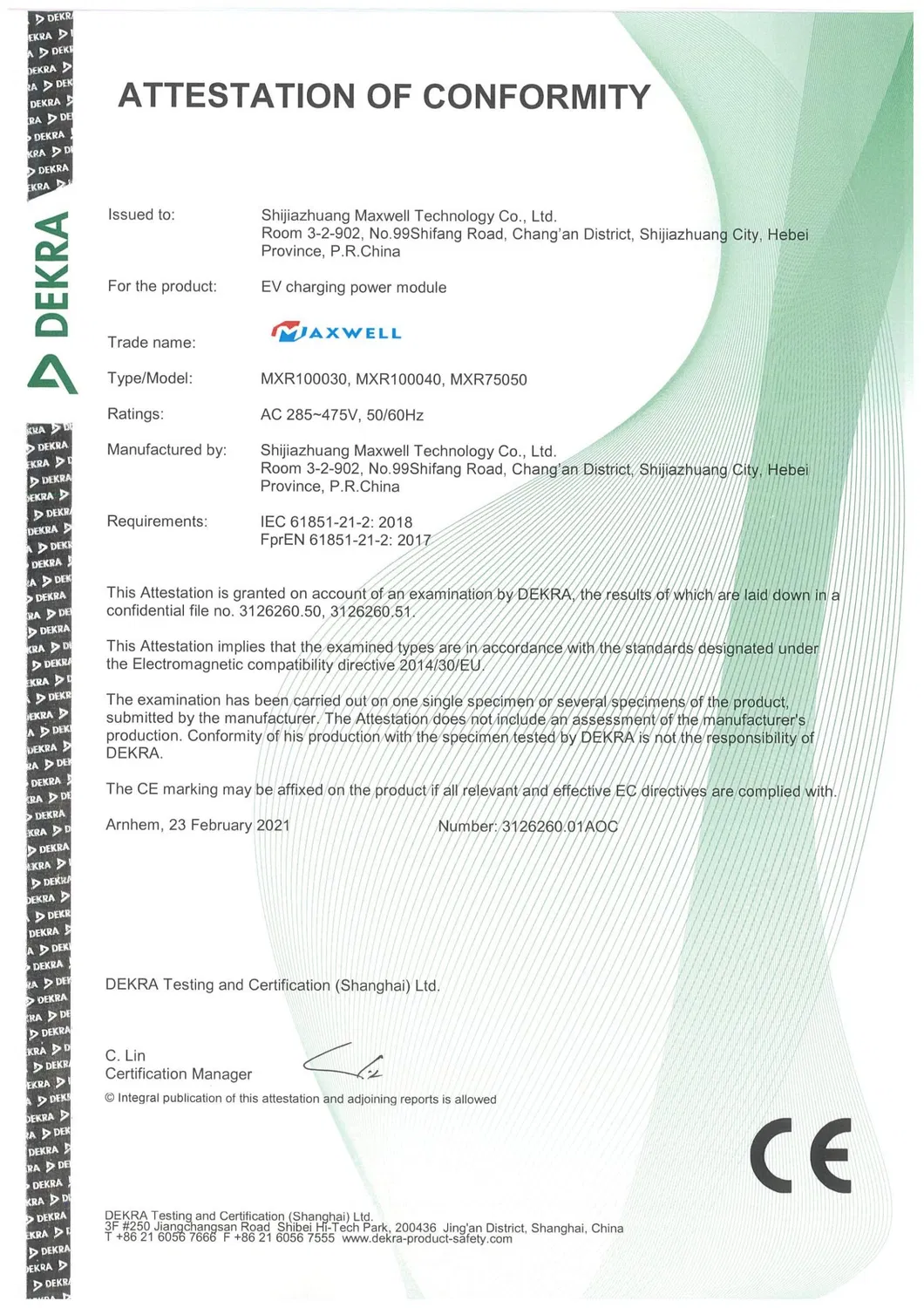

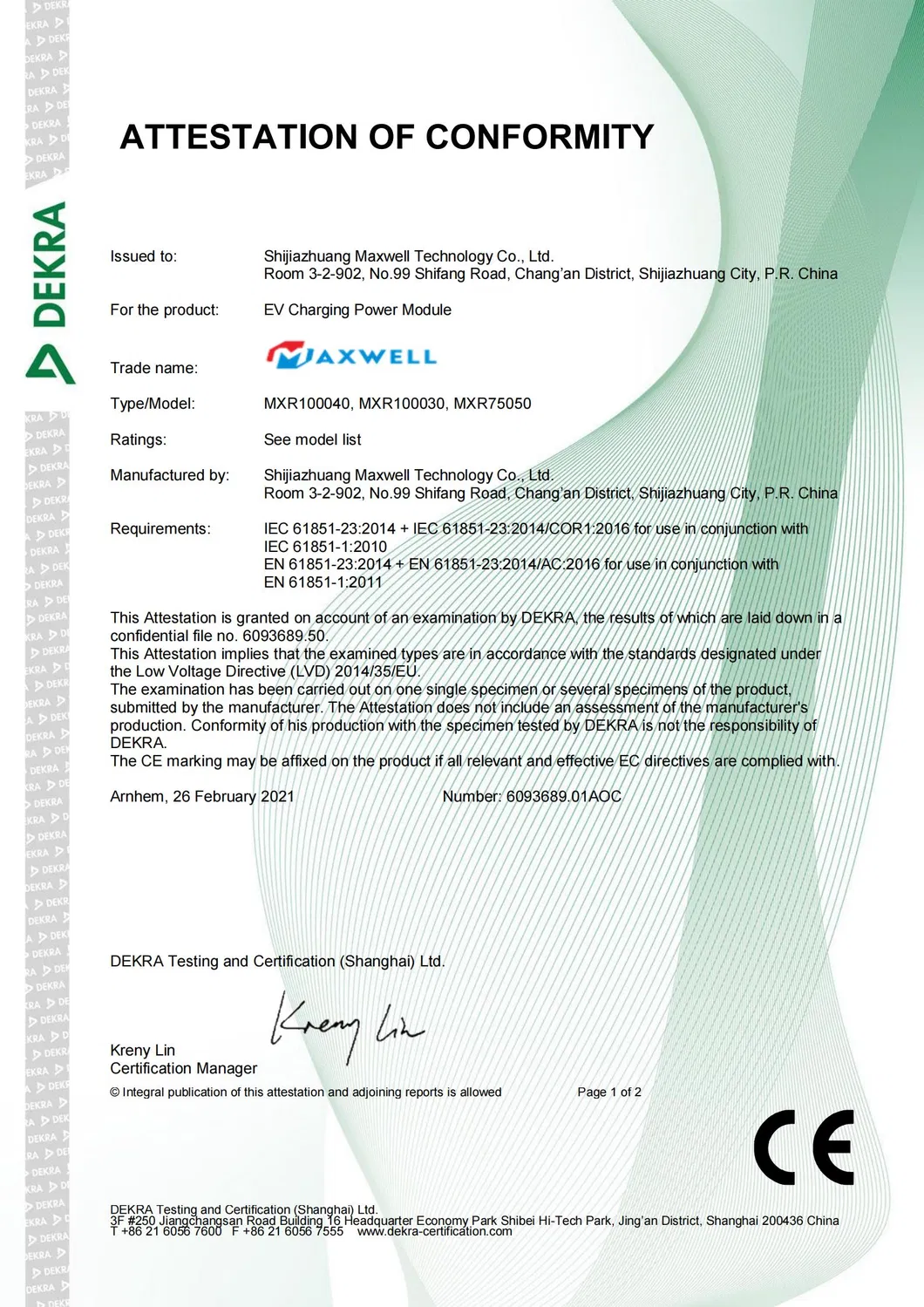

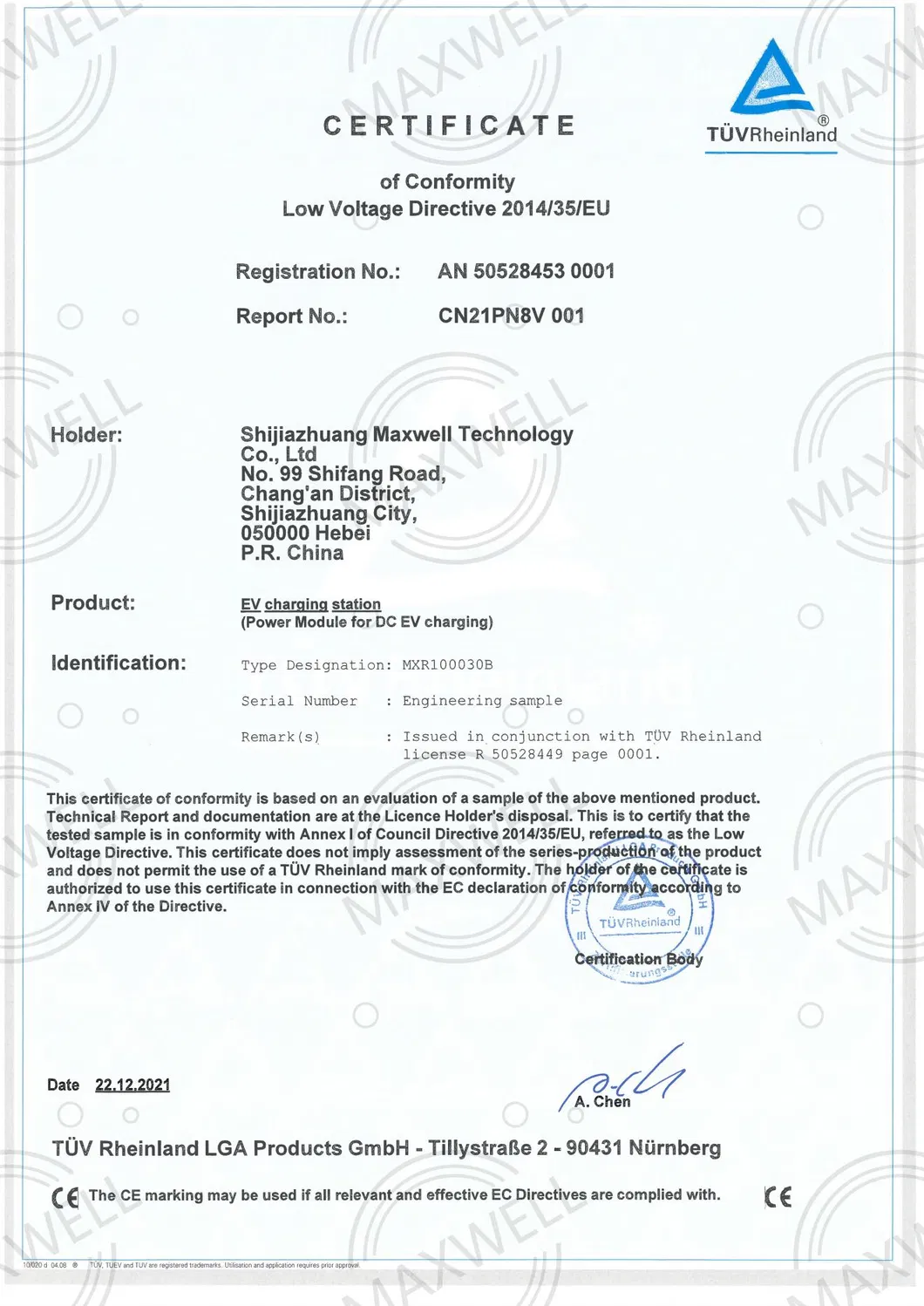

| Certification | UL |
We focus on the research and development, production and sales of power electronic products, positioning services for mid-to-high-end DC power supply system manufacturers. Based on owning independent intellectual property rights, we provide customers with equipment supporting and services that realize the growth of corporate and customer value together.
With over ten years of experience, we have built a high-quality R&D team as practitioners of technological innovation in the power supply industry. Our products of 15kW, 20kW, 30kW, 40kW and 50kW series are widely used in automotive, electric power, railway, metallurgy, and communications fields globally.
