Brush Plating Machine 12V 100A Constant Voltage Constant Current for Metal Surface Repair

1 / 5

Brush Plating Machine 12V 100A Constant Voltage Constant Current for Metal Surface Repair

Customization:	Available

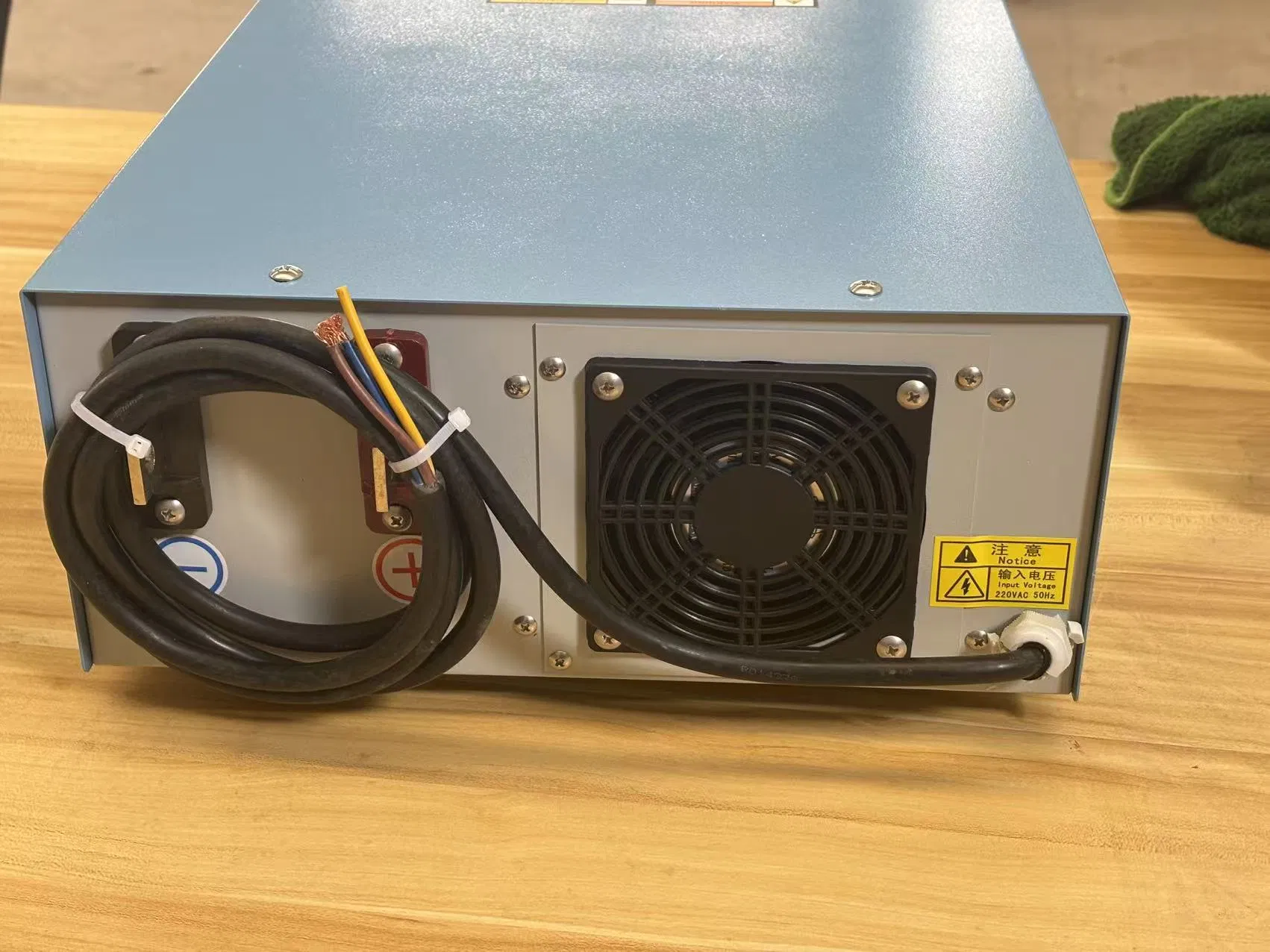

Cooling Method:	Fan Cooling
Input Voltage:	220V

Send Inquiry

Product Description

📋 Basic Information

Model NO.

APJ12V100A-T

Output Frequency

50Hz, 60Hz

Output Voltage

30V

After-sales Service

1-Year Warranty

Package Size

58.00cm * 28.00cm * 32.00cm

Gross Weight

22.000kg

Lead Time

12 days (1 - 10 Pieces)

Origin

China

⚙️ Product Description

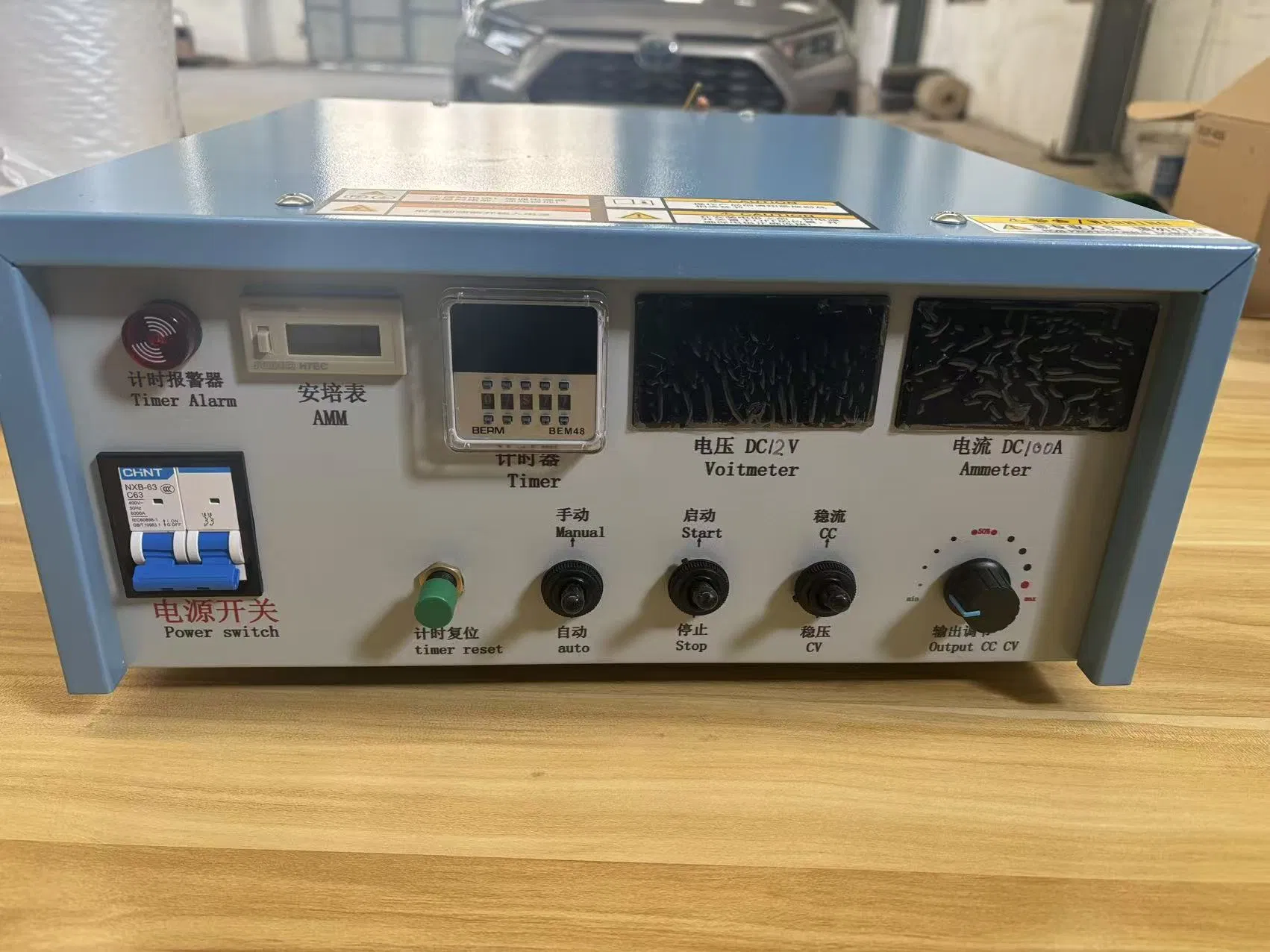

Brush Plating Power Supply

The APJ12V100A Brush Plating Machine is a high-quality constant voltage & constant current power supply specifically designed for brush plating operations. This machine is versatile, suitable for plating metals such as nickel, copper, zinc, tin, gold, silver, and cadmium. It is an essential tool for repairing metal surface defects and performing surface modifications.

🛠️ Applications & Usage

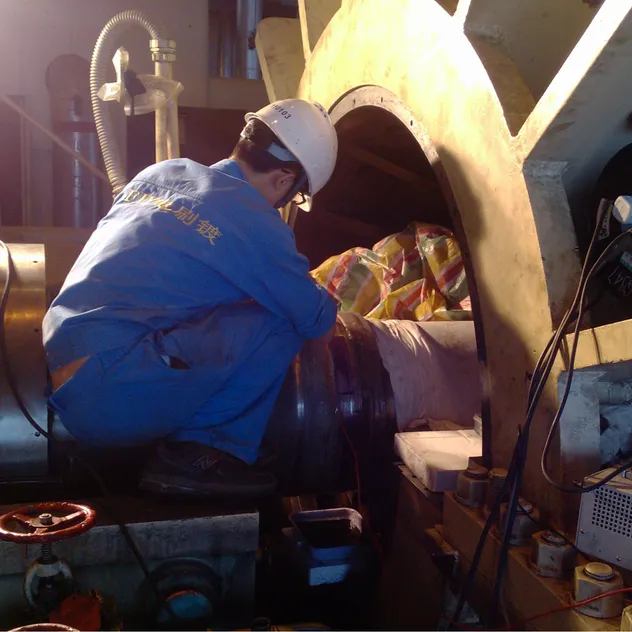

Local Metal Defect Repair: Ideal for plating nickel, copper, or nickel-cobalt alloy on printing machine rollers, hydraulic cylinders, and paper machine dryer cylinders.

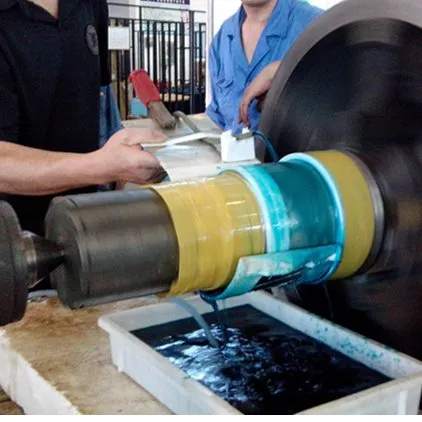

Bearing Seat Wear Repair: Uses nickel brush plating to fix mechanical dimensional deviations and motor shaft wear.

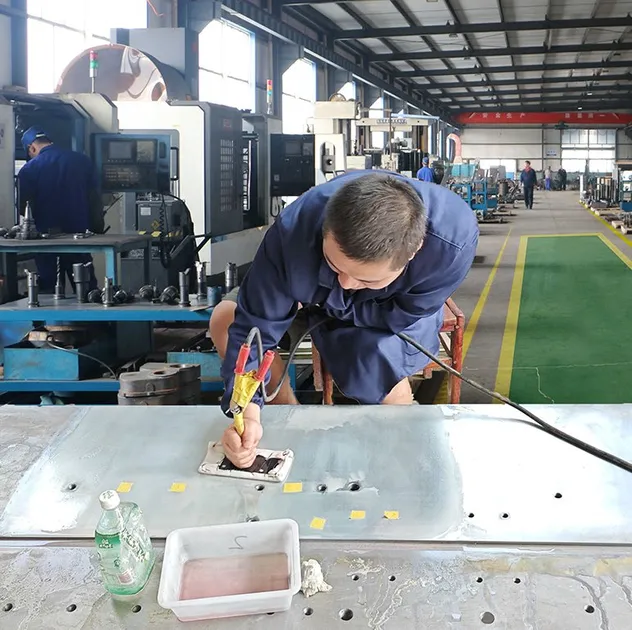

Corrosion Resistance: Plating zinc or zinc-nickel alloys to enhance metal durability.
Conductivity & Performance: Silver plating for electrical conductivity; tin plating for better brazing; nickel-tungsten for hardness.

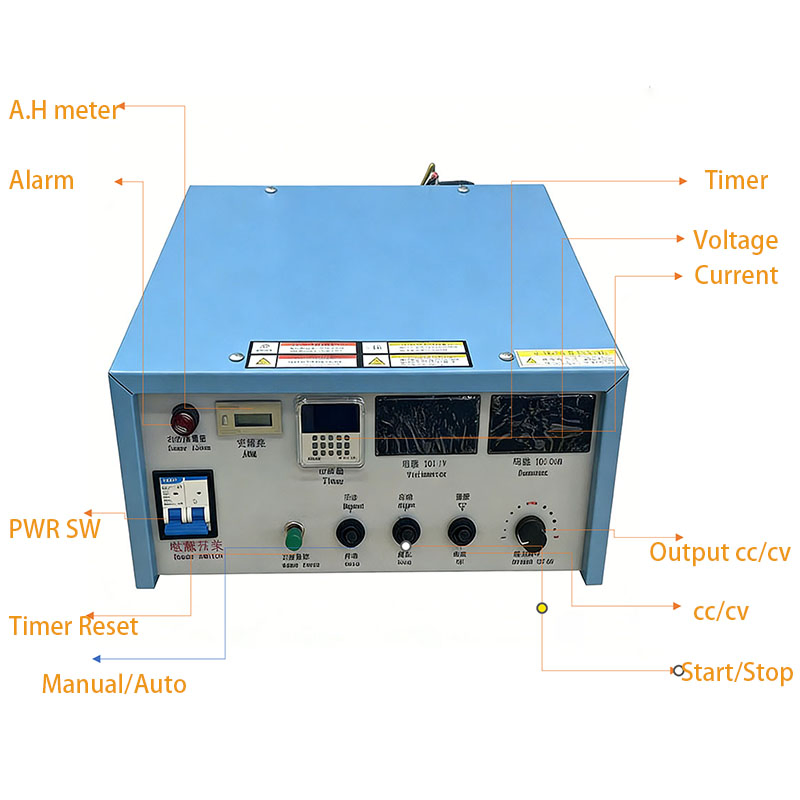

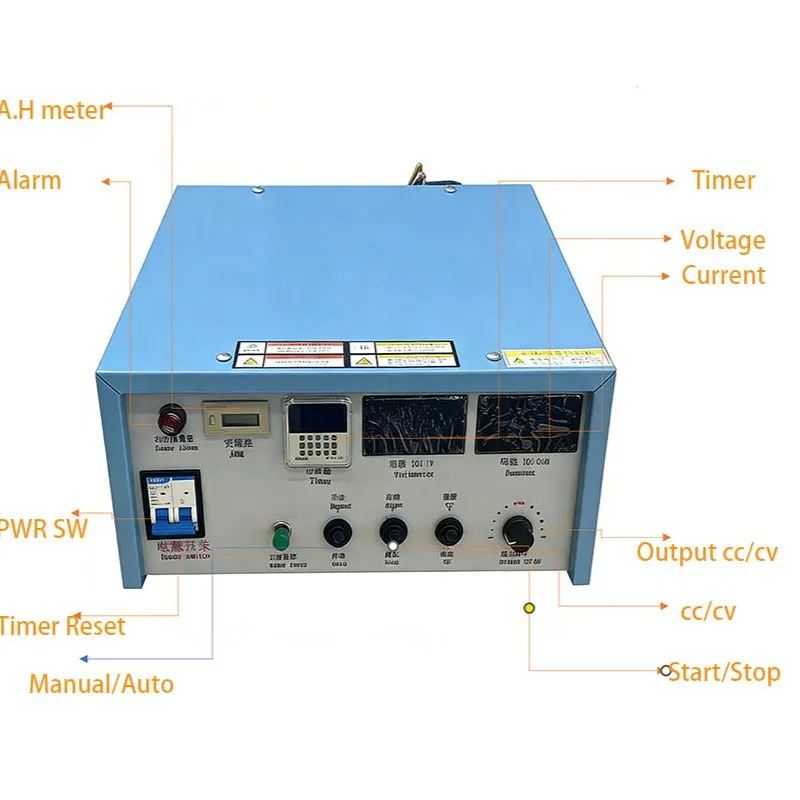

💡 Key Configurations

⚡ IGBT Technology: Achieves precise output through rapid switching, reducing power consumption by 10%.

🔄 CC/CV Modes: Choose between Constant Current or Constant Voltage modes depending on your specific plating needs.

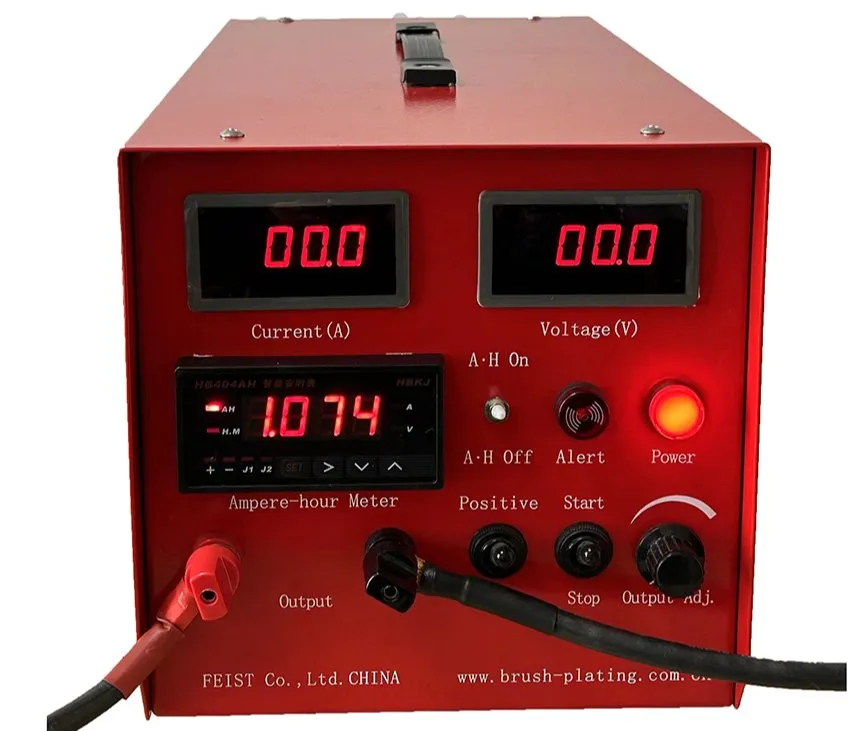

📊 A.H METER: Built-in coulometer helps control plating thickness and solution replacement timing.

🛡️ Self-Protection: Equipped with alarms for undervoltage, overvoltage, phase loss, overheating, and short circuits.

📊 Technical Specifications

Model	APJ12V100A-T	APJ12V200A-T	APJ12V500A-T
Weight (kg)	15Kg	15Kg	15Kg
Dimensions	420x370x180mm	420x370x180mm	420x370x180mm
Input Characteristics	1-Phase AC 220V	1-Phase AC 220V	3-Phase AC 380V
Output Mode	DC 100A 15V	DC 200A 15V	DC 100A 30V
Output Waveform	Pulsed DC	Pulsed DC	Pulsed DC
CV Range	DC 0~12V	DC 0~12V	DC 0~12V
Display Accuracy	0.1A, 0.1V	0.1A, 0.1V	0.1A, 0.1V

📞 Support & Customization

After Sales Service:

12-Month Standard Warranty (Extended up to 36 months).
24/7 Global Technical Assistance.
Remote or On-site Operation Training.

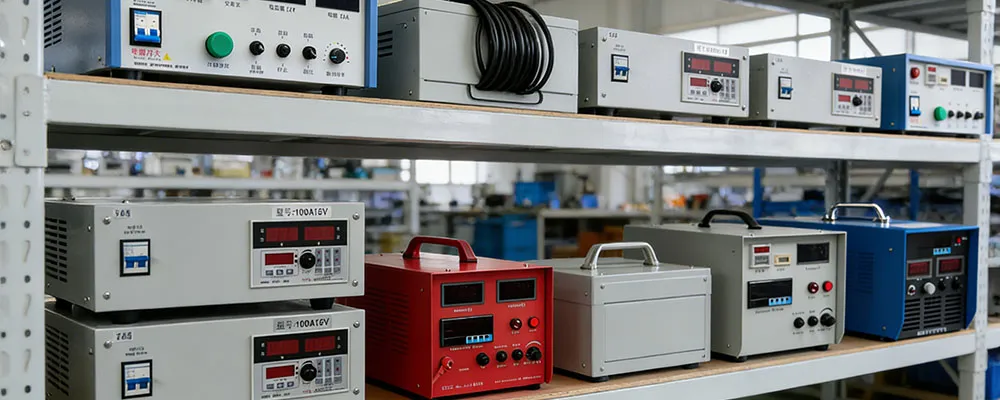

Customized DC power supplies available upon request.

Frequently Asked Questions (FAQ)

Q1: What materials can be plated with this machine?

A: Our brush plating power supply is compatible with nickel, copper, zinc, tin, gold, silver, cadmium, and various alloys like nickel-cobalt or nickel-tungsten.

Q2: How does the IGBT technology benefit my operation?

A: The high-frequency IGBT switching allows for more precise current control and reduces overall device power consumption by approximately 10%.

Q3: Can I adjust both voltage and current?

A: Yes, the unit features Constant Voltage (CV) and Constant Current (CC) modes, with digital adjustment available from 0 to the rated capacity.

Q4: Is this suitable for large industrial cylinder repairs?

A: Absolutely. It is widely used for repairing local defects on printing rollers, hydraulic cylinders, and motor shafts without dismantling the entire setup.

Q5: What safety protections are built into the machine?

A: It includes self-protection for undervoltage, overvoltage, phase loss, internal overheating, output overload, and short circuits, complete with an acousto-optic alarm.

Q6: What is the typical lead time for an order?

A: Standard models typically ship within 12-15 days. For larger quantities or customized configurations, the timeline is negotiated based on requirements.
