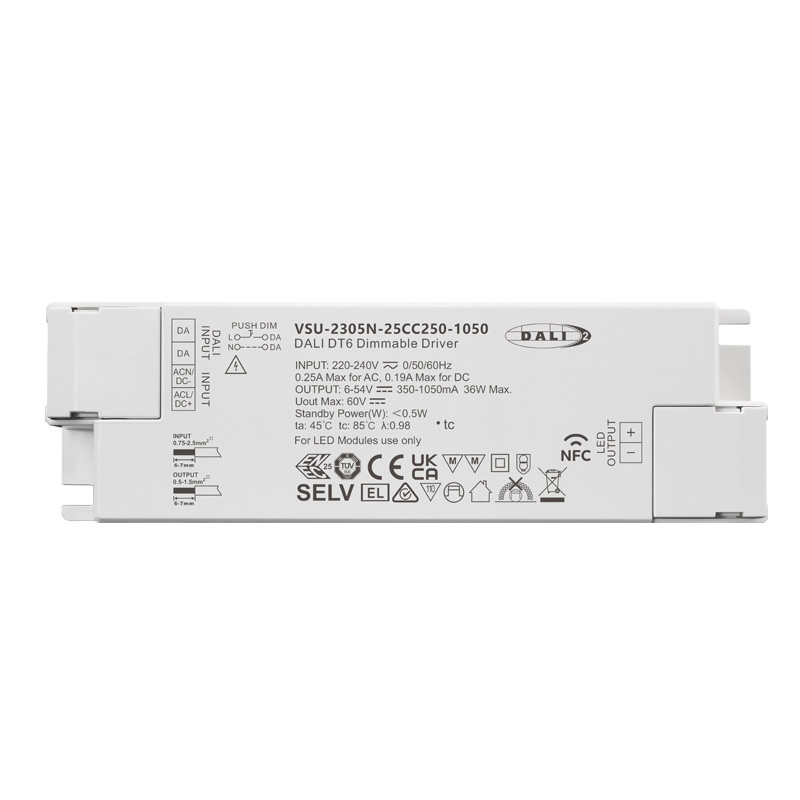

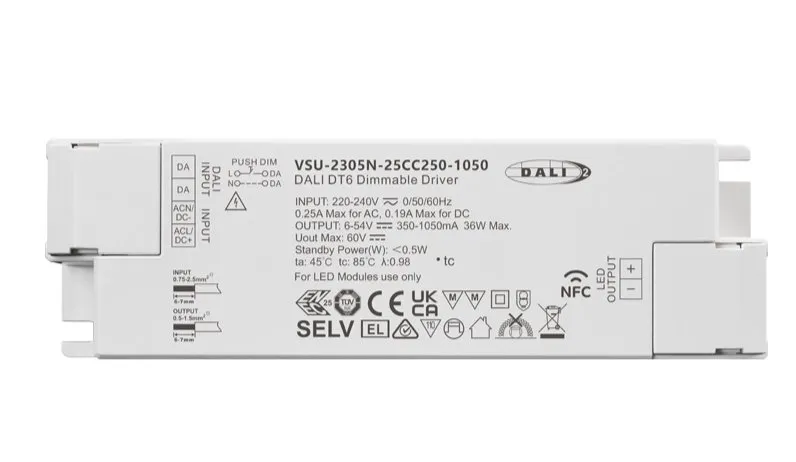

36W NFC Enabled LED Driver with Constant Current 200-240VAC Input

Basic Information

Model NO.

VSU-2305N

Material

Plastic

Input Voltage

200-240VAC

Lamp Power

36W

Output Voltage

6-54VDC

Dimming Range

0.01%-100%

Dimming Method

Amplitude/Ccr Dimming

Rated Power

Max. 25W

Origin

China

HS Code

8517699000

Product Presentation

Product & Function Overview

In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
Built-in DALI-2 interface, DALI DT8 device with multi-addresses enabled
Multi-functional 8-in-1: Tc, RGBWAF, XY, 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6), DT6
DALI address manually assignable through buttons and digital display
5 Channels constant voltage output with PWM control via DALI device type 8
Color temperature and RGB control supported through push dim mode
Waterproof grade: IP20

Function Description

Independently control up to 12 streetlights or loads
Manual strong cutting dial and relay magnetic retention function
Delayed on/off, timing off, and cycling switch functions
On-site storage, recovery, and scene combination control
Logical operation and interlocking group functions
Real-time detection of relay status via manual dial
I/O dry contact input for switches, curtains, dimming, and fire emergency linkage

Detailed Parameters

Item	Value
Warranty	5-year
Lighting solutions service	Lighting and circuitry design, Project Installation
Input Voltage	200-240VAC / 176-280VDC
Output Frequency	0/50/60Hz
LED Channel	2
AC Current (Typ.)	0.2A @ 230VAC
Leakage Current	< 5mA / 230VAC
Standby Power Consumption	< 0.5W
Anti Surge	L-N: 2KV

Dimensional & Wiring Diagrams

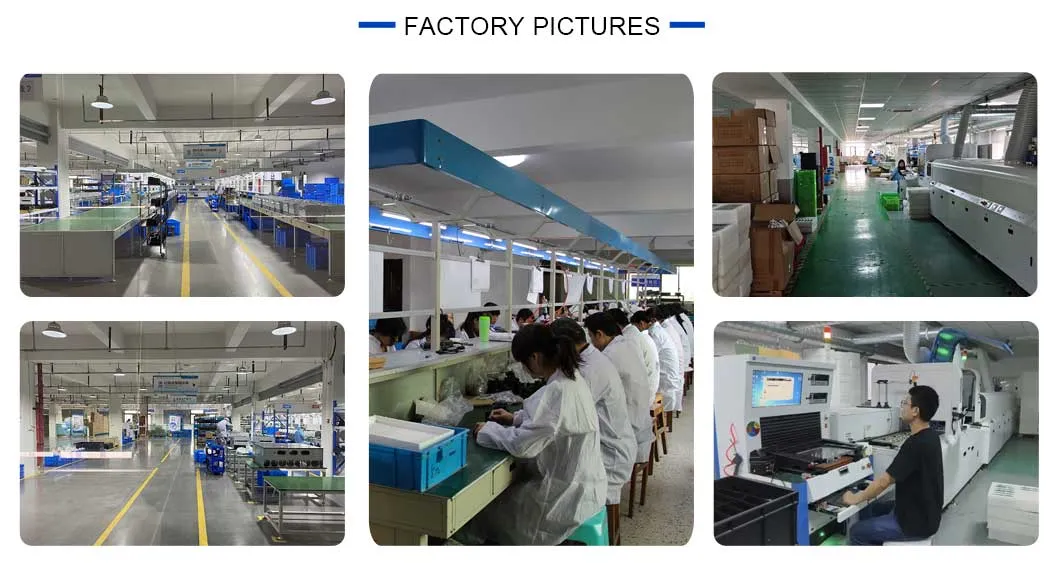

Production & Quality Control

Frequently Asked Questions

Q1: What are the main applications of this LED driver?

It is designed for smart lighting systems, supporting DALI-2 DT8 protocols for color temperature (Tc), RGBW, and XY color control.

Q2: Does it support manual dimming without a DALI master?

Yes, it features a push dim mode that allows for color temperature and RGB control even without a DALI master connection.

Q3: What is the warranty and protection level for the VSU-2305N?

The product comes with a 5-year warranty and has an IP20 waterproof grade, suitable for indoor environments.

Q4: Can this device handle different input voltages?

Yes, it supports an input range of 200-240VAC and is also compatible with 176-280VDC power sources.

Q5: Is it possible to customize the logo or design on the products?

Yes, OEM and ODM services are available, allowing for custom logos and designs to be applied to the merchandise.

Q6: What is the standard lead time for an order?

For in-stock items, products can typically be shipped within 7 days. For larger orders of 1-100 pieces, the lead time is approximately 10 days.
