Product Description

📋 Basic Information
Model No.
WJ288
Specification
79 x 69.5 x 25 mm
Origin
Guangdong, China
Production Capacity
100,000 Units
🚀 Product Description

WJ288: Eight-Channel IEPE Vibration Sensor Data High-Speed Synchronous Network Acquisition Module

The WJ288 product is an IoT and industrial Ethernet acquisition module that enables sensor data collection and transmission to the network. IEPE stands for Integrated Electronics Piezo Electronic, which is a piezoelectric sensor with built-in electronic components. This technology converts high impedance signals from piezoelectric sensors into low impedance voltage signals for easier transmission over standard cables without measurement errors caused by cable movement.

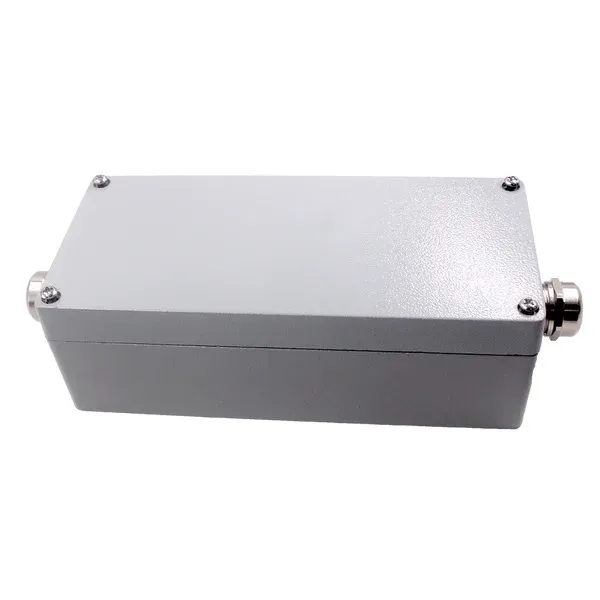

WJ288 Module Front View

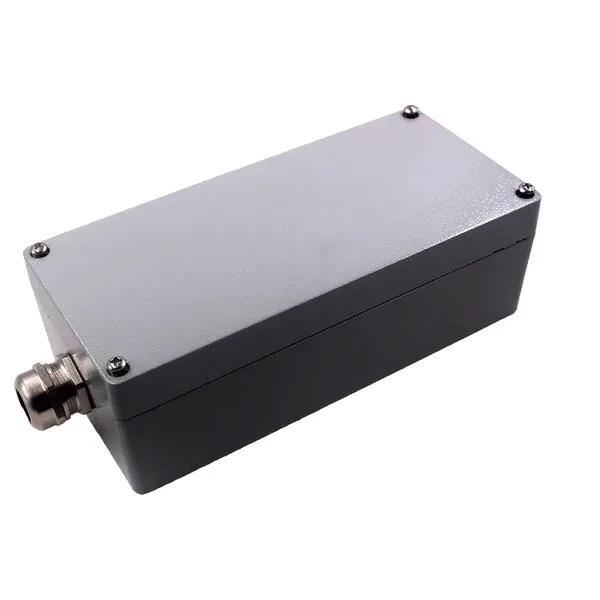

WJ288 Module Side View
⭐ Product Features
✔ Eight way IEPE vibration sensor input, RJ45 network port output
✔ Built-in 4mA constant current source for sensor power supply
✔ Automatic data reporting via UDP/TCP protocol
✔ Configurable Module IP and parameters via commands
✔ DC power supply: 24VDC with anti-reverse protection
✔ 16-bit AD acquisition, 20KSPS synchronous acquisition speed
✔ Industrial Grade: -45℃ to +85℃ operating range
✔ Durable blue flame retardant or optional metal waterproof casing
📊 Technical Specification & Models
Product Model WJ288 - U/IEPE - RJ45 General Parameters
Input Options:
IEPE: Sensor Input (Default)
U1: 0-5V
U2: 0-10V
U5: 0-±5V
U6: 0-±10V		 Output Interface:
RJ45: Output is an RJ-45 network interface supporting UDP/TCP protocols.		 AD Accuracy: 16 bits
Sampling Rate: 20K SPS
Input Resistance: >100KΩ
Power Consumption: <3W
📍 Typical Applications
🌉 Bridge vibration monitoring
🏙️ Vibration measurement in skyscrapers
🚆 Rail transit vibration detection
🏗️ Crane 3-axis vibration measurement
⚓ Monitoring of gantry crane & Port machinery
⚙️ Motor vibration & Wind power monitoring

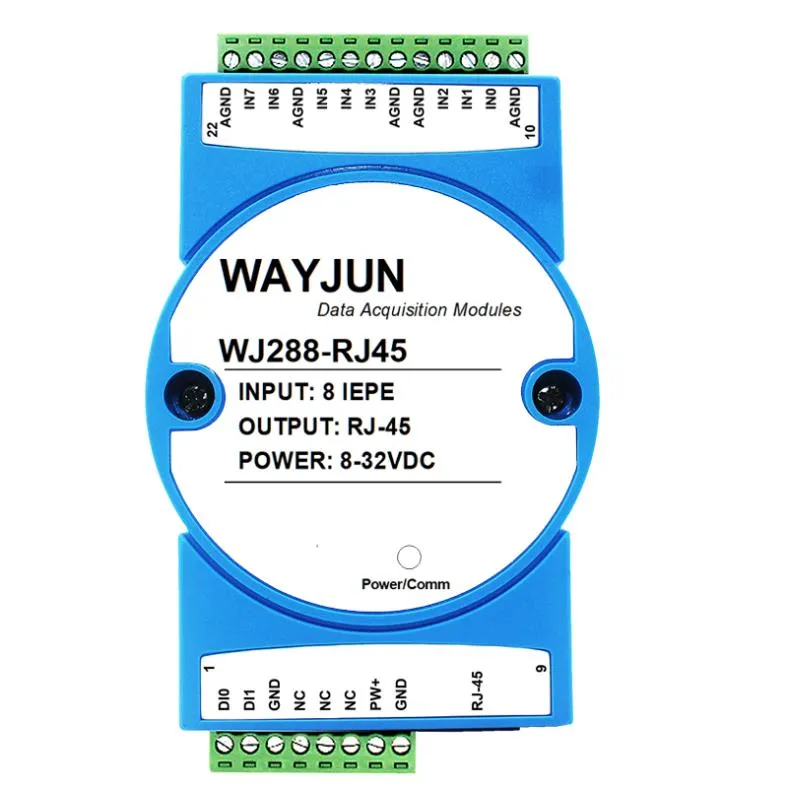

Module Details

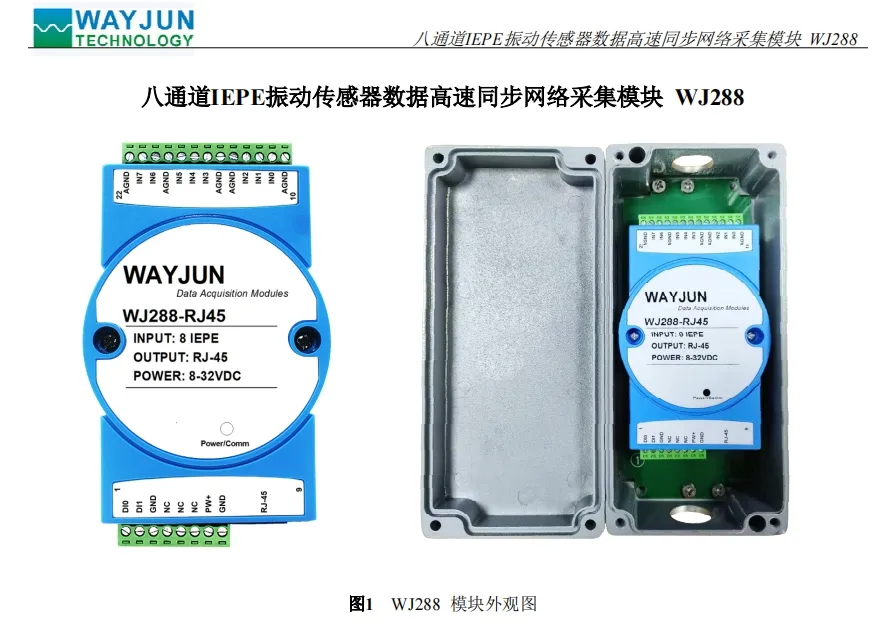

Module Installation
Frequently Asked Questions
What type of sensors does the WJ288 support?
The WJ288 is specifically designed for IEPE (Integrated Electronics Piezo Electronic) vibration sensors. It includes a built-in 4mA constant current source to power these sensors directly.
How fast can the module collect data?
The module features a 16-bit AD converter with a synchronous acquisition speed of 20K SPS (Samples Per Second) across all eight channels.
What communication protocols are used for data transmission?
Data is automatically reported through the RJ-45 network interface using UDP or TCP protocols, making it easy to integrate into industrial IoT systems.
Can the module operate in extreme outdoor environments?
Yes, the module is designed for industrial standards with a wide operating temperature range from -45℃ to +80℃. For harsh environments like ports or bridges, an optional metal waterproof casing is available.
Is the module configuration permanent?
Yes, user-set parameters such as IP addresses and subnet masks are stored in non-volatile EEPROM memory, ensuring settings are retained even after power loss.
What are the power requirements?
The module requires a standard 24VDC (±10%) power supply and has an efficient power consumption of less than 3W.
