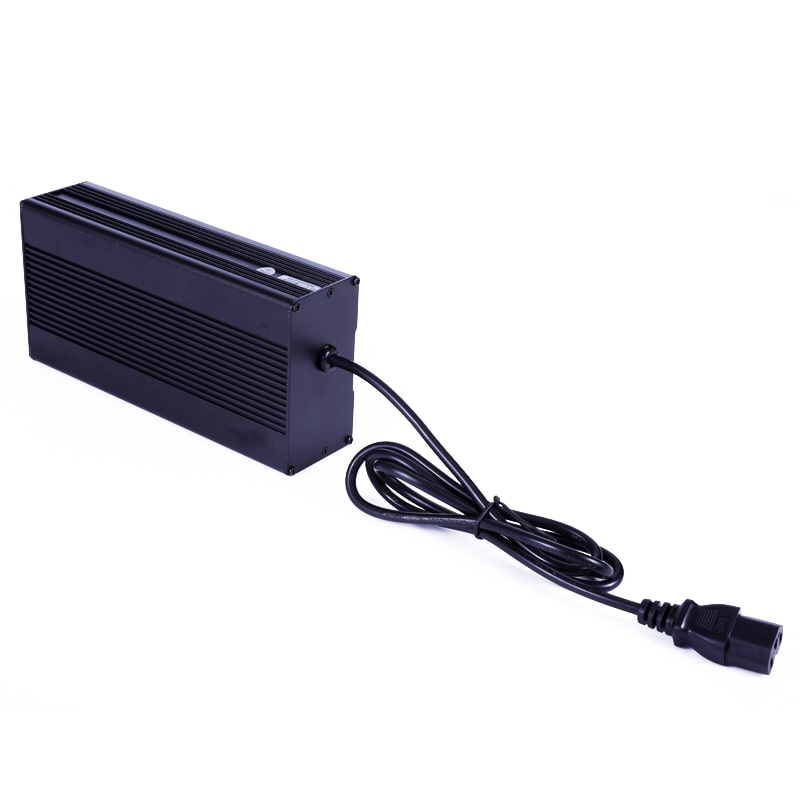

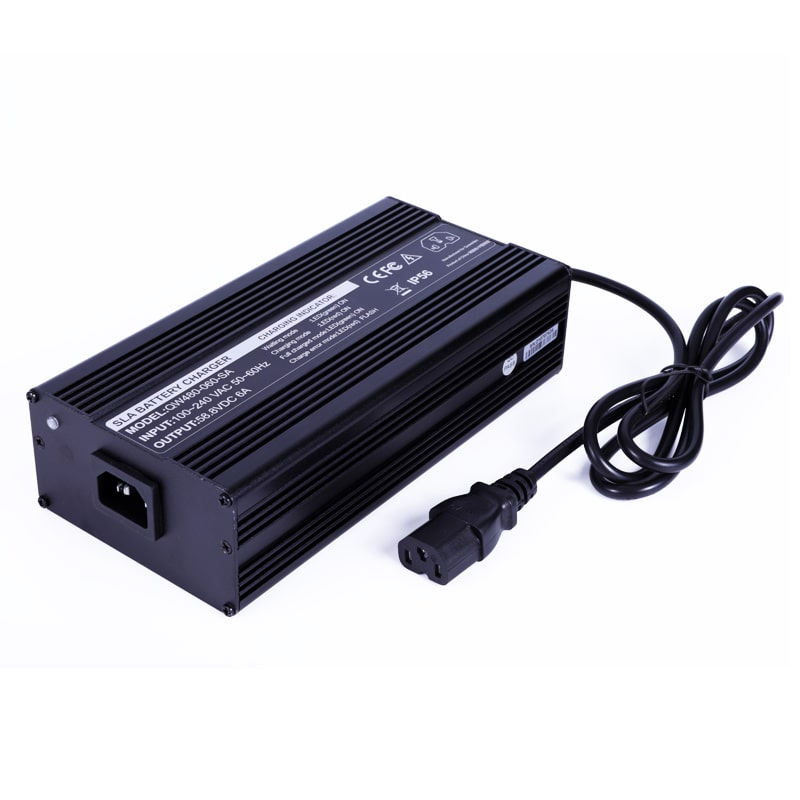

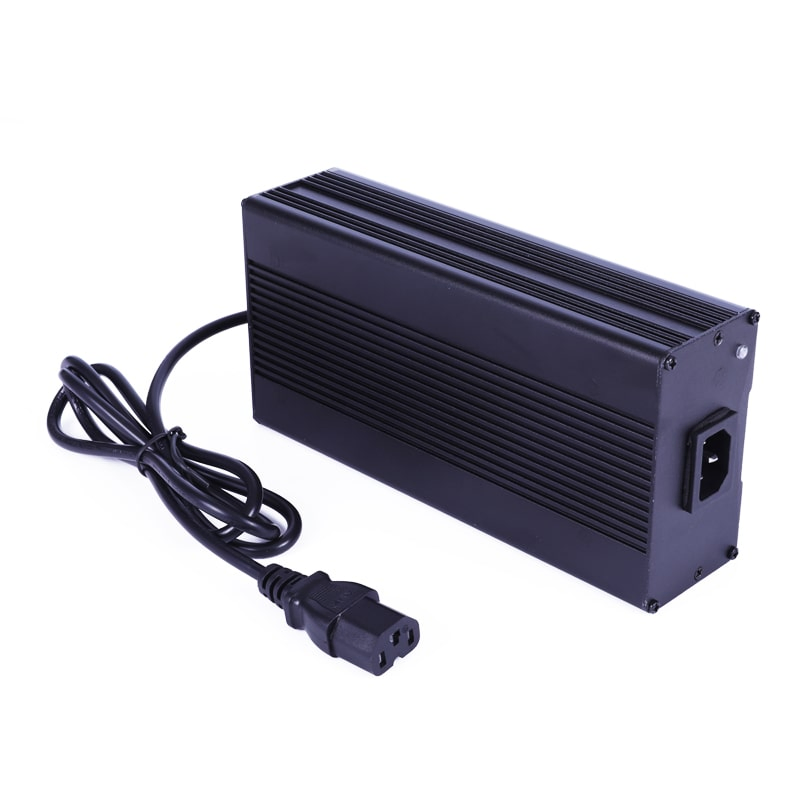

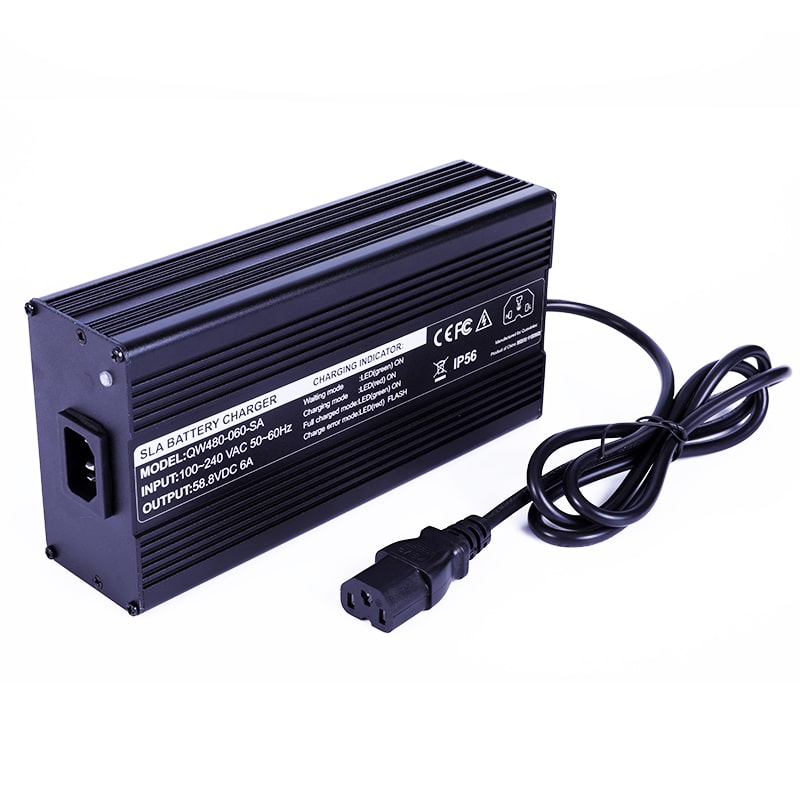

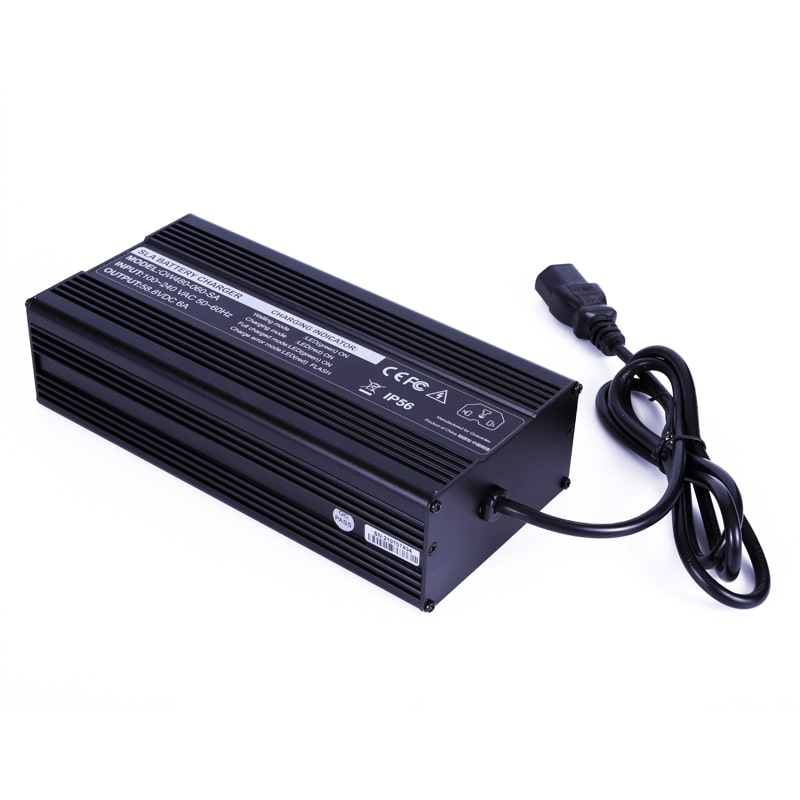

360W Battery Chargers 12s 36V 38.4V 6A 7A 8A LiFePO4 LiFePO 4 Outdoor Charger DC 42V/43.2V/43.8V IP54 IP56 Waterproof Chargers

1 / 5

360W Battery Chargers 12s 36V 38.4V 6A 7A 8A LiFePO4 LiFePO 4 Outdoor Charger DC 42V/43.2V/43.8V IP54 IP56 Waterproof Chargers

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

QW384-080-FA

Application

Standard Battery

Nominal Voltage

43.8V

Charger Style

Intelligent Charger

Compatible Battery

36V

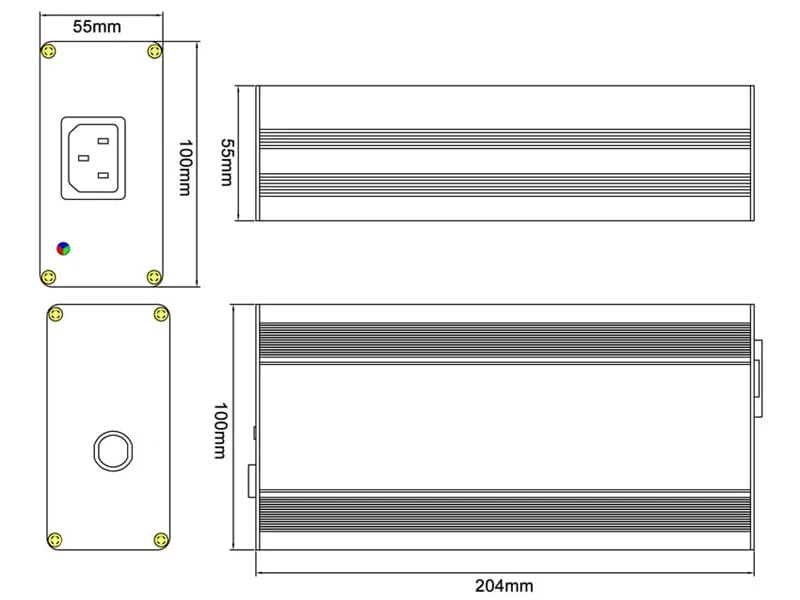

Size

204*100*55mm

Certification

RoHS, CE

Socket Type

Au/EU/UK/US Plug

Input Voltage

100-240VAC 50/60Hz

Output Current

8A (Max)

Shell Material

Aluminium Alloy

Protection Grade

IP54/IP56

Product Description

Key Specifications:

Battery Pack Compatibility: 12S 36V/38.4V LiFePO4 battery pack
Charge Mode: CC-CV (Constant Current-Constant Voltage)
Output Power: 350.4W
Efficiency: ≥90% at 100% load

Technical Features

✓

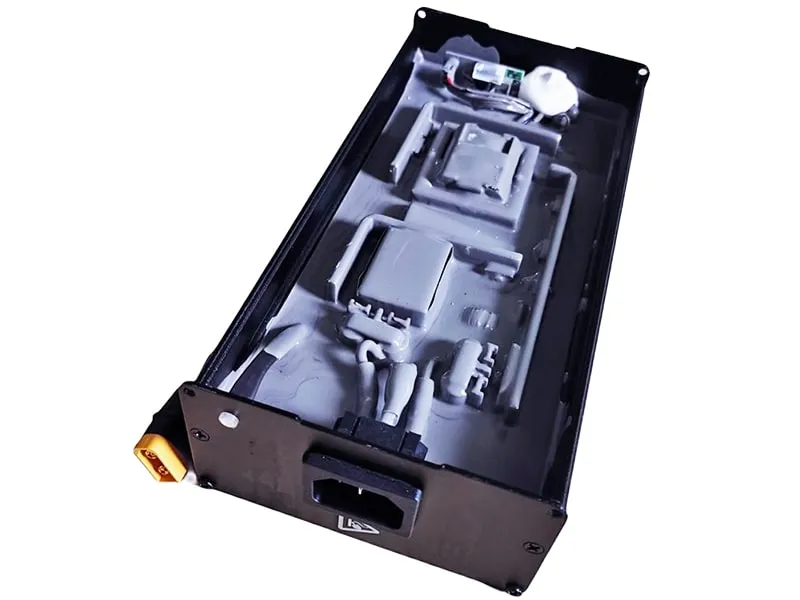

Glue pouring process for durability

✓

Metal shell cooling design for heat dissipation

✓

Operating Temperature: -20ºC ~ 45ºC

✓

High efficiency & low power consumption

Safety Protections

🛡️ Over Voltage Protection

🛡️ Short Circuit Protection

🛡️ Polarity Error Protection

🛡️ Over Power Protection

🛡️ Overheating Protection

LED Indicators

GREEN ON Waiting Mode

BLUE FLASH Charging Mode

GREEN ON Fully Charged

RED FLASH Charge Error

Typical Product Models

Model	Battery Type	Input Voltage	Battery Voltage (V)	Charging Voltage (V)	Charging Current (A)
QW128-200-FA	LiFePO4	AC 100~264V	12.8(4S)	14.6	20
QW256-120-FA	LiFePO4		25.6(8S)	29.2	12
QW384-080-FA	LiFePO4		38.4(12S)	43.8	8
QW148-200-LA	Lithium		14.8(4S)	16.8	20
QW370-080-LA	Lithium		37(10S)	42	8
QW360-080-SA	Lead Acid		36(3S)	44.1	8

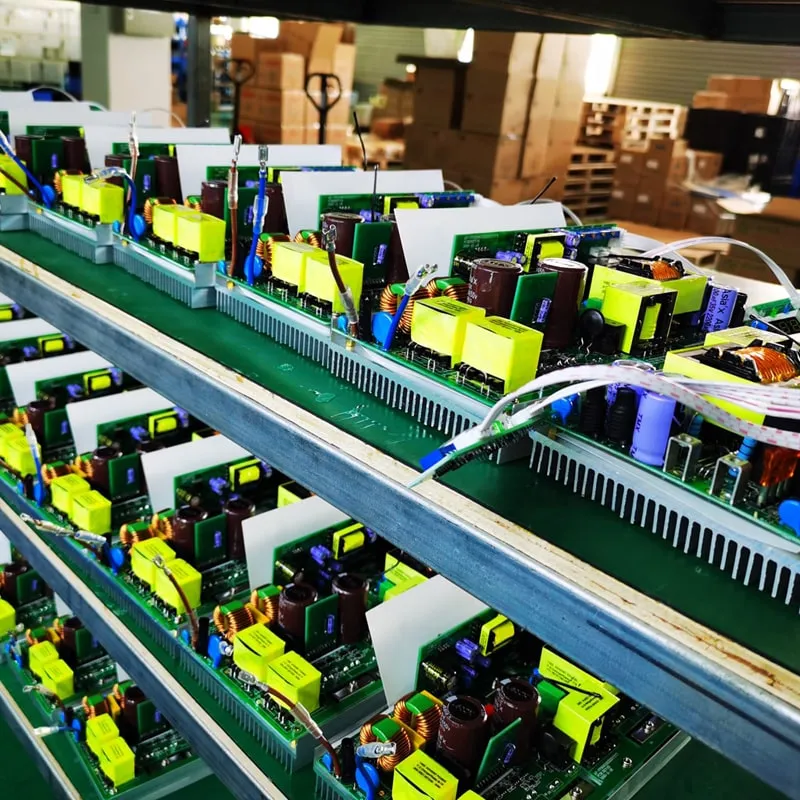

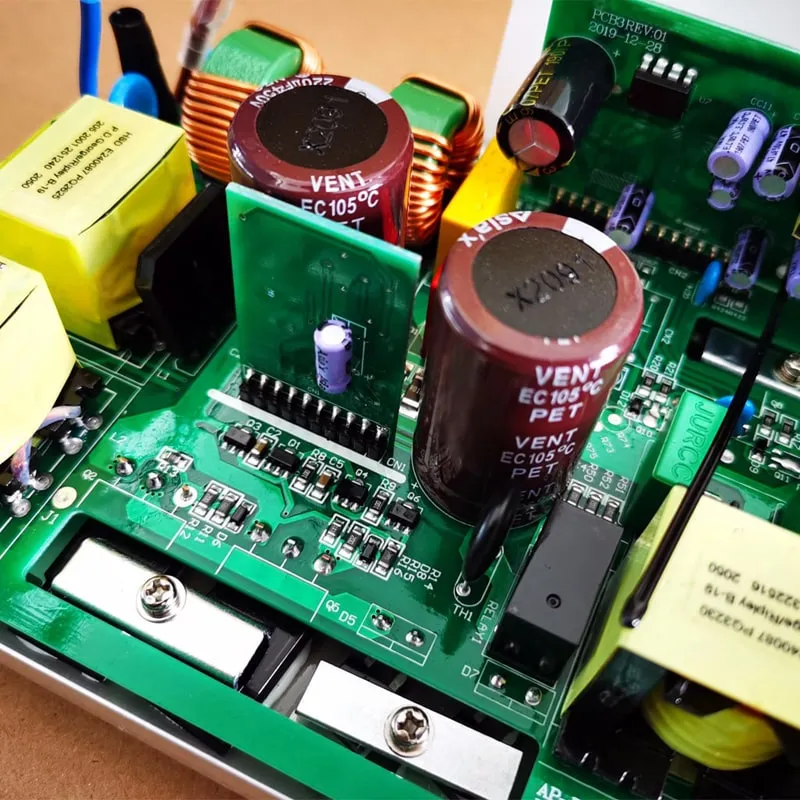

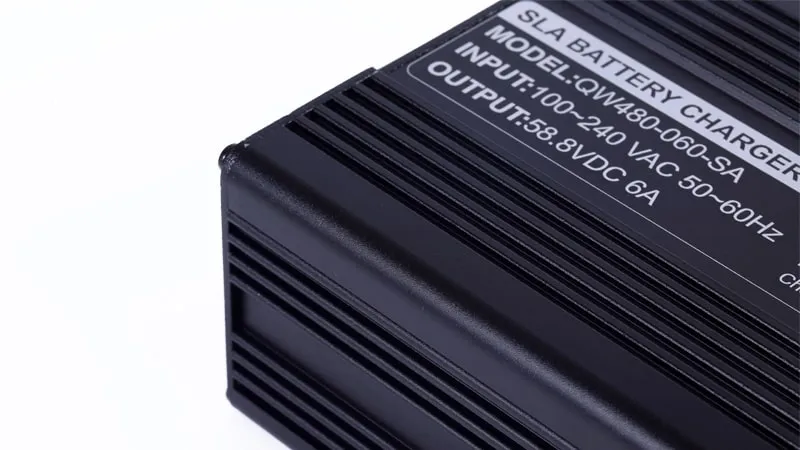

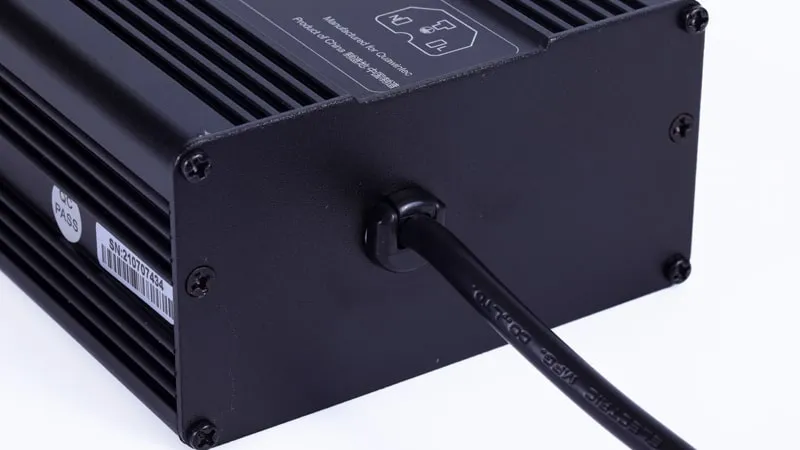

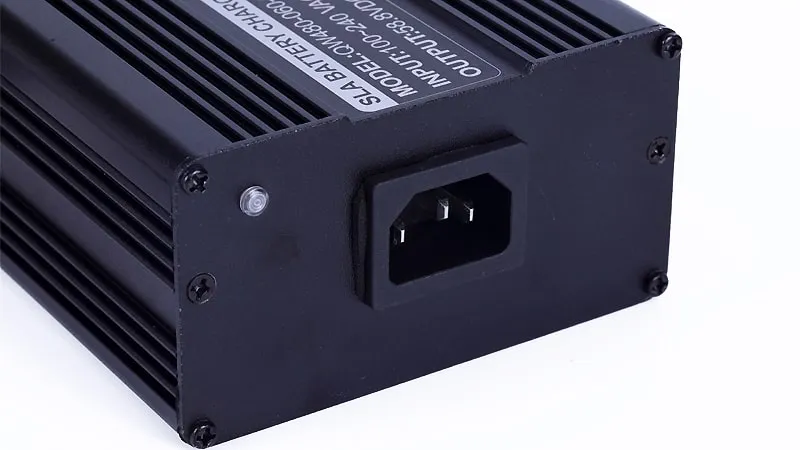

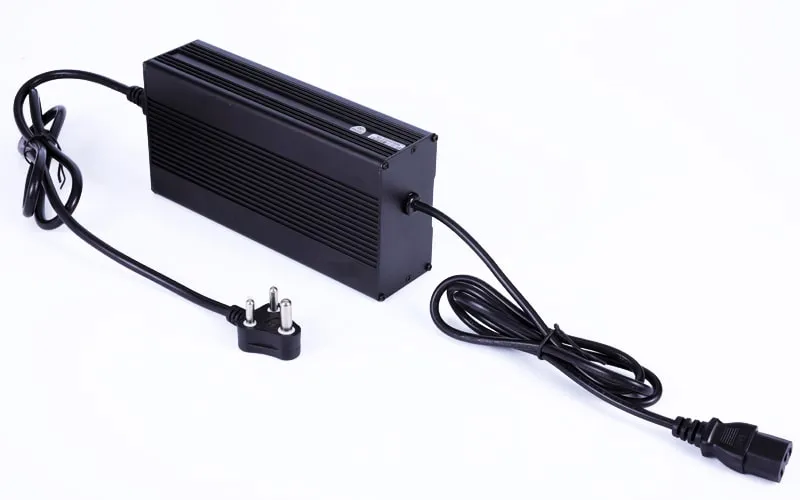

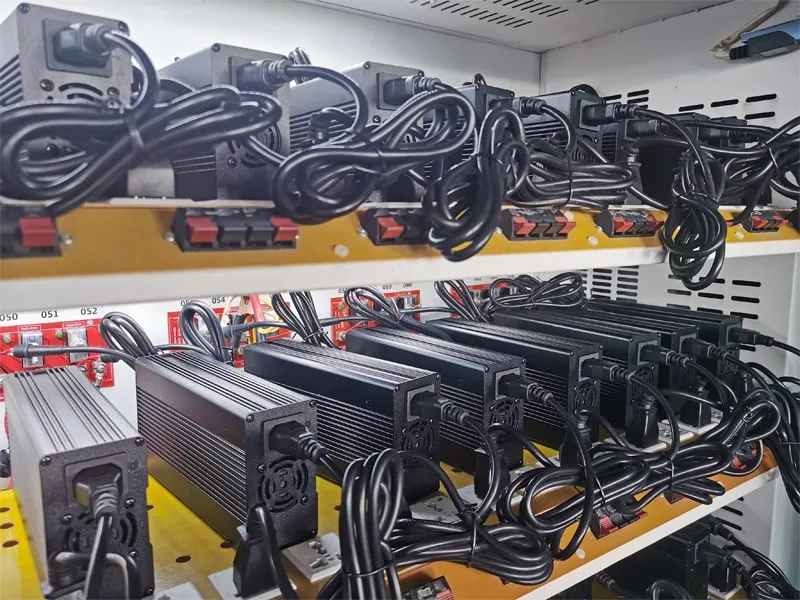

Product Gallery

Frequently Asked Questions

What battery types is this charger compatible with?

This series is compatible with LiFePO4, Lithium-ion, and Lead-Acid battery packs, depending on the specific model selected.

Is the charger suitable for outdoor use?

Yes, the charger features an aluminium alloy shell with an IP54/IP56 protection grade, making it suitable for various environments.

How do I know when the battery is fully charged?

The LED indicator will turn solid GREEN when the battery has reached a full charge mode.

What safety features are included?

The charger includes multi-layer protections: Over Voltage, Short Circuit, Polarity Error, Over Power, and Overheating protection.

What is the charging technology used?

It uses CC-CV (Constant Current-Constant Voltage) mode to ensure efficient and safe charging with an efficiency rate of over 90%.
