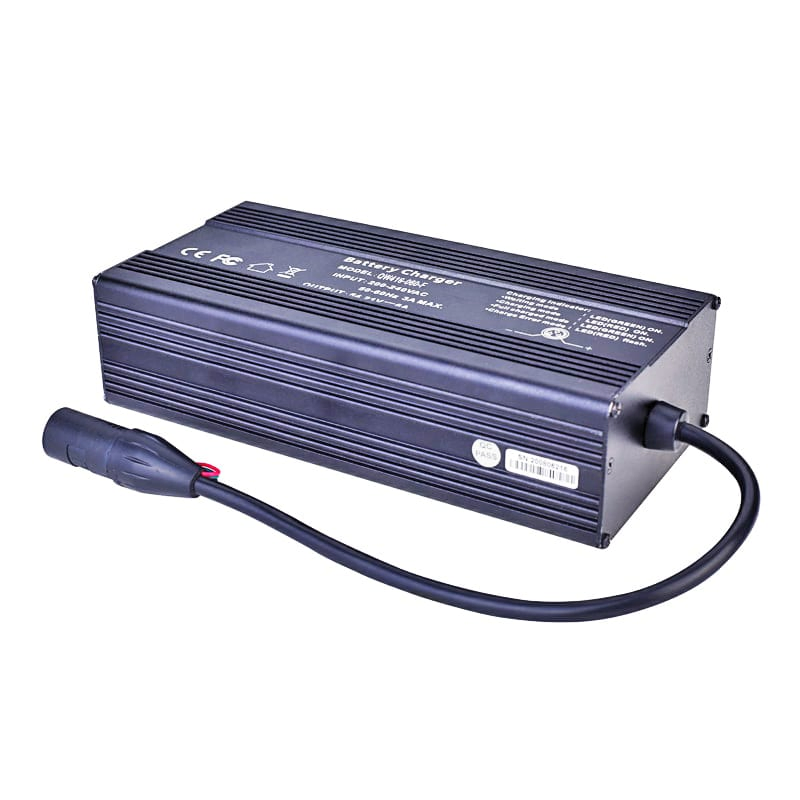

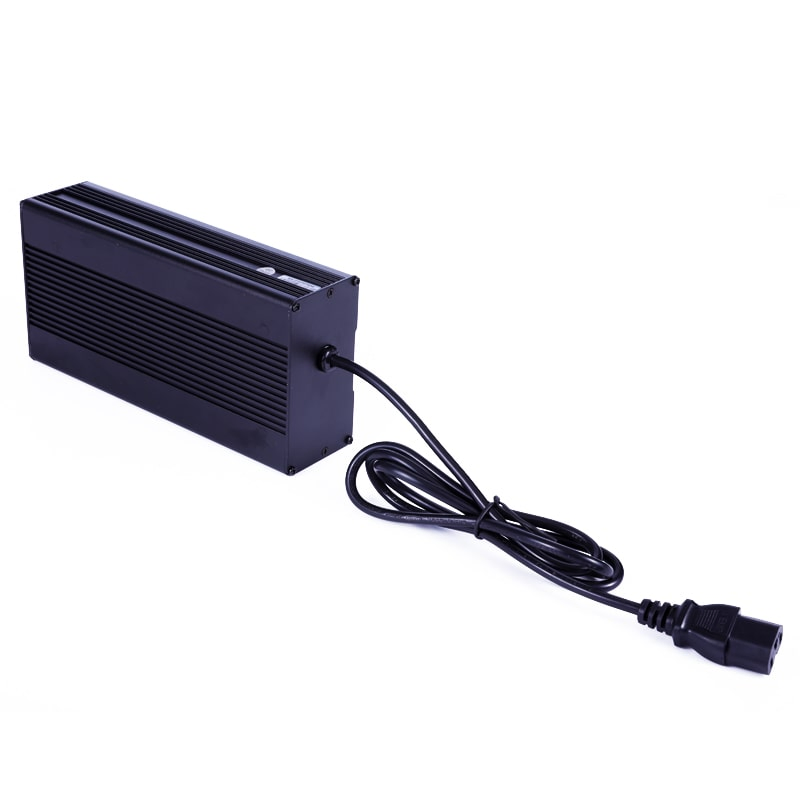

360W Battery Chargers 16s 48V 51.2V 5A 6A LiFePO4 LiFePO 4 Outdoor Charger DC 57.6V/58.4V 5A 6A IP54 IP56 Waterproof Chargers SAA Rcm Ukca UL

1 / 5

360W Battery Chargers 16s 48V 51.2V 5A 6A LiFePO4 LiFePO 4 Outdoor Charger DC 57.6V/58.4V 5A 6A IP54 IP56 Waterproof Chargers SAA Rcm Ukca UL

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

QW512-060-FA

Application

Standard Battery

Nominal Voltage

58.4V

Charger Style

Intelligent Charger

Battery Type

48V / 16S LiFePO4

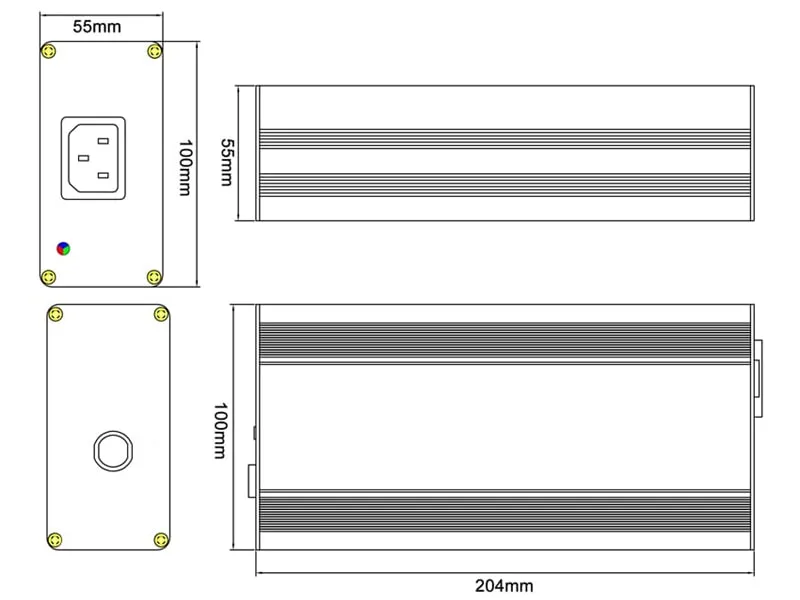

Size

204*100*55mm

Input Voltage

100-240VAC 50/60Hz

Charging Current

6A (Max)

Shell Material

Aluminium Alloy

Protection

IP54/IP56

📝 Product Overview

This automatic battery charger is designed for 16S 48V/51.2V LiFePO4 battery packs. Featuring a robust aluminium alloy shell and advanced cooling design, it ensures stable and efficient charging performance.

Key Features:

Charging mode: CC-CV (Constant Current-Constant Voltage)

High efficiency >= 90% (at 100% load)

Glue pouring process for enhanced durability

Metal shell cooling design

Operating temperature: -20ºC ~ 45ºC

Wide certification range: UL, CE, CB, KC, PSE, SAA, etc.

Safety Protections:

Over Voltage Protection

Short Circuit Protection

Polarity Error Protection

Over Power Protection

Overheating Protection

💡 LED Status Indicators

Waiting Mode

LED (GREEN) ON

Charging Mode

LED (BLUE) FLASH

Full Charged

LED (GREEN) ON

Charge Error

LED (RED) FLASH

📋 Typical Product Models

Model	Battery Type	Input Voltage	Battery Voltage (V)	Charging Voltage (V)	Charging Current (A)
QW128-200-FA	LiFePO4	AC 100~264V	12.8(4S)	14.6	20
QW256-120-FA	LiFePO4	AC 100~264V	25.6(8S)	29.2	12
QW512-060-FA	LiFePO4	AC 100~264V	51.2(16S)	58.4	6
QW148-200-LA	Lithium	AC 100~264V	14.8(4S)	16.8	20
QW481-060-LA	Lithium	AC 100~264V	48.1(13S)	54.6	6

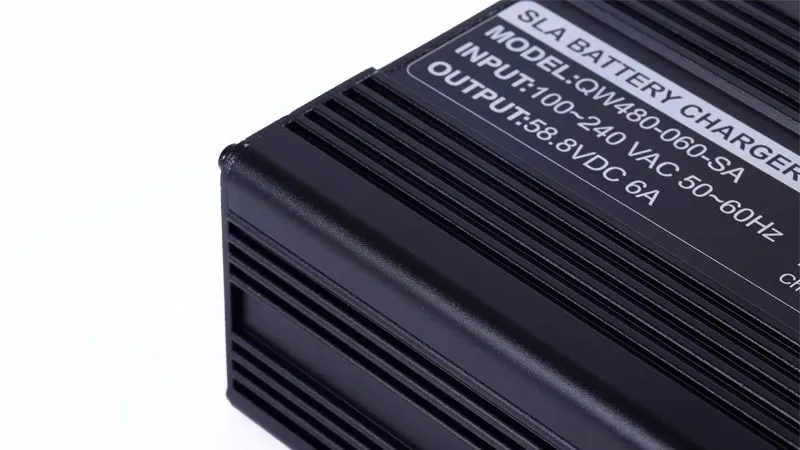

QW480-060-SA	Lead Acid	AC 100~264V	48(4S)	58.8	6

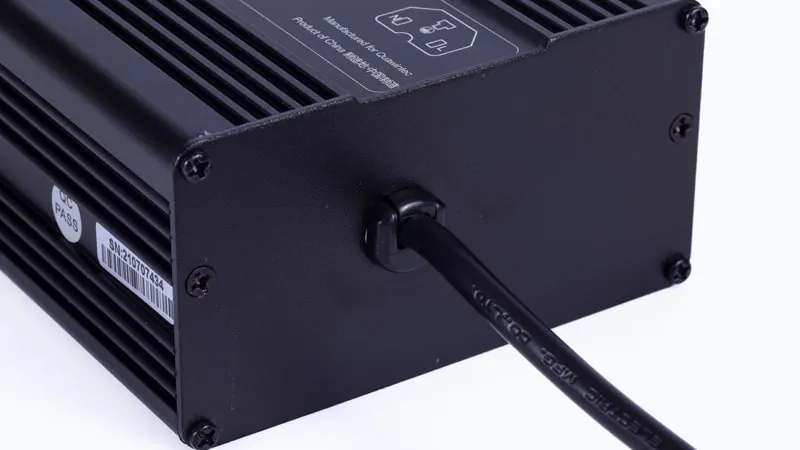

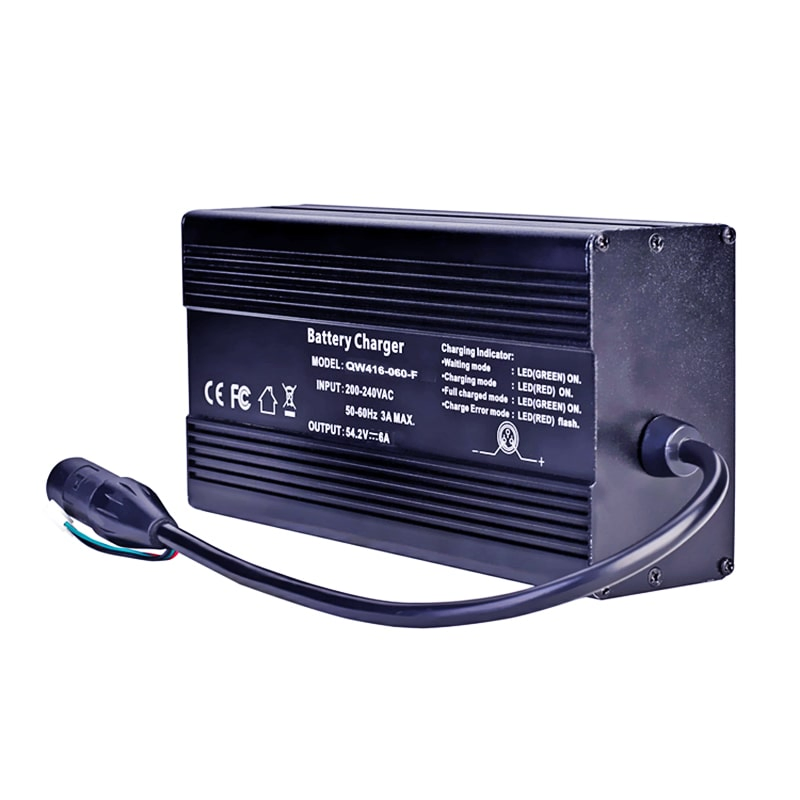

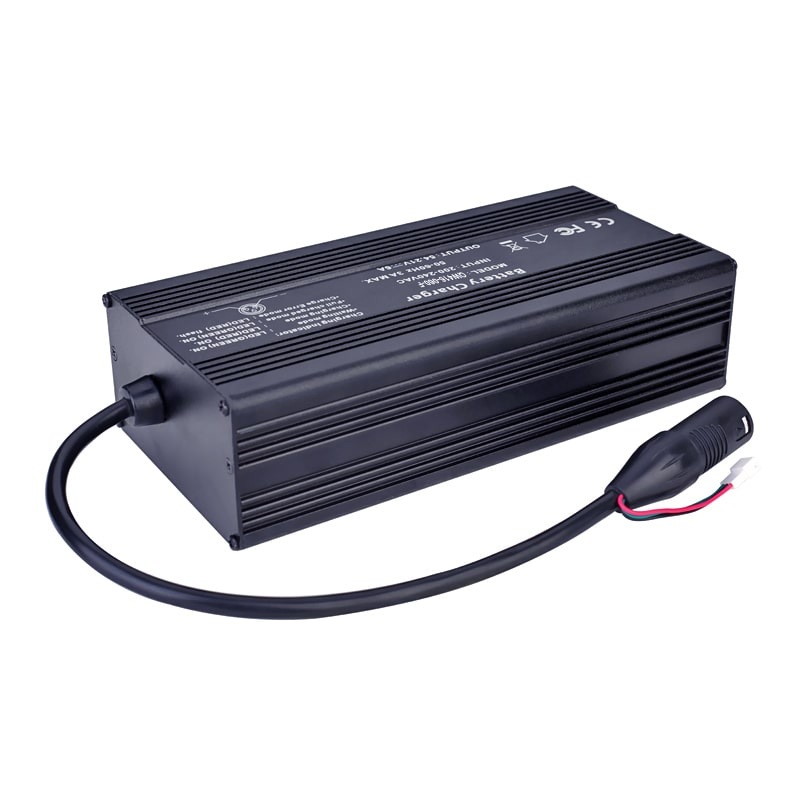

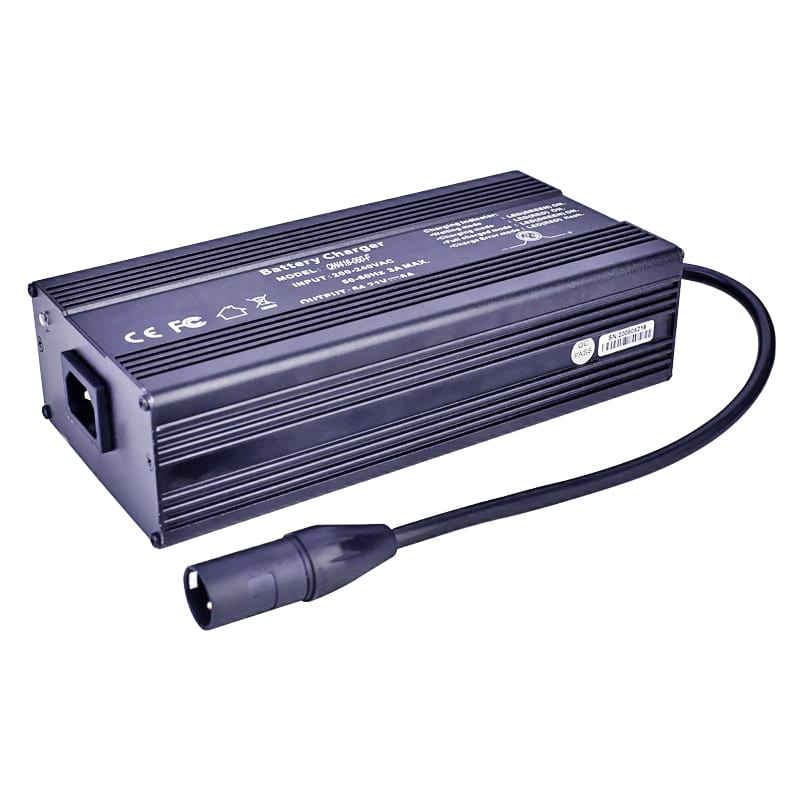

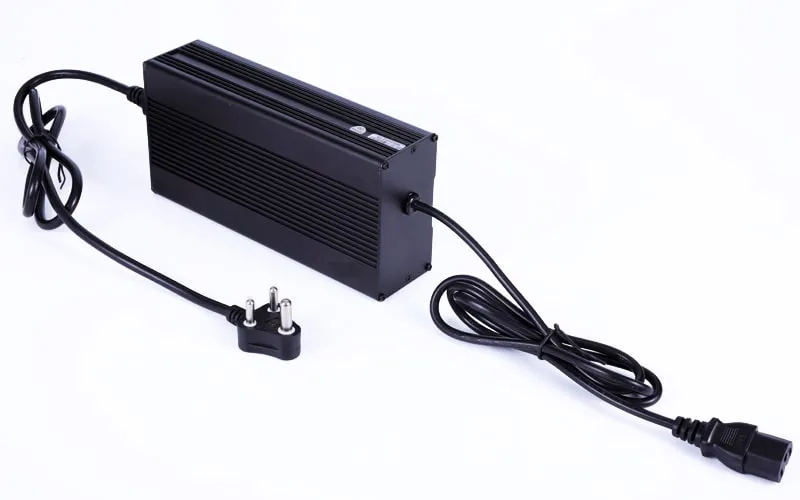

🖼️ Product Gallery

Frequently Asked Questions

Q1: Which battery types is this charger compatible with?

A: This series is compatible with LiFePO4, Lithium-ion, and Lead-Acid batteries, specifically designed for 48V systems (16S for LiFePO4).

Q2: What does the IP54/IP56 rating mean?

A: It indicates that the charger is waterproof and dust-resistant, making it suitable for outdoor use and environments where exposure to water or dust is likely.

Q3: How does the CC-CV charging mode work?

A: It starts with Constant Current to charge the battery quickly, then switches to Constant Voltage as the battery nears full capacity to ensure a safe and complete charge.

Q4: What safety certifications does this product hold?

A: The charger is globally certified, including UL, CE, GS, CB, KC, PSE, SAA, RCM, UKCA, and FCC, ensuring high safety and quality standards.

Q5: What do the different LED colors indicate?

A: Solid Green indicates Waiting or Full Charged; Flashing Blue means it is currently charging; Flashing Red indicates a charging error.

Q6: Is the charger suitable for international use?

A: Yes, it supports a wide input voltage range of 100-240VAC 50/60Hz, making it compatible with power systems worldwide.
