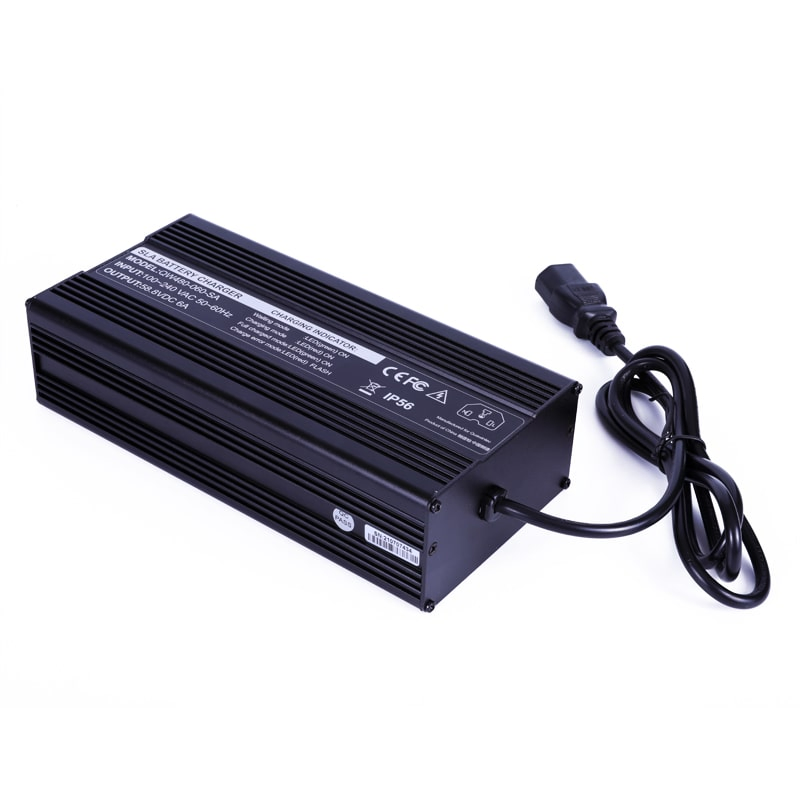

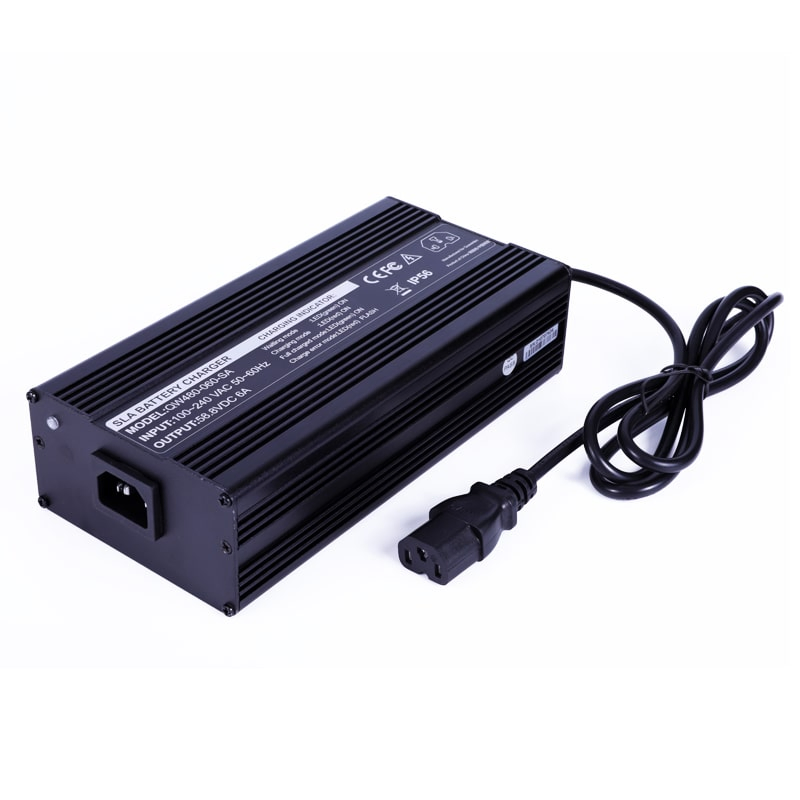

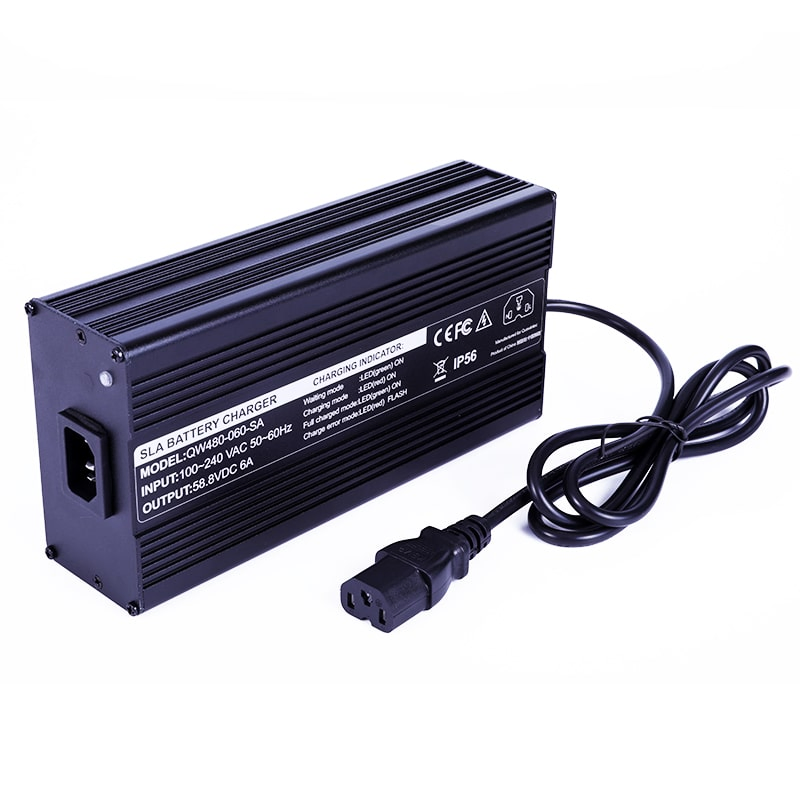

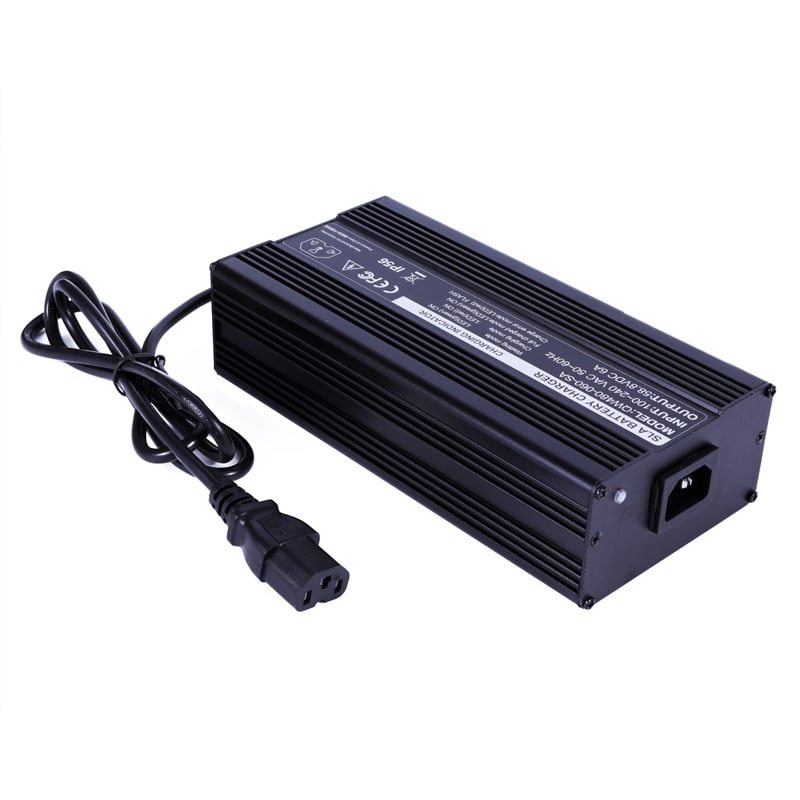

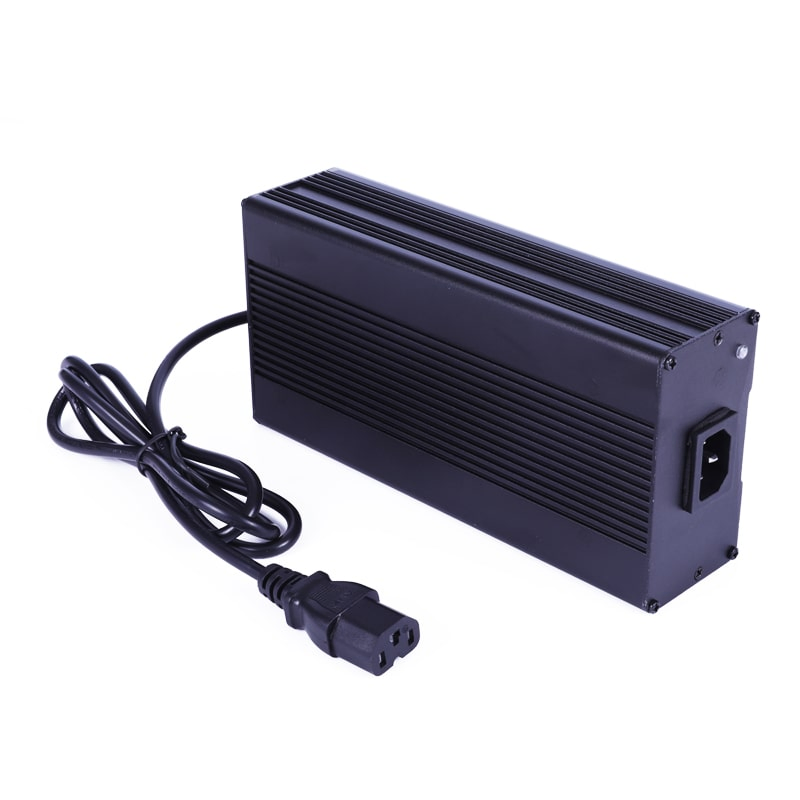

360W Battery Chargers 24s 72V 76.8V 3A 4A LiFePO4 LiFePO 4 Outdoor Charger DC 86.4V/87.6V 3A 4A IP54 IP56 Waterproof Chargers with SAA Rcm Ukca UL FCC Ices UL

1 / 5

360W Battery Chargers 24s 72V 76.8V 3A 4A LiFePO4 LiFePO 4 Outdoor Charger DC 86.4V/87.6V 3A 4A IP54 IP56 Waterproof Chargers with SAA Rcm Ukca UL FCC Ices UL

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

QW768-040-FA

Application

Standard Battery

Nominal Voltage

87.6V

Charger Style

Intelligent Charger

Compatible Battery

24S 72V/76.8V LiFePO4

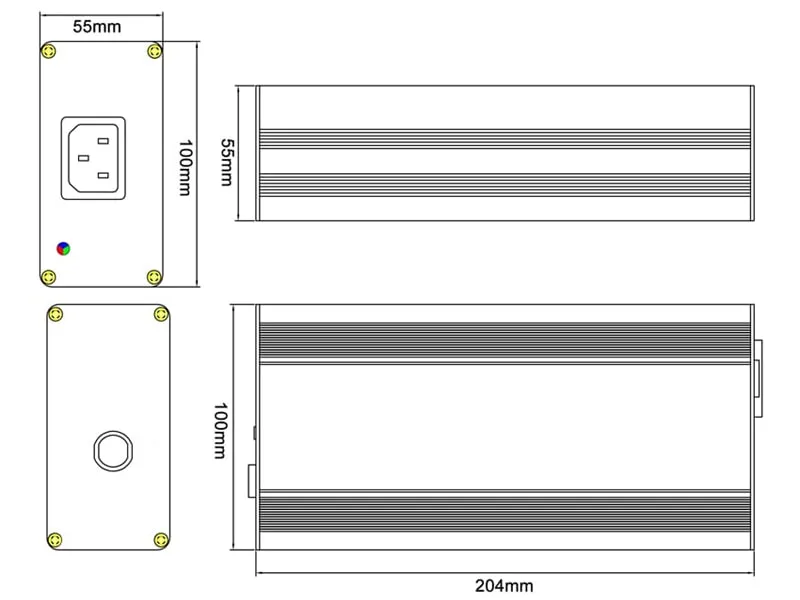

Size

204*100*55mm

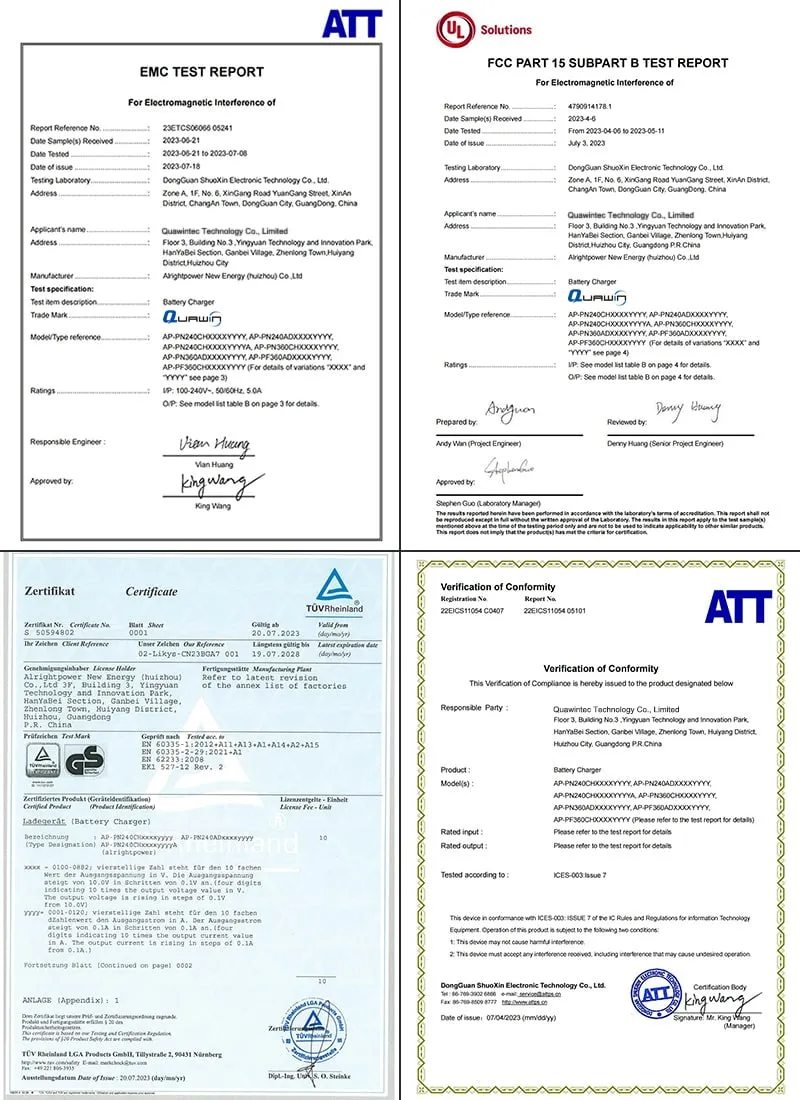

Certification

KC, PSE, RoHS, CB, CE, UL, UKCA

Input Voltage

100-240VAC 50/60Hz with PFC

Output Power

350.4W (87.6V 4A)

Protection Grade

IP54/IP56 Waterproof

Key Features & Protection

⚙️Intelligent Charging

Mode: CC-CV (Constant Current-Constant Voltage)
High efficiency: ≥90% at 100% load

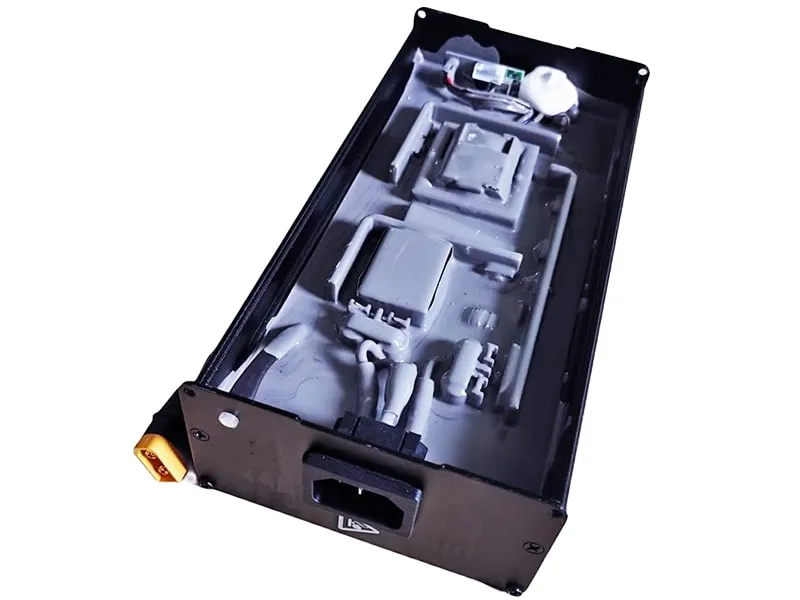

Low power consumption with glue pouring process for cooling.

🛡️Safety Systems Over Voltage Short Circuit Polarity Error Over Power Overheating

LED Indicators

Waiting Mode: LED (GREEN) ON

Charging Mode: LED (BLUE) FLASH

Full Charged Mode: LED (GREEN) ON

Charge Error Mode: LED (RED) FLASH

Typical Product Models

Model	Battery Type	Input Voltage	Battery Voltage (V)	Charging Voltage (V)	Charging Current (A)
QW128-200-FA	LiFePO4	AC 100~264V	12.8(4S)	14.6	20
QW256-120-FA	LiFePO4	AC 100~264V	25.6(8S)	29.2	12
QW512-060-FA	LiFePO4	AC 100~264V	51.2(16S)	58.4	6
QW768-040-FA	LiFePO4	AC 100~264V	76.8(24S)	87.6	4
QW481-060-LA	Lithium	AC 100~264V	48.1(13S)	54.6	6
QW740-040-LA	Lithium	AC 100~264V	74(20S)	84	4

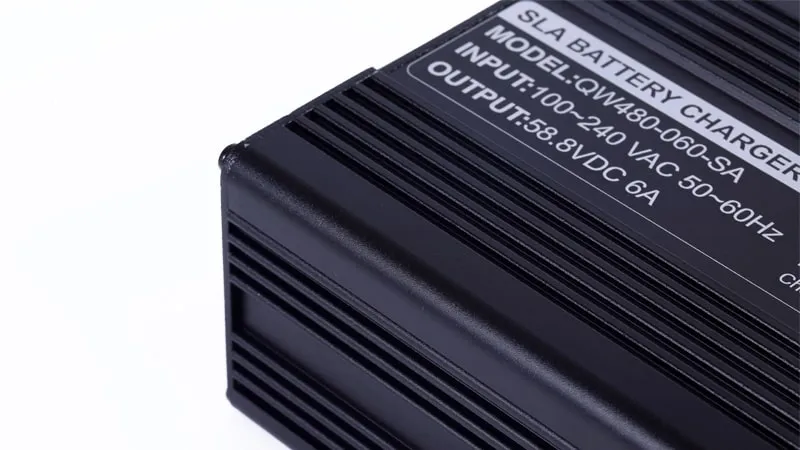

QW480-060-SA	Lead Acid	AC 100~264V	48(4S)	58.8	6
QW720-040-SA	Lead Acid	AC 100~264V	72(6S)	88.2	4

Product Gallery

Frequently Asked Questions

What battery types is the QW768-040-FA compatible with?

This model is specifically designed for 24S 72V/76.8V LiFePO4 battery packs. Other versions in the same series also support Lithium-ion and Lead-Acid batteries.

What is the charging mode used by this charger?

The charger utilizes the CC-CV (Constant Current-Constant Voltage) charging mode to ensure high efficiency and battery longevity.

Does this charger have any waterproof rating?

Yes, it features an IP54/IP56 protection grade, making it suitable for outdoor use and environments where water resistance is required.

What safety protections are built-in?

It includes Over Voltage, Short Circuit, Polarity Error, Over Power, and Overheating protection systems for maximum safety.

Is this charger compatible with global power outlets?

Yes, the input voltage is 100-240VAC 50/60Hz with PFC, and it is available with AU/EU/UK/US plug types.

What do the LED indicator colors mean?

Green LED means Waiting or Fully Charged; Blue flashing indicates Charging; Red flashing indicates a Charging Error.
