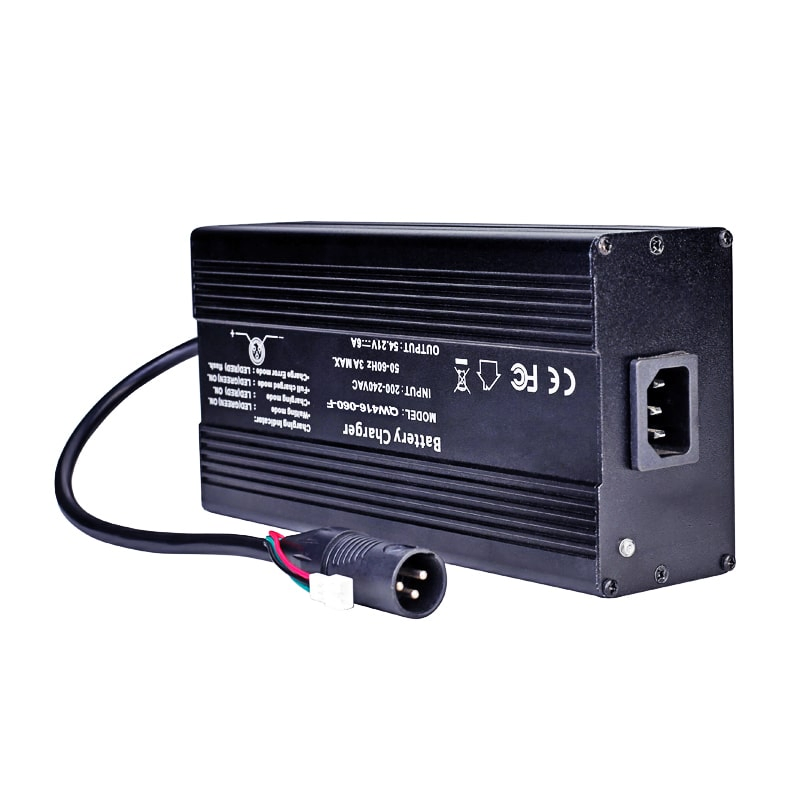

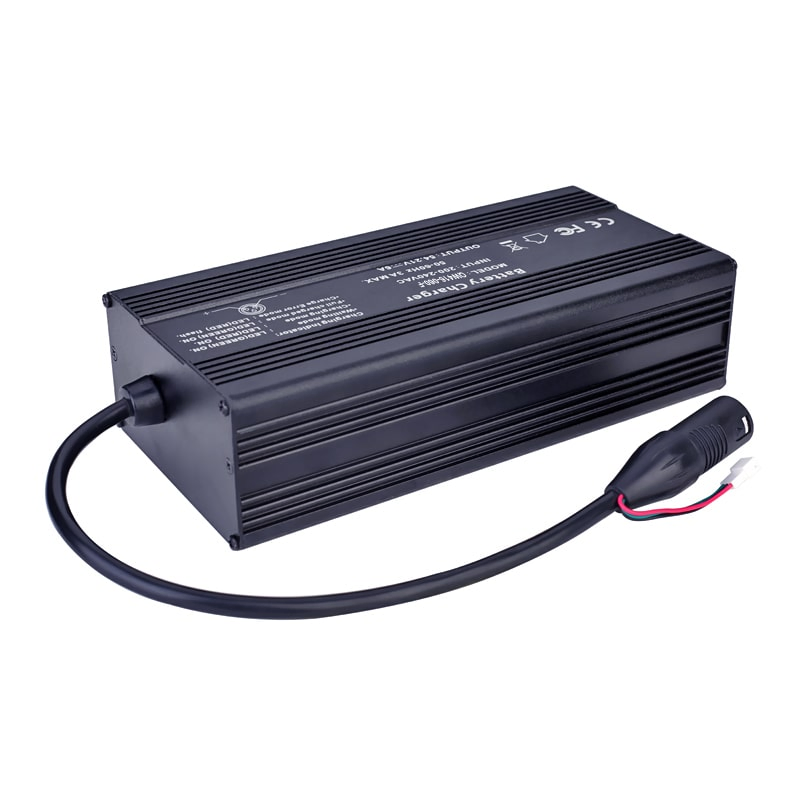

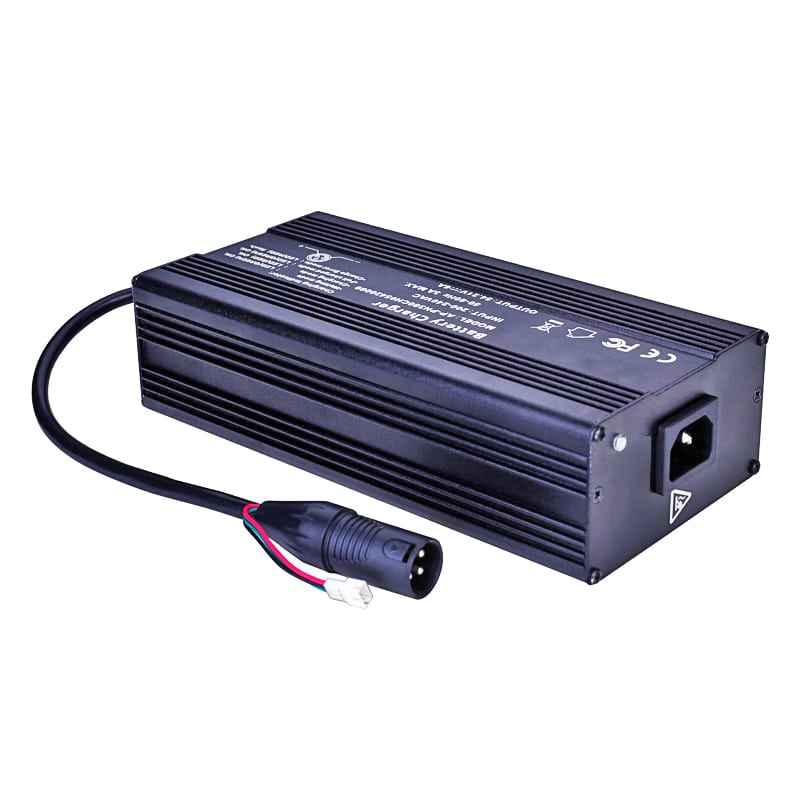

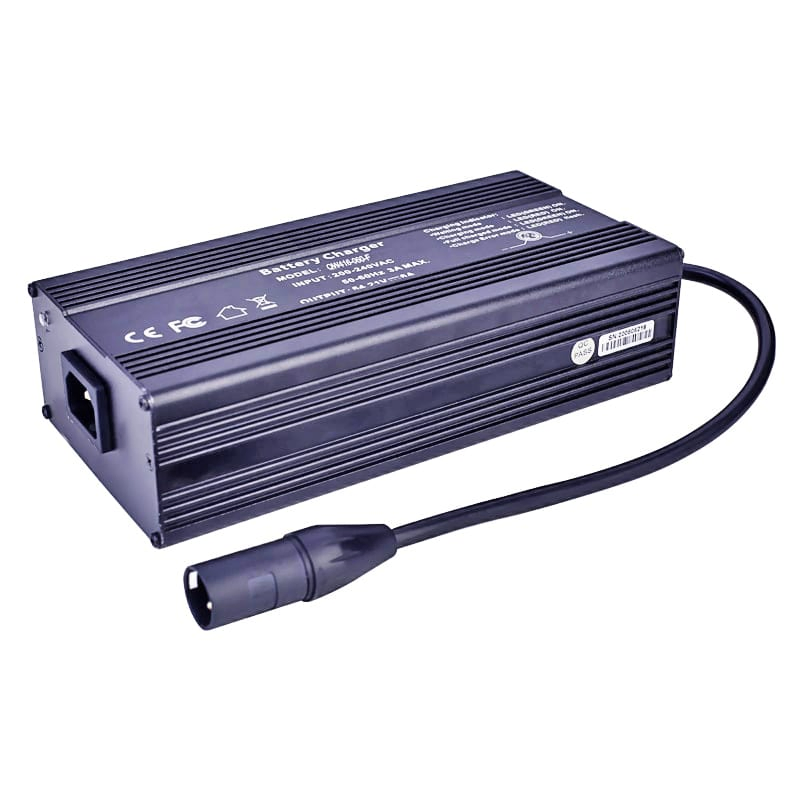

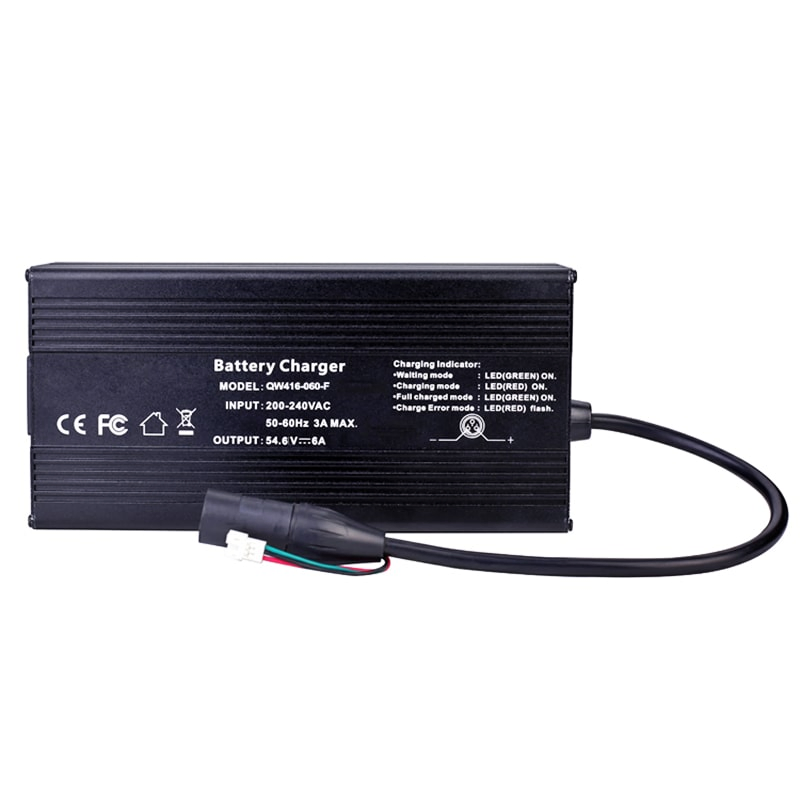

360W Battery Chargers 6s 18V 19.2V 15A 16A LiFePO4 LiFePO 4 Outdoor Charger DC 21.6V/21.9V 15A 16A IP54 IP56 Waterproof Chargers

1 / 5

360W Battery Chargers 6s 18V 19.2V 15A 16A LiFePO4 LiFePO 4 Outdoor Charger DC 21.6V/21.9V 15A 16A IP54 IP56 Waterproof Chargers

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️ Basic Information

Model NO.

QW192-160-FA

Application

Standard Battery

Nominal Voltage

21.9V

Charger Style

Intelligent Charger

Battery Type

6S 18V/19.2V LiFePO4

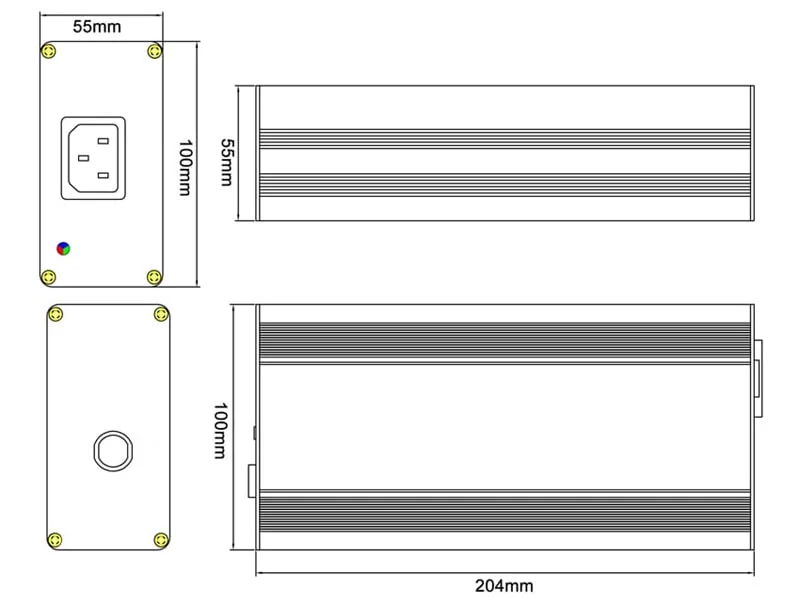

Size

204*100*55mm

Certification

RoHS, CE

Input Voltage

100-240VAC 50/60Hz

Protection Grade

IP54/IP56

Shell Material

Aluminium alloy

🚀 Key Features

Advanced Charging Charging mode: CC-CV (Constant Current-Constant Voltage). High efficiency (at 100% load): >=90%.

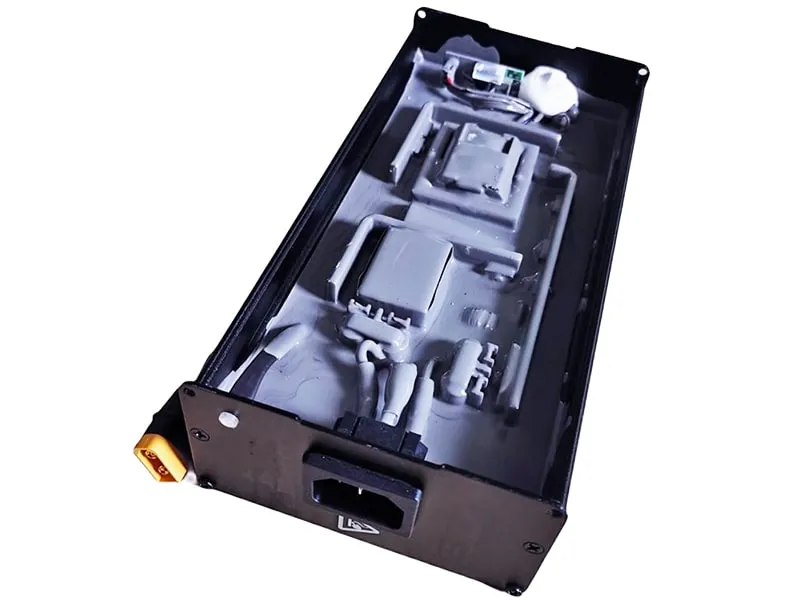

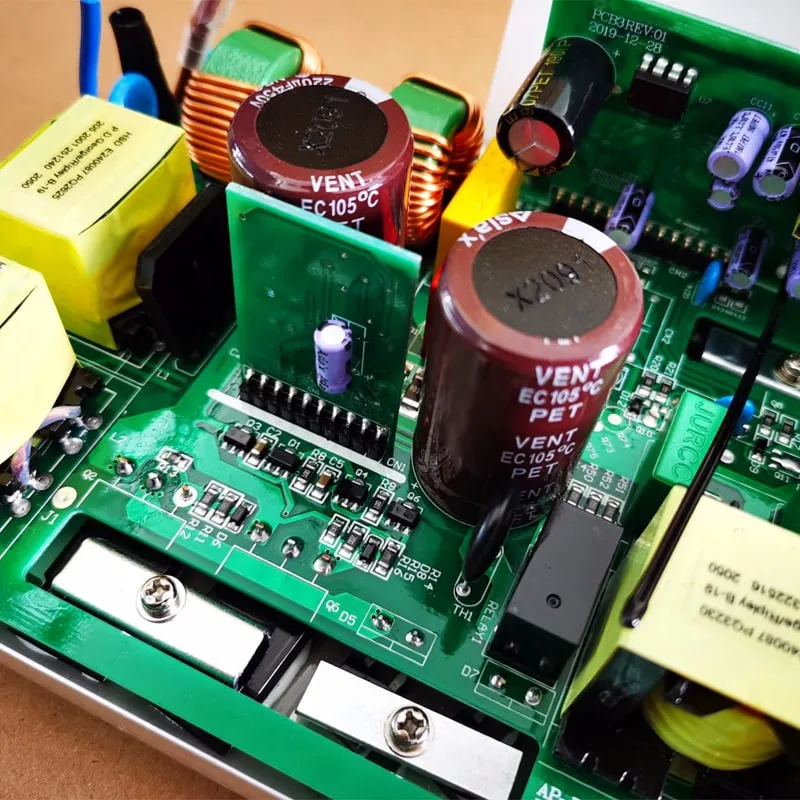

Robust Design Features a glue pouring process and metal shell cooling design for optimal thermal management.

Environmental Operating temperature: -20ºC ~ 45ºC. Operating humidity: 5%~90%RH.

🛡️ Safety Protections

Over Voltage Protection
Short Circuit Protection
Polarity Error Protection
Over Power Protection
Overheating Protection

💡 LED Indicator Status

Waiting Mode

LED (GREEN) ON

Charging Mode

LED (BLUE) FLASH

Full Charged

LED (GREEN) ON

Charge Error

LED (RED) FLASH

📋 Typical Product Models

Model	Battery Type	Input Voltage	Battery Volts	Charging Volts	Current (A)
QW128-200-FA	LiFePO4	AC 100~264V	12.8(4S)	14.6	20
QW256-120-FA	LiFePO4	AC 100~264V	25.6(8S)	29.2	12
QW512-060-FA	LiFePO4	AC 100~264V	51.2(16S)	58.4	6
QW148-200-LA	Lithium	AC 100~264V	14.8(4S)	16.8	20
QW370-080-LA	Lithium	AC 100~264V	37(10S)	42	8
QW481-060-LA	Lithium	AC 100~264V	48.1(13S)	54.6	6
QW120-200-SA	Lead Acid	AC 100~264V	12(1S)	14.7	20
QW240-120-SA	Lead Acid	AC 100~264V	24(2S)	29.4	12

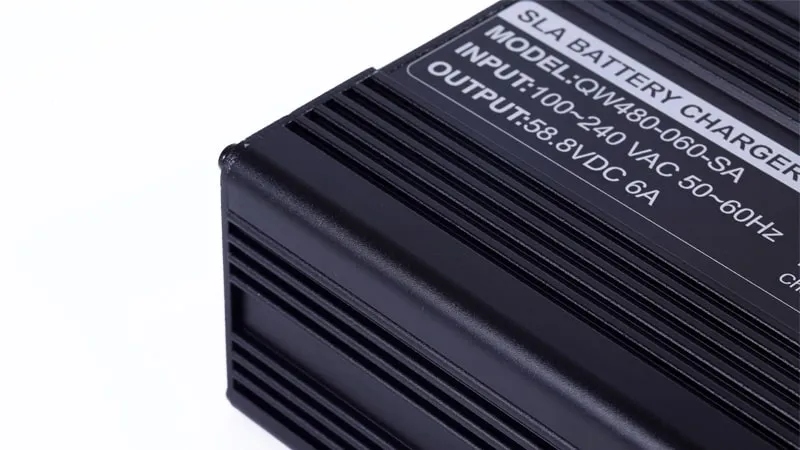

QW480-060-SA	Lead Acid	AC 100~264V	48(4S)	58.8	6

📸 Product Gallery

❓ Frequently Asked Questions

1. What type of batteries is this charger compatible with?

This model is specifically designed for 6S 18V/19.2V LiFePO4 battery packs. However, the series offers models compatible with Lithium and Lead Acid batteries as well.

2. What does the IP54/IP56 rating signify?

The IP54/IP56 rating indicates the charger is protected against dust ingress and powerful water jets, making it suitable for outdoor use and challenging environments.

3. What charging mode does the device use?

It utilizes the CC-CV (Constant Current-Constant Voltage) charging mode, which ensures efficient and safe battery replenishment.

4. How can I tell the charging status from the LED?

A solid green LED indicates Waiting or Full Charged mode, a flashing blue LED indicates Charging, and a flashing red LED signals a Charge Error.

5. What safety features are built into the charger?

The charger includes comprehensive protections: Over Voltage, Short Circuit, Polarity Error, Over Power, and Overheating protection.

6. Can the output connector be customized?

Yes, output connectors can be customized with options like Waterproof plugs, Crocodile Clips, Aviation Connectors, XLR, Ring terminals, SAE Plugs, or Anderson Connectors.
