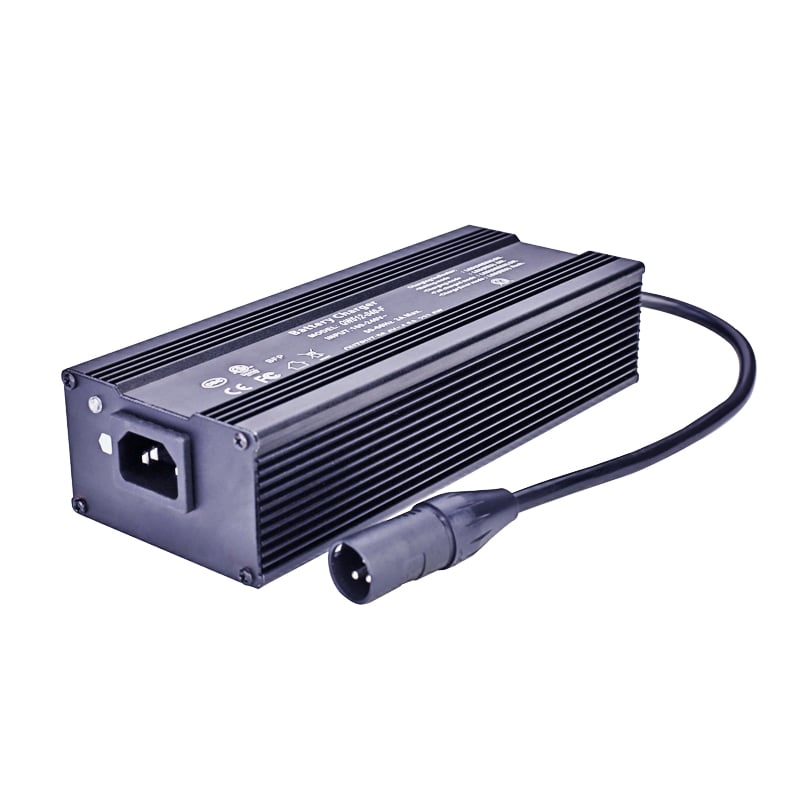

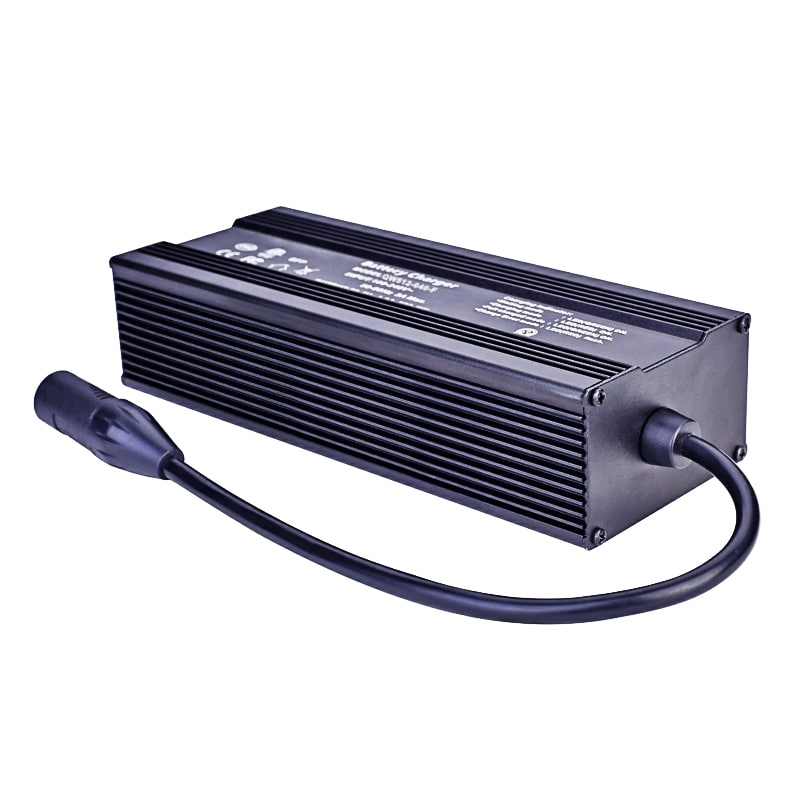

Product Description
Quick Detail:

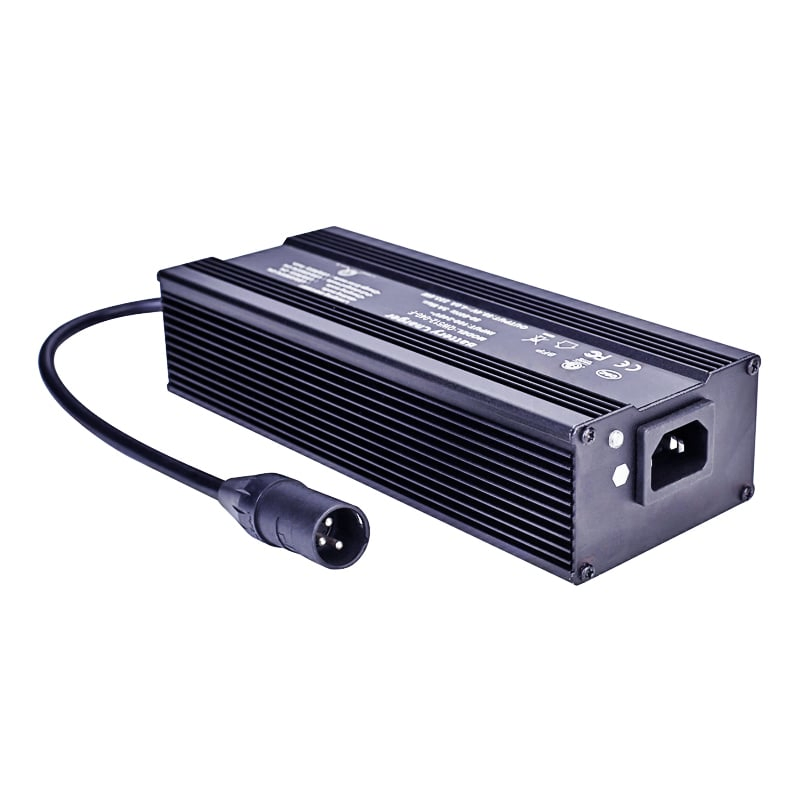

Model Number: QW384-055-FA
Use: 12S 36V/38.4V Lifepo4 battery pack
Type: Electric
Battery charger: automatic battery charger 43.8V
Color: Black

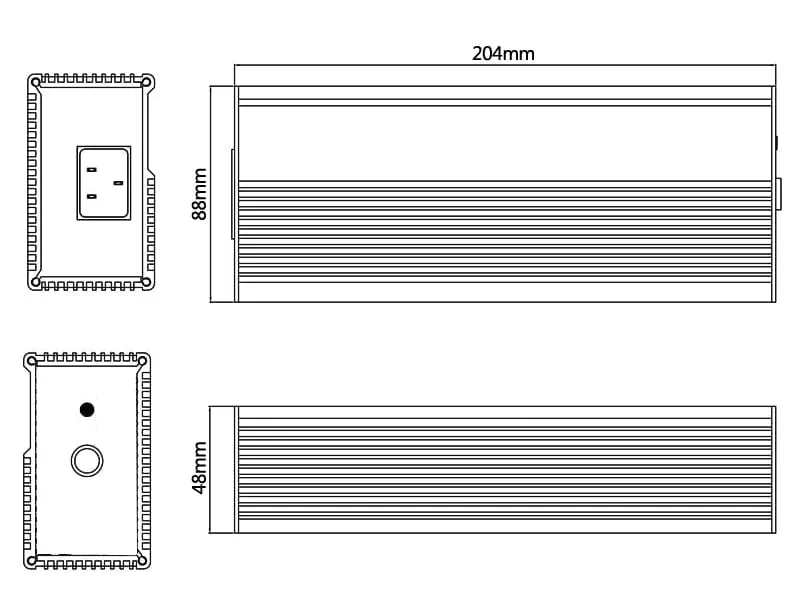

Shell Material: Aluminium alloy
Input voltage: 100-240VAC 50/60Hz with PFC
Output voltage: 43.8V
Output current: 5.5a(Max)
Output power: 240.9W
Charge mode: CC-CV(Constant Current-Constant Voltage)

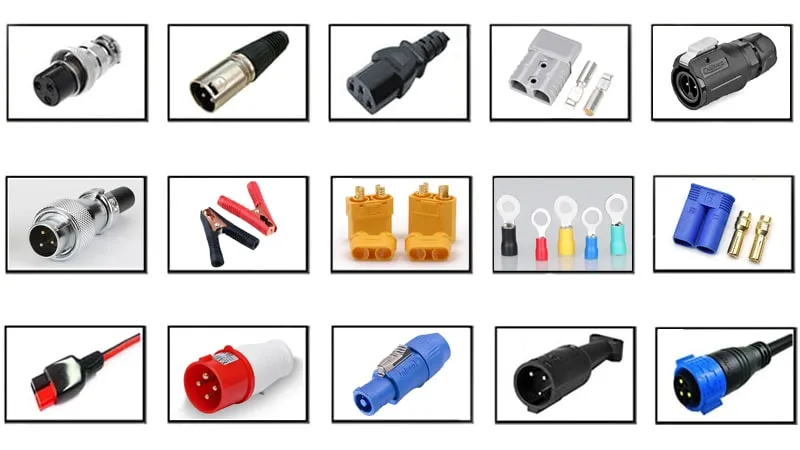

Output Connector: Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized
Features:
- Charging mode: CC-CV (Constant Current-Constant Voltage)
- High efficiency and low power consumption

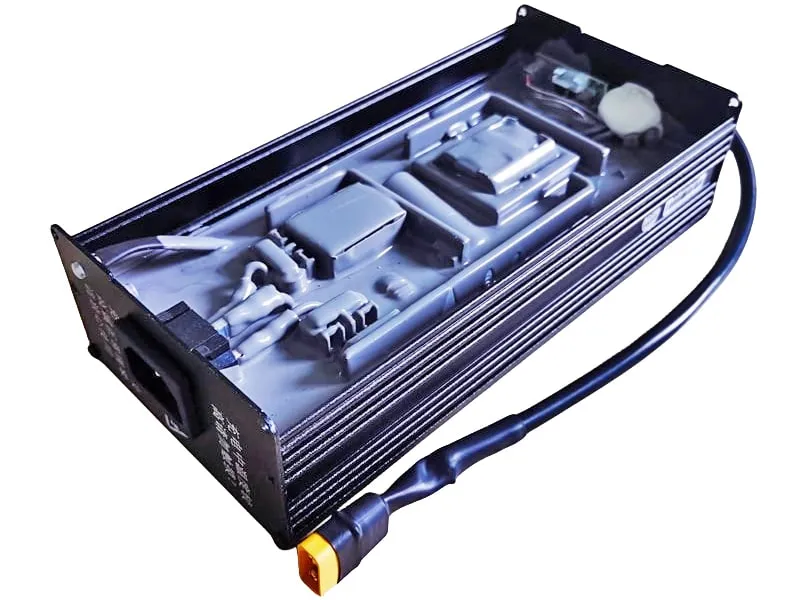

- Glue pouring process and metal shell cooling design
- Efficiency (at 100% load): >=90%
- Operating temperature: -20ºC ~ 45ºC
- Storage temperature: -40ºC ~ 85ºC
- Operating humidity: 5%~90%RH
Safety Protections:
- Over Voltage protection
- Short Circuit protection
- Polarity error protection
- Over power protection
- Overheating protection
LED Indicator Status:
• Waiting Mode: LED (GREEN) ON
• Charging Mode: LED (BLUE) FLASH
• Full Charged Mode: LED (GREEN) ON
• Charge Error Mode: LED (RED) FLASH
Frequently Asked Questions
1. What is the charging mode used by this charger?
The charger utilizes a CC-CV (Constant Current-Constant Voltage) charging mode to ensure efficient and safe battery replenishment.
2. Is the charger suitable for outdoor use?
Yes, with a protection grade of IP54/IP56 and a waterproof plug design, it is designed for outdoor and challenging environments.
3. What do the different LED colors indicate?
A solid green light indicates waiting or full charge, a flashing blue light means charging is in progress, and a flashing red light indicates a charging error.
4. What safety features are built into the device?
The charger includes over-voltage, short-circuit, polarity error, over-power, and overheating protections.
5. Can I customize the output connector?
Yes, various connectors such as Crocodile Clips, XLR, Aviation Connectors, and Anderson Connectors are available or can be customized.
6. What is the typical delivery timeframe for orders?
Samples are usually ready within 7 working days, while bulk orders typically take between 25 to 35 days.
