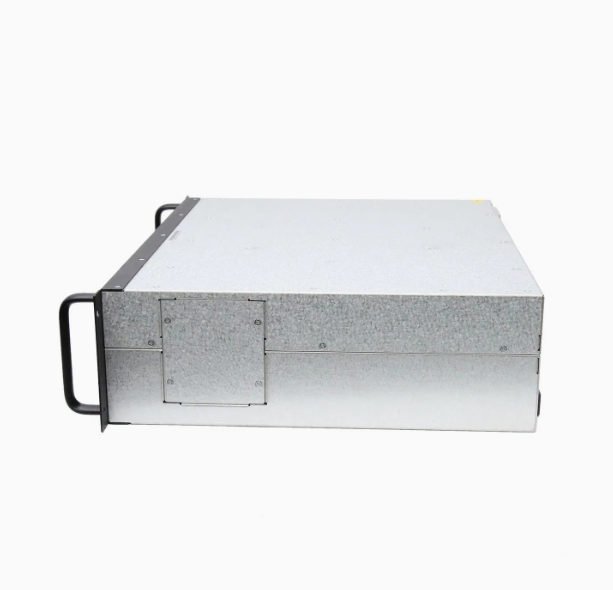

50kw AC DC Power Converter Support 250A Constant Current

1 / 5

50kw AC DC Power Converter Support 250A Constant Current

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📘 Basic Information

Model NO.MXR25050B

LocationPublic Use

Charging InterfacesOne Pile with Multiple Charges

Start ModeCredit Card, Mobile Remote, RFID

Weight23kg

Input Voltage260VAC-530VAC

Output Voltage0-200VDC

Output Current0~250A

Cooling ModeFan Cooling

Power Factor0.99

Warranty1 Year

Specification125mm(H)*440mm(W)*380mm(D)

📊 Technical Specifications

Parameter	Details
Model	MXR25050B
Peak Efficiency	≥96.5%
Communication Protocol	CAN bus & RS485
Input Current	<95A
Output Derating	Above 55ºC

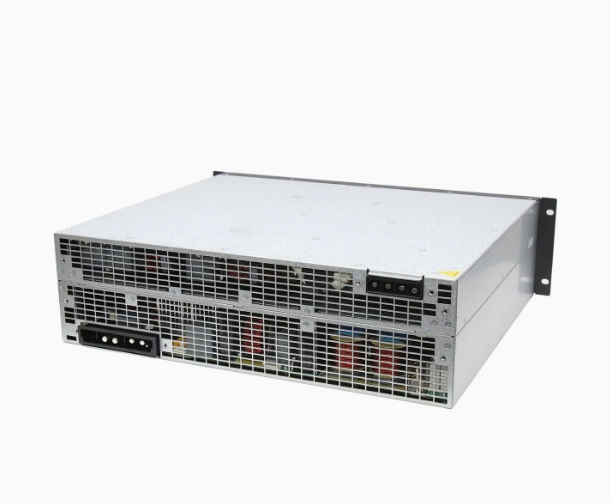

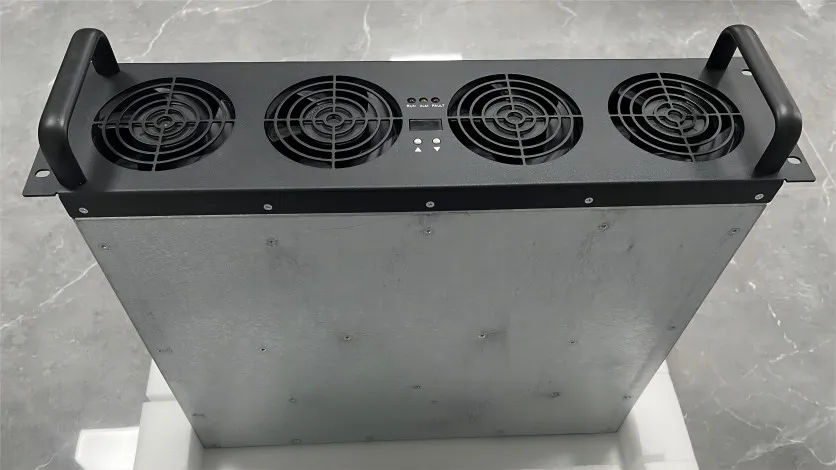

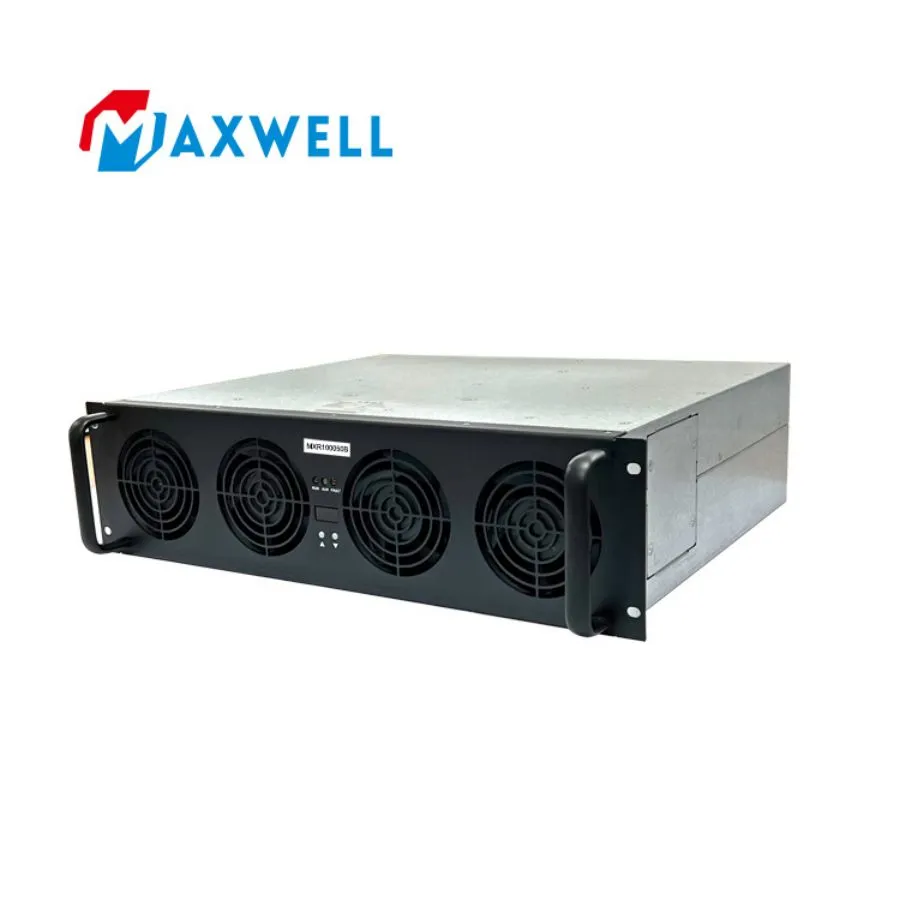

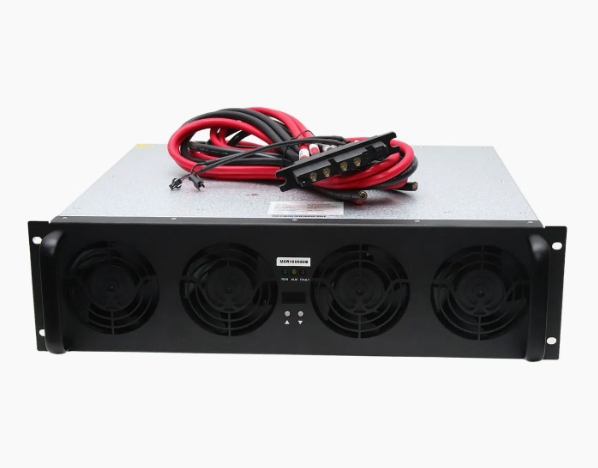

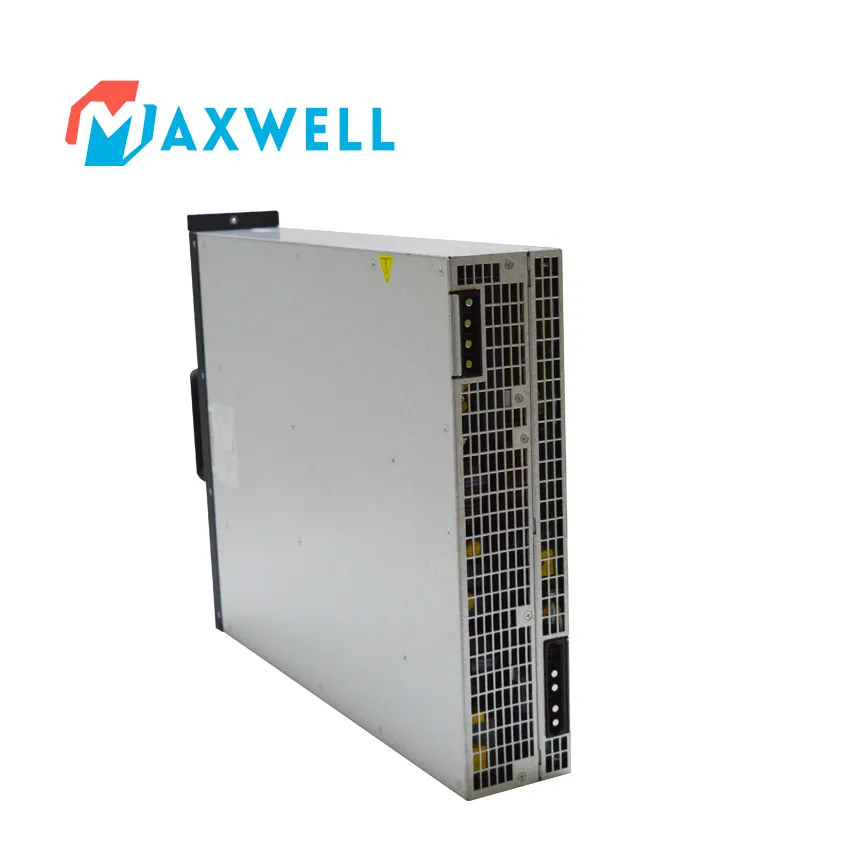

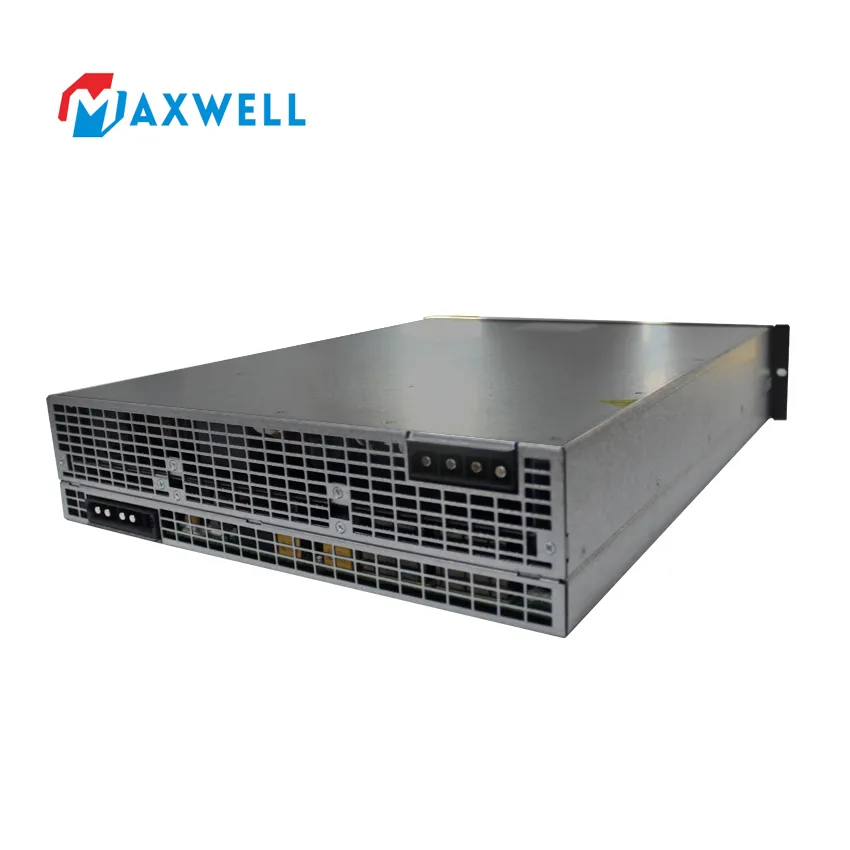

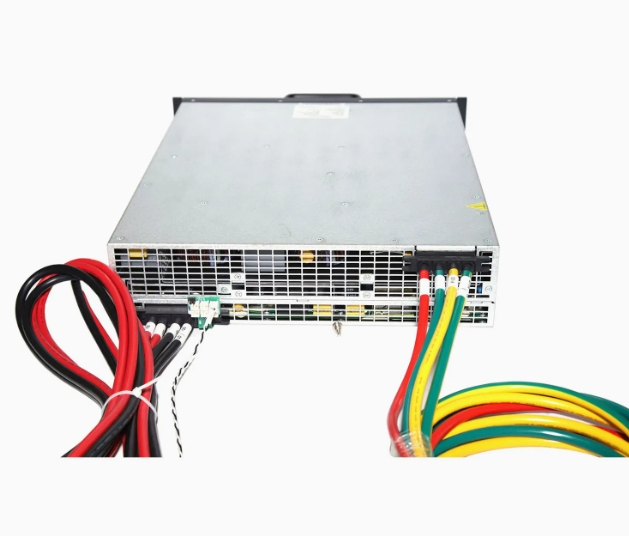

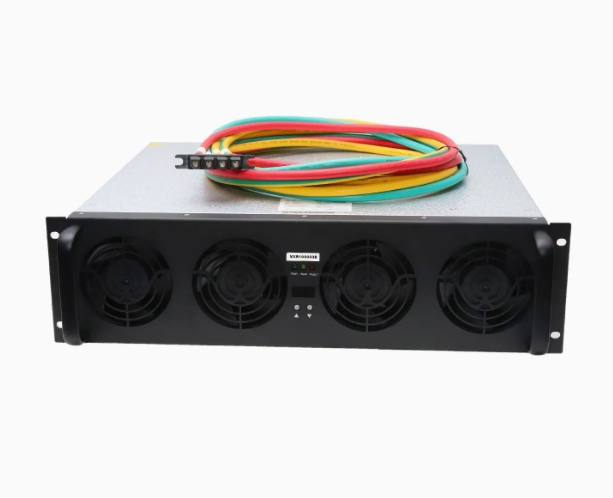

📸 Detailed Product Photos

⚙️ Product Features

1. Ultra-high Full Load Operating Temperature
MXR25050B can output full power at 55°C, effectively ensuring charging speed in high-temperature environments.

2. Output Constant Current Mode
MXR25050B can output a constant current of 250A across the entire output voltage range of 0-200Vdc.

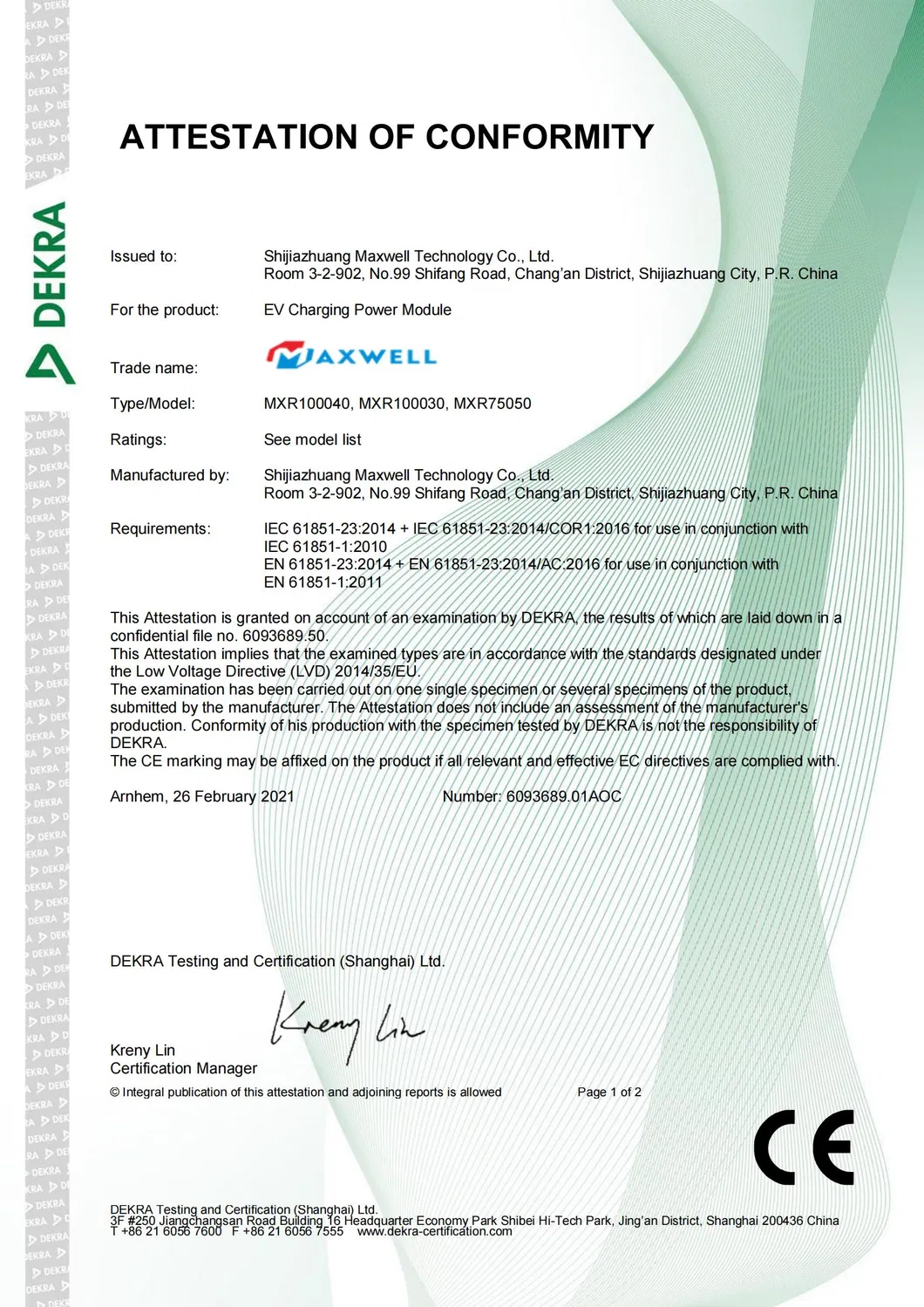

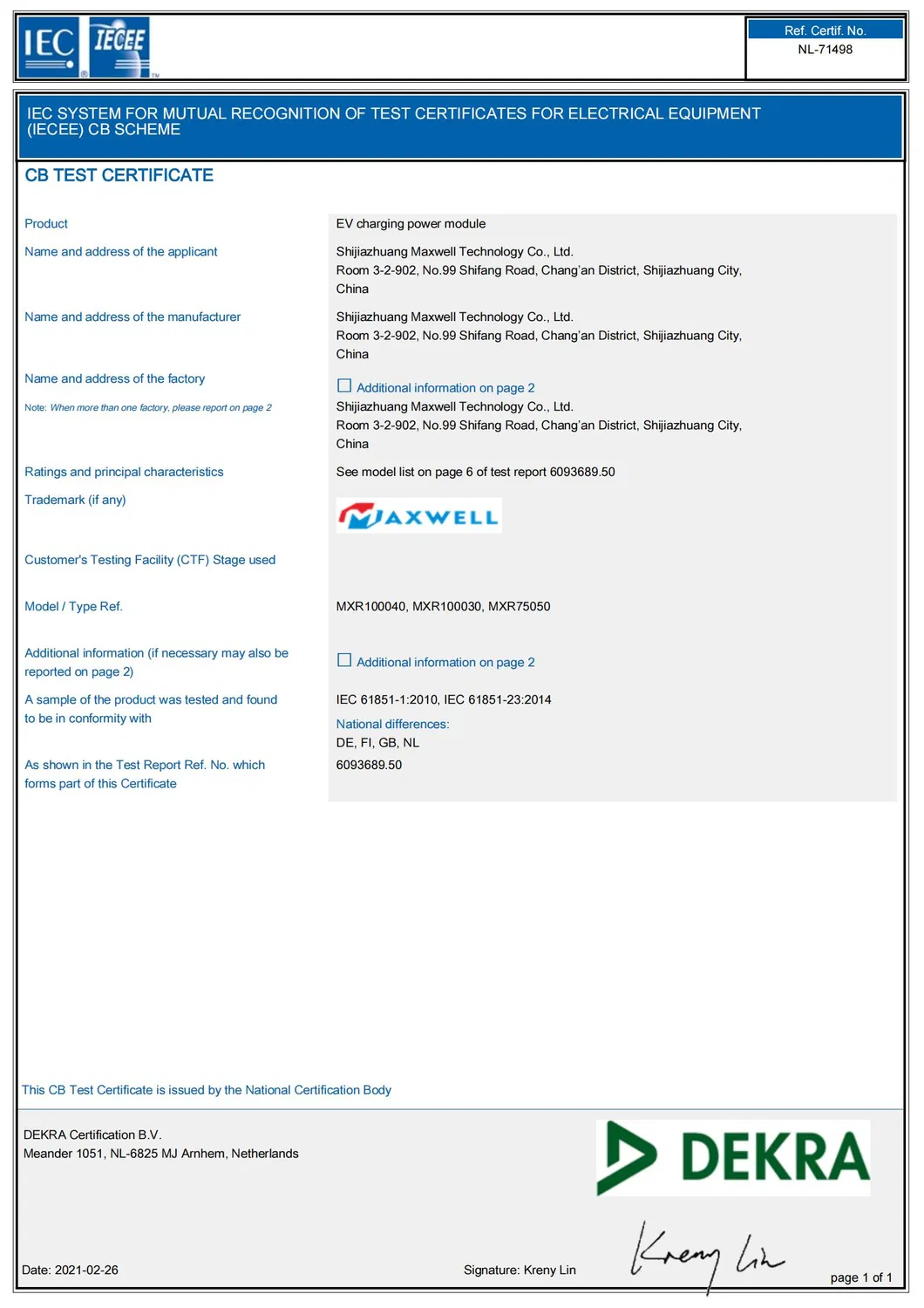

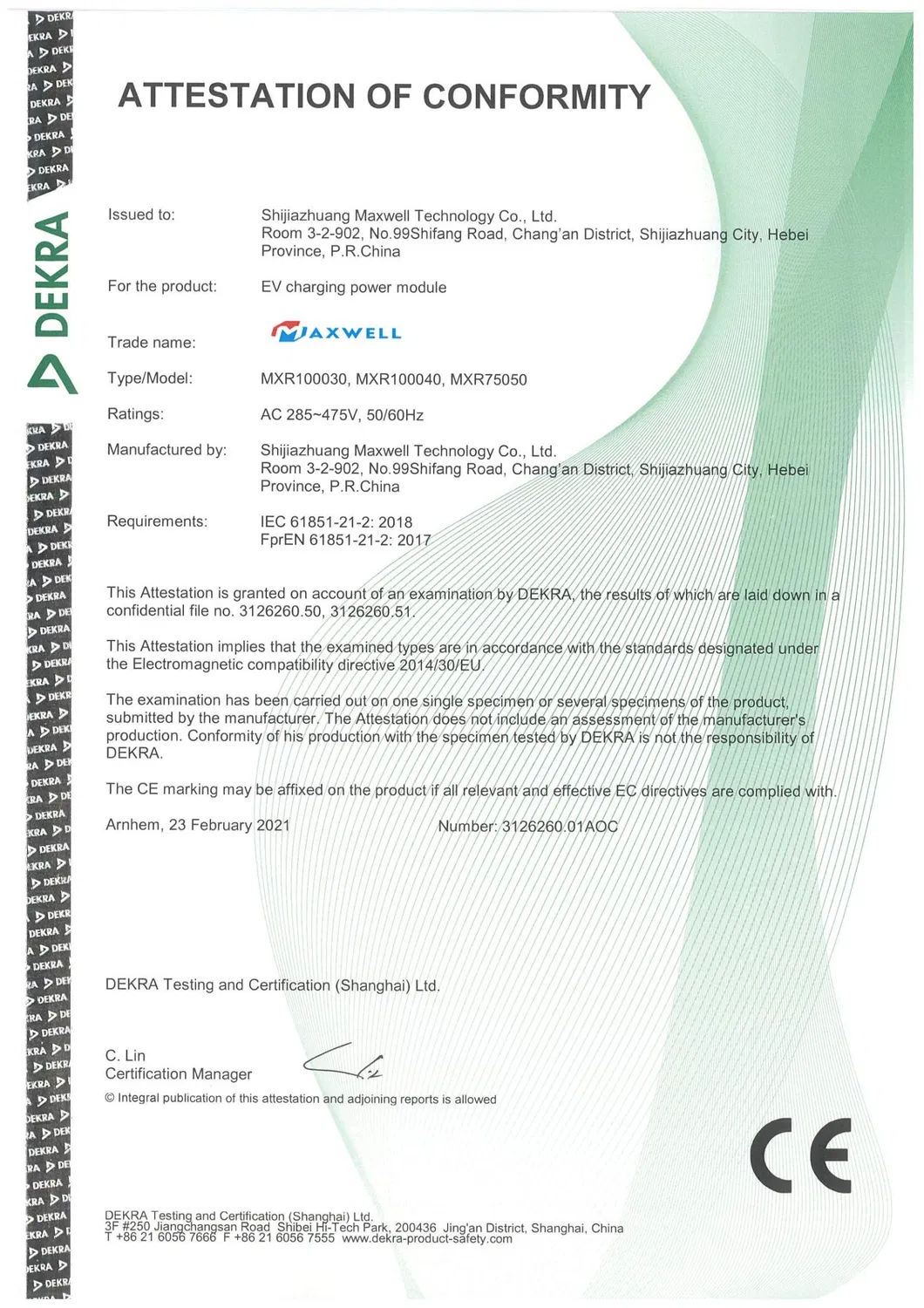

📜 Certifications

CE/ TUV / EMC	EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61000-6-3:2021, EN IEC 61000-6-4:2019, EN IEC 61851-21-2:2021
cTUVus	UL 2202:2009 R2.18; CSA C22.2 NO.107.1-16

📦 Packaging & Delivery

Package Size57.00cm * 56.00cm * 32.00cm

Gross Weight35.000kg

🏭 Production Process

Raw Material Management: Strict inspection and categorized environmental management.
Production Link: SMT, Manual plug-in/wave soldering, Three anti-spray brush lines.
Quality Control: Assembly, Debugging, Aging Toaster Test, and Online maintenance.
Traceability: Full data recording from procurement to delivery via a unified management system.

🛠️ After Sales Service

Warranty Period: 1 Year

For non-human damage within the first 6 months, we provide a free replacement of a new unit. In the second half of the year, we offer free repair services. Our engineering team is available for comprehensive technical assistance during your testing phases.

❓ Frequently Asked Questions

Q1: What is the maximum efficiency of the MXR25050B power converter? A1: The MXR25050B achieves a peak efficiency of ≥96.5%, ensuring minimal energy loss during the power conversion process.

Q2: Can this module operate in high-temperature environments? A2: Yes, it is designed for high performance and can output full power even at an ambient temperature of 55°C.

Q3: Which communication protocols does the device support? A3: The module supports both CAN bus and RS485 communication protocols for seamless integration with various charging systems.

Q4: What safety certifications does the product hold? A4: The product is fully certified with CE, TUV, EMC, and cTUVus (UL 2202 and CSA standards).

Q5: What is the weight and dimensions of the unit? A5: The unit weighs 23kg and its dimensions are 125mm in height, 440mm in width, and 380mm in depth.

Q6: What does the 1-year warranty cover? A6: It covers non-human damage. We offer free replacement during the first six months and free repair during the following six months.
