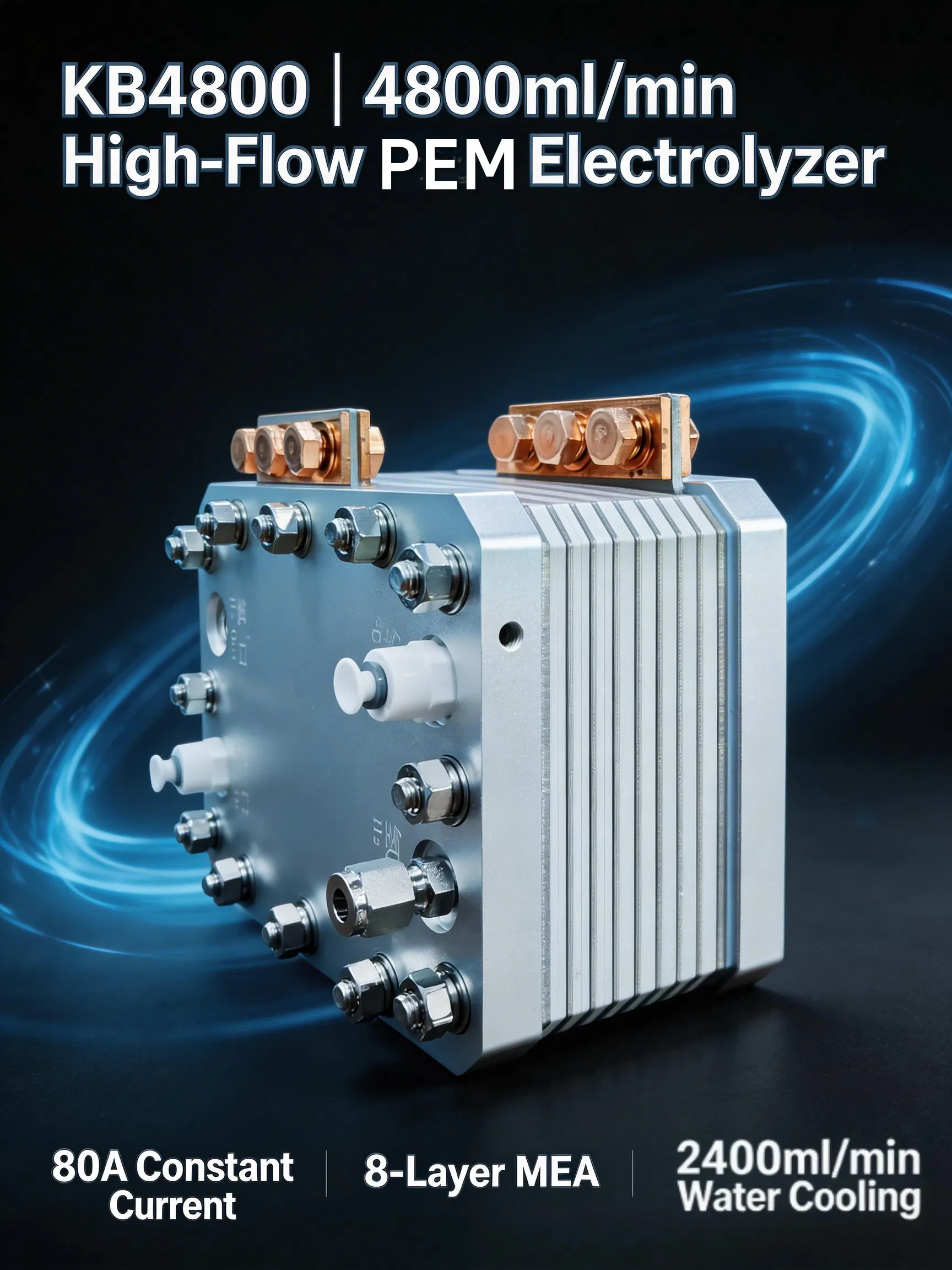

KB4800 4800ml/min PEM Electrolyzer Stack | 80A | 8-Layer MEA | Industrial Green Hydrogen Core
This KB4800 4800ml/min PEM Electrolyzer Stack is a high-performance industrial-grade core component dedicated to large-scale green hydrogen production and new energy applications. It adopts 80A constant current, a large 106×78mm 8-Layer MEA with a self-developed PtCo alloy catalyst system, delivering reliable 4800ml/min ≥99.99% ultra-high purity hydrogen output. Equipped with 2400ml/min high-efficiency water cooling, 1MPa pressure resistance, and compact size, it ensures 24/7 long-term stable operation.
We integrate independently developed high-performance precious metal catalysts (IrO2 anode & PtCo alloy cathode) and advanced 8-Layer MEA technology to deliver a stable 4800ml/min of ≥99.99% pure hydrogen. With low power consumption and a lifespan of over 10,000 hours, this core is engineered for demanding industrial applications.

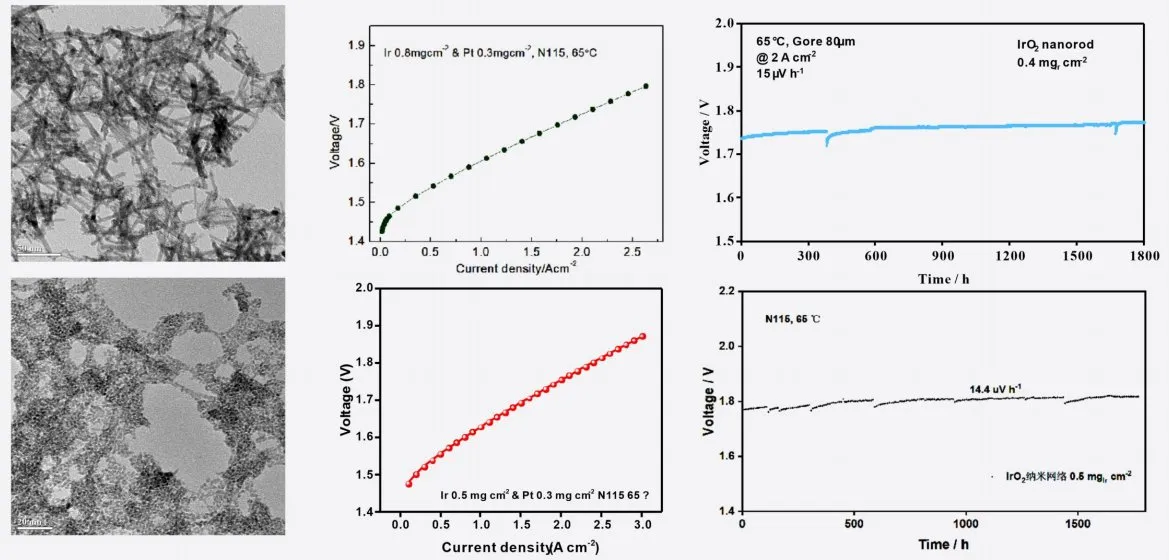

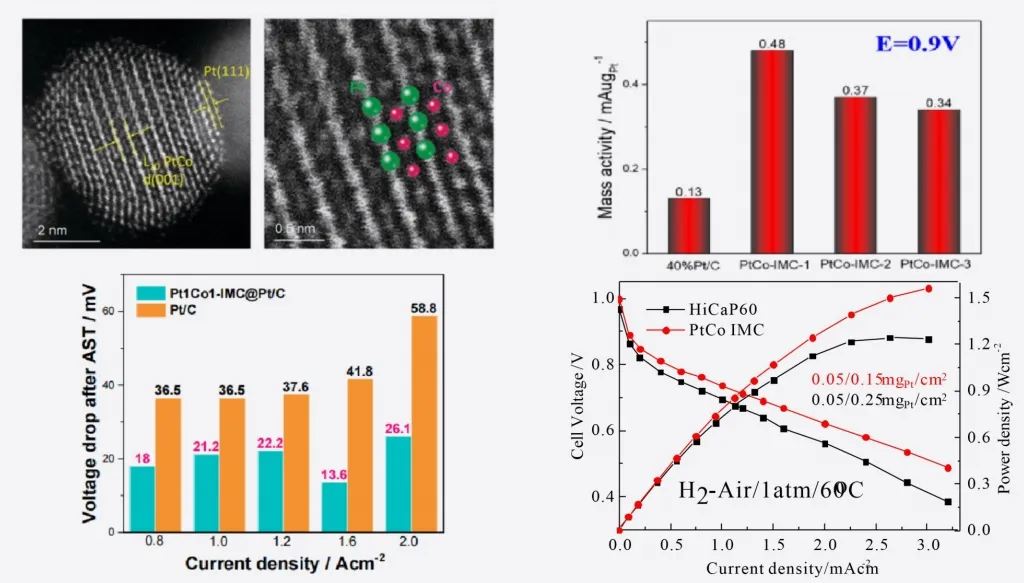

IrO2 Nanorod Catalyst: Features a unique nanostructure design with low loading (0.4–0.8 mgIr/cm²) and high activity at 2 A/cm² with low voltage.
PtCo IMC Technology: Delivers up to 3.7x higher mass activity than commercial Pt/C, supporting high-efficiency hydrogen production.

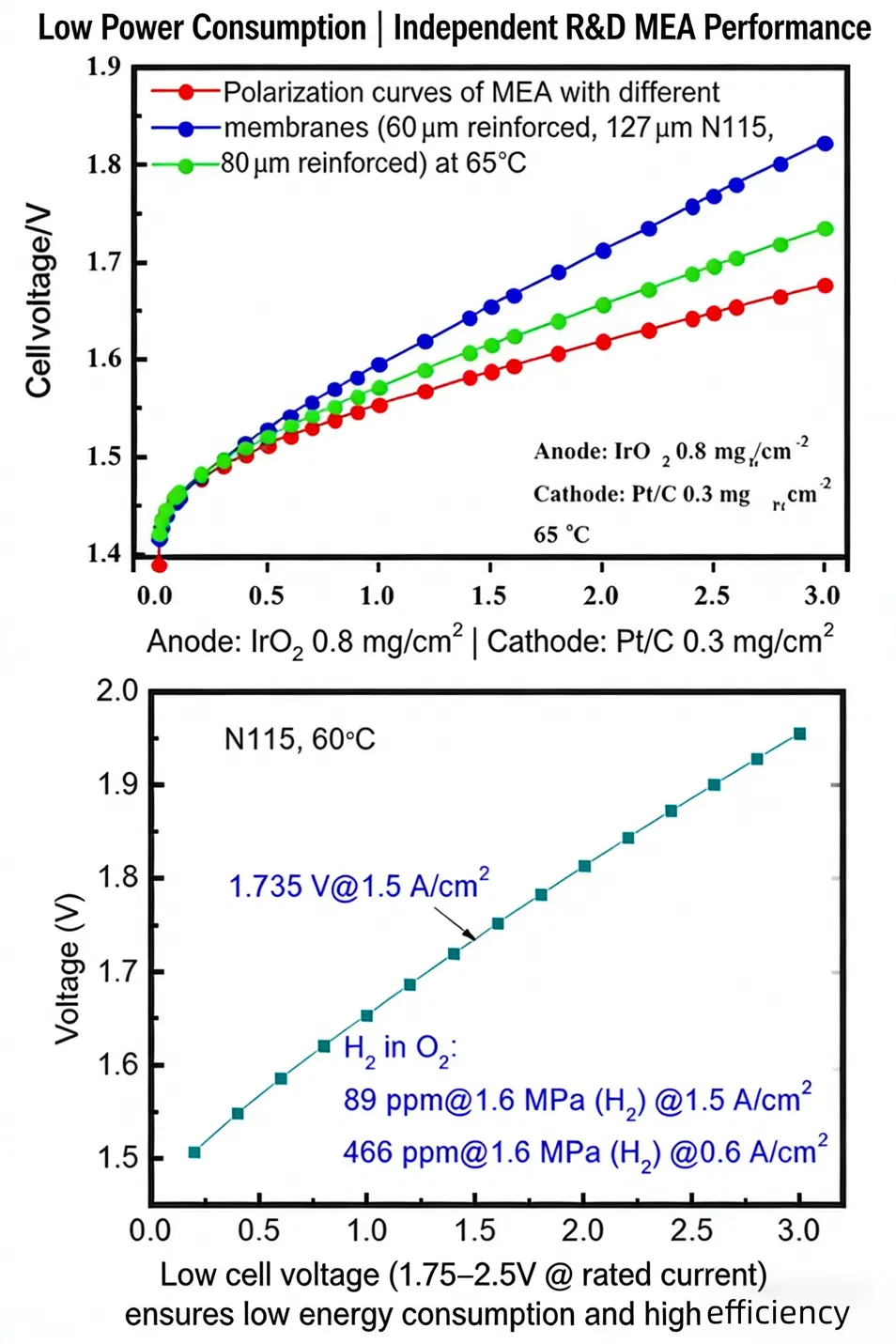

Custom MEA Design: 106×78mm 8-Layer structure optimized for dual-catalyst systems, ensuring low voltage operation (1.75–2.5V).
| Item | Specification |
|---|---|
| Model | KB4800 |
| Hydrogen Output Rate | 4800ml/min |
| Oxygen Output Rate | 2400ml/min |
| Hydrogen Purity | ≥99.99% |
| Constant Current | 80A |
| Single Cell Voltage | 1.75–2.5V DC |
| Max. Withstand Pressure | 1Mpa |
| Circulating Water Temp | 25–45°C |
| Electrolysis Method | MEA (Membrane Electrode Assembly) |
| Catalyst Configuration | Anode: IrO2, Cathode: PtCo alloy |
| Anode Water TDS | ≤1 |
| MEA Active Area | 106 × 78 mm (8 layers) |

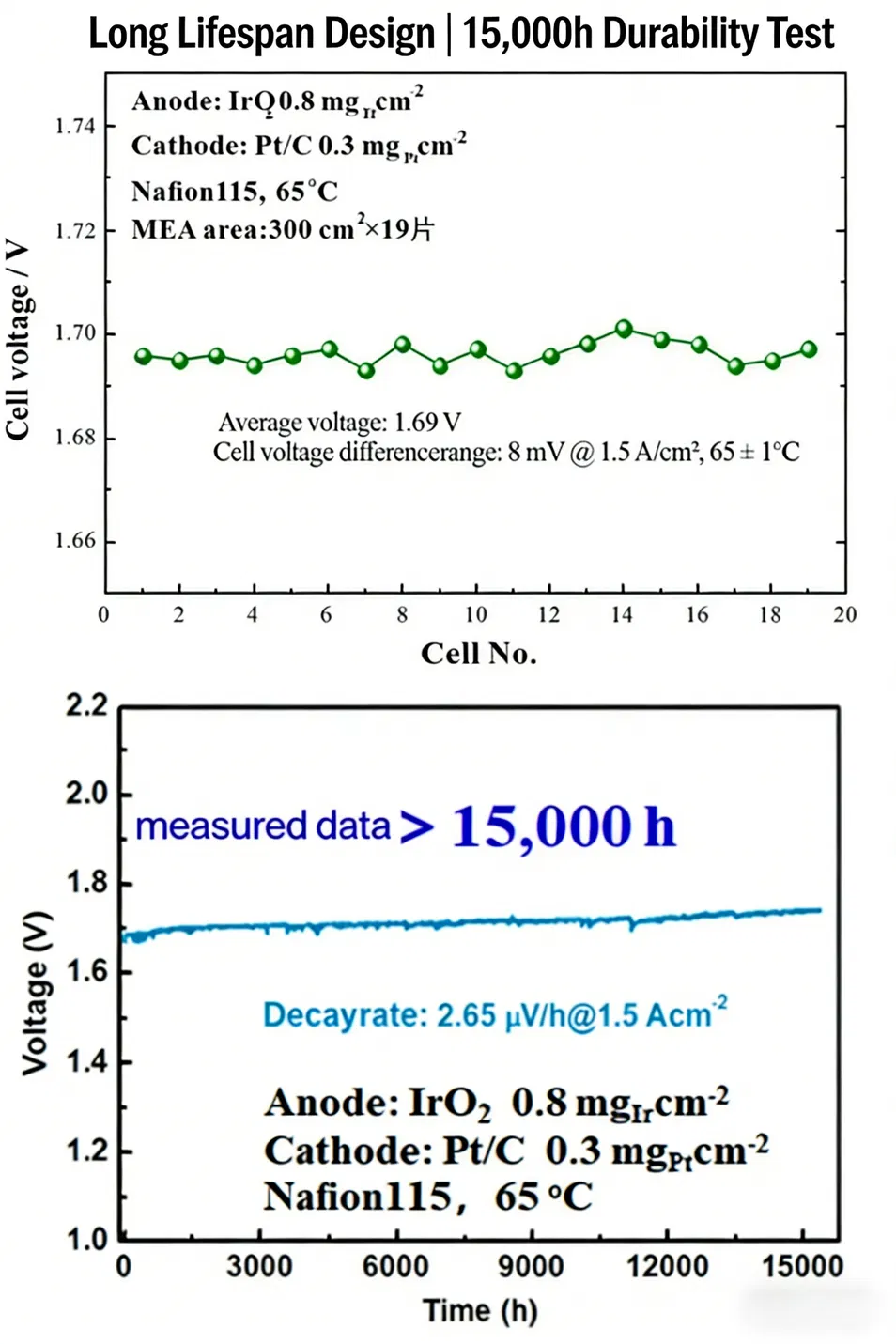

| Design Life | >10,000 hours |
The KB4800 PEM electrolyzer provides stable, high-purity hydrogen supply for diverse high-demand scenarios:

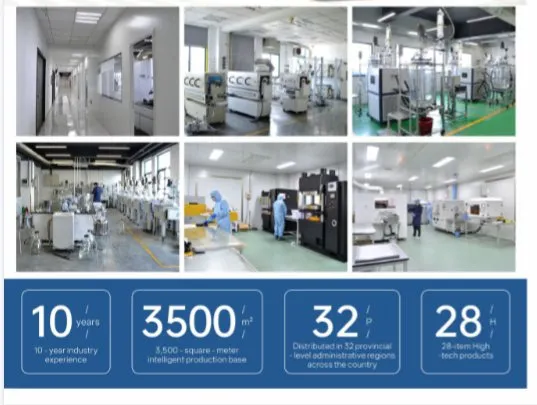

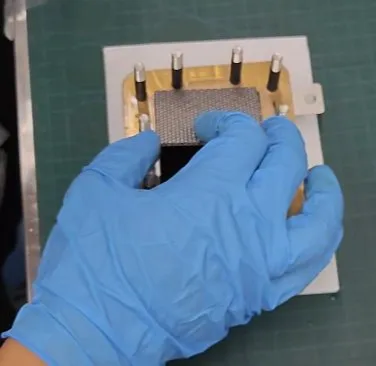

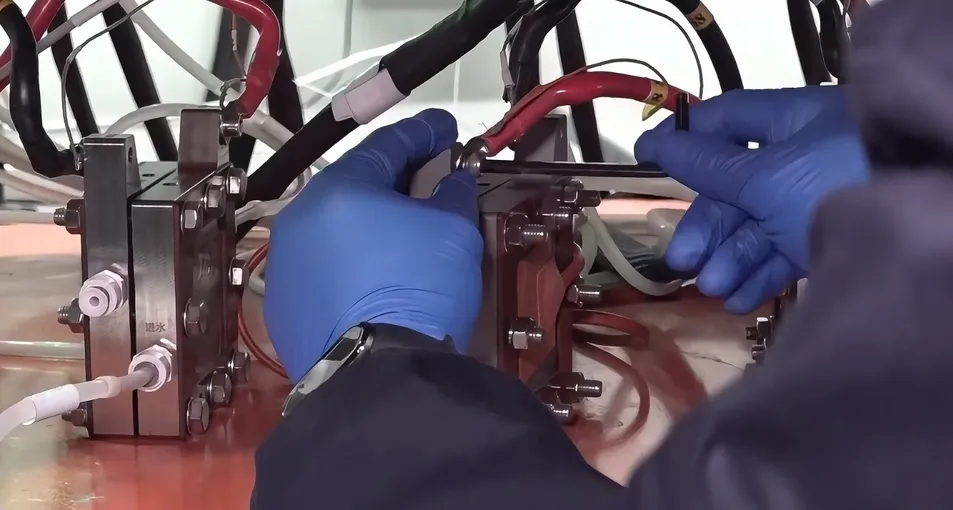

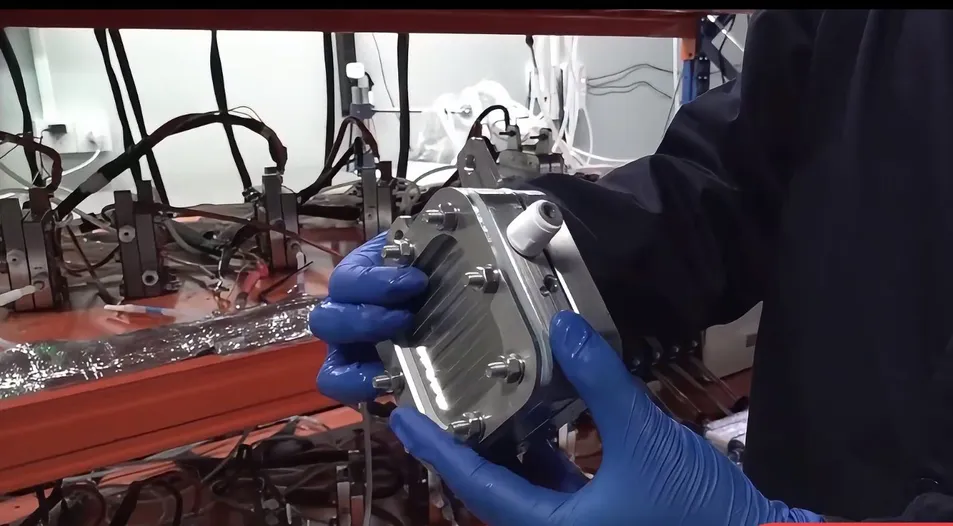

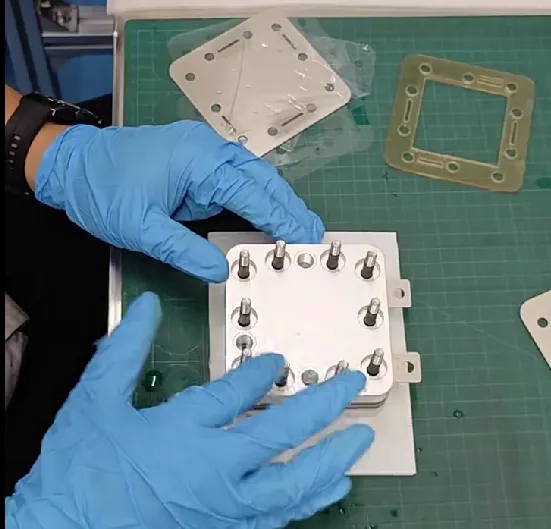

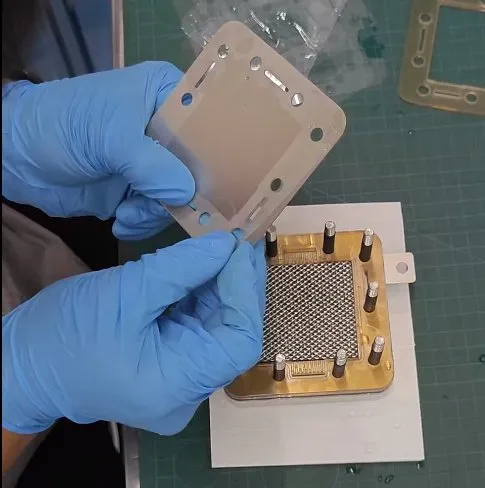

Each electrolyzer core undergoes strict performance testing before shipment to ensure stability, consistency, and long service life. Our facilities feature professional catalyst preparation and MEA assembly lines with full-process aging verification.
