Ee High Frequency Inverter Power Current Transformer for Solar Power Control

1 / 5

Ee High Frequency Inverter Power Current Transformer for Solar Power Control

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.GWEPC17

Output TypeSingle

Driving MethodLED Regulator Voltage

Circuit StructureElectronic Step-Down Transformer

Power Supply ModeConstant Voltage Source

Modulation SystemPfm

Voltage1.5-36V

Sealing SizeSMD

HS Code85043190

Capacity100,000 PCS/Month

SpecificationCE, ROHS

OriginTianjin

Product Overview

Manufacturing high frequency transformers in the frequency range of 100Hz to 800kHz. Output power ranges from 50 watts to 10,000 watts, with output voltage from 0.5V RMS to 10,000V RMS and current from 0.01A to 1000A. Ideal for control equipment, fire protection, and security systems.

Power Range & Material (N67 Grade)

< 5W: RM4, P11/7, EF12.6, U10
5 to 10W: E(F)16, RM5, P14/8
10 to 20W: RM6, E(F)20, P18, U15, EFD15
20 to 50W: RM8, P22, RM10, ETD29, E25, EFD20
50 to 100W: ETD29, ETD34, RM12, P30, EFD25
100 to 200W: ETD34, ETD39, ETD44, P36, E30, E42, EFD30
200 to 500W: ETD44, ETD49, E55
>500W: ETD54, ETD59, E65, EPC17

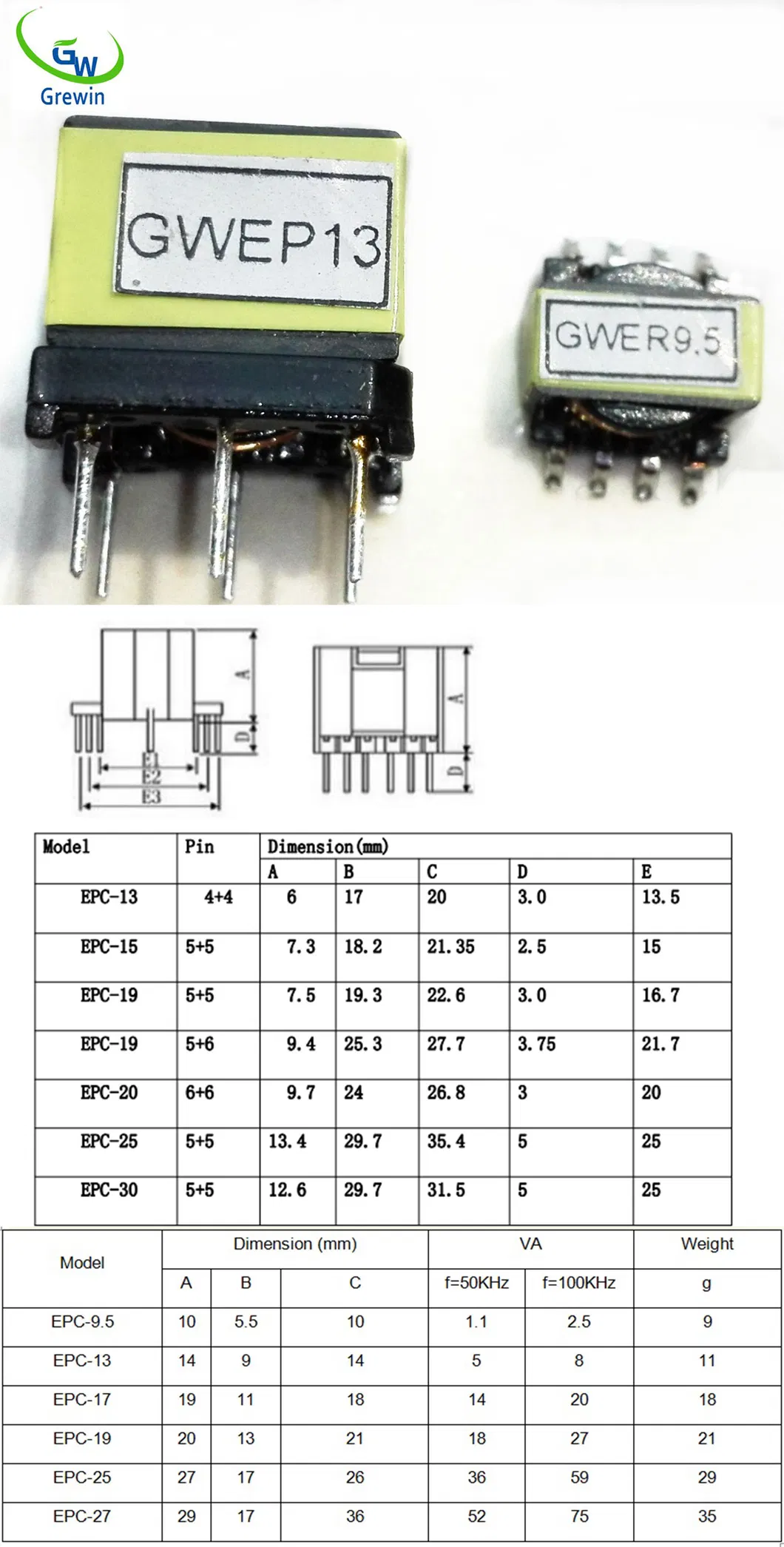

1. EPC Transformer

Features: Low leakage inductance, high efficiency, high frequency, strong anti-interference, low profile design.
Applications: Monitors, mobile adapters, printers, game machines, chargers, switching power supplies.

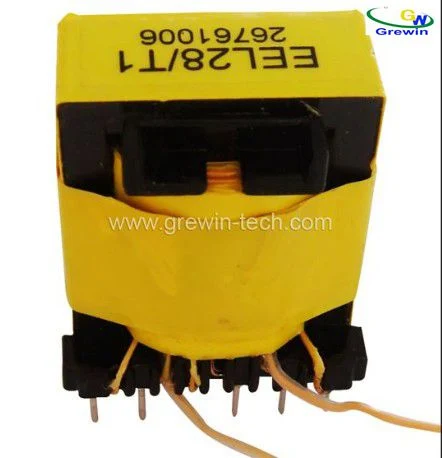

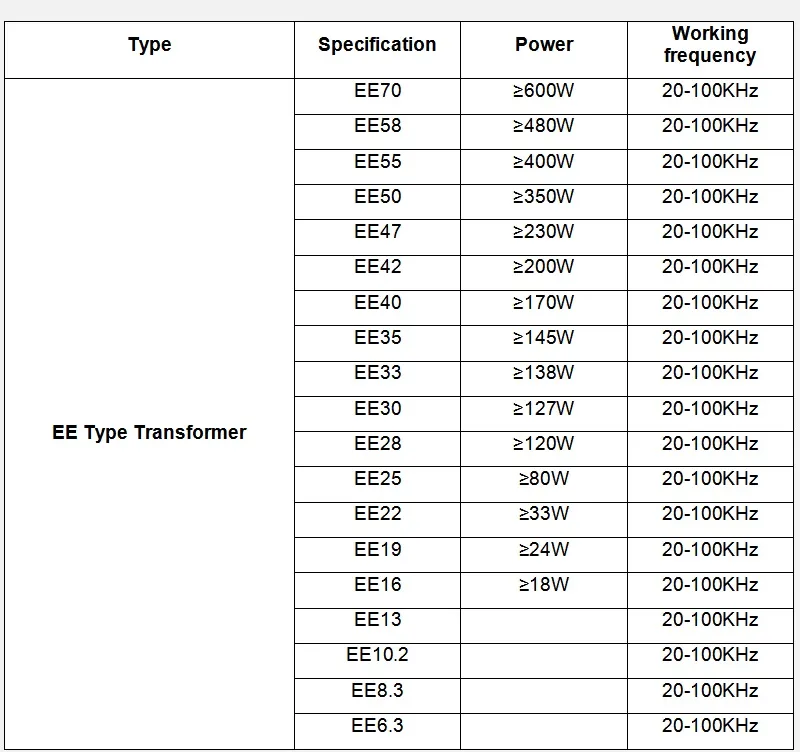

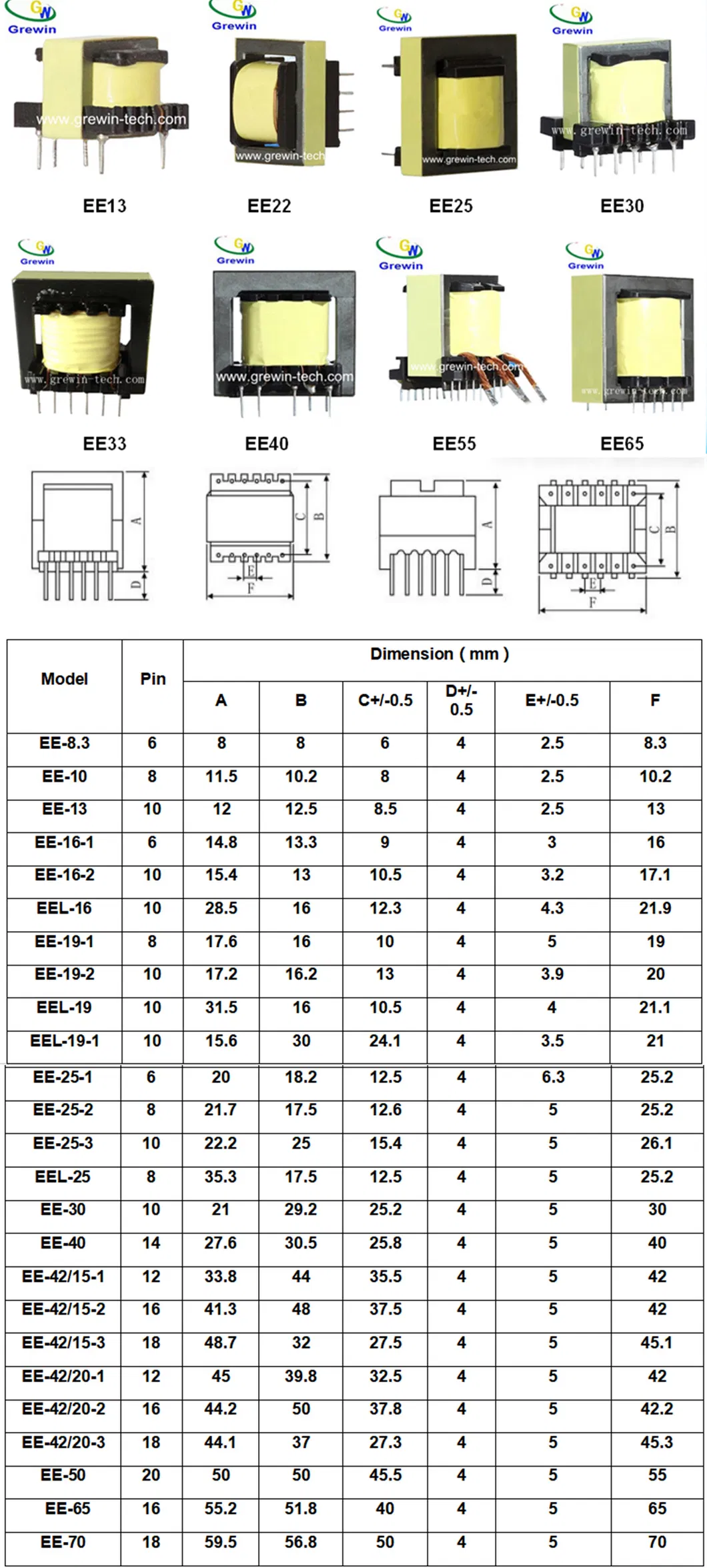

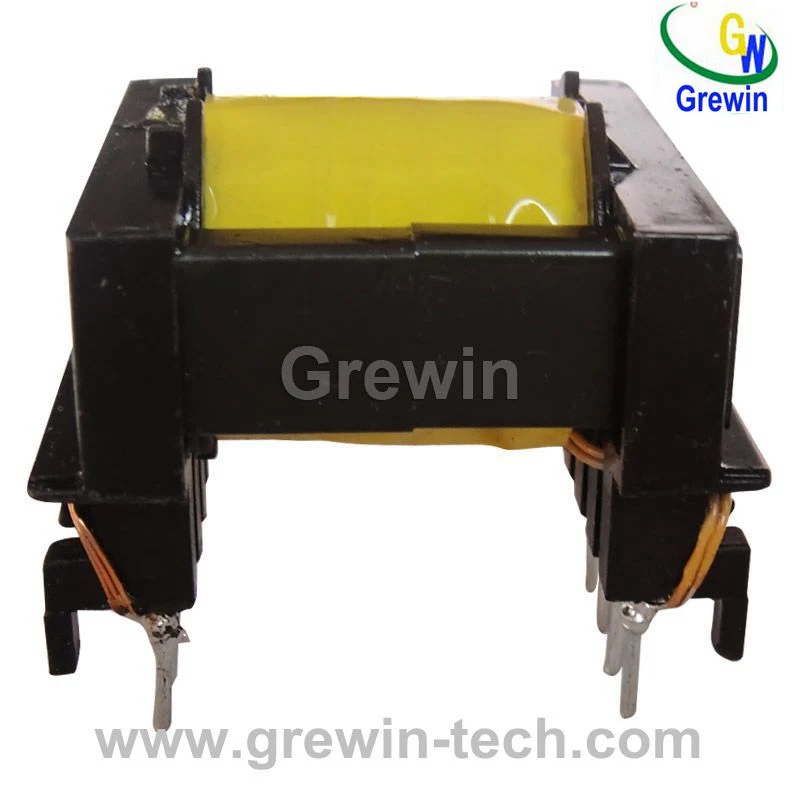

2. EE Ferrite Transformer

Applications: Computers, precision instruments, high-frequency inverters, wind and solar power control.

3. EFD Transformer

Features: Low profile, high magnetic flux, low loss magnetic materials.

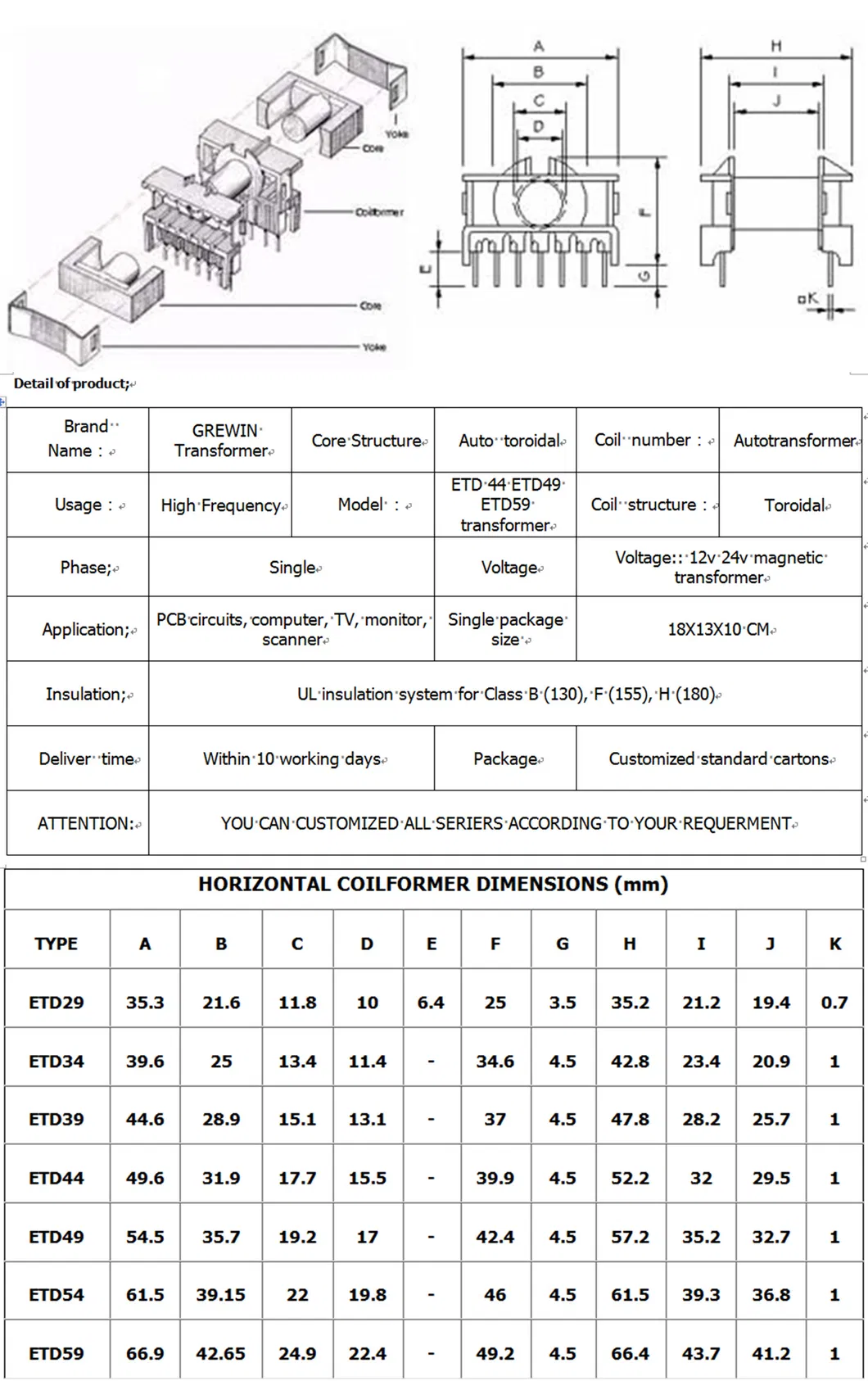

4. ETD Transformer

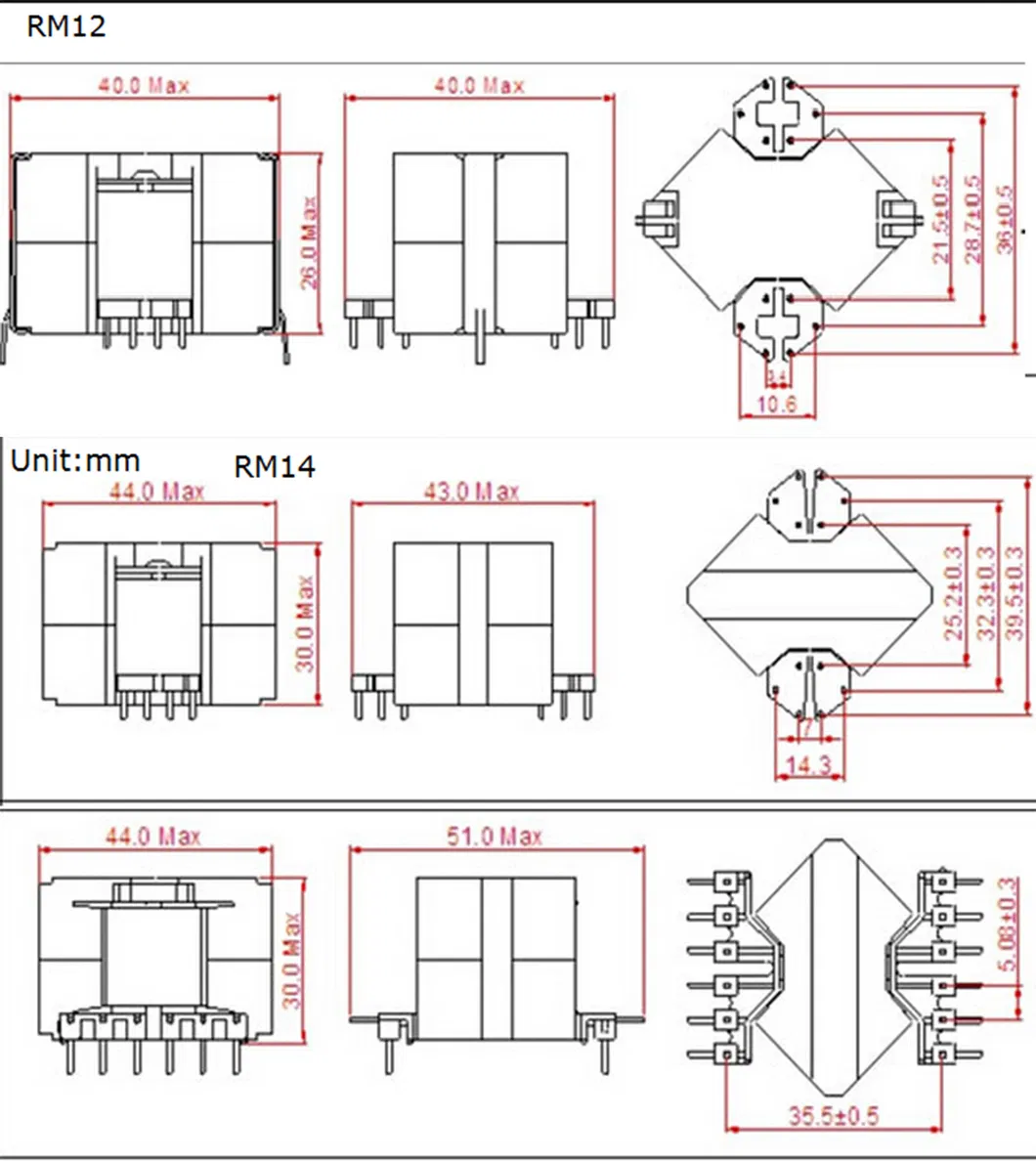

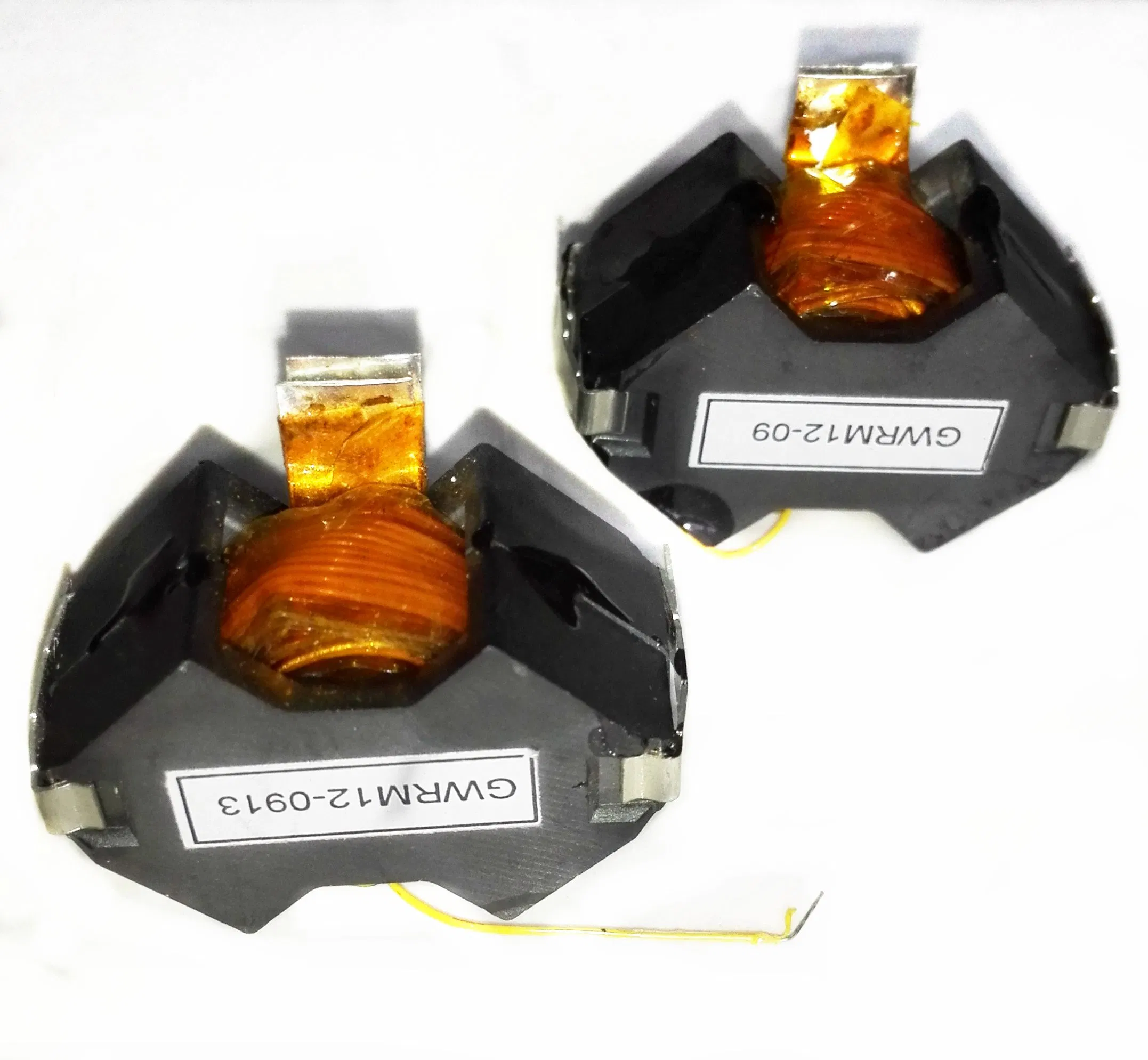

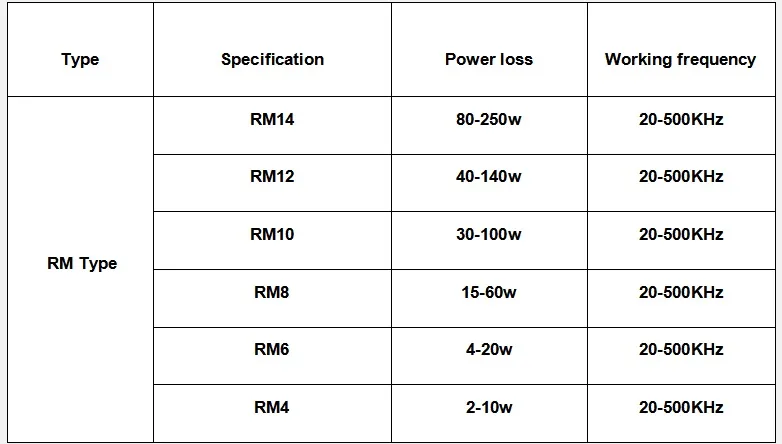

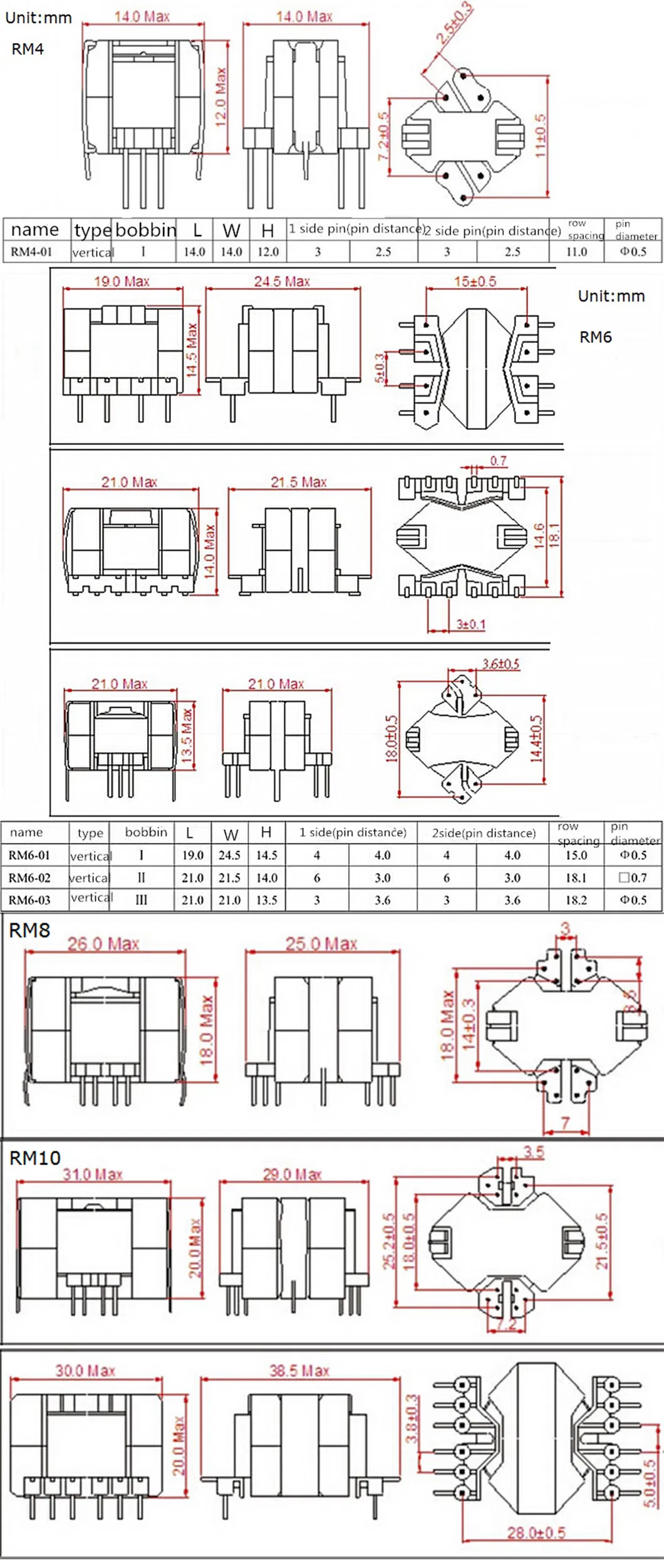

5. RM Transformer

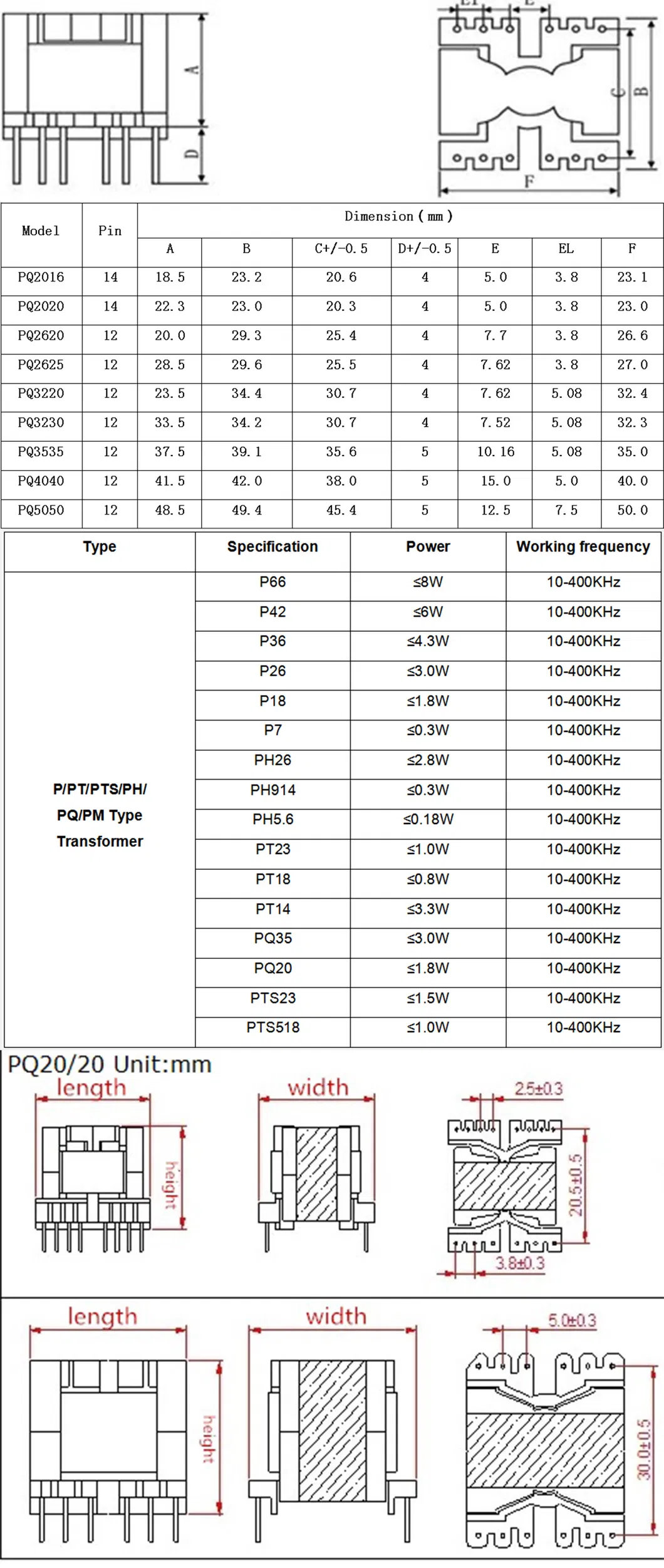

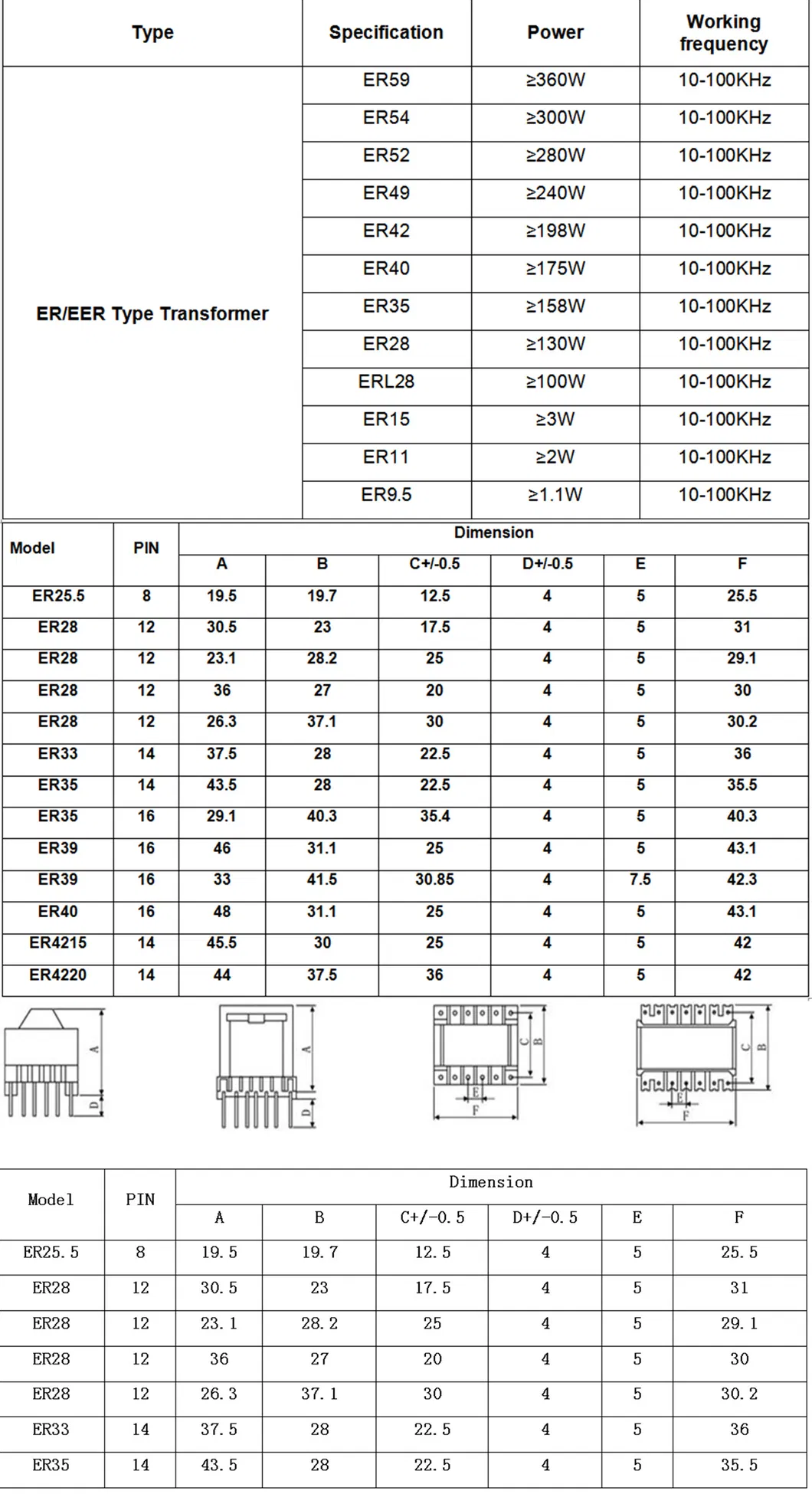

6. PQ & 7. ER Transformers

Note: Custom designs available according to customer requirements (installation dimension, input/output voltage, power, etc.).

Standard Dimensions:

External diameter: 40mm-300mm | Height: 13mm-130mm | Efficiency: 75-98%

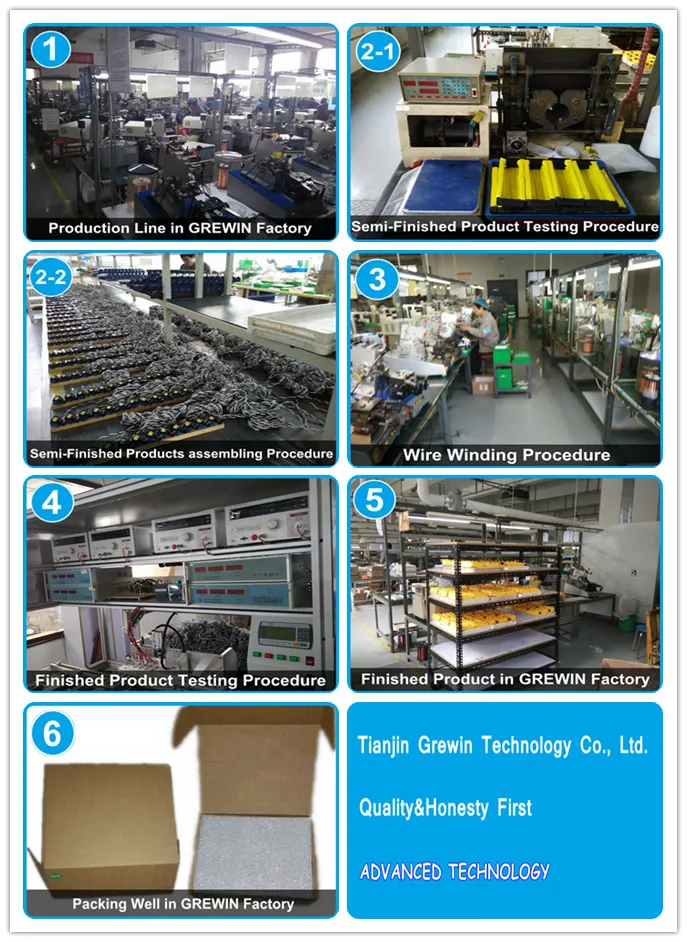

Production Process

Step	Description	Estimated Days
1-2	Quotation Request & Preparation	2 Days
3-4	Offer Negotiation & Sample Production	3-10 Days
5-7	Sample Confirmation & Order Down Payment	4-5 Days
8-10	Factory Production, Inspection & Delivery	16-25 Days

Equipment & Quality

50+ Sets Toroidal Winding Machines
3 EI Type Transformer Lines
Vacuum Annealing Furnaces

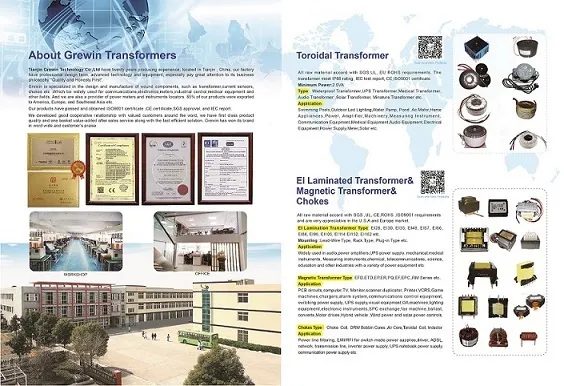

Certificates: CE, CQC, RoHS, UL

Frequently Asked Questions

Q: What is the frequency range of your high-frequency transformers? A: Our transformers operate within the frequency range of 100Hz to 800kHz.

Q: Can you manufacture transformers based on custom designs? A: Yes, we specialize in customized products tailored to specific installation dimensions, input/output voltages, and power requirements.

Q: What are the main advantages of your Toroidal Transformers? A: Compared to traditional EI transformers, our toroidal units offer smaller size, lower magnetic leakage, higher efficiency, and lower internal resistance.

Q: What quality certifications do your products carry? A: Our transformers are certified with CE, CQC, RoHS, and UL standards to ensure safety and quality.

Q: What is your monthly production capacity? A: We have a production capacity of approximately 100,000 PCS per month.

Q: What materials are used for the transformer cores? A: We primarily use high-grade N67 material for core types to ensure low loss and high efficiency.
