Product Description

Basic Information

Origin China

HS Code 8504401990

Input Features

Item	Parameters	Remark
Operating Voltage (AC)	285~475V, rated voltage 380V	See input voltage/output power curve
Input Frequency (HZ)	45~55	-
Power Factor	Full load ≥ 0.99	-
THD	Full load ≤ 5%	-
Standby Power Consumption	< 12W	-

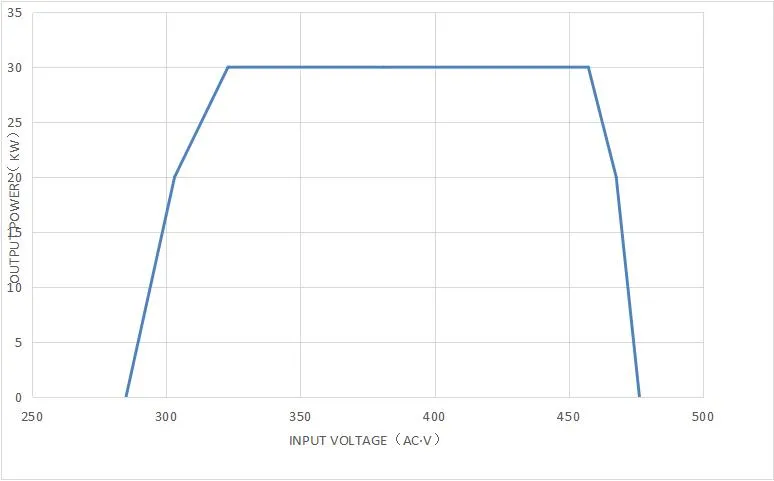

Input voltage / output power curve:

Output Features

Item	Parameter	Remark
Output Voltage Range (DC)	150~1000V	-
Max output current (A)	120	-
Output constant power interval	250~500VDC, 500~1000VDC	-
Output current limit range	Max limit current is 120A, limit point set 2~120A	See output voltage/current curve
Voltage Stabilization Accuracy	≤ ±0.5%	-
Current Stabilization Accuracy	≤ ±1%	Load current range 20%~100%
Output ripple effective coefficient	≤ ±0.5%	-
Current sharing imbalance	≤ ±5%	Parallel average current > 5A
Peak efficiency	≥ 95.5%	-
Soft start time (S)	3~8	-
Current rewinding prevention	Support	-
Communication Protocol	CAN	-

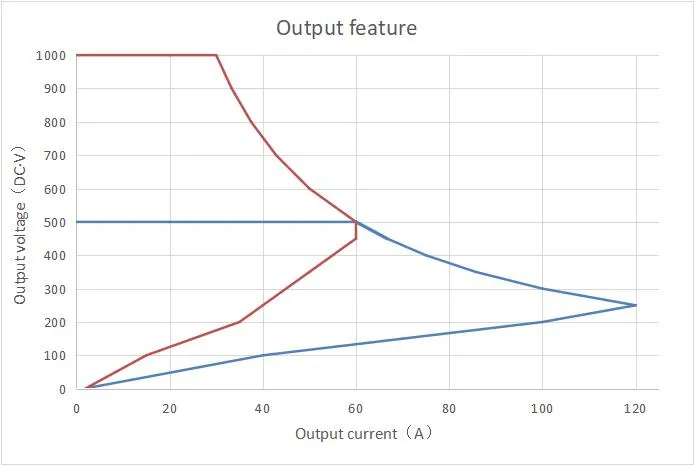

Output voltage / output current curve:

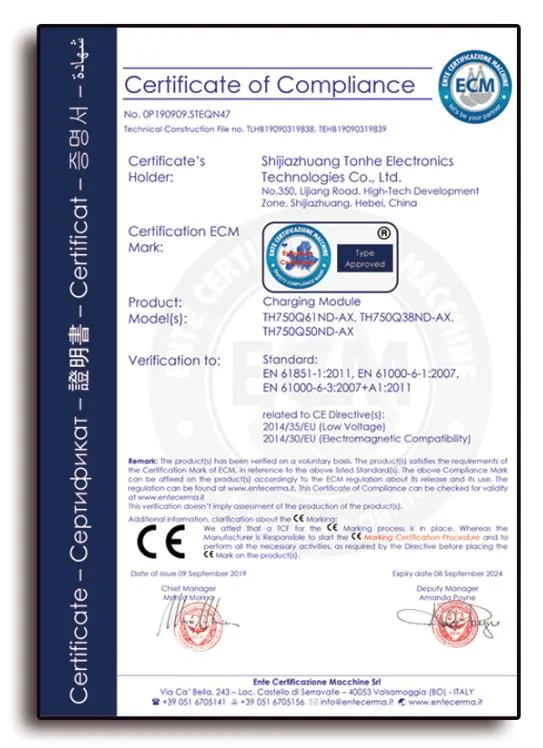

CE CERTIFICATE

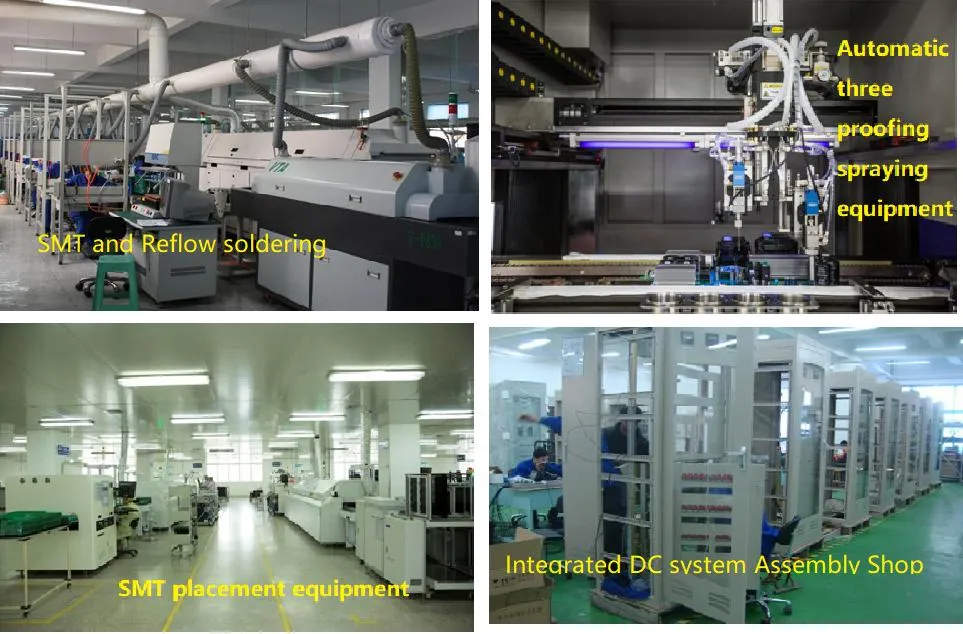

Manufacturing & Test Center

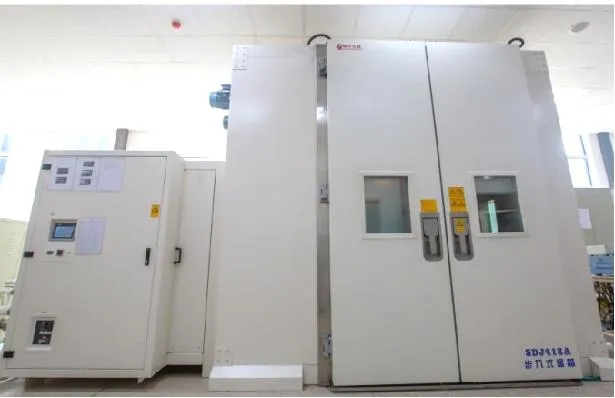

18m³ walk-in high and low temperature lab:

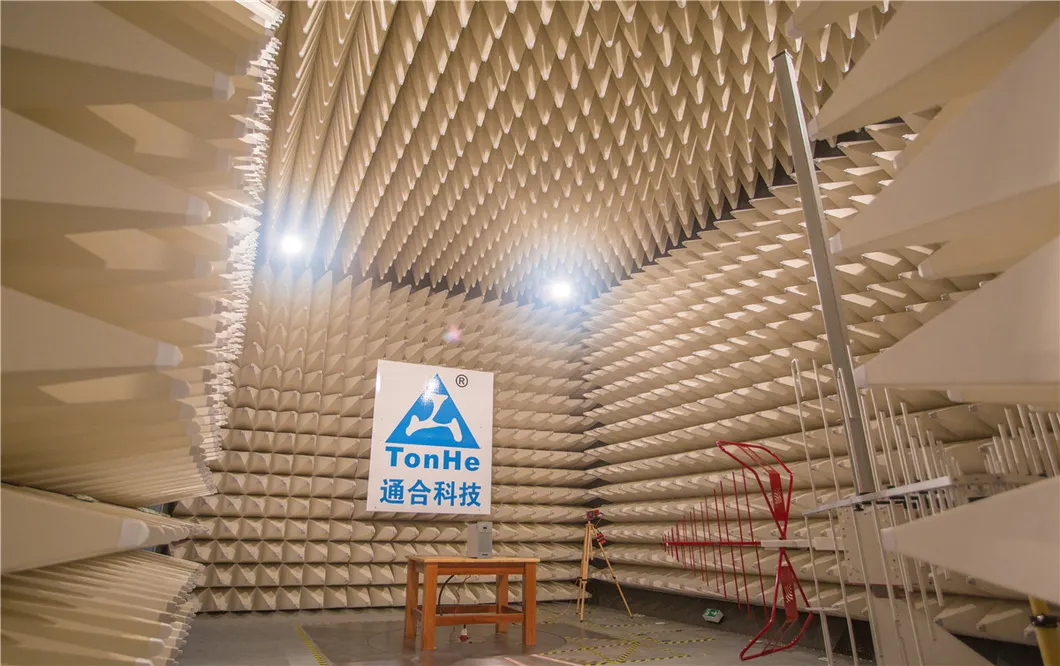

Anechonic Chamber: Designed to meet CISPR22/24, IEC61000-4-3, ISO 11452, GJB151A/152B standards.

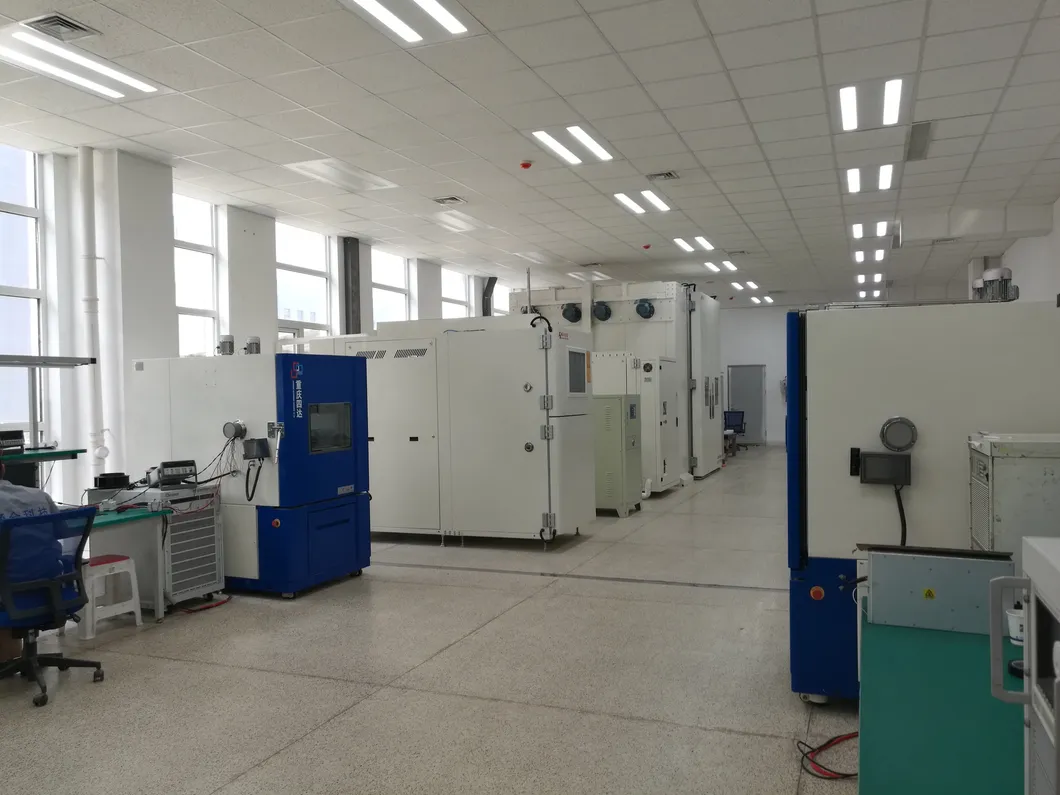

Test hall: Equipped with program AC power supply, DC electronic load, power quality analyzer, and 300KVA adjustable AC power supply.

Frequently Asked Questions

Q1: What is the output voltage range of this power module?

A: The module supports a wide DC output voltage range from 150V to 1000V, making it suitable for various charging requirements.

Q2: What is the maximum efficiency of the module?

A: The peak efficiency of the module is ≥ 95.5%, ensuring minimal energy loss during the power conversion process.

Q3: Which communication protocol does the system use?

A: The module uses the standard CAN communication protocol for reliable data exchange and system integration.

Q4: Does the module support parallel operation?

A: Yes, it supports parallel connection with a current sharing imbalance of ≤ ±5% when the average current is above 5A.

Q5: What safety features are included for output protection?

A: The module includes features such as current rewinding prevention and high stabilization accuracy for both voltage (≤±0.5%) and current (≤±1%).

Q6: What are the input voltage requirements?

A: The rated operating voltage is 380V AC, with a supported input range of 285V to 475V AC.
