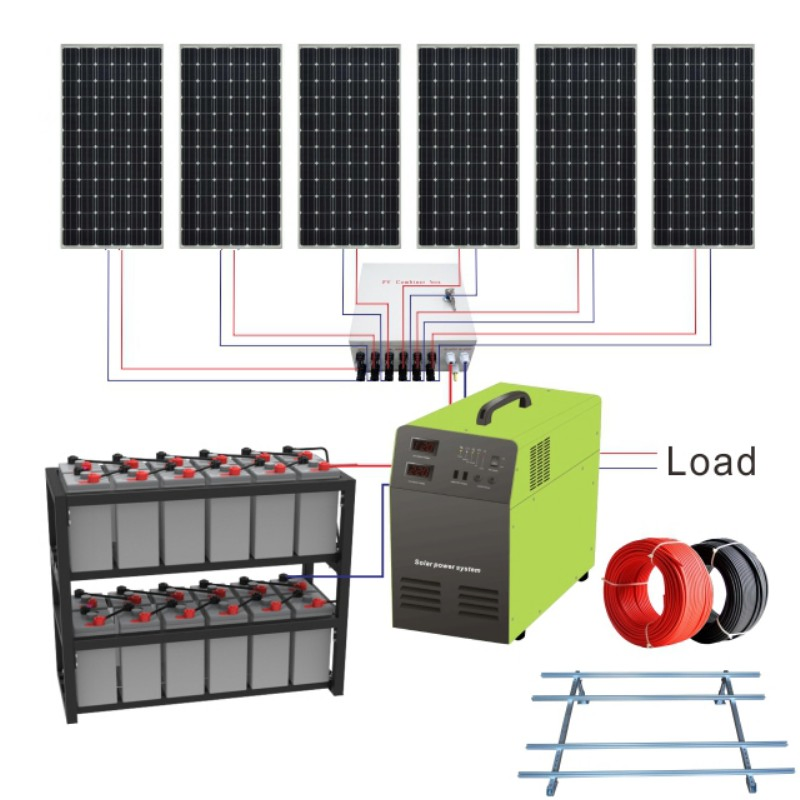

Product Description

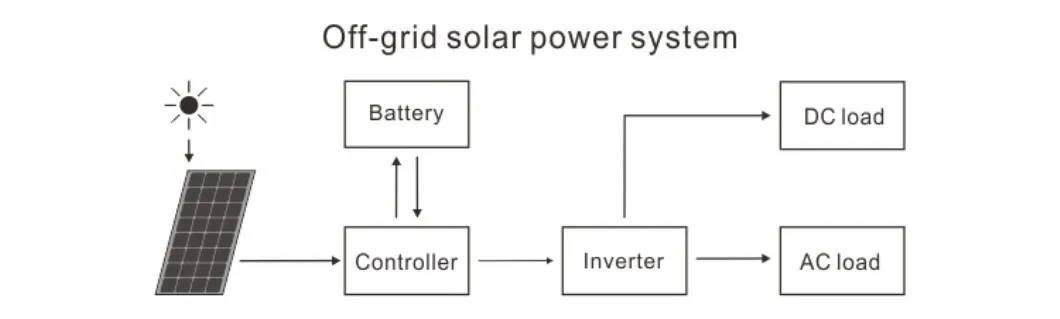

System Connecting Diagram
Configuration List
| Item |
Certification |
Description |
Q'ty |
Warranty |
| Solar panel |
TUV / IEC / EC |
Mono or Poly |
2 pcs |
20 years |
| Inverter |
CGC / CQC / VDE |
1500W/ SM-SH1500W |
1 set |
5 years |
| Distribution box |
CE |
Lighting Protection, Air switch |
1 set |
5 years |
| Mounting system |
CE |
Roof/Ground bracket |
1 set |
10 years |

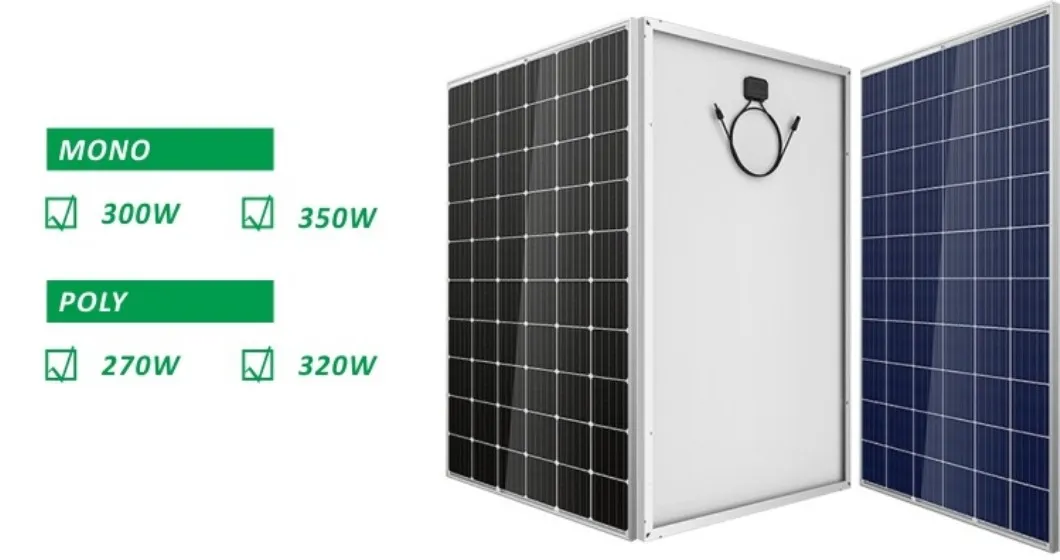

Solar Panel Specifications
| Solar Panel Performance |
| Type |
MONO |
POLY |
| Power class |
280W |
335W |
270W |
320W |
| Efficiency |
≥17.1% |
≥17.2% |
≥16.5% |
≥16.4% |

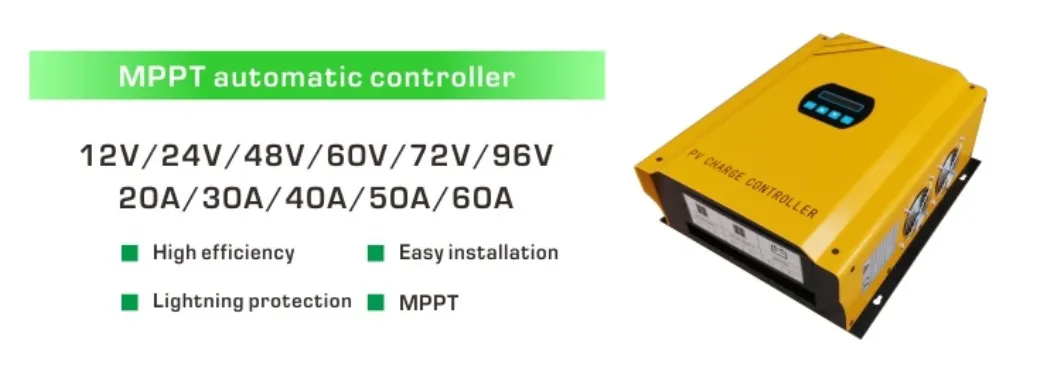

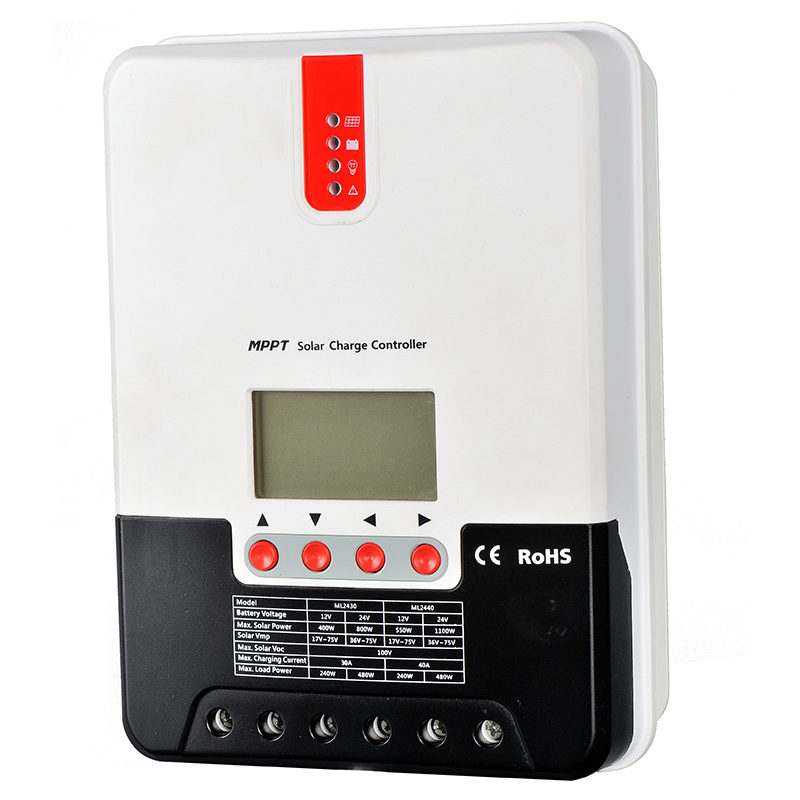

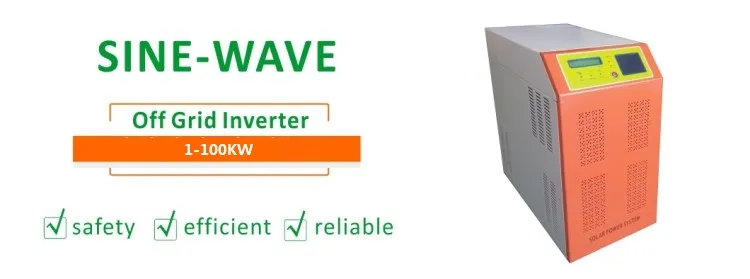

Solar Inverter & Controller
| Protection degree |
IP65 |
Noise emision |
<25 dB |
| Rated Charge current |
40A |
Max operating altitude |
4000m |

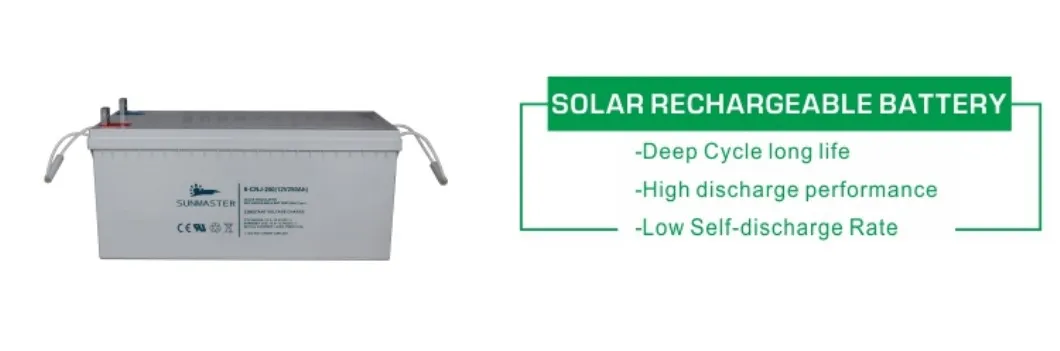

Solar Battery Specs
| Nominal Voltage |
12V |
Approximate Weight |
27.5 kg |
| Nominal Capacity |
100Ah(10hr,1.80V/cell) |
Case Material |
ABS |

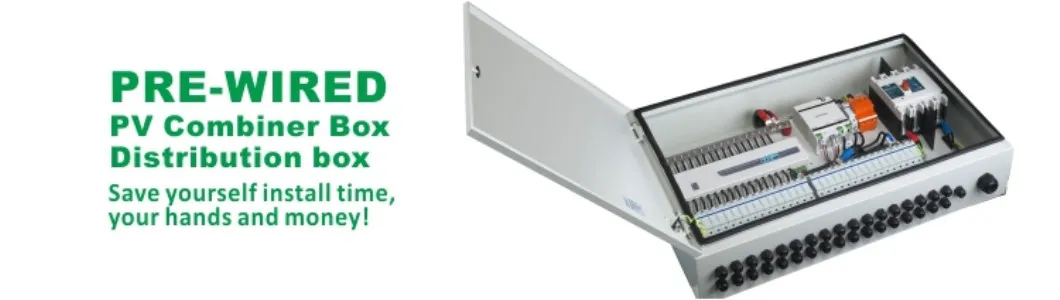

PV Combiner Box & Mounting

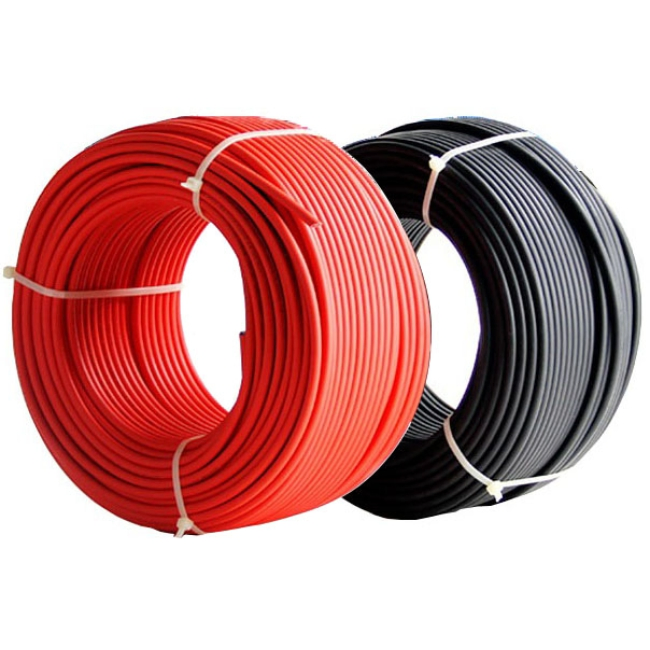

| Conductor |
Tinned Fine Re Copper Strand |
| Temperature Rating |
-40°C to 125°C, More than 25 Years |
The wind capacity can reach 40m/s (Level 13), and snow load capacity up to 70kg/m².

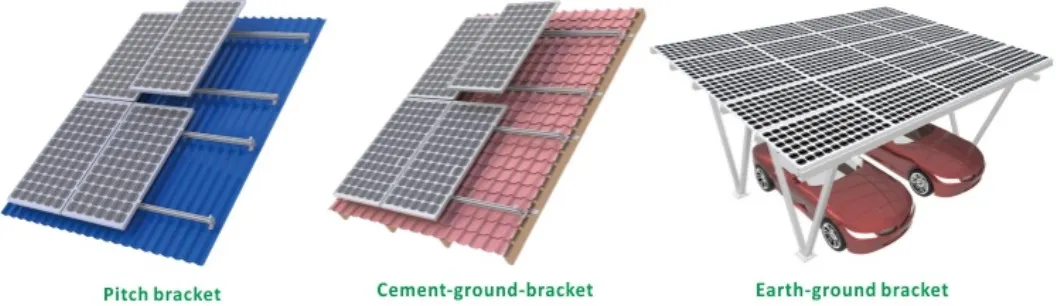

The mounting system can be designed for slope roofs, flat ground, or soil ground.
Frequently Asked Questions
What is the total power capacity of the SMSH-80KW system?
The system is designed with a high-capacity power rating of 80kw, suitable for large-scale energy requirements.
What certifications does this solar power system hold?
The entire system and its components are certified with CE, ISO, and RoHS standards, ensuring global safety and quality compliance.
How long is the warranty for the solar panels and inverter?
The solar panels come with a 20-year warranty, while the inverter includes a 5-year standard warranty (expandable up to 25 years optionally).
Is the mounting system durable against extreme weather?
Yes, the mounting system can withstand wind speeds up to 40m/s (Level 13) and a snow load of up to 70kg per square meter.
What type of batteries are used in this 80kw system?
It utilizes 24 pieces of 12V/200ah Maintenance-Free Lead-Acid batteries, designed for stable and long-term energy storage.
Can the system be customized for different roof types?
Absolutely. The PV mounting brackets are compatible with flat ground, flat roofs, pitch roofs, or soil ground, and special designs are accepted.
