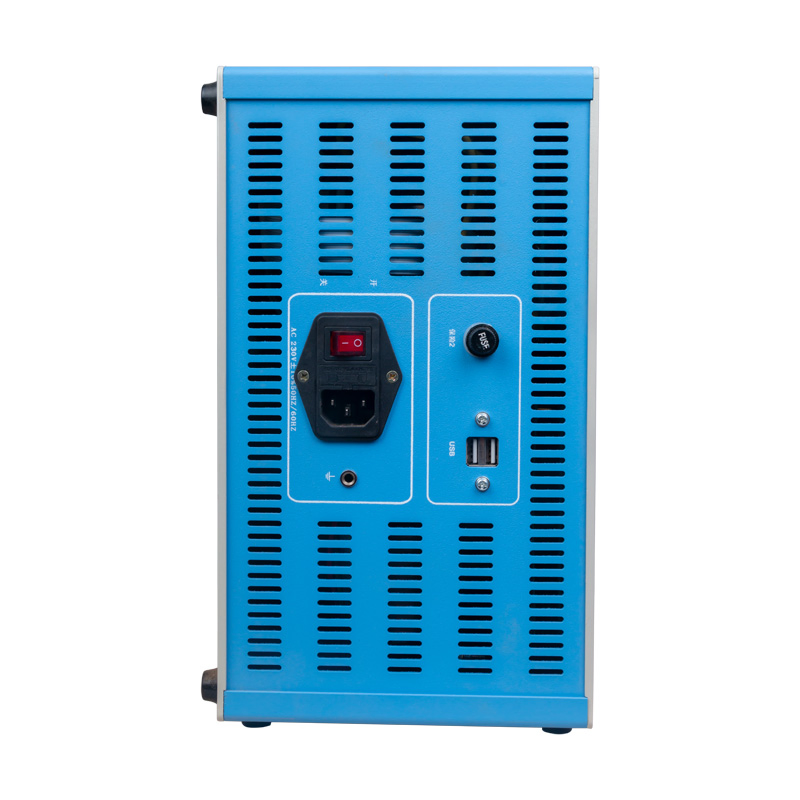

XHTX206 Transformer Comprehensive CT PT Analyzer is a professional testing equipment created through extensive theoretical study and customer feedback. Based on proven automated transformer tester technology, it integrates high-performance DSP and ARM processors. This advanced manufacturing ensures stable performance, high automation, and efficiency, making it a leading choice for transformer verification in the power industry.

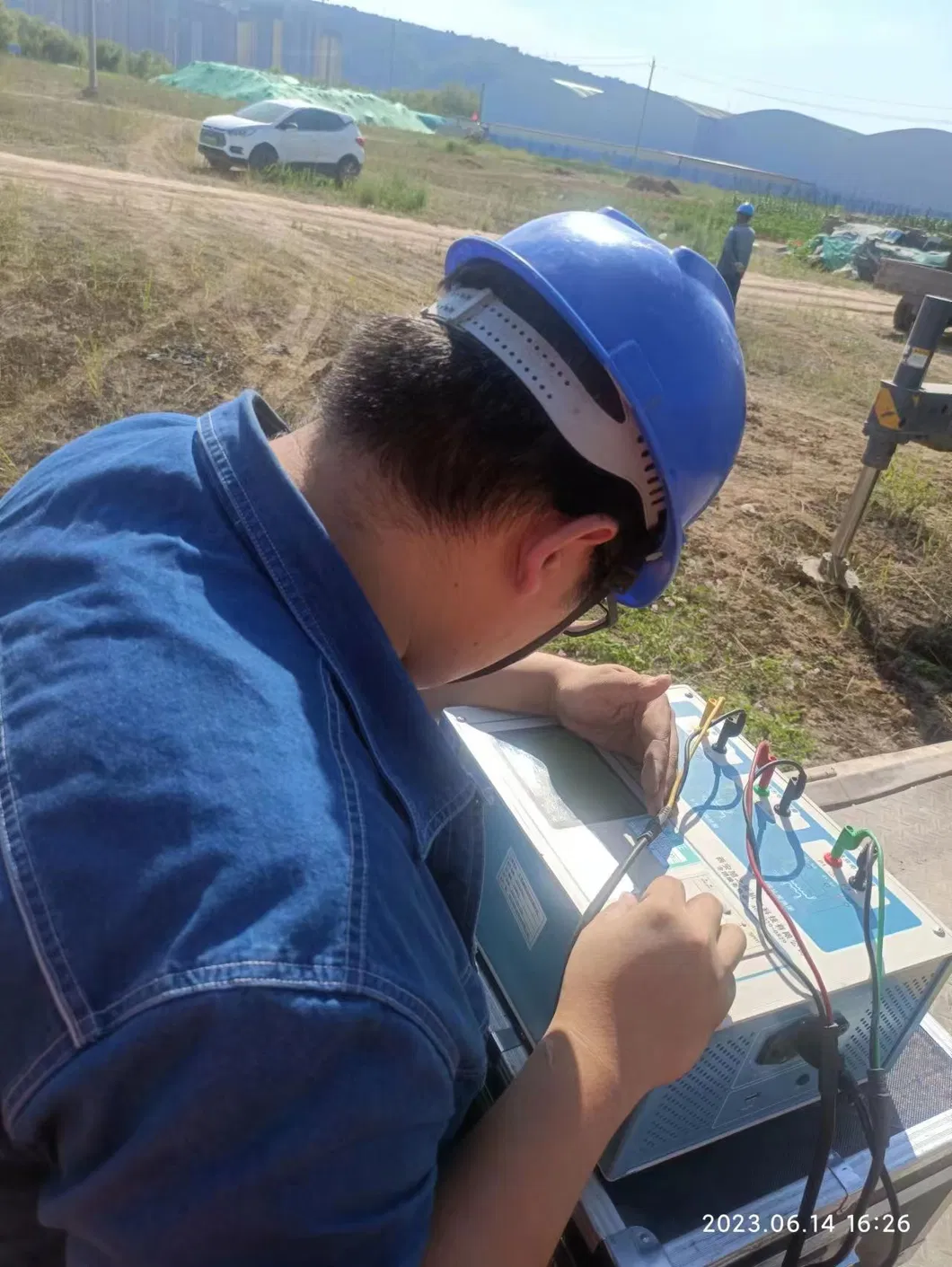

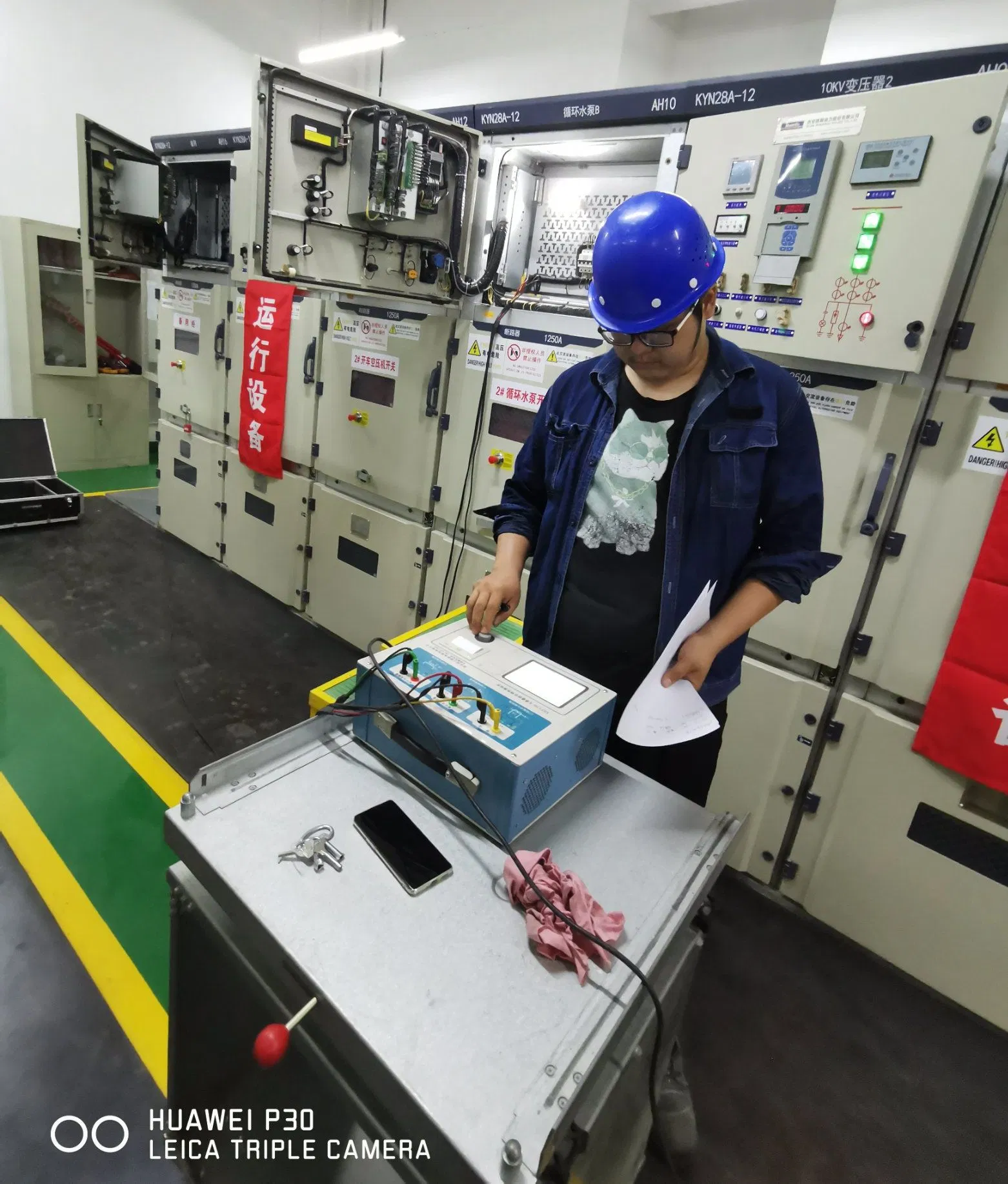

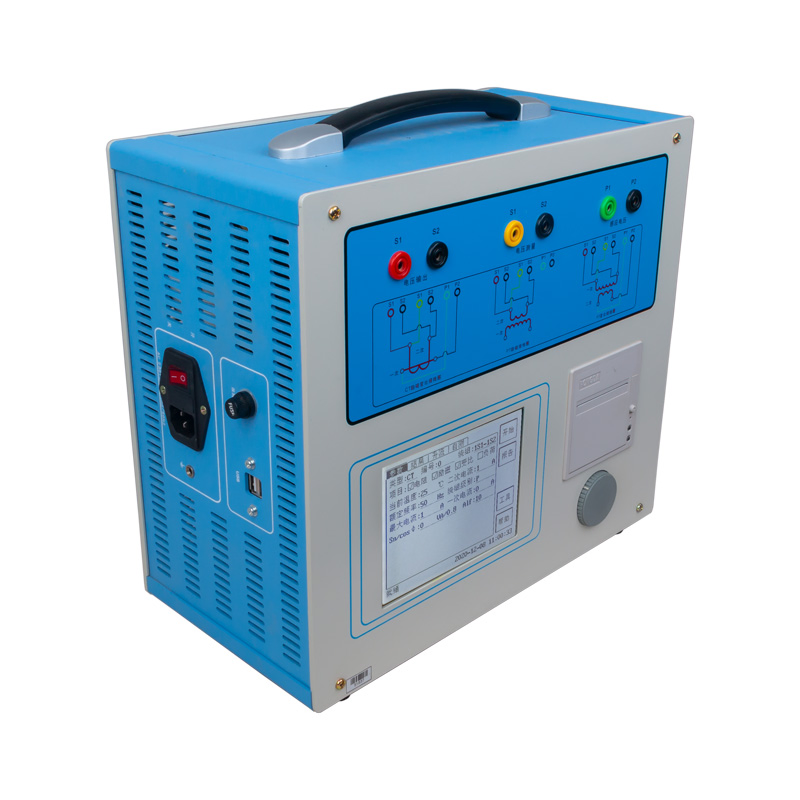

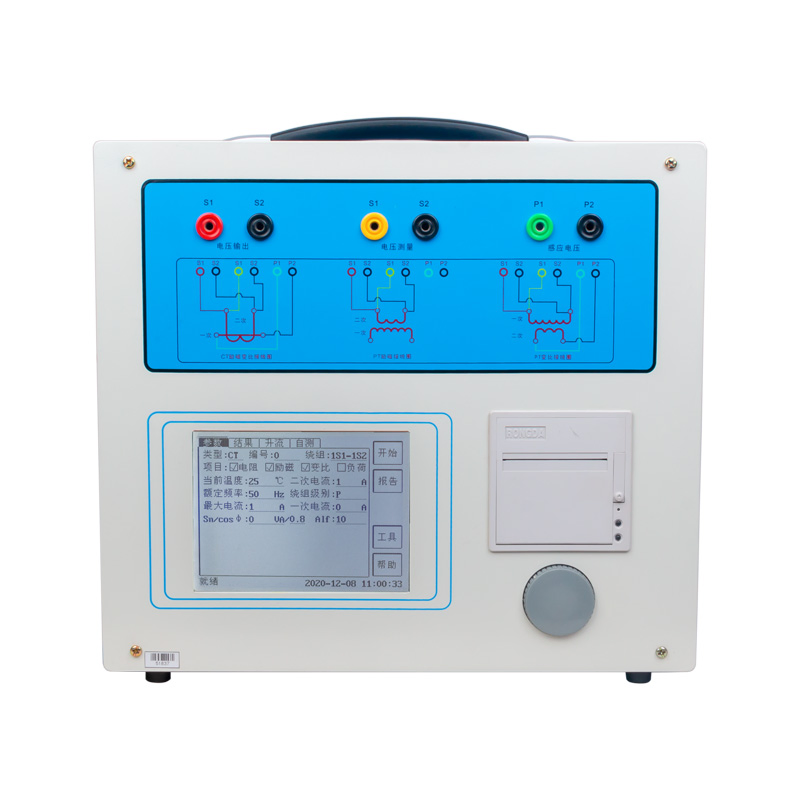

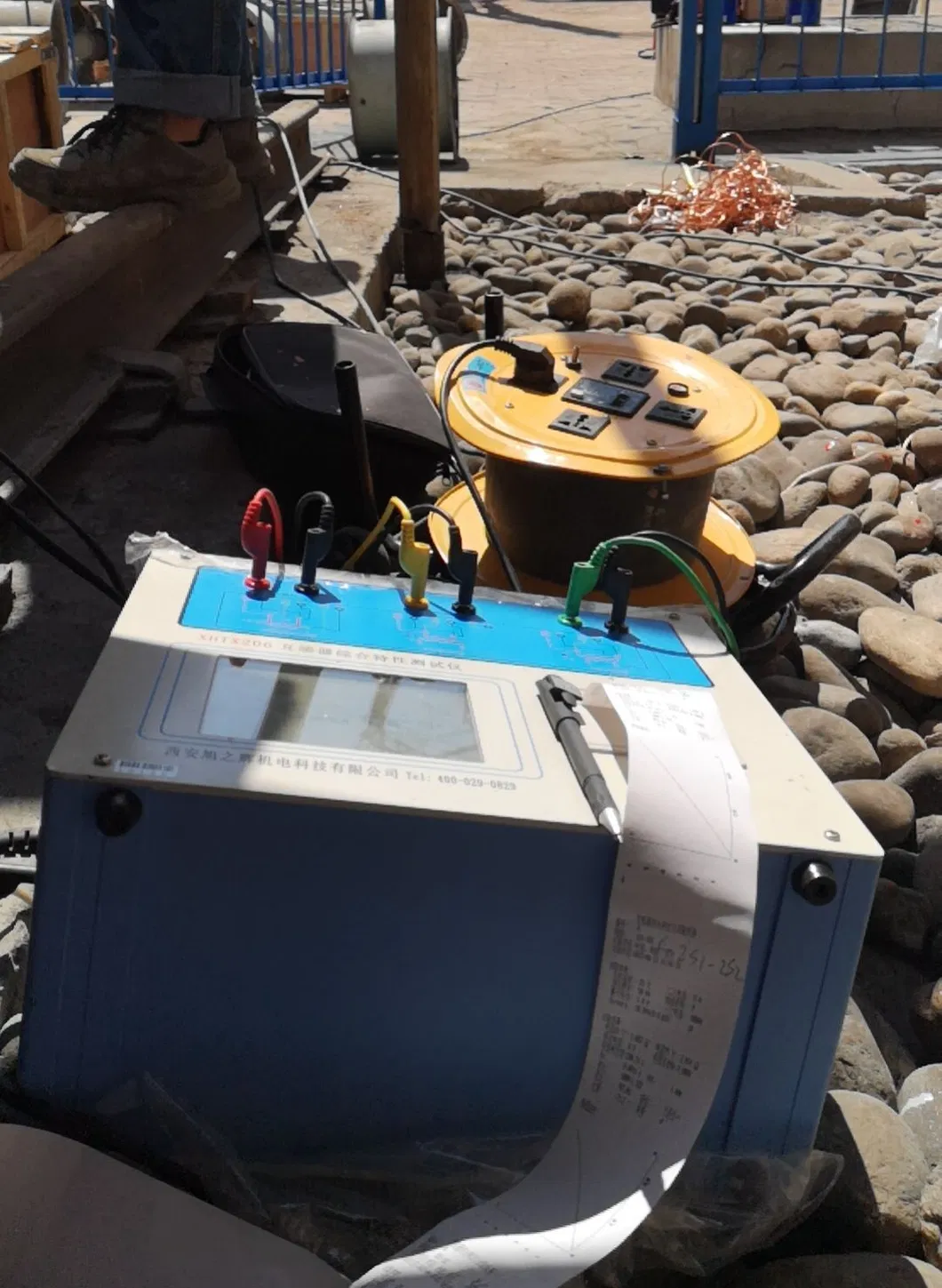

Instrument Panel Features:
• ● Red S1, black S2 terminal: Test power output
• ● Yellow S1, black S2 terminal: Measure output voltage
• ● Green P1, black P2 terminal: Measure inductive voltage
• ● Keyboard: Enter values and operational commands
• ● LCD screen: GUI Interface
◈ Key Features
- Full-featured testing for CT (including TP class) and PT, covering excitation, ratio, polarity, resistance, burden, and phase displacement.
- Automated parameter calculation: knee point voltage/current, 10% error curve, ALF, FS, Ts, Kr, and inductance.
- Compliance with international standards: IEC60044, GB1208, GB16847 (IEC60044-6) with automatic standard selection.
- Advanced low-frequency test method capable of meeting CT knee voltage tests up to 60KV.
- User-friendly graphic interface with large internal storage (up to 1000 data groups).
- Convenient data management: export results to PC via USB for WORD report generation.
- One-click operation for secondary resistance, excitation, ratio, and polarity tests.
- Highly portable design with a total weight of less than 9kg.
◈ Product Parameters
| Item |
Parameter |
| Usage |
Class P/TP CT & VT |
| Output |
0~180Vrms, 12Arms, 36A (peak value) |
| Voltage measurement accuracy |
±0.2% |
| CT Ratio |
Range |
1~40000 |
| Accuracy |
±0.1%-0.5% |
| PT Ratio |
Range |
1~35000 |
| Accuracy |
±0.1%-0.5% |
| Phase |
Range |
±5min |
| Accuracy |
0.5min |
| DC resistance |
Range |
0~600Ω |
| Accuracy |
±5%±2mΩ |
| Burden |
Range |
0~1000VA |
| Accuracy |
±0.5%±0.02VA |
| Power supply |
AC220V±10%, 50Hz |
| Environmental Conditions |
Temp: -10°C~50°C, Humidity: ≤90% |
| Weight and Dimensions |
340 mm×300 mm×150mm, Weight < 9kg |
◈ Manufacturing & Quality
◈ Frequently Asked Questions
What types of transformers can the XHTX206 analyze?
The XHTX206 is designed for comprehensive testing of both Current Transformers (CT), including TP class, and Potential Transformers (PT).
What specific parameters can be automatically measured?
It automatically calculates knee point voltage/current, 10% error curves, accuracy limit factors (ALF), instrument security factors (FS), and secondary time constants (Ts).
Does the device support high knee voltage testing?
Yes, by utilizing an advanced low-frequency test method, it can perform CT tests with knee voltages up to 60KV.
How many test results can be stored on the device?
The internal memory can store up to 1000 groups of test data, which remains saved even when the power is turned off.

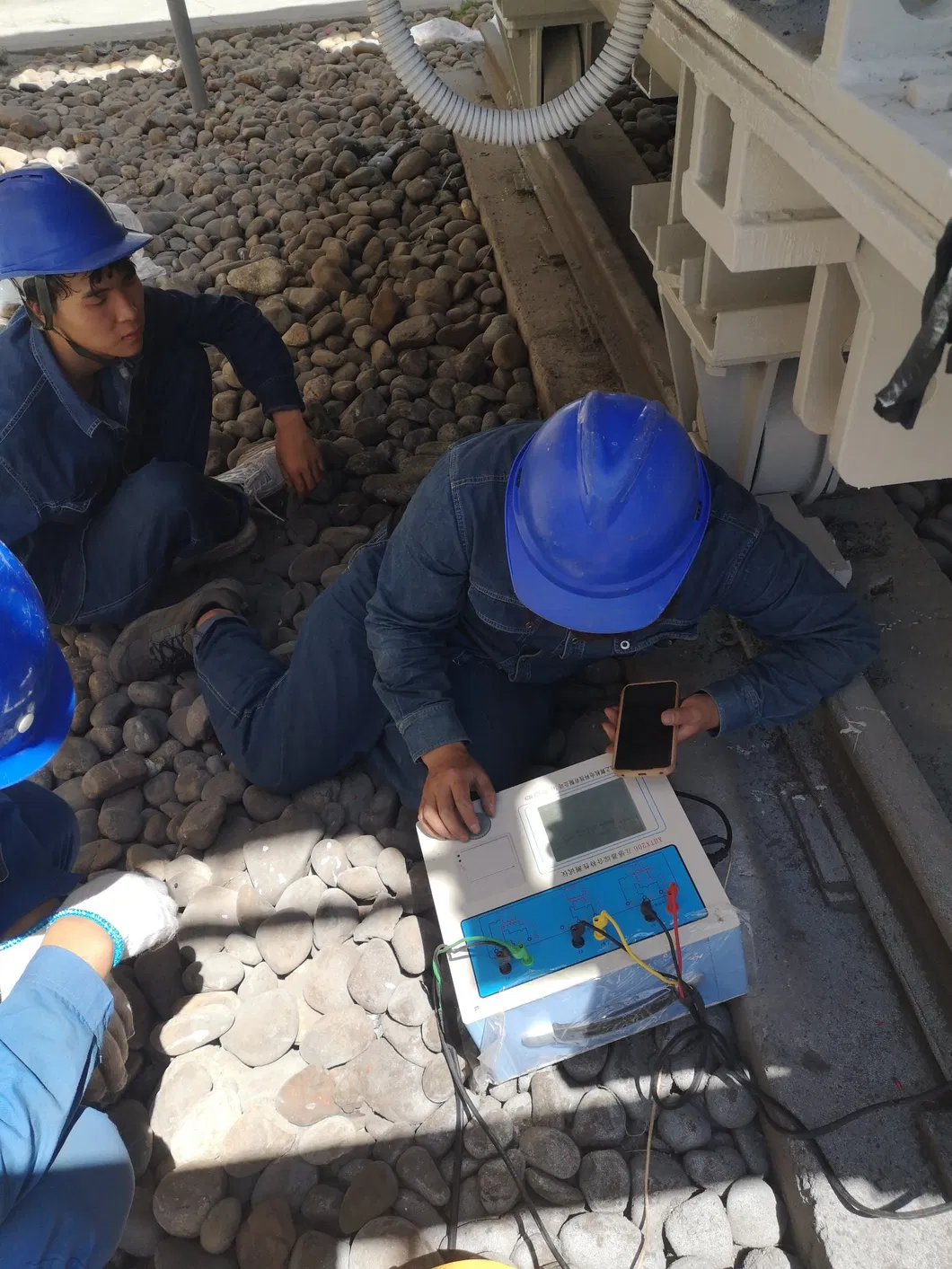

Is the equipment suitable for field work?
Absolutely. The XHTX206 is highly portable, weighing less than 9kg, making it ideal for on-site inspections and maintenance.
Can I generate reports from the test data?
Yes, test data can be copied to a PC via a USB disk for detailed analysis and converted into professional WORD format reports.
