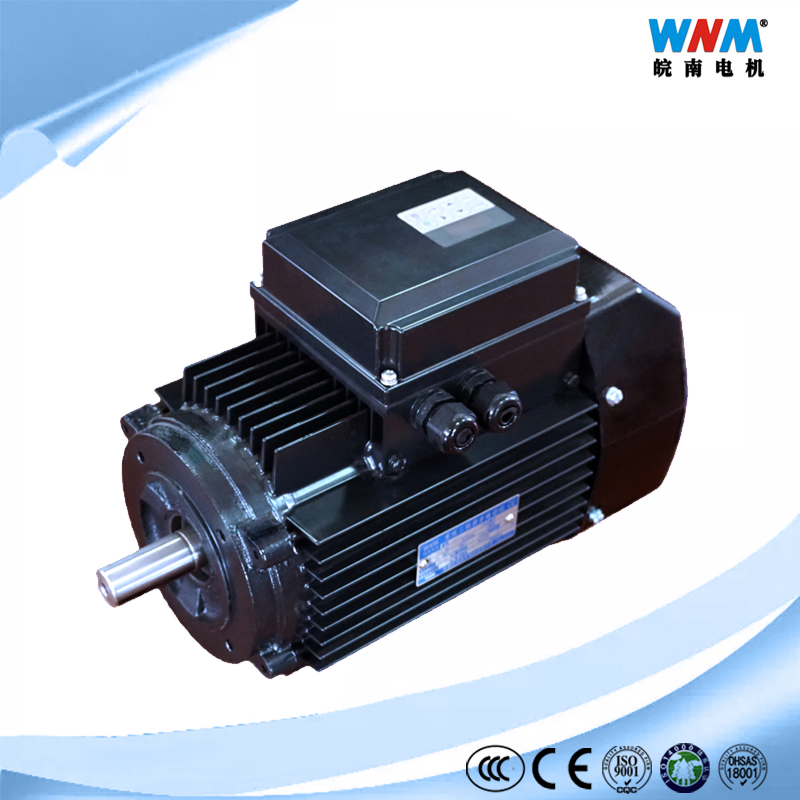

Yzp355L2-8c Voltage 380V Current 314 (288) a Power 160 (140) Kw Speed
Yzp355L2-8c Voltage 380V Current 314 (288) a Power 160 (140) Kw Speed
Yzp355L2-8c Voltage 380V Current 314 (288) a Power 160 (140) Kw Speed
Yzp355L2-8c Voltage 380V Current 314 (288) a Power 160 (140) Kw Speed
Yzp355L2-8c Voltage 380V Current 314 (288) a Power 160 (140) Kw Speed
1 / 5
Yzp355L2-8c Voltage 380V Current 314 (288) a Power 160 (140) Kw Speed
Yzp355L2-8c Voltage 380V Current 314 (288) a Power 160 (140) Kw Speed
Yzp355L2-8c Voltage 380V Current 314 (288) a Power 160 (140) Kw Speed
Yzp355L2-8c Voltage 380V Current 314 (288) a Power 160 (140) Kw Speed
Yzp355L2-8c Voltage 380V Current 314 (288) a Power 160 (140) Kw Speed

Yzp355L2-8c Voltage 380V Current 314 (288) a Power 160 (140) Kw Speed

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
YZP355L2-8C 160kw
Number of Stator
Three-Phase
Function
Driving, Control, Motor
Casing Protection
Closed Type
Number of Poles
4.6.8.10
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC, CE
Frame Size
112mm~400mm
Output
1.5kw~300kw
FC
40%
Duty
S2, S3, S4, S5
Insulation
F, H
Cooling
IC411-Tefc
Protection Degree
IP44/54
Voltage
380V
Frequency
50Hz
Terminal
Top, Left, Right
Frame
Cast Iron
Mounting Type
Foot, Flange
Ambient Temperature
60°c, 1000 M. a.S.L
Transport Package
Carton/Wooden Case/Pallet
Specification
1090*515*605mm
HS Code
8501520000
Production Capacity
1000 PCS/Month
Product Description

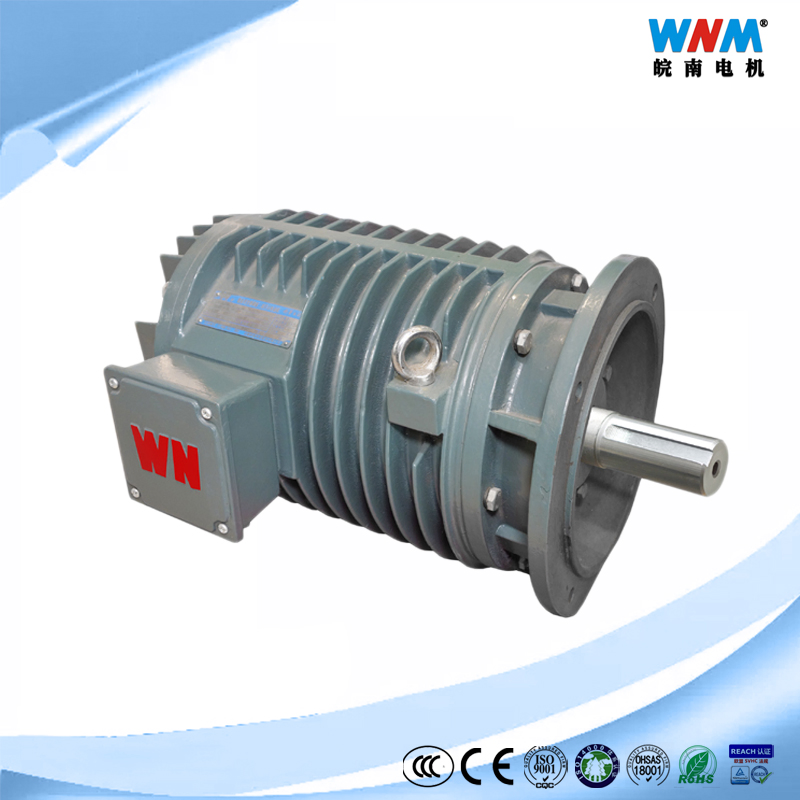

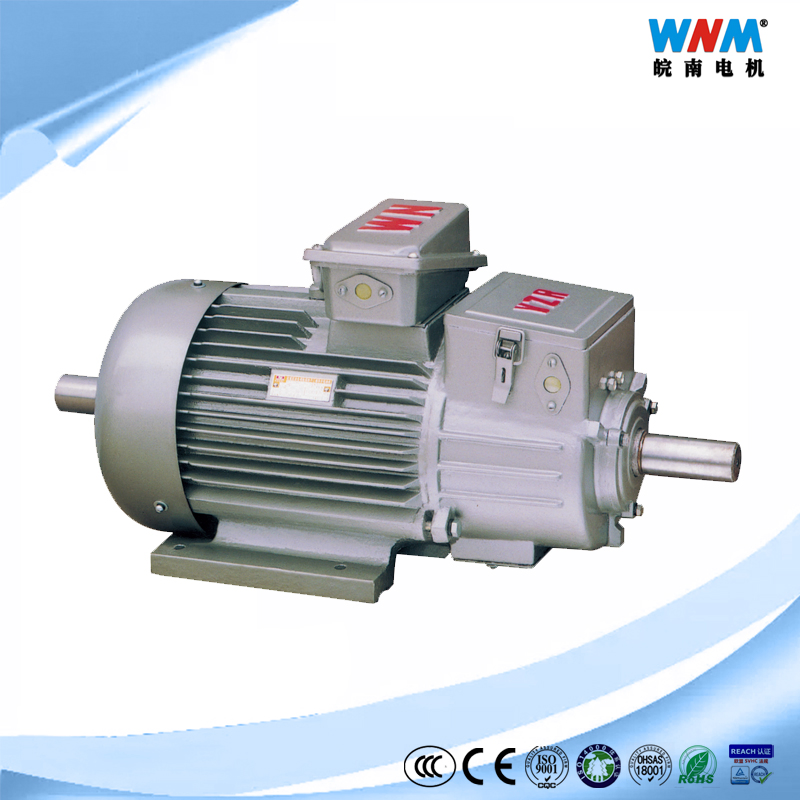

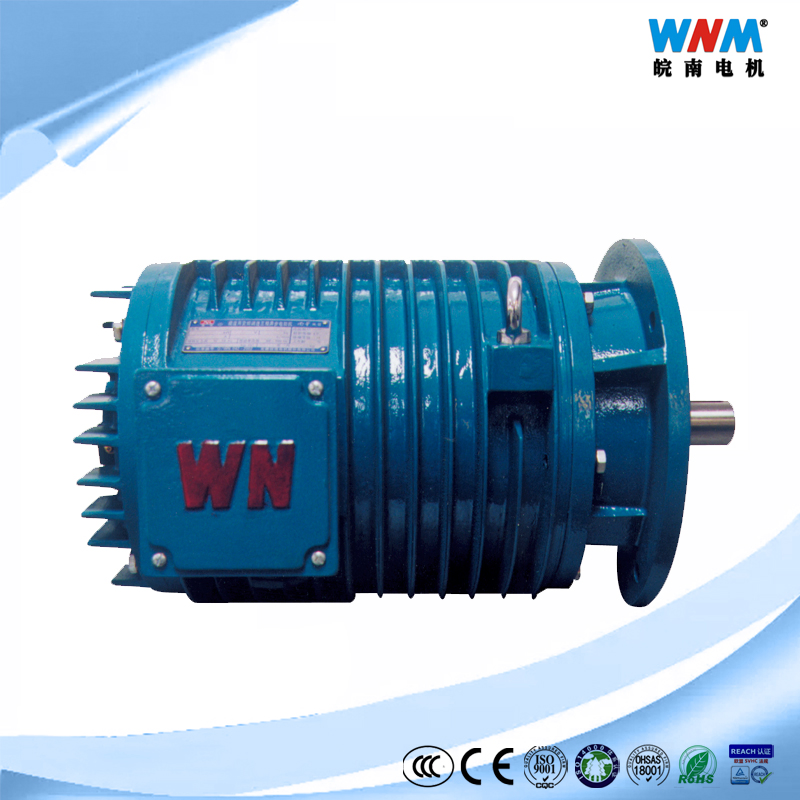

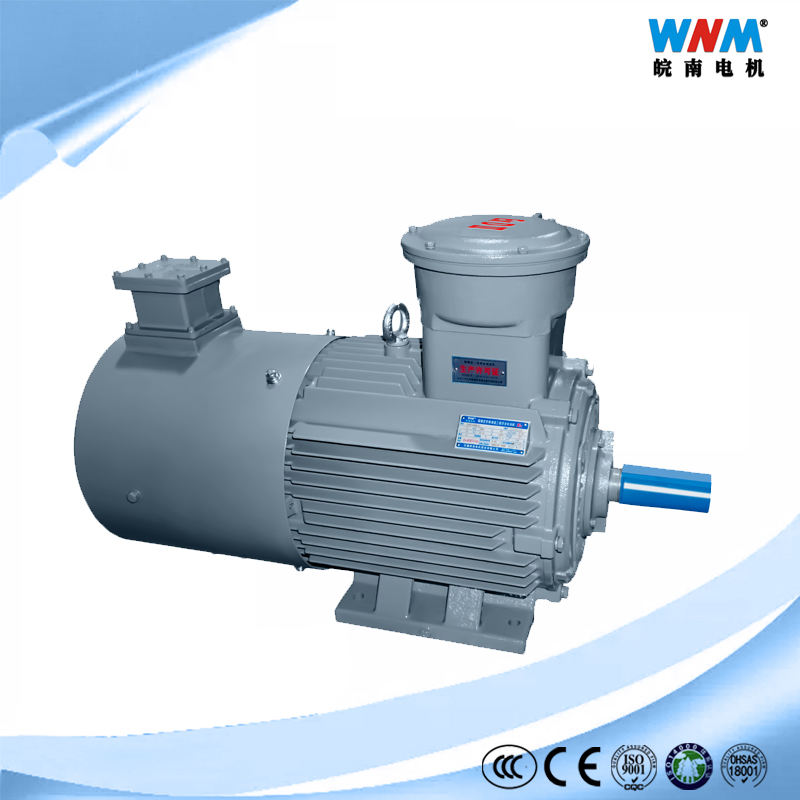

Motor Type YZP355L2-8C | Voltage 380V | Current 314(288) A | Power 160 (140) KW | Speed 741 R/MIN

Applications: Used in the metallurgy and mine industry for driving type crane and similar equipment, especially suit for the instruments which need short-term and intermittent operation, frequent start and brake, overload, and have significant vibration and impact.

General Description

  • Frame sizes: 112 to 400mm
  • Rated output: 1.5 to 300Kw
  • Duty Cycle: S3 / FC: 40%
  • Voltage: 380V / Frequency range: 5-100Hz
  • General environment (40ºC): Insulation class F, IP44
  • Metallurgical environment (60ºC): Insulation class H, IP54
  • Braking mode: Power failure / Semi-wave rectification

Key Features

This motor is equipped with an electromagnetic springs brake, working with A.C. The disk brake features a double braking surface, projected to achieve the highest release and braking precision, maximum braking frequency, and high starting frequency.

  • Good overload capacity and strong mechanical strength
  • Precise Speed Control
  • Prompt Braking System

Optional Features

Electrical: Insulation Class H, Thermal Protection (PTC Thermistor, Thermostat or PT100).
Mechanical: Alternative mountings, Protection Degree (IP55, 56, IP65), Space Heater, Drain Hole.

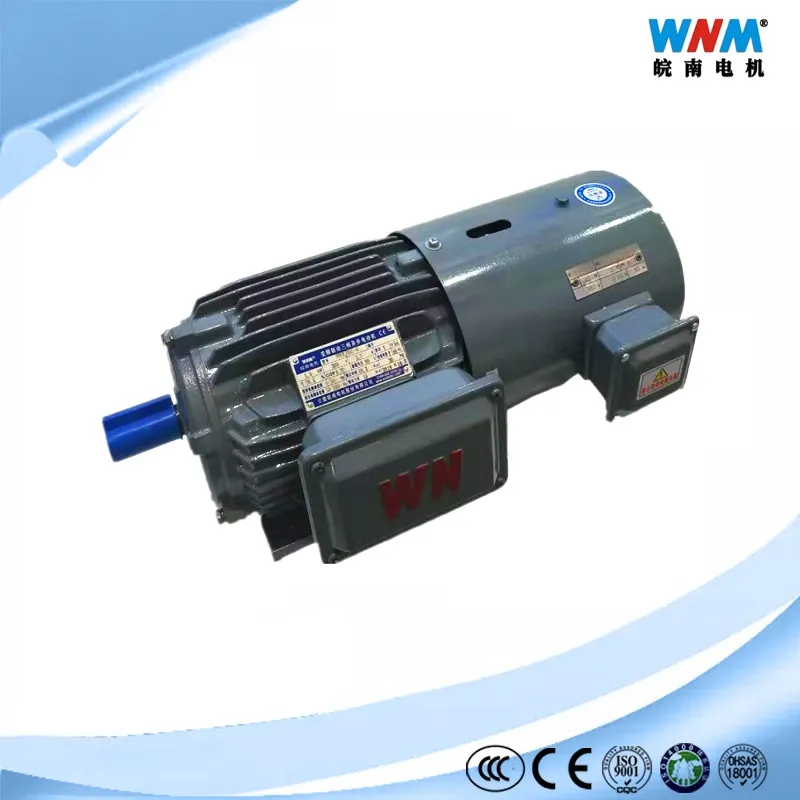

Motor Product Image
Showroom & Workshop
Show Room
Premium Service
Quality Control

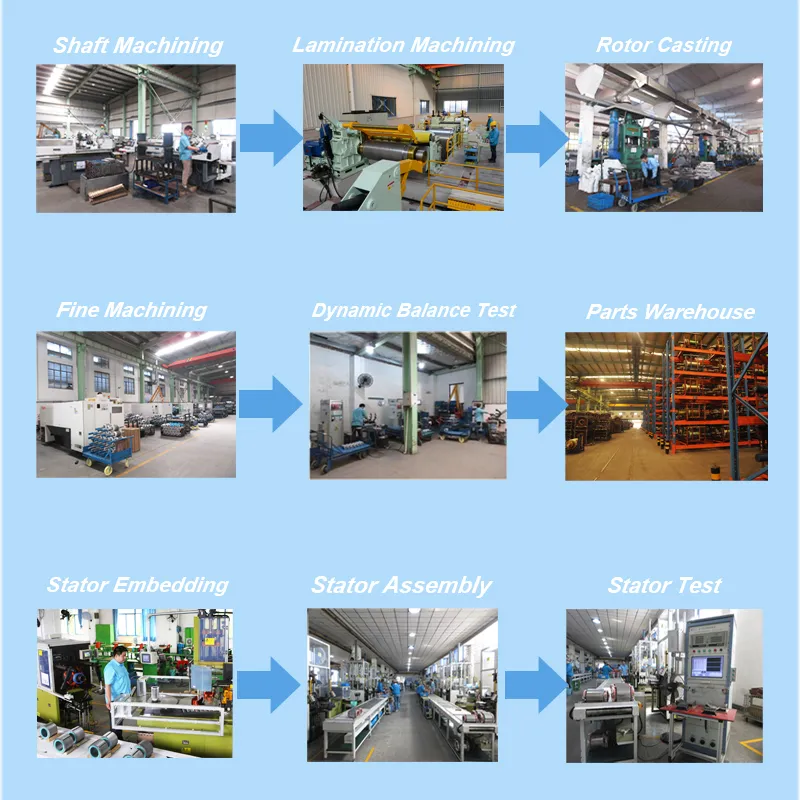

Production Workshop
Production Flow Chart
Frequently Asked Questions
What are the primary applications for the YZP series motor?
These motors are specifically designed for the metallurgy and mining industries, ideally suited for driving cranes and equipment requiring frequent starts, braking, and intermittent operation.
What insulation classes and protection degrees are available?
Standard configurations include Class F with IP44 for general environments (40ºC) and Class H with IP54 for metallurgical environments (60ºC). Higher protection up to IP65 is optional.
Does the motor support variable speed control?
Yes, the motor features a frequency range of 5-100Hz, allowing for precise speed control in various industrial applications.
What type of braking system is used?
It is equipped with an electromagnetic spring brake that operates on A.C. power, providing high braking precision and reliability during power failures.
Can the motor handle significant vibration and overload?
Yes, the YZP series is built with strong mechanical strength and excellent overload capacity specifically to withstand vibration and impact common in heavy industry.
Are thermal protection options available?
Yes, optional electrical features include PTC thermistors, thermostats, or PT100 sensors to monitor and protect against overheating.
